Rigol RP1300H DC-300MHz Oscilloscope Passive Probe

• 100:1 300 MHz TO 2KV PASSIVE PROBE
• Bandwidth DC-300 MHz to 2kV Passive Probe
• Attenuation Ratio: 100:1
• Max. Input voltage CAT|2000V(DC+AC) CAT||1500V(DC+AC)

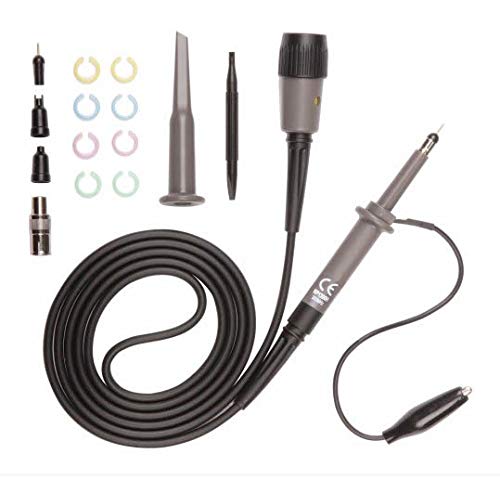

Rigol RP1300H Oscilloscope DC-300MHz Passive High Voltage Probe Accessory Features RP1300H is provided with several accessories designed to make probing and measurement simpler. Please take a moment to familiarize yourself with these accessories and their users. RP1300H is provided with some accessories designed to make probing and measurement simpler. For digital oscilloscopes, the signal under test needs to be connected to the measurement channel via various oscilloscope probes or 50 ohm cables.The Probing is very important to making quality measurements. If the probe performance is not adequate or if you did not select the proper probe for your application, you will see distorted or misleading signals on your oscilloscope. There are two kinds of probes, one is passive probe, another one is active probe. active probe requires power while passive probe does not. For general-purpose measurements(600 MHz), active probes are the way to go. They cost more than passive probe and their input voltage is limited, but because of their significantly lower capacitive loading, they give you more accurate insight into fast signals.

Product Dimensions (L x W x H): 197 x 203 x 21 MM

Product Weight: 0.69 LB
