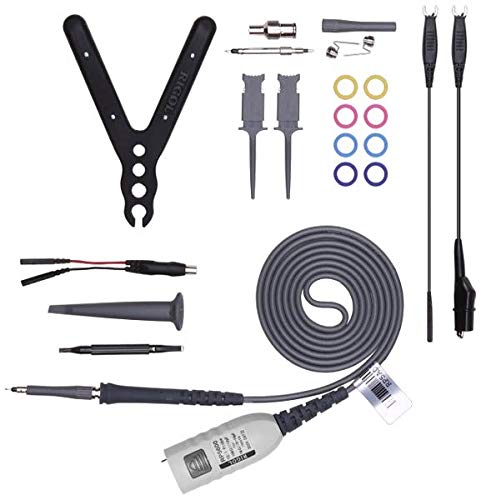

Rigol RP5600A 600 MHz Bandwidth 10:1 Passive Probe Kit

• 600 MHz Bandwidth 10:1 Passive Probe Kit (these ship standard with DS6000 Series Oscilloscopes)
• Up to 600 MHz analog bandwidth
• Precise and tenuous probe tip
• Auto identification of the probe attenuation ratio (when supported by the oscilloscope)
• Firm, durable and retractable normal probe hook

Rigol RP5600A Oscilloscope 600 MHz Passive High Resistance Probe The RIGOL RP5600A passive probe provides up to 600 MHz bandwidth and uses modular structure allowing users to replace the probe tips. The probe has compact structure and uses snap-on BNC connector for easy connection with the oscilloscope. RP5600A must be used with oscilloscopes that have a common terminal at ground potential (complying with OSHA requirements and the National Electric Code). Exposed metal surfaces of the probe and the oscilloscope must be grounded. Failure to ground the common terminal during certain applications, such as those requiring the oscilloscope to be powered from external battery, might expose the operator to an electrical shock hazard that could be lethal (depending on the voltage and current conditions). The probe bracket can facilitate your circuit testing. Users can place the probe on the bracket to spare their hands. As shown in the figures on the next page, insert the probe into the proper hole on the bracket and connect the probe tip to the point to be tested, then place the whole equipment to a proper position.

Product Dimensions (L x W x H): x 76 x MM

Product Weight: 0.35 LB
