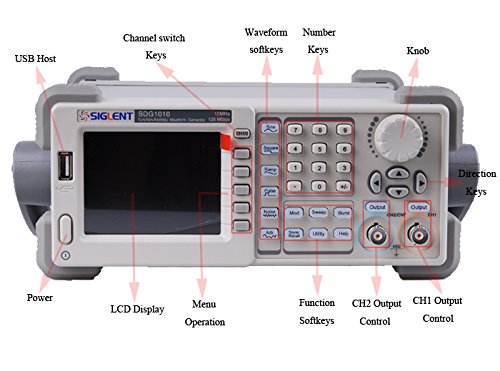

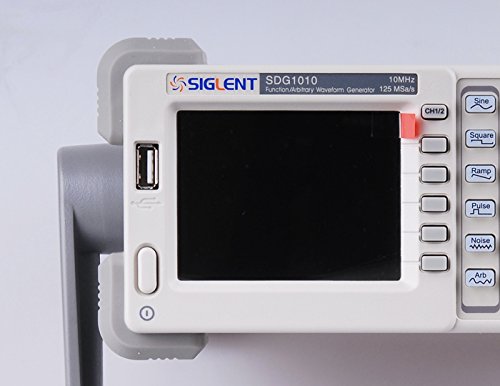

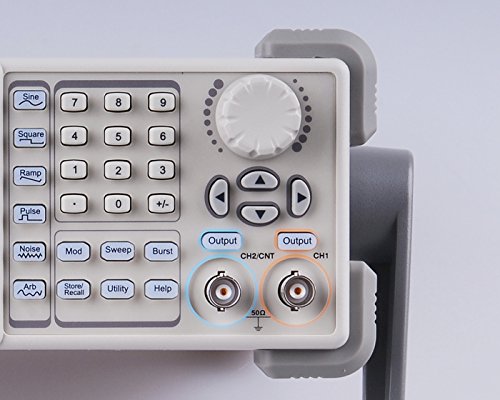

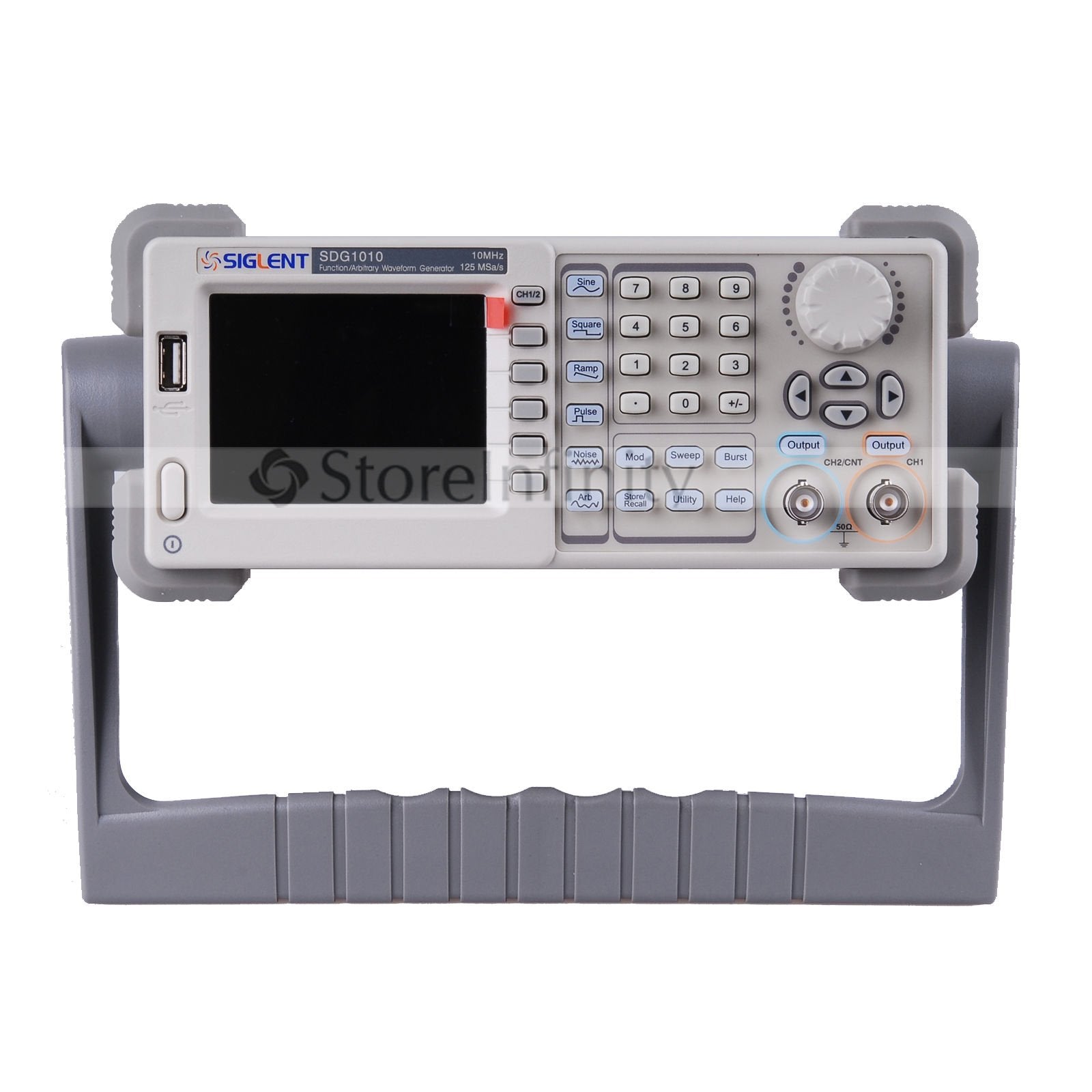

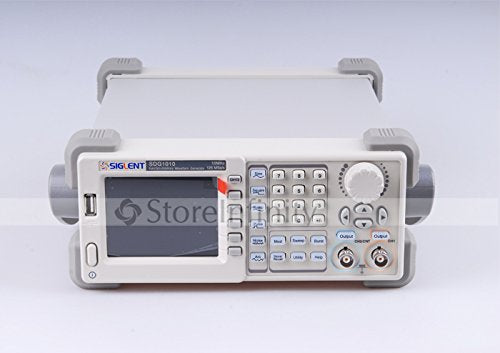

Siglent SDG1010 Function Arbitrary Waveform Generator 10MHz

• Apply DDS technology,provide 2 channels output,phase is adjustable,highest output frequency 10MHz
• 125MSa/s sample rate,14bit vertical resolution,16Kpts wave length;
• Output 5 types of standard waveform,internally installed 48 types of waveform;
• Internally installed high precision,wide frequency is up to 200MHz;
• Abundant modulation connection:USB Device,USB Host,support U Disk storage and software upgrading;

Specifications:

• Highest frequency output:10MHz
• Output channels: 2
• Sample rate:125MSa/s
• Wave length:16Kpts
• Frequency resolution:1µHz
• Vertical resolution:14bits
• Waveform:Sine wave,square wave,triangular wave,pulse wave white noise,48 types of function waveform.
• Sine wave:1µHz~10MHz
• Square wave:1µHz~10MHz
• Pulse:500µHz~5MHz
• Ramp:1µHz~300KHz
• Gaussian white noise:>10MHz bandwidth(-3dB)
• Wave:1µHz~5MHz
• Modulation function:AM,DSB-AM,FM,PM,ASK,FSK,PWM ,SWEEP,BURST
• Other function:Frequency counter: 100mHz~200MHz

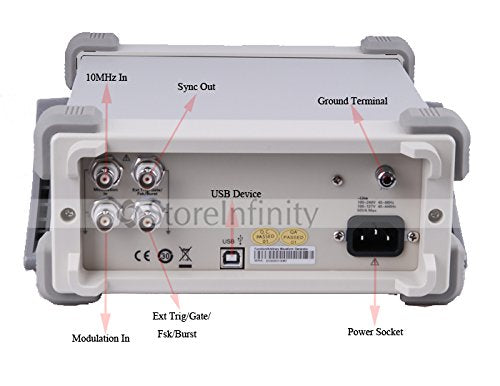

• Standard configuration:USB Host & Device
• Optional port:USB-GPIB(IEEE-488)
• SIZE:WxHxD=229mmx105mmx281mm

Applications:

1. IC test
2. Analog sensor
3. Simulated environment signals Electrical circuit function test Education and training

Standard Accessories:

1. A User Manual
2. A Certification
3. A Guaranty Card
4. A CD (including EasyWave 1.0 computer software system)
5. A Power Cord that fits the standard of destination country
6. A USB Cable
7. A Quick Start


Product Dimensions (L x W x H): 335 x x 188

Product Weight: 1.85 LB
