- Advanced DDS technology, 125MSa/s sampling rate, 14bit vertical resolution
- Single channel output, 5 types of standard waveforms, built-in 46 kinds of arbitrary waveforms (including DC)
- Complete modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep, and burst
- Innovative EasyPulse technology, can output pulses with low jitter and quick rising/falling edges

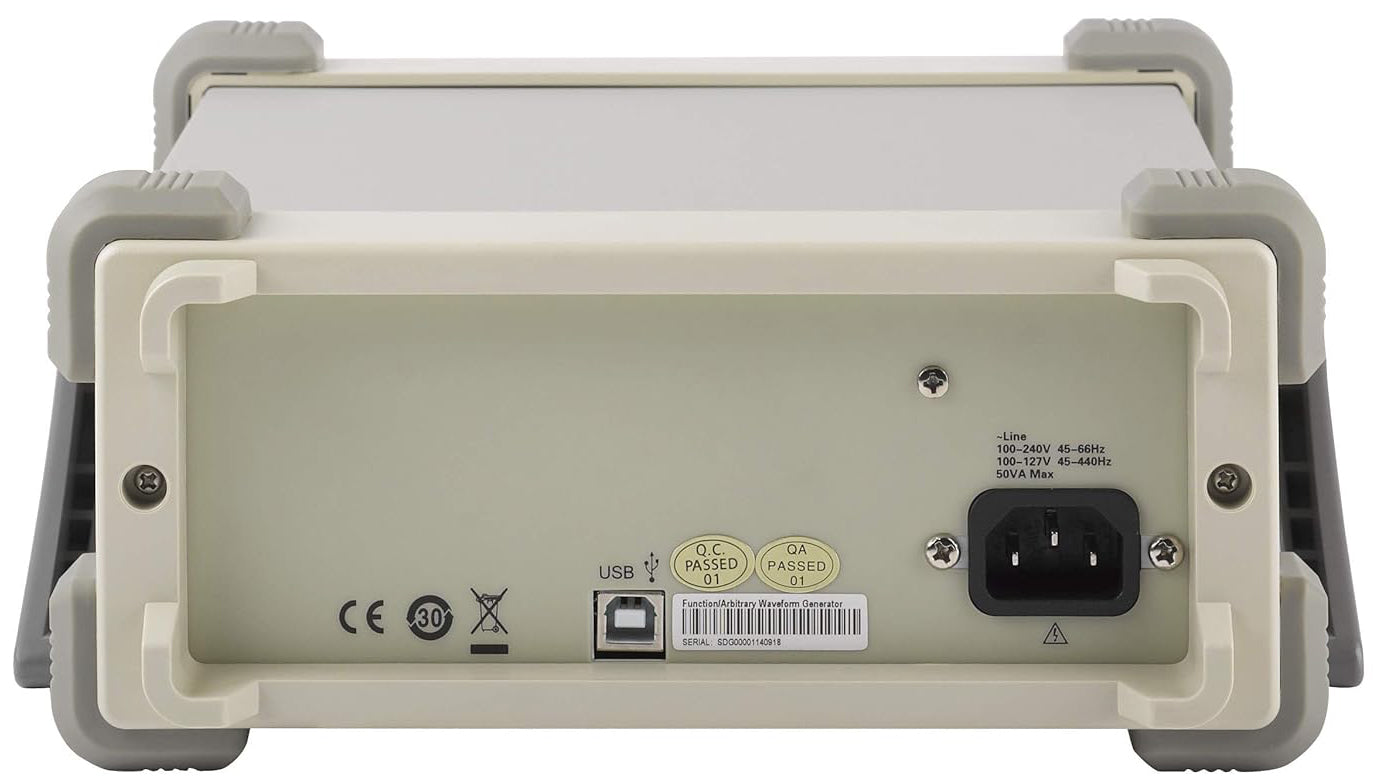

- Standard interfaces: USB Device, USB Host, support U-Disk storage
- Provides 10 nonvolatile storage spaces for user’s arbitrary waveforms
- Can be seamlessly connected to SIGLENT Digital Storage Oscilloscope
- Configurable with powerful arbitrary waveform editing software EasyWave

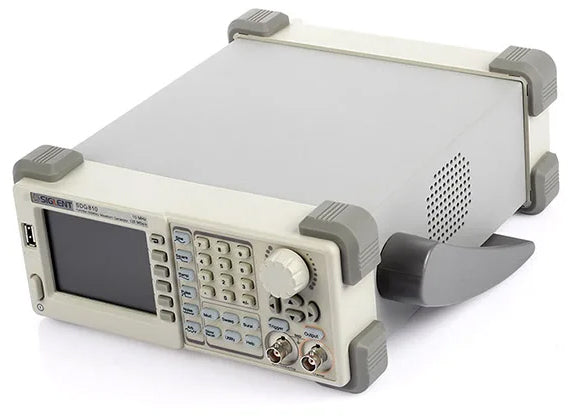

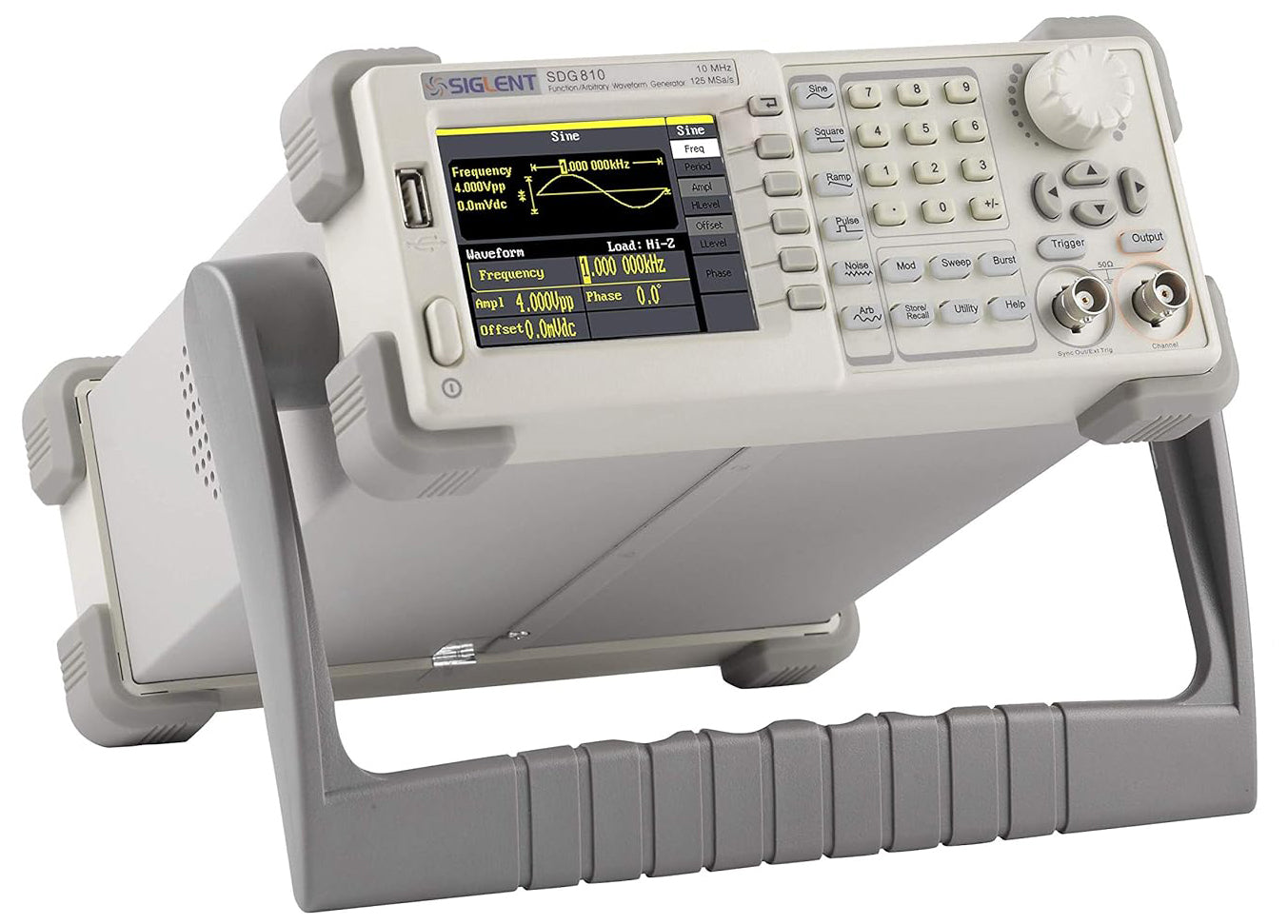

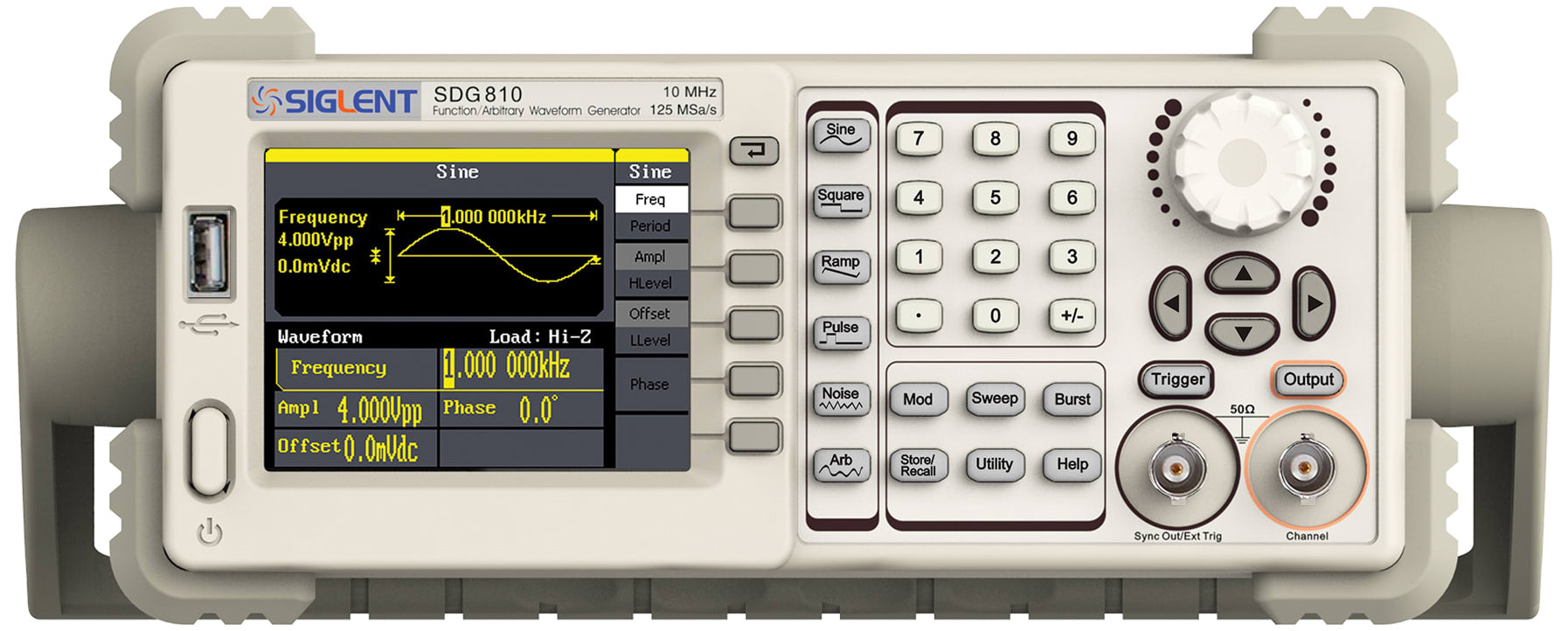

The SDG800 series function/arbitrary waveform generator family outputs waveform functions up to up to 5 MHz (pulse), 10 MHz (square), 30 MHz (sine) and has a sampling rate of 125 MSa/s. They are powered with SIGLENT’s EasyPulse technology which produces low jitter, fast rising/falling edges without being affected by frequency, even at low duty cycle settings, allowing the user a wide range of pulse widths and transition times. This results in a much more versatile generator than other similar DDS designs.
