- 100mhz, two-channel Digital oscilloscope for electronics applications such as product design, assembly lines, repair and servicing, and electrical engineering education
- Maximum real-time sample rate of 1GS/s and record length of 1Mpts (single channel)
- New version of the SDS1102CML+ includes improved higher resolution display
- Cursors, math, automatic measurements, built-in frequency counter
- USB and LAN interfaces. Comes with easy scope software.

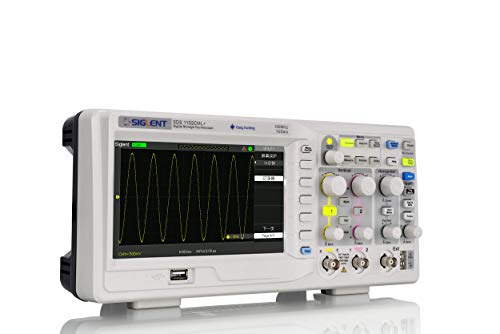

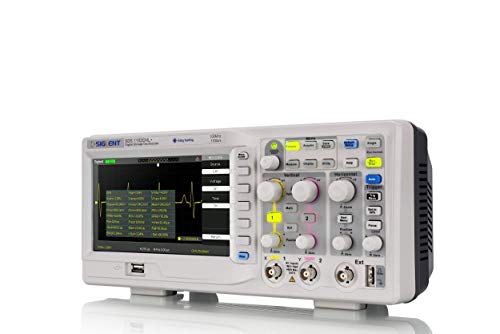

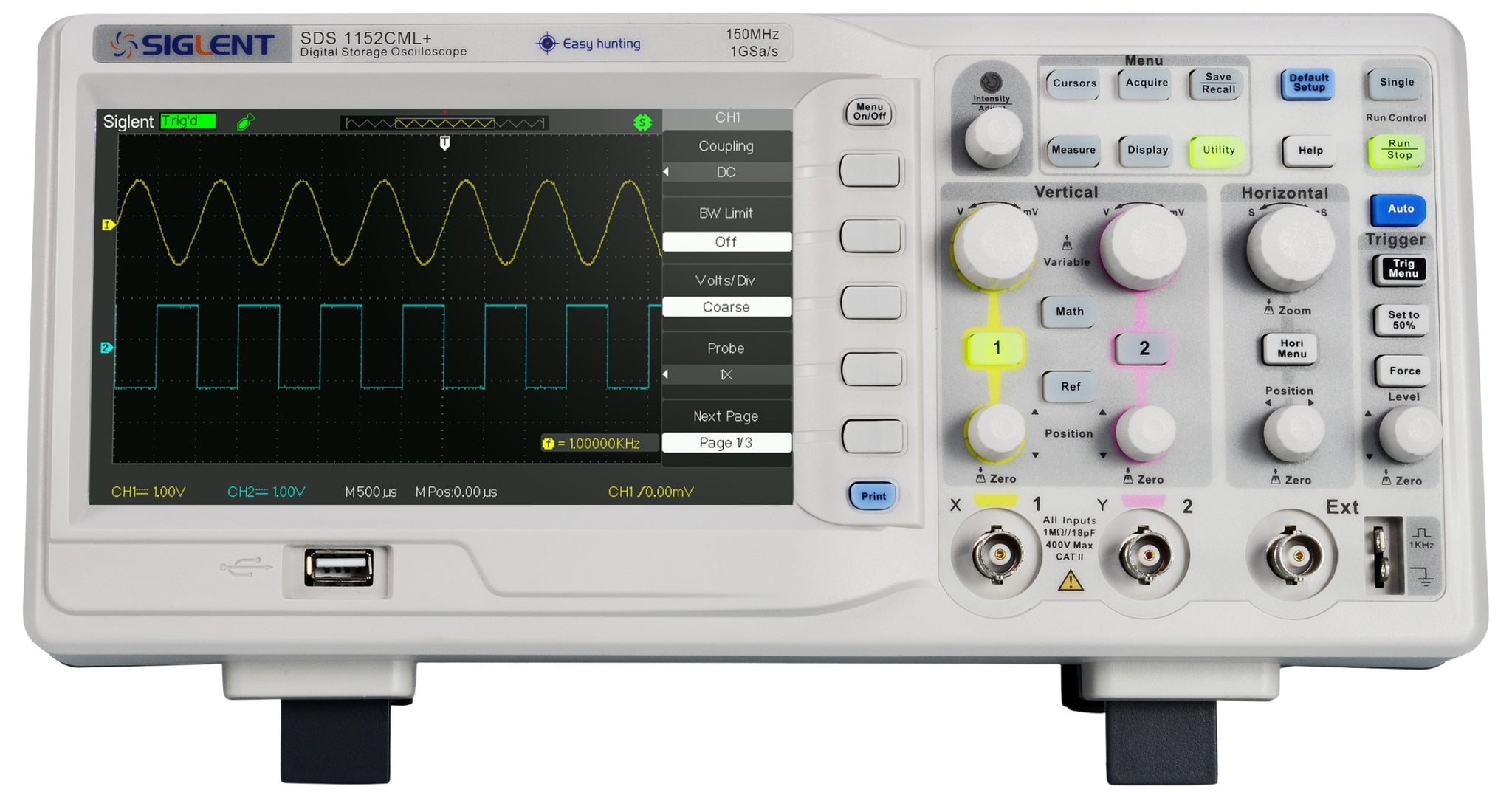

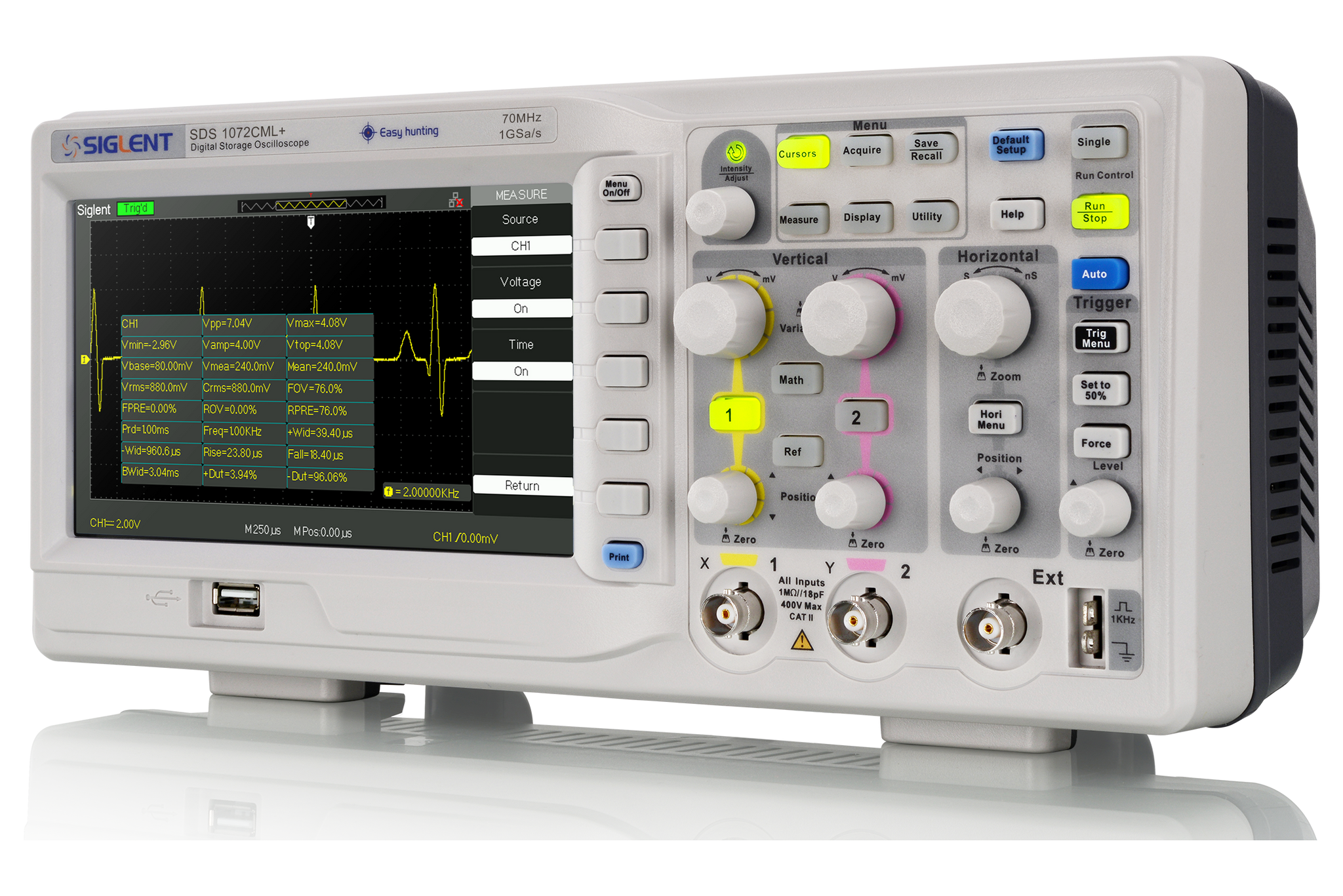

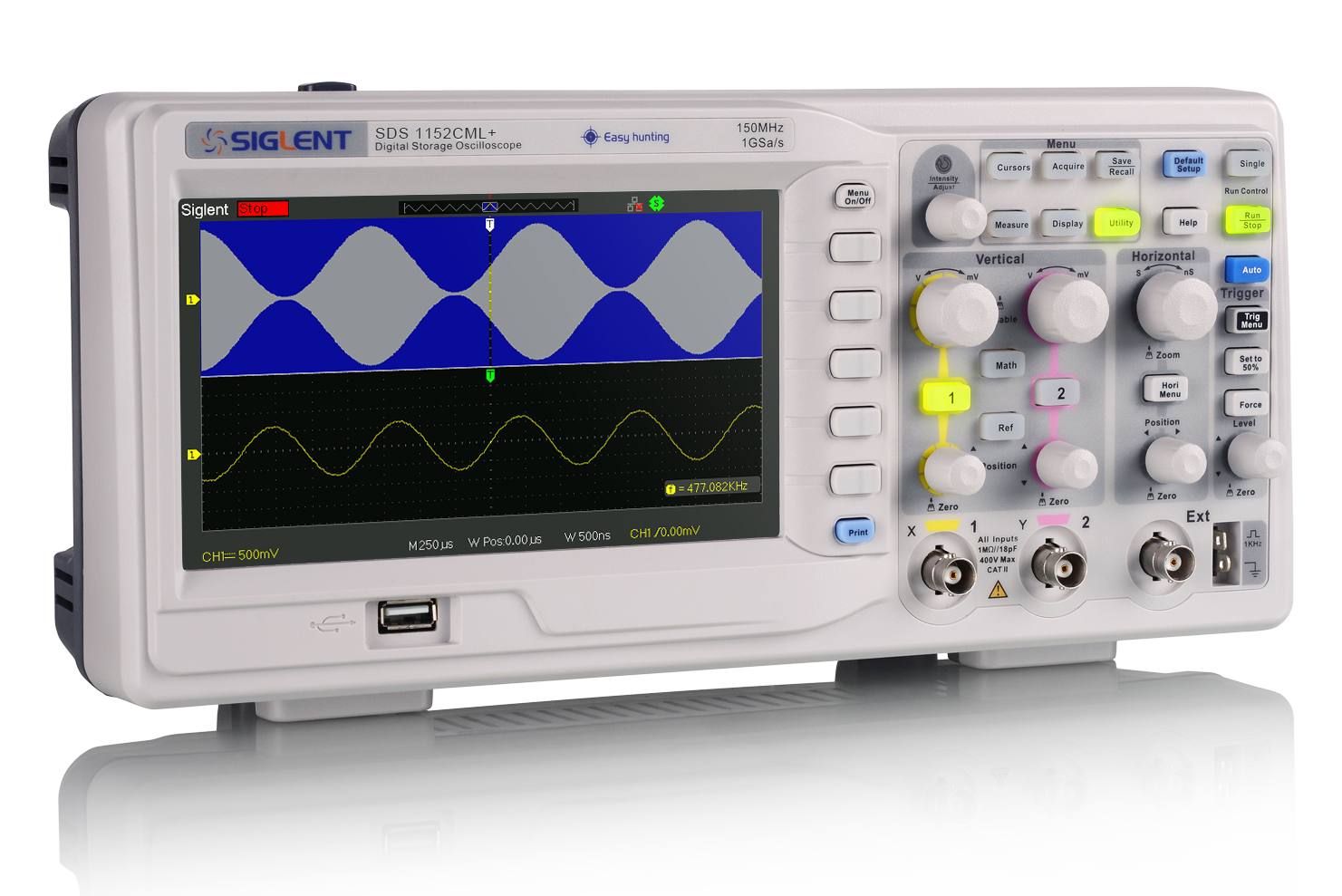

The SDS1102CML+ is a dual-channel 100 MHz universal digital oscilloscope. It includes a 2 Mpts memory depth that helps to ensure accurate waveform resolution and to capture longer signal lengths. With its 7 inch TFT-LCD (800*480) screen, there is adequate screen space to help better see and analyze waveform details. Along with a 1 GSa/s sampling rate, the SDS1102CML+ supports 32 parameters measurements and common mathematical operations to speed up complex / repetitive measurements.
Key Features:
100 MHz bandwidth.
Real-time sampling rate up to 1 GSa/s, Equivalent-time sampling rate up to 50 GSa/s.
Memory Depth up to 2 Mpts.
Trigger types: Edge, Pulse, Video, Slope, Alternate.

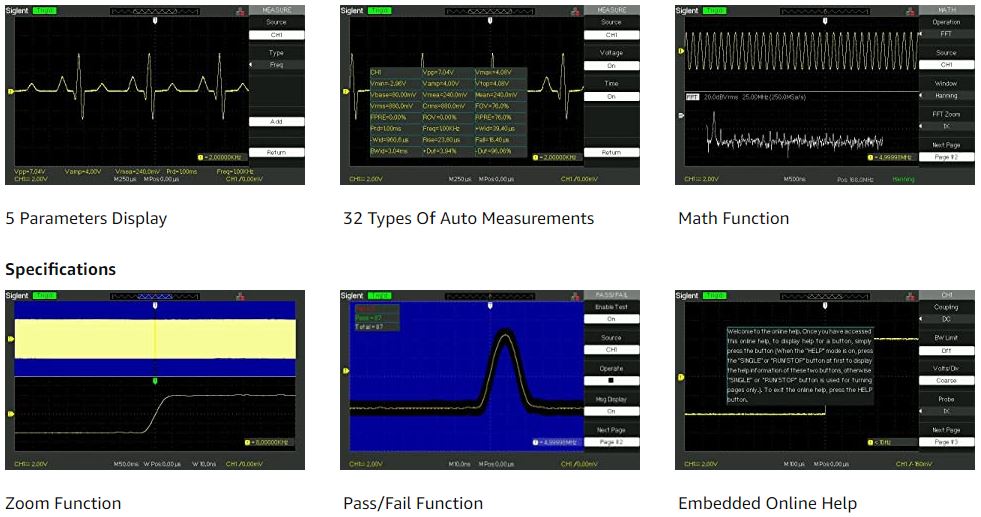

Waveform math functions:+, -, *, /, FFT.
6 digital frequency counter.
Supports Multi-language display and embedded online help.
Screensaver from 1 minute to 5 hours.
Digital filter and waveform recorder function.
7 inch TFT-LCD display with 800 * 480 resolution.

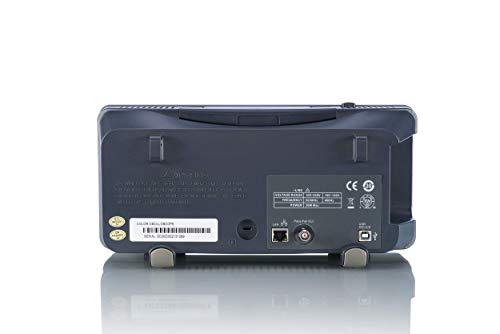

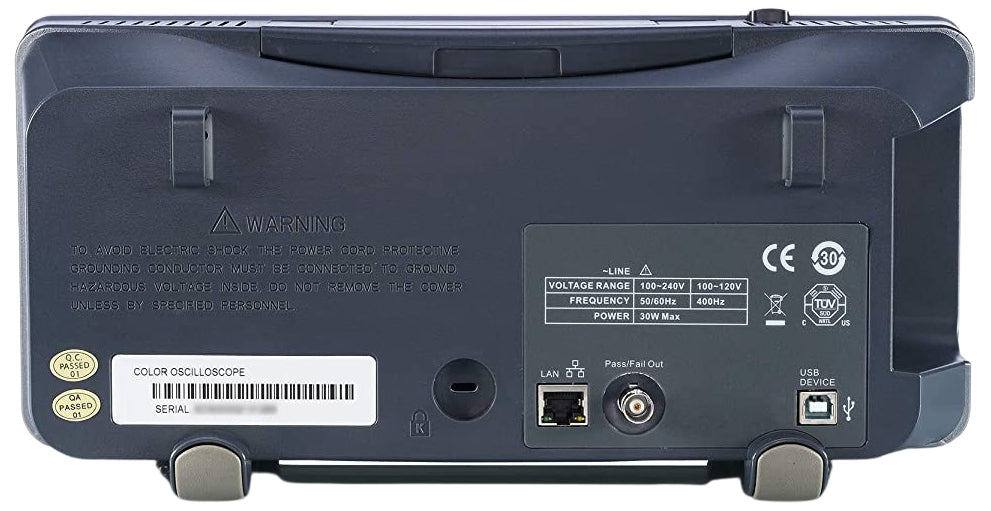

Multiple interfaces: USB Host, USB Device (USBTMC), LAN (VXI- 11), Pass / Fail.
Shortcut storage function key.
