Siglent Display Bench-Top Oscilloscope, PLUS FREE MULTIMETER. Bundle Pack - Siglent SDS1102CML & Mastech MS8268

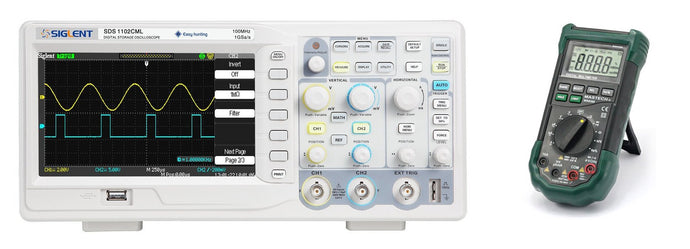

• Siglent SDS1102CML Oscilloscope & Mastech MS8268 Multimeter
• Bundle Pack

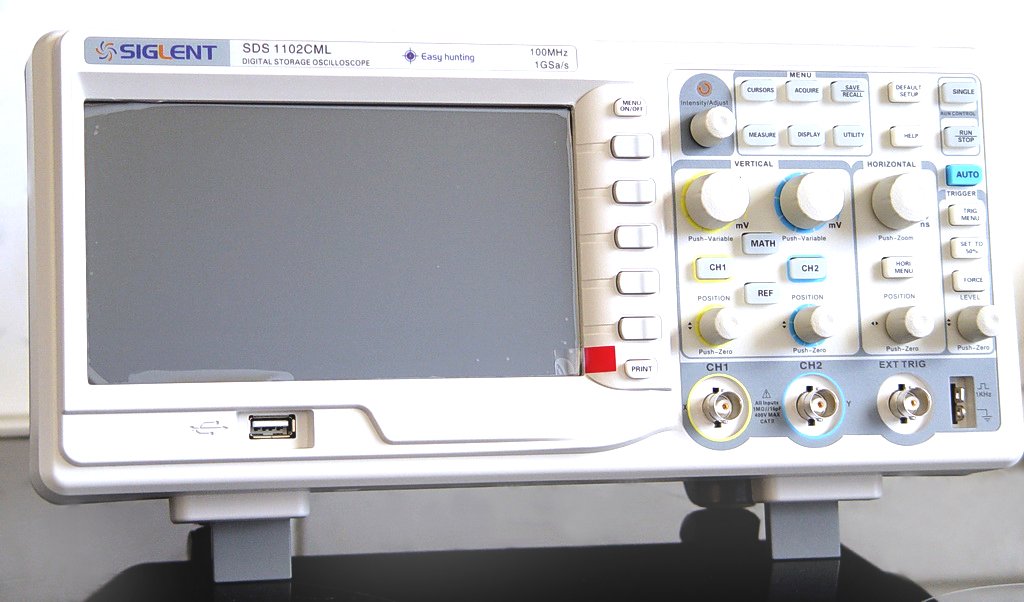

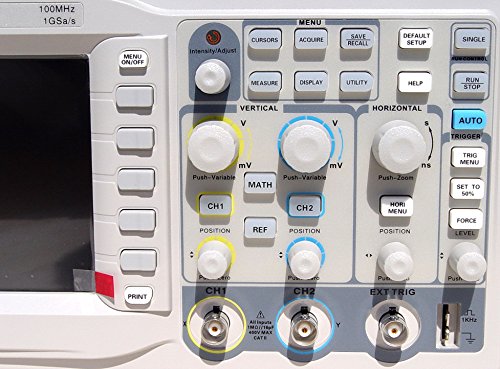

Siglent SDS1102CML Oscilloscope Specifications: Rise time: < 3.5ns Input impedance: 1MÎII17pF Vertical sensitivity: 2mV-10V/div Vertical resolution: 8bit * Trigger source: CH1, CH2, Ext, Ext/5, AC Line * Trigger types: Edge, Pulse, Video, Slope, Alternativ Math Operation: +, -, Ã-, ÷, FFT * Digital filter: High pass, Low pass, Band pass, Band Stop * Max input voltage: ±400V (DC+AC Pk-Pk), CAT I, CAT II * Internal storage: 2 groups of reference waveform, 20 groups of setting, 10 groups of waveform * External storage: Bitmap save, CSV save, Waveform save, Setting save * Language: English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic * Interface: USB Host, USB Device, RS-232, Pass/Fail out * Display: 7 inches(178mm) color TFT(480*234) LCD * Power: AC 100-240V, 45Hz-440Hz, 50VA Max. Mastech MS8268 Specs: Auto and Manual Ranging with Relative measurement (all ranges except frequency) Auto power off (could be disabled) & Blue LED Back-lit LCD display AC/DC 1000V/10A 200KHz 200uF 40Mohm Relative Measurement hFE Diode Check Continuity LED / Sound Warning when incorrect banana jacks are used relative to function switch setting

Product Dimensions (L x W x H): x 216 x MM

Product Weight: 3.3 LB
