- 100Mhz, 4 channels, 1Gsa/use, 1Mpts fft
- Standard decoder: iic, spi, uart/Rs232, can, lin
- 16 digital channels (mso) (four channel series only, option)
- USB AWG module(four channel series only, option)
- USB WIFI adapter(four channel series only, option)

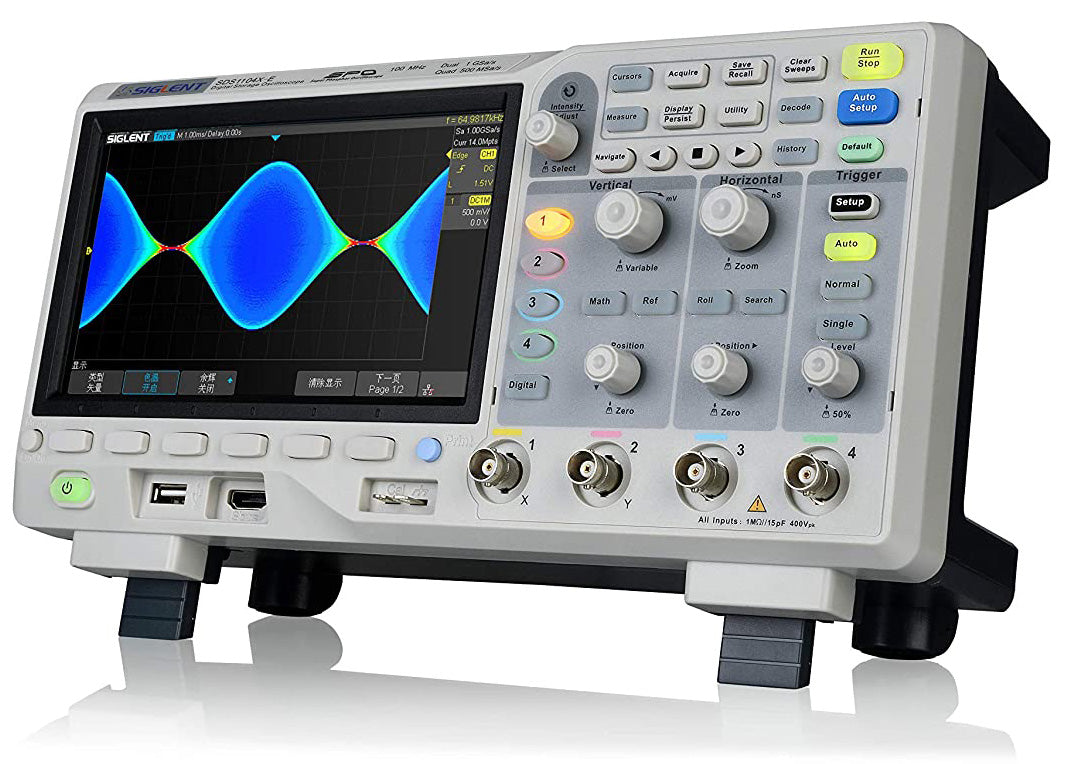

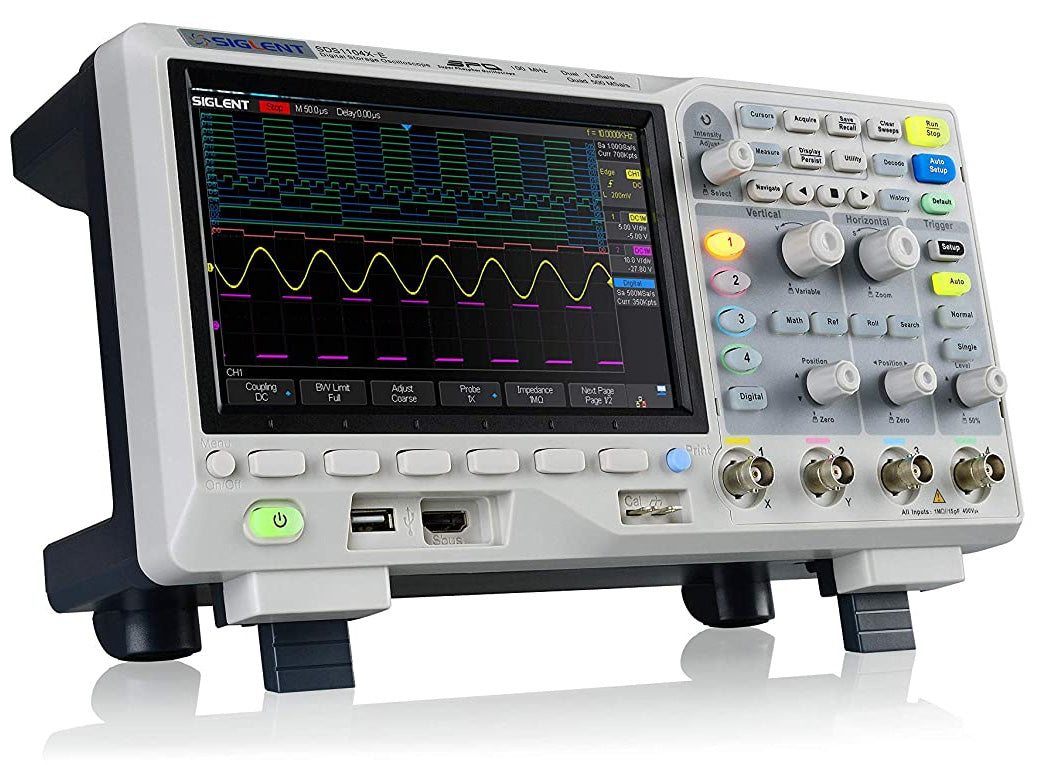

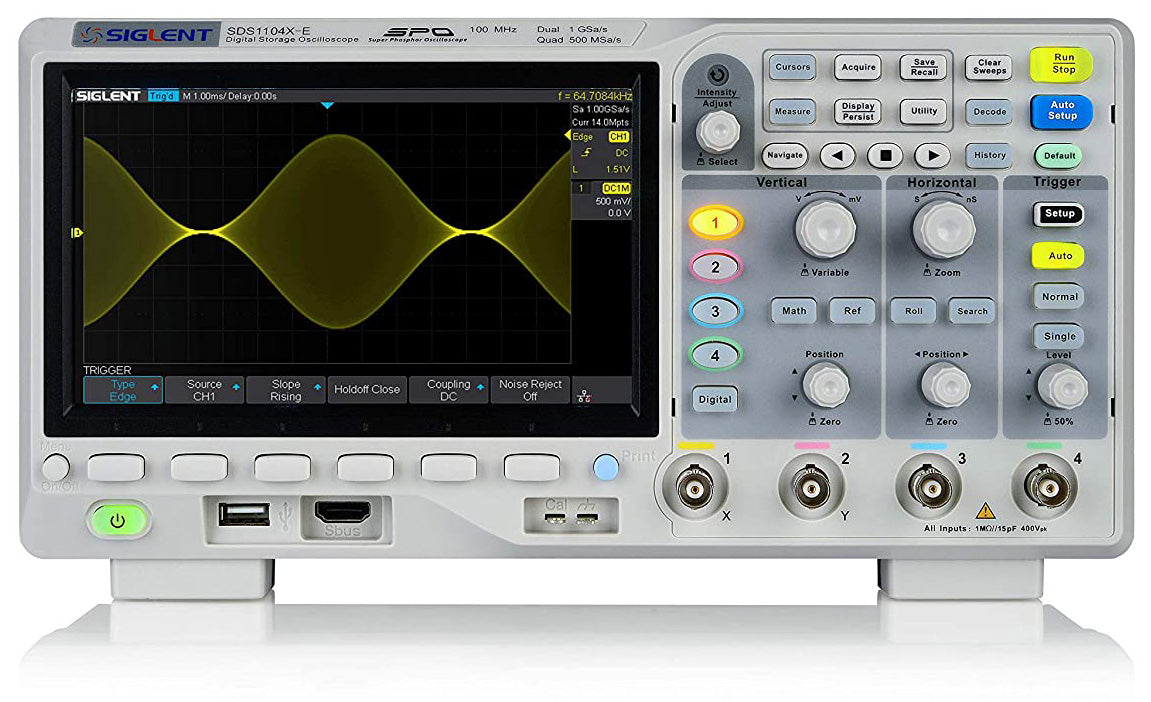

The SDS1000X-E series employs a new generation of SPO (Super-Phosphor Oscilloscope) technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It comes with a minimum vertical input range of 500 uV/divan innovative digital trigger system with high sensitivity and low jitter, and waveform capture rate of 400,000 frames/sec (sequence mode). The SDS1000X -E also employs a 256 -level intensity grading display function and a color temperature display mode not found in other models in this class. SIGLENT’s latest oscilloscope offering supports multiple powerful triggering modes including serial bus triggering. Serial bus decoding forIIC,SPI,UART,CAN,LIN bus types is included. The X-E models also include History waveform recording, and sequential triggering that enable extended waveform recording and analysis. Another powerful addition is the new1million point FFT math function that gives the SDS1000X -E very high frequency resolution when observing signal spectra. The new digital design also includes a hardware co -processor that delivers measurements quickly and accurately without slowing acquisition and front-panel response. The features and performance of SIGLENT’s new SDS1000X -E cannot be matched anywhere else in this price class. The four channel series includes even more functions, including: searching and navigating, on-screen Bode plot, 16 digital channels(Option), an externals powered 25 MHz AWG module(Option), a USB WIFI adapter(Option),and an embedded application that allows remote control via web browser.
Weight: 12 lbs
Dimensions: 17 × 10 × 15 in
- 100 MHz Bandwidth
- 1 GSa/s Real-Time Sampling Rate (Total of 2 A-D converters)
- 14 MPts Waveform Memory
- 500 uV/div Sensitivity
- Maximum waveoform capture rate: 100,000 frames / second (Standard mode),
- 400,000 frames / sec (Sequence mode)
- Serial bus decode & trigger: standard
- Digital trigger provides low jitter
- Intensity-Graded display / Color-Temperature display mode
- Video triggering / HDTV
- Cursors Measurement functions

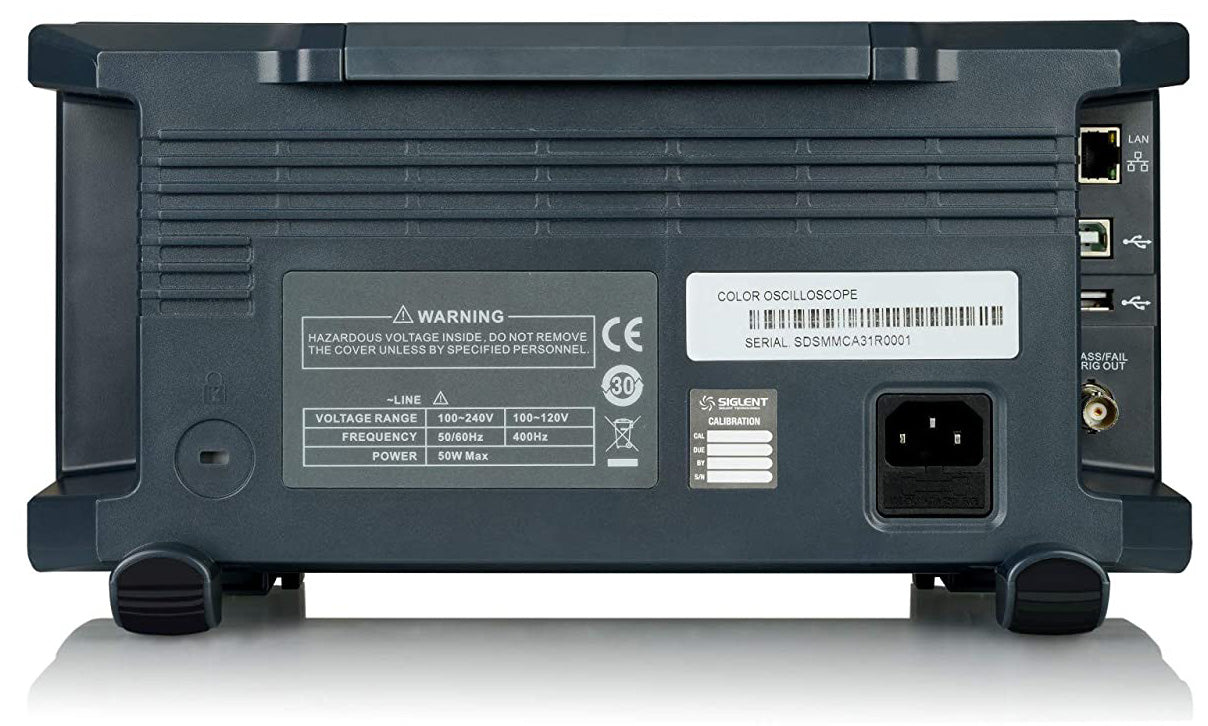

- USB and LAN interfaces
- 7″ (diagonal) display
- Sequence trigger mode
- History function
- Secure erase feature
- Optional MSO capability
- Bode Plot function (Requires SIGLENT SDG X or SAG1021 function generator)
- Optional Wi-Fi dongle
- Web-based browser remote control interface
- Search and Navigate keys
