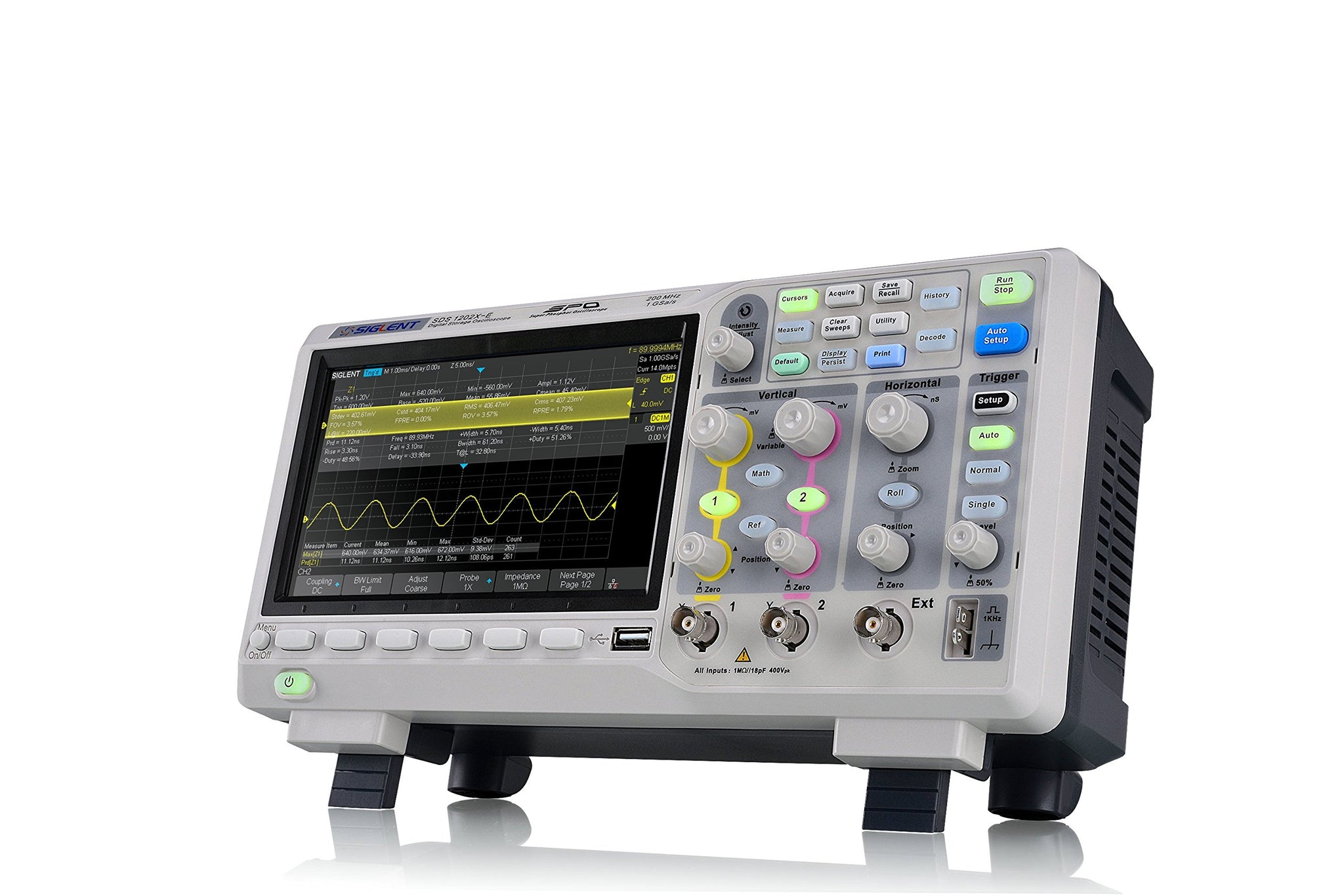

Siglent Technologies 200 MHz Digital Oscilloscope, 2 Channels (SDS1202X-E)

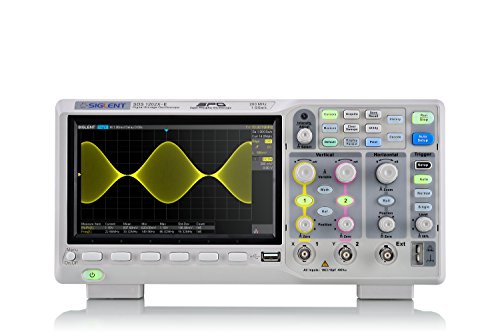

Siglent Technologies 200 MHz Digital Oscilloscope, 2 Channels (SDS1202X-E)

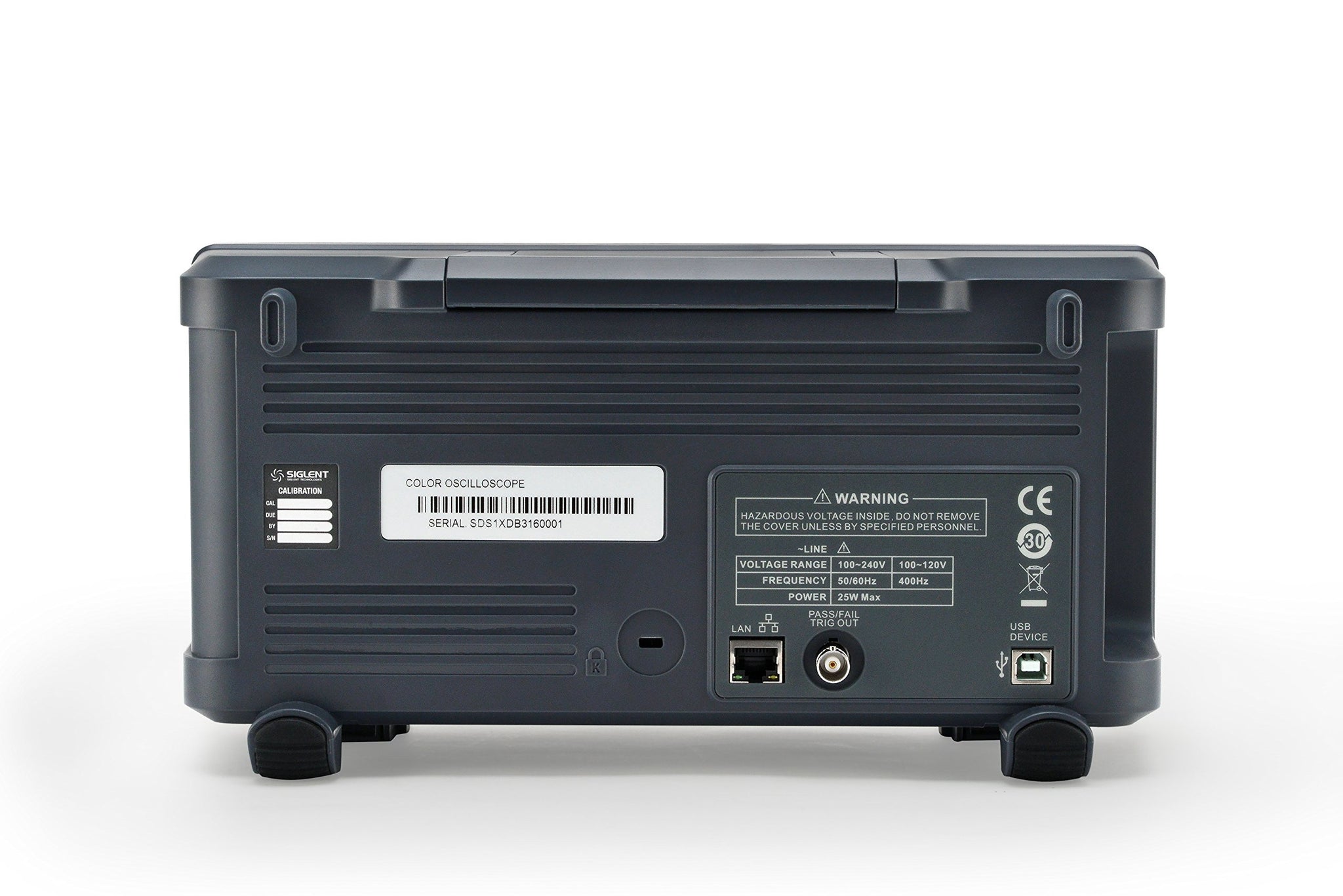

Siglent Technologies 200 MHz Digital Oscilloscope, 2 Channels (SDS1202X-E)

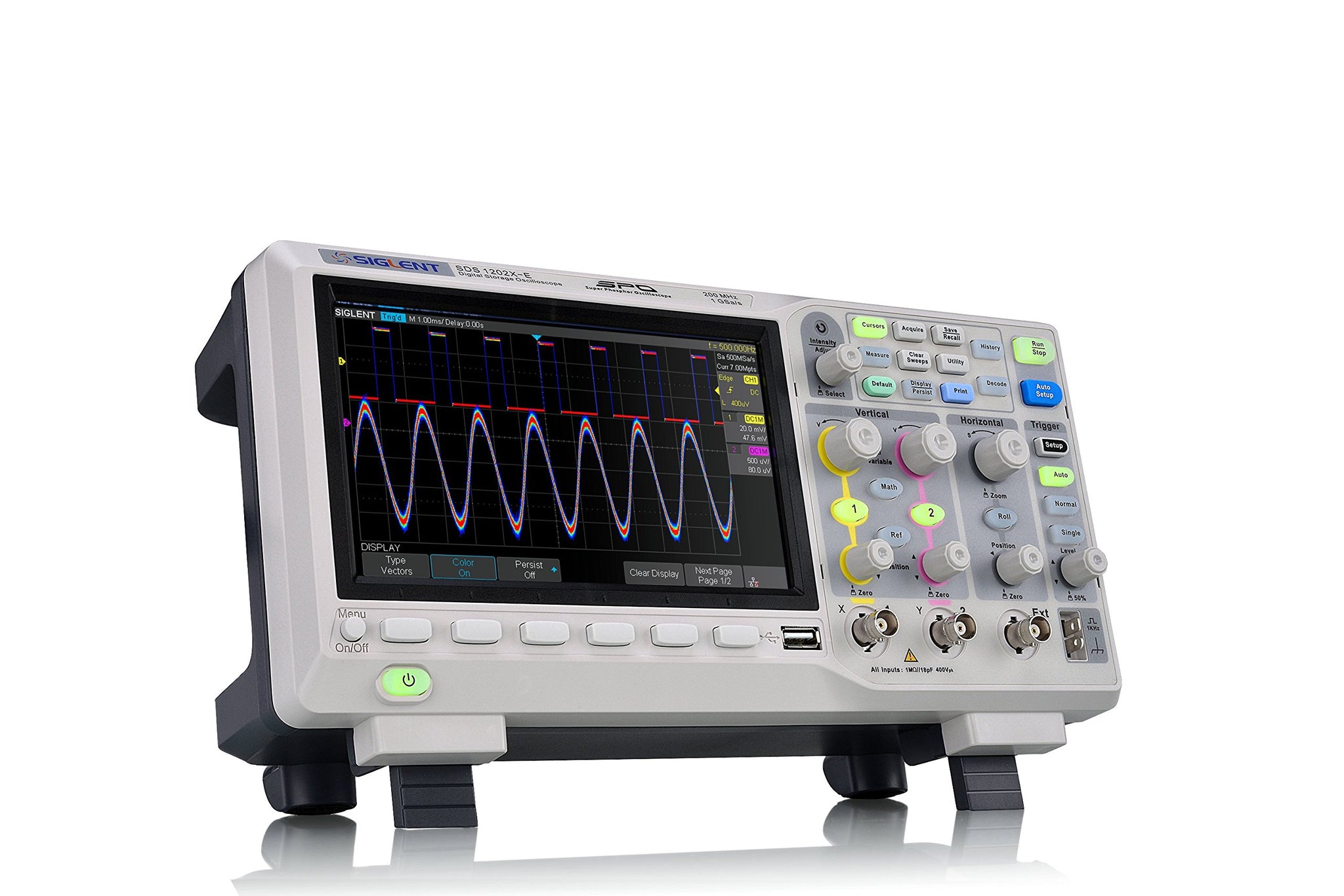

Siglent Technologies 200 MHz Digital Oscilloscope, 2 Channels (SDS1202X-E)
  • Load image into Gallery viewer, Siglent Technologies 200 MHz Digital Oscilloscope, 2 Channels (SDS1202X-E)
  • Load image into Gallery viewer, Siglent Technologies 200 MHz Digital Oscilloscope, 2 Channels (SDS1202X-E)
  • Load image into Gallery viewer, Siglent Technologies 200 MHz Digital Oscilloscope, 2 Channels (SDS1202X-E)
  • Load image into Gallery viewer, Siglent Technologies 200 MHz Digital Oscilloscope, 2 Channels (SDS1202X-E)

Siglent Technologies 200 MHz Digital Oscilloscope, 2 Channels (SDS1202X-E)

01SDS1202X-E
Regular price
$379.00
Sale price
$379.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Bandwidth: 200 MHz
  • Channels: 2
  • Real time sampling rate: 1 GSa/s
  • Maximum capture rate: (100,000 in Normal mode, 400,000 in Sequence mode)
  • Memory depth: 14 Mpts

Siglent’s SDS1202X-E Digital Oscilloscope breaks yet another performance-to-price barrier! With features not available in most oscilloscopes at twice this price, it offers a higher bandwidth, processing speed, and FFT resolution than other scopes in this class.

The SDS1202X-E oscilloscope employs a new generation of SPO technology that provides excellent signal fidelity and performance. The system noise is also lower than similar products in the industry. It has a minimum vertical input range of 500 uV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of up to 400,000 frames / second (sequence mode). It also employs a 256-level intensity grading display and a color-temperature mode not found in other oscilloscopes in this class.

Serial bus trigger / decode comes standard.

With a waveform memory of 14 MB, the FFT function contains an impressive 1 MPts.

1

2

3

4

Gate and Zoom Measurement

Through Gate and Zoom measurement, the user can specify an arbitrary interval of waveform data analysis and statistics. This helps avoid measurement errors that can be caused by invalid or extraneous data, greatly enhancing the measurements’ validity and flexibility.

Hardware-Based High Speed Pass/ Fail Function

The SDS1000X-E utilizes a hardware-based Pass/Fail function, performing up to 40,000 Pass / Fail decisions each second. Easily generate user defined test templates provide trace mask comparison making it suitable for long-term signal monitoring or automated production line testing.

1Mpts FFT

The new math co-processor enables FFT analysis of incoming signals using up to 1 M samples per waveform. This provides high frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs. Four-channel series support Peaks, Markers, a variety of numbers.

History Waveforms (History) Mode and Segmented Acquisition (Sequence)

Playback the latest triggered events using the history function.Segmented memory collection will store trigger events into multiple (Up to 80,000) memory segments, each segment will store riggered waveforms and timestamp of each frame.


5


8

Serial Bus Decoding Function (Standard)

SDS1000X-E displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format.
