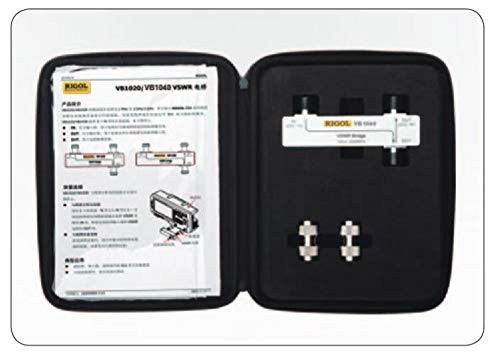

Rigol VB1080 VSWR Bridge with VSWR-DSA80

• VSWR Bridge and DSA800-VSWR software for Rigol Spectrum Analyzers. The VB1080''s range is from 2-8 GHz.
• For DSA875-TG and DSA875
• VSWR Bridge with VSWR-DSA80
• 2 GHz to 8 GHz
• Combination with the RIGOL DSA series spectrum analyzer to measure S11-related parameters

Rigol VB1080 VSWR Bridge Rigol VB1080 VSWR Bridge x VSWR Bridge with VSWR-DSA80 2 GHz to 8 GHz Combination with the RIGOL DSA series spectrum analyzer to measure S11-related parameters Provides three N (Female) connectorsVB1080 VSWR BridgeVB1080 is used in combination with the RIGOL DSA series spectrum analyzer to measure S11-related parameters (such as return loss, reflection coefficient and VSWR). VB1080 provides three N (Female) connectors as shown in the figure below. IN: Signal input terminal. Here the signal ge nerator or the output terminal of the tracking generator of the spectrum analyzer is connected. OUT: Signal output terminal. Here the power meter or the RF input terminal of the spectrum analyzer is connected. DUT: Here the device under test is connected. Rigol VB1080 Terminal Descriptions xMeasurement ConnectionConnect VB1080 to the spectrum analyzer as shown in the figure on the right. Connect the spectrum analyzer Use 2 Dual N (Male) adaptors to connect the output terminal of the tracking generator and the RF input terminal of the spectrum analyzer to the IN terminal and OUT terminal of the VSWR bridge respectively. Connect the device under test Do not use cables or adaptors as far as possible to avoid additional reflection. Typical Applications Measurement Connection x Measurement of the S11-related parameters of the filter, amplifier, mixer, etc. Resonant frequency and VSWR tests of the antenna.

Product Dimensions (L x W x H): 356 x x 102 inches

Product Weight: 0.25 LB
