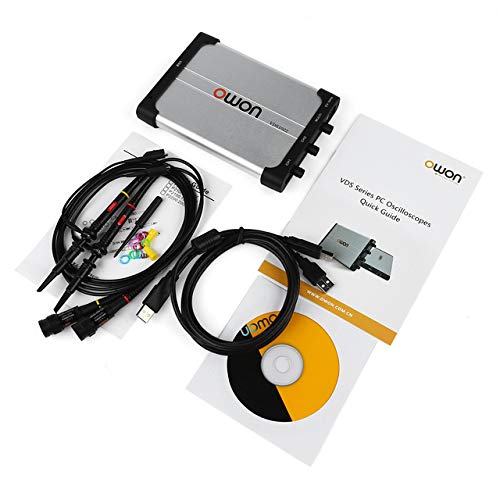

  • Load image into Gallery viewer, Up to 100MHz bandwidth, and max 1GS/s real-time sample rate, 10M record length | Friendly UI : FFT, or X-Y, and waveform 2 views displayed, on the same screen | Multi-trigger option : edge, video, slope, pulse, and alternate | USB isolation - less signal inference, more PC protection. USB bus powering, and LAN remote control (optional) | Ultra-thin body design, easy portability

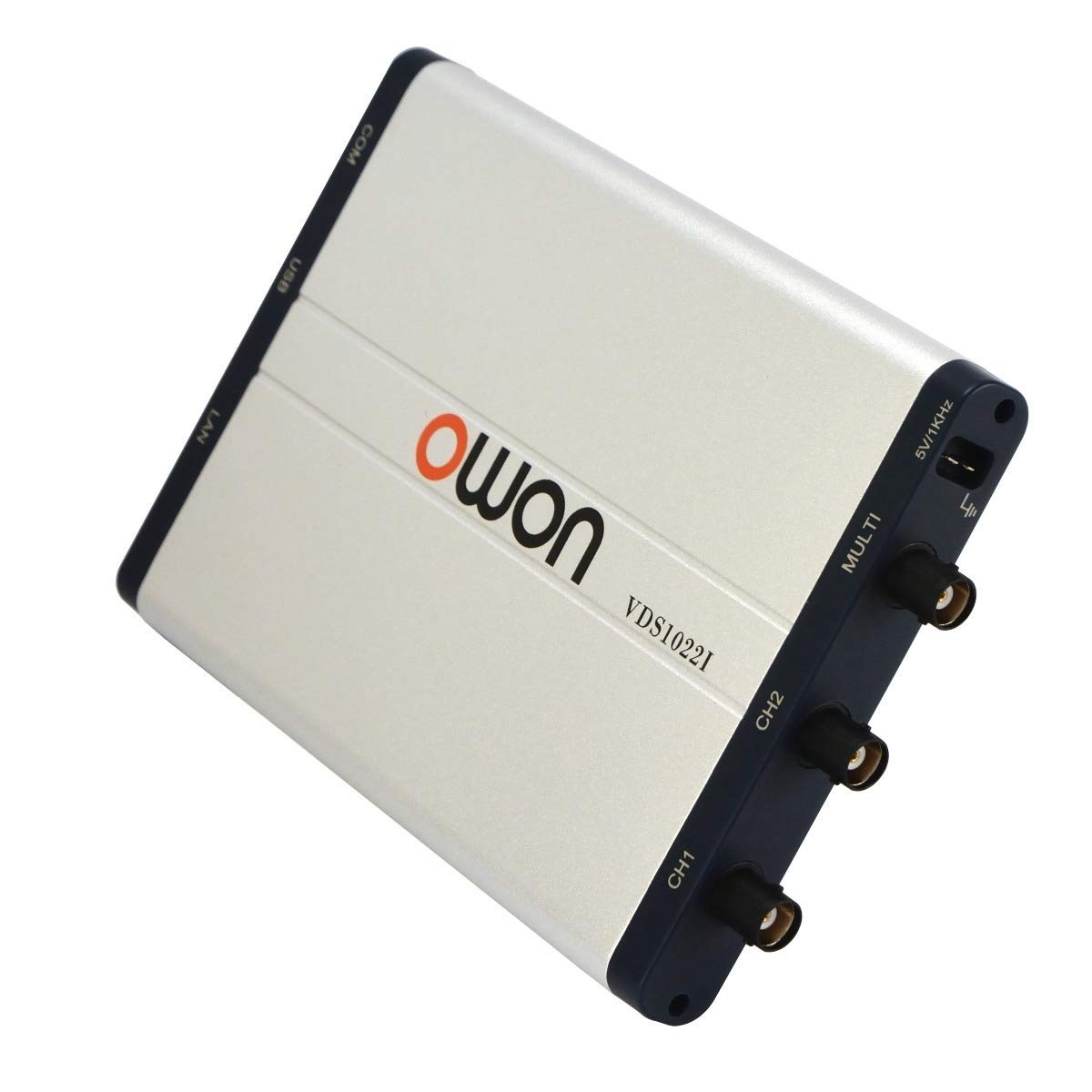

  • Load image into Gallery viewer, Owon VDS1022I USB PC Oscilloscope, MIT USB Isolation, 25 MHz

Owon VDS1022I USB PC Oscilloscope, MIT USB Isolation, 25 MHz

01VDS1022IFBA
Regular price
$109.00
Sale price
$109.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Up to 100MHz bandwidth, and max 1GS/s real-time sample rate, 10M record length
  • Friendly UI : FFT, or X-Y, and waveform 2 views displayed, on the same screen
  • Multi-trigger option : edge, video, slope, pulse, and alternate
  • USB isolation - less signal inference, more PC protection. USB bus powering, and LAN remote control (optional)
  • Ultra-thin body design, easy portability
Bandwidth: 25MHz* Channel: 2+1 (multi)* Sample Rate: 100MS/s* Horizontal Scale (s/div): 5ns/div~100s/div, step by 1~2~5* Rise Time: <=14ns* Record Length: 5K* Input Coupling: DC AC GND* Input Impedance: 1MO+-2%,in parallel with10Pf+-5pF* Channels Isolation: 50Hz : 100 : 1, 10MHz : 40 : 1* Max Input Voltage: 400V (PK - PK) (DC+AC, PK - PK)* DC Gain Accuracy: +-3%* DC Accuracy: Average>=16: +-(3% reading + 0.05div) for ?T* Probe Attenuation Factor: 1X, 10X, 100X, 1000X* LF Respond (AC, -3dB): >=5Hz (at input, AC coupling, -3dB)* Sampling Rate / Relay Time Accuracy: 150ps* Interpolation: sin(x) / x* Interval (?T) Accuracy (full bandwidth):Single: +-(1 interval time + 100ppm × reading + 0.6ns),Average >16: +-(1 interval time + 100ppm × reading + 0.4ns)* Vertical Resolution (A/D): 8 bits resolution (2 channels simultaneously)* Vertical Sensitivity: 5mV/div~5V/div* Communication Interface: USB 1.1(isolation).

Product Dimensions (L x W x H): 257 x x 74

Product Weight: 3.2 LB
