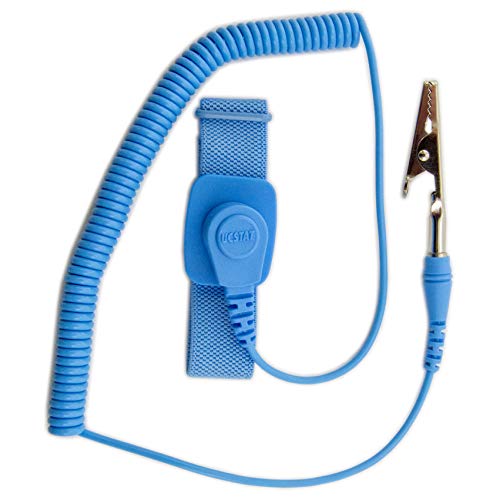

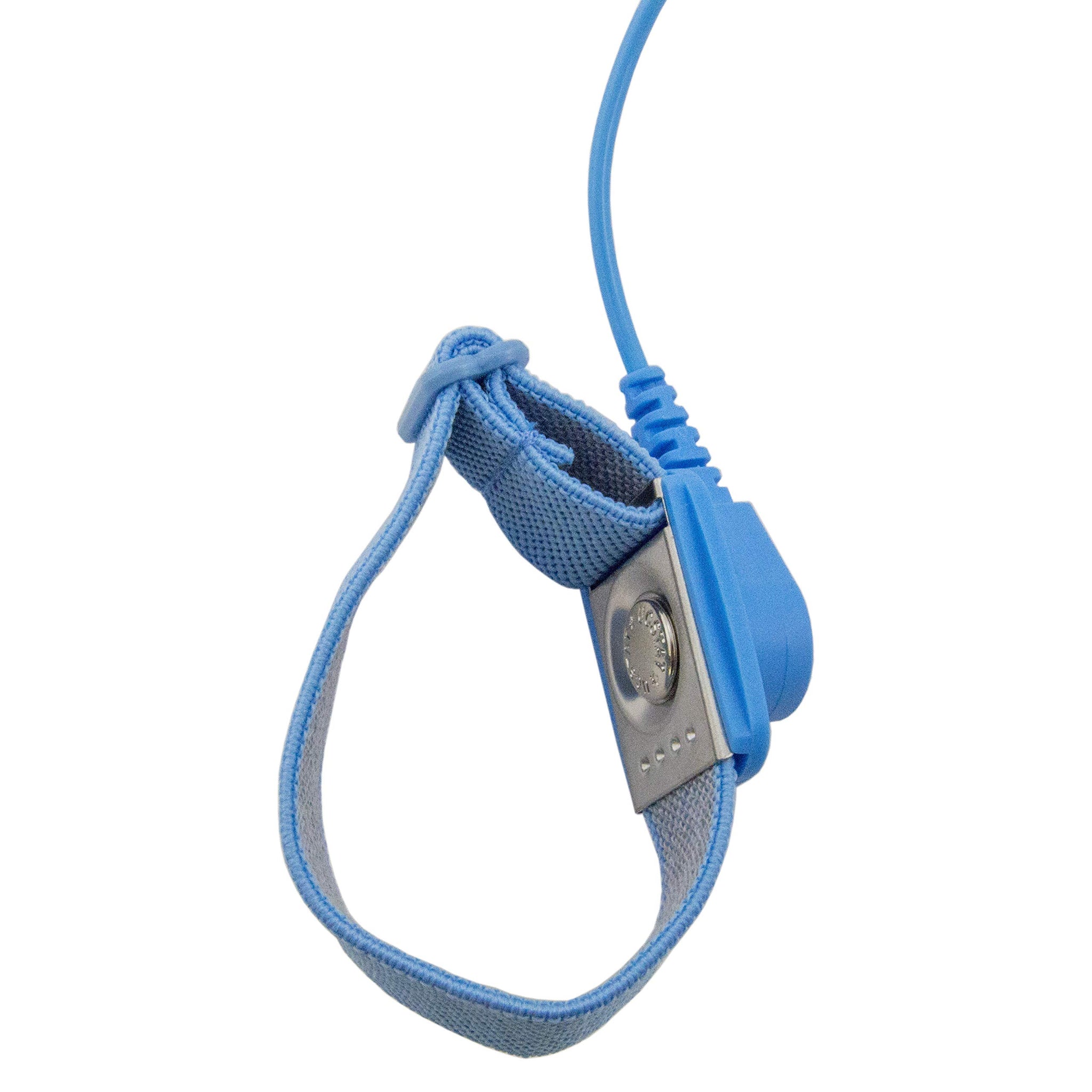

This ESD anti-static wrist strap pairs an adjustable conductive band with a 6 ft coiled grounding cord. The band is polyester with stainless steel and nickel fibers woven into the inside for good skin contact, with resistance under 50 Ω. A 1 MΩ resistor built into the snap fastener helps protect the wearer from shock.
Key Features
- 6 ft coiled grounding cord
- Adjustable band for a snug fit; easy on and off
- Conductive fiber lining, resistance under 50 Ω
- 1 MΩ safety resistor built into the snap
- Protects ICs and other static-sensitive devices
Specifications
| Band | Adjustable, polyester with woven stainless steel/nickel fibers |
|---|---|
| Band resistance | <50 Ω |
| Cord | 6 ft coiled |
| Resistor | 1 MΩ in snap fastener |
| SKU | 0302-BWS201 |
What's Included
- Anti-static wrist strap with 6 ft grounding cord (1)
Ideal For
Electronics benches and PC repair where the worker stays close to the grounding point.
Frequently Asked Questions
How do I know which cord length to choose?
A 6 ft cord suits seated bench work; a 10 ft version (SKU 0302-BWS203) gives more room to move.
Does the strap need to touch skin?
Yes. Wear it snugly against bare skin so the conductive lining can drain charge.
