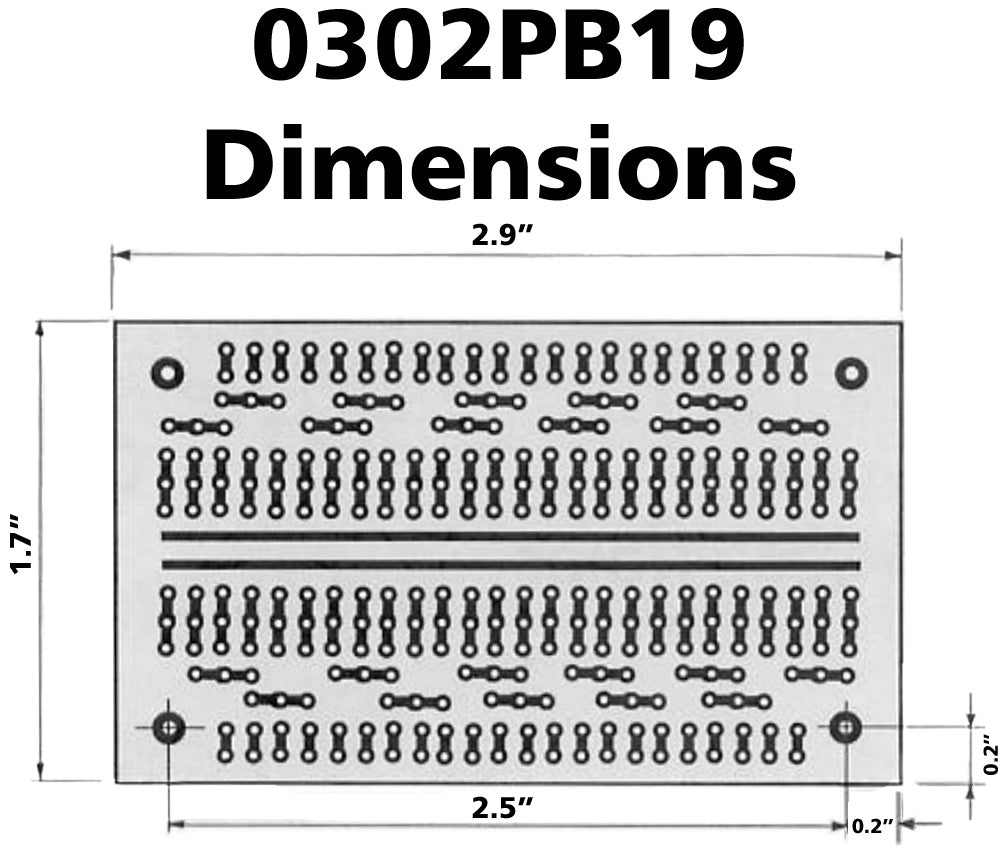

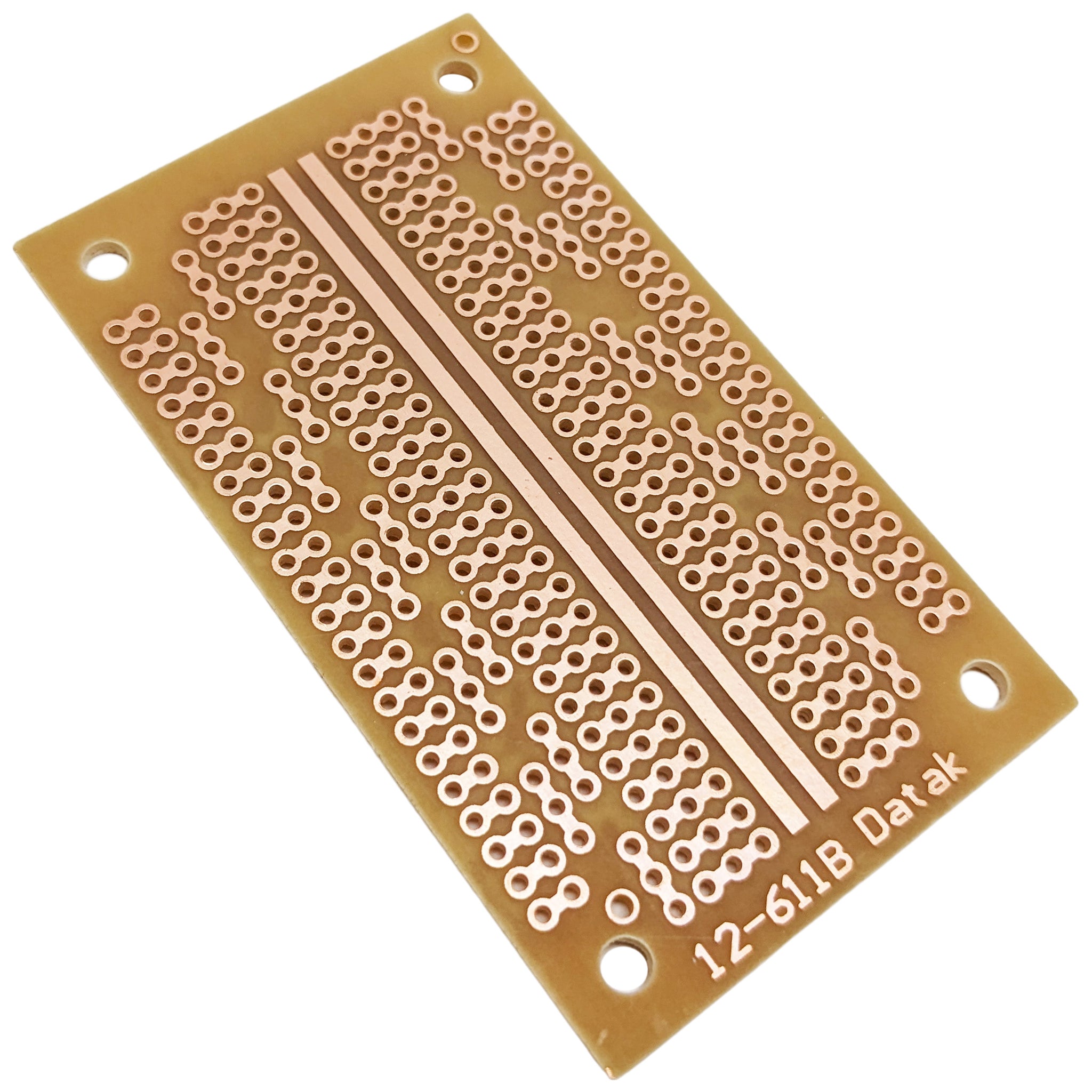

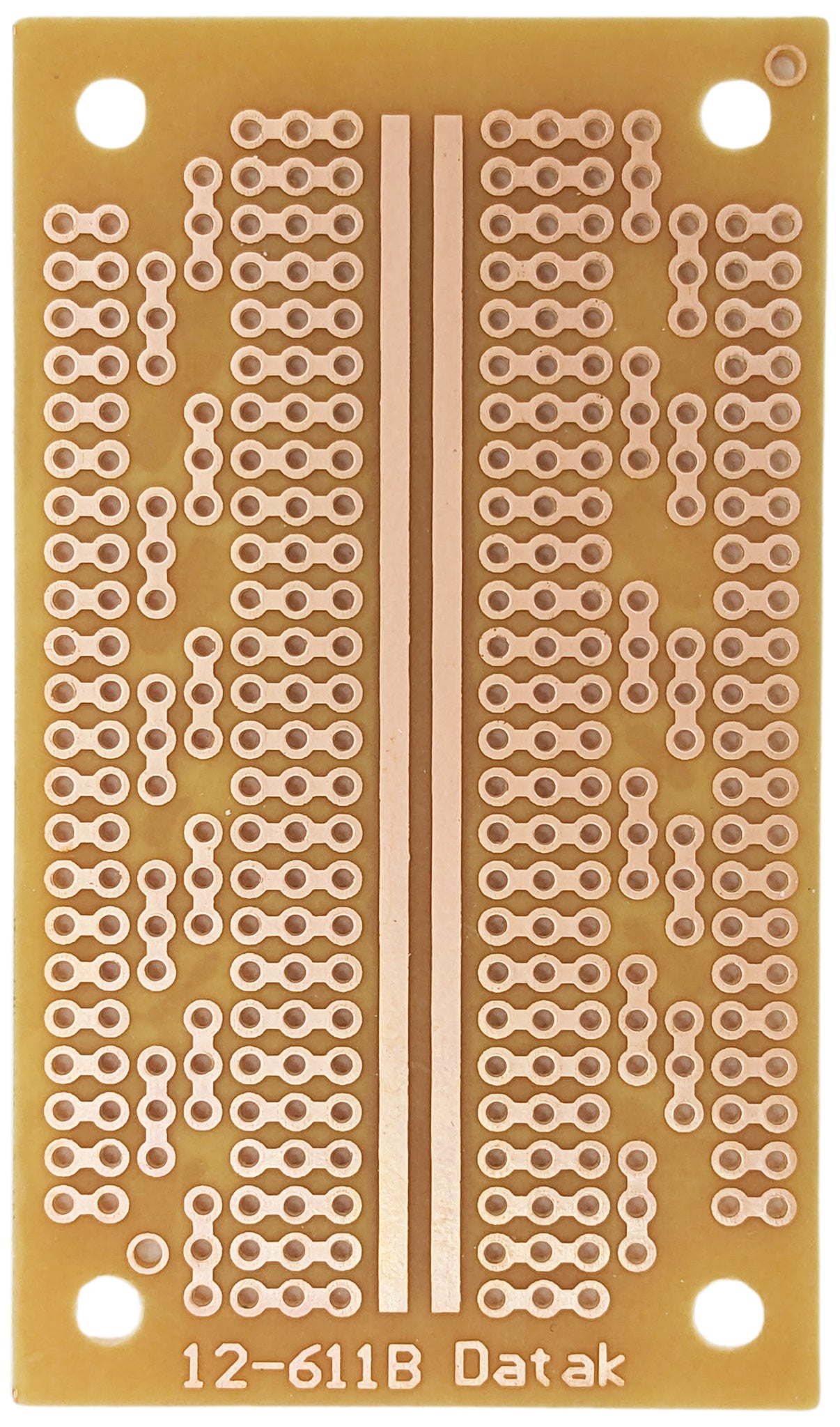

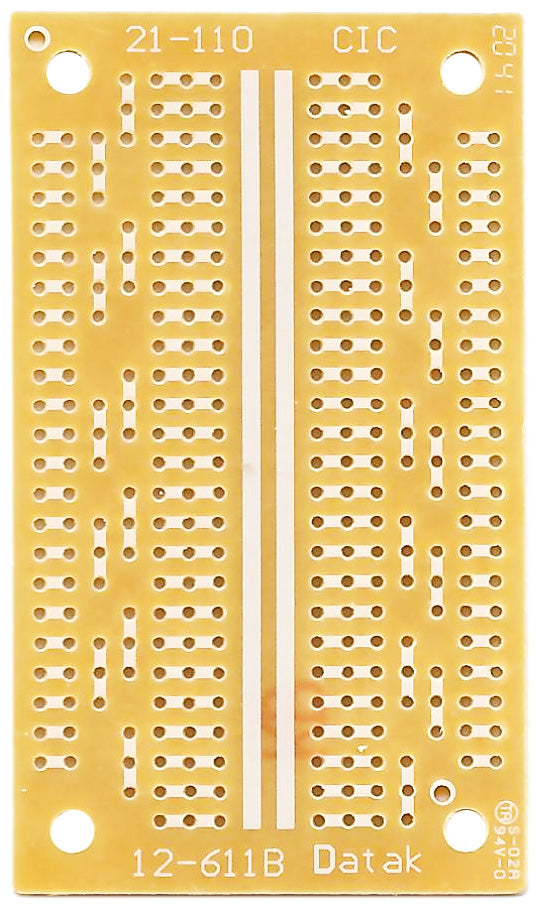

The PB-19 is a small single-sided solderable prototyping board measuring 2.9 × 1.7 inches, with holes on 0.1 in centers. DIP ICs straddle the center of the board, where they can connect to power and ground. It weighs just 0.21 oz.
Key Features
- Small 2.9 × 1.7 in single-sided board
- 0.1 in hole spacing
- DIPs straddle the center like a breadboard
- Power and ground connections for ICs
- Very light: 0.21 oz
Specifications
| Model | PB-19 |
|---|---|
| Size | 2.9 x 1.7 in |
| Sides | Single-sided |
| Hole spacing | 0.1 in |
| Weight | 0.21 oz |
| SKU | 0302PB19 |
What's Included
- PB-19 prototyping board (1)
Ideal For
Small one- or two-chip circuits made permanent after breadboard testing.
Frequently Asked Questions
What does 'DIP straddles the center' mean?
The IC sits across the center gap so each row of pins lands on its own set of holes, just as on a solderless breadboard.
Is soldering required?
Yes, it is a solderable board.
