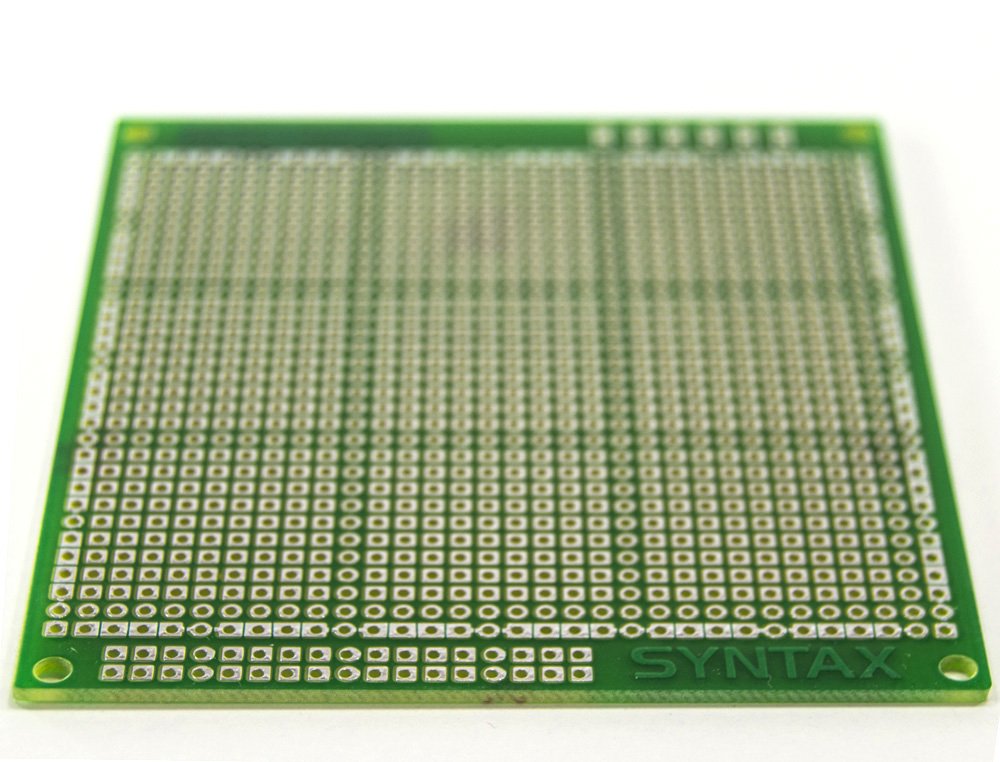

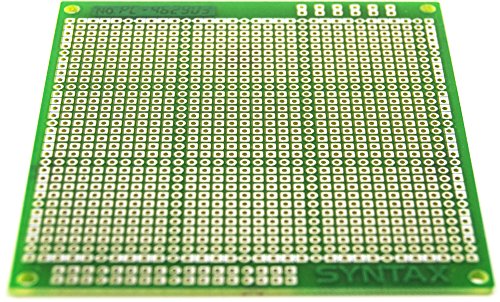

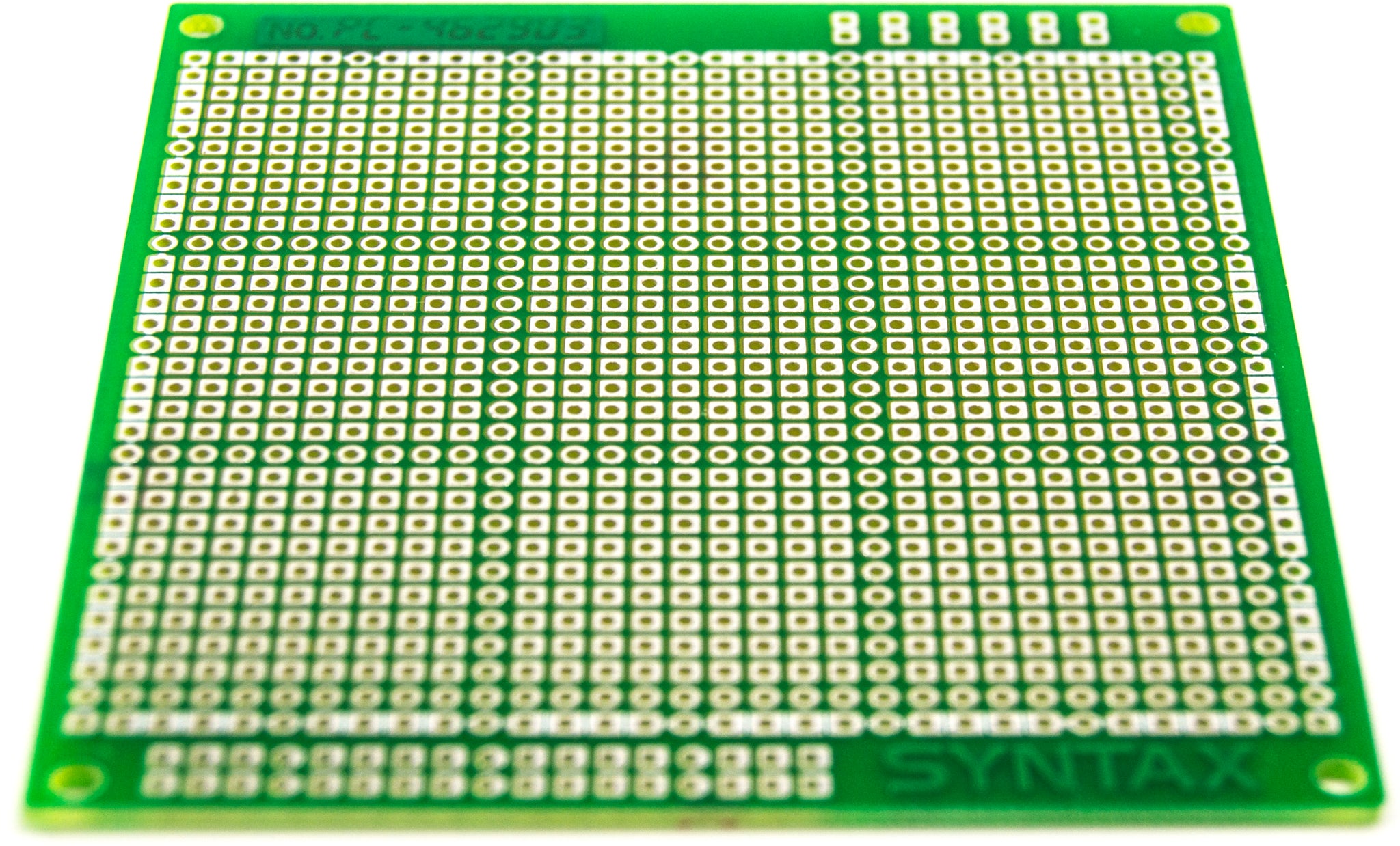

The PC462903 is a 3¾ × 3⅜ inch prototyping board with single-sided pads and four separate buses. Its 0.042 in holes are on a 0.1 in grid, and a silk-screened legend on the component side shows the foil pattern underneath. It also has an I/O connector area.
Key Features
- 3¾ × 3⅜ in board
- Single-sided pads
- Four separate buses
- 0.042 in holes on 0.1 in grid
- Silk-screened foil-pattern legend; I/O connector area
Specifications
| Model | PC462903 |
|---|---|
| Size | 3¾ x 3⅜ in |
| Pads | Single-sided |
| Buses | 4 separate |
| Hole diameter | 0.042 in |
| Hole spacing | 0.1 in grid |
| SKU | 0302PB2 |
What's Included
- PC462903 prototyping board (1)
Ideal For
Compact prototypes that need multiple power or signal buses.
Frequently Asked Questions
What does the silk-screened legend show?
It prints the solder-side copper pattern on the component side, so you can see which holes are connected while placing parts.
What hole size does it use?
0.042 in holes on a 0.1 in grid.
