- Passive high impedance oscilloscope probe, approx. 4 feet length
- Three position slide switch in the head which selects attenuation of x1, x10 or a ground reference position
- Position X10 Bandwidth: DC to 100MHz
- Position X1 Bandwidth: DC to 6MHz
- Includes 1 ea. probe, spring hook, ground lead, insulating tip, measuring tip, IC tip, adjusting tool, channel identifier clip, BNC adapter

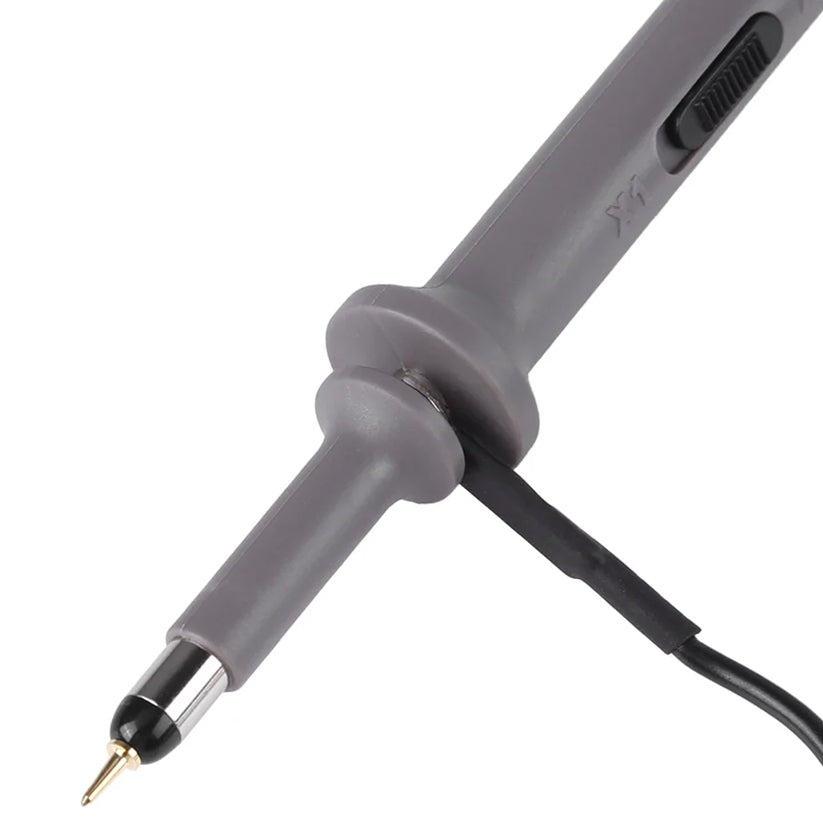

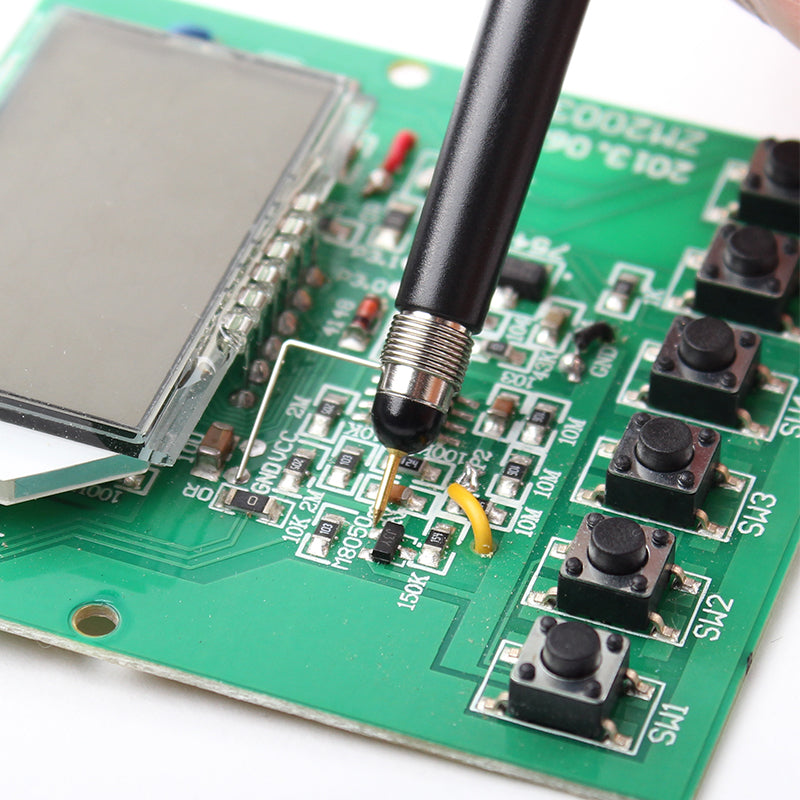

The HP-9100 is a passive high impedance oscilloscope probe designed and calibrated for use with instruments having an input impedance of 1 MΩ shunted by 20pF. However, it may be compensated for use with instruments having an input capacitance of 10 to 30pF.

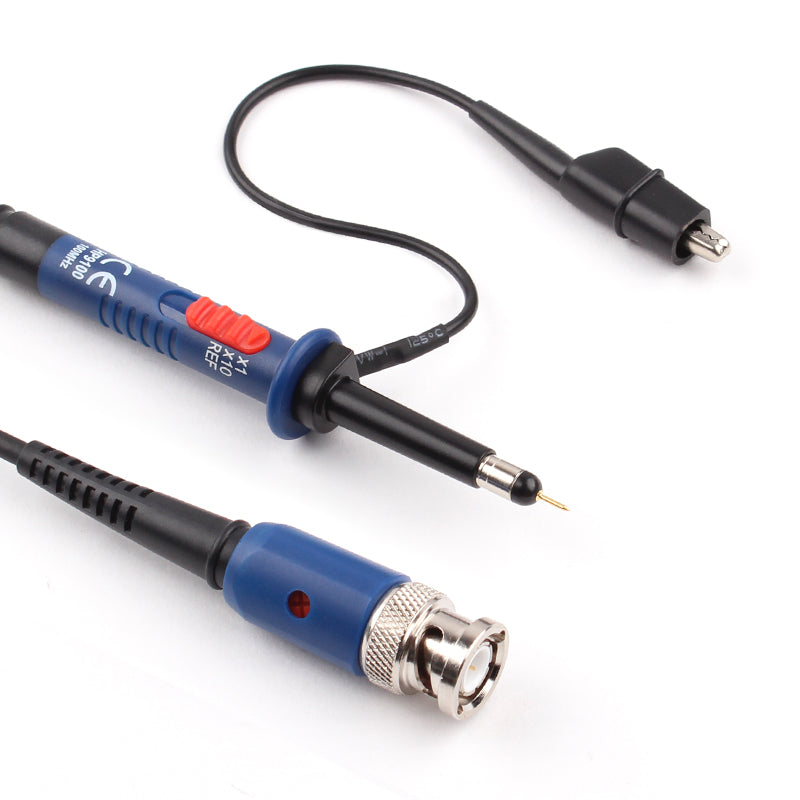

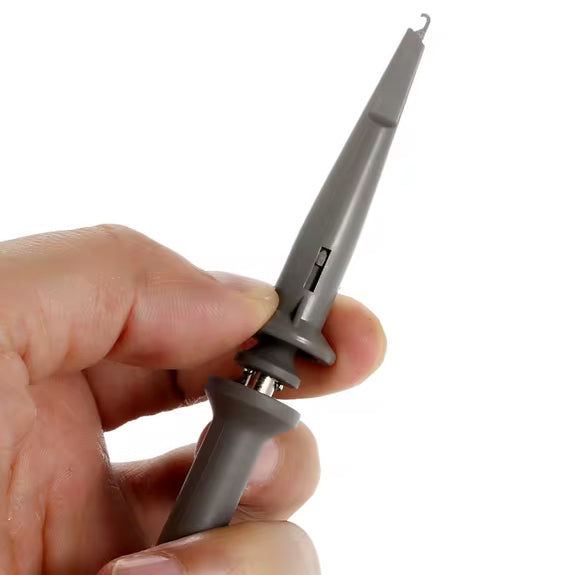

The probe incorporates a three position slide switch in the head which selects attenuation of x1, x10 or a ground reference position:
Position X10:
- Attenuation Ratio: 10:1
- Bandwidth: DC to 100MHz
- Rise Time: 3.5nS
- Input Resistance: 10MΩ when used with oscilloscopes which have 1MΩ input.
- Input Capacitance: Approx. 13 pF
- Compensation Range: 10 to 30 pF
- Max. Input Voltage: 600V CAT I, 300V CAT II (DC + peak AC) derating with frequency
Position X1:
- Attenuation Ratio: 1:1
- Bandwidth: DC to 6MHz
- Rise Time: 58nS
- Input Resistance: 1MΩ (oscilloscope input resistance)
- Input Capacitance: 56 pF plus oscilloscope capacitance
- Max. Input Voltage: 300V CAT I, 150V CAT II (DC + peak AC) derating with frequency
Position REF:
- Probe tip opened, oscilloscope input grounded

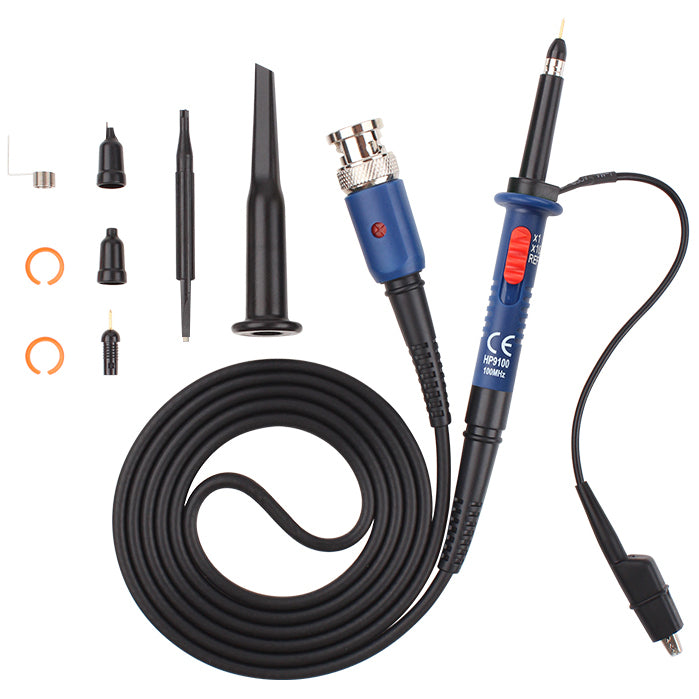

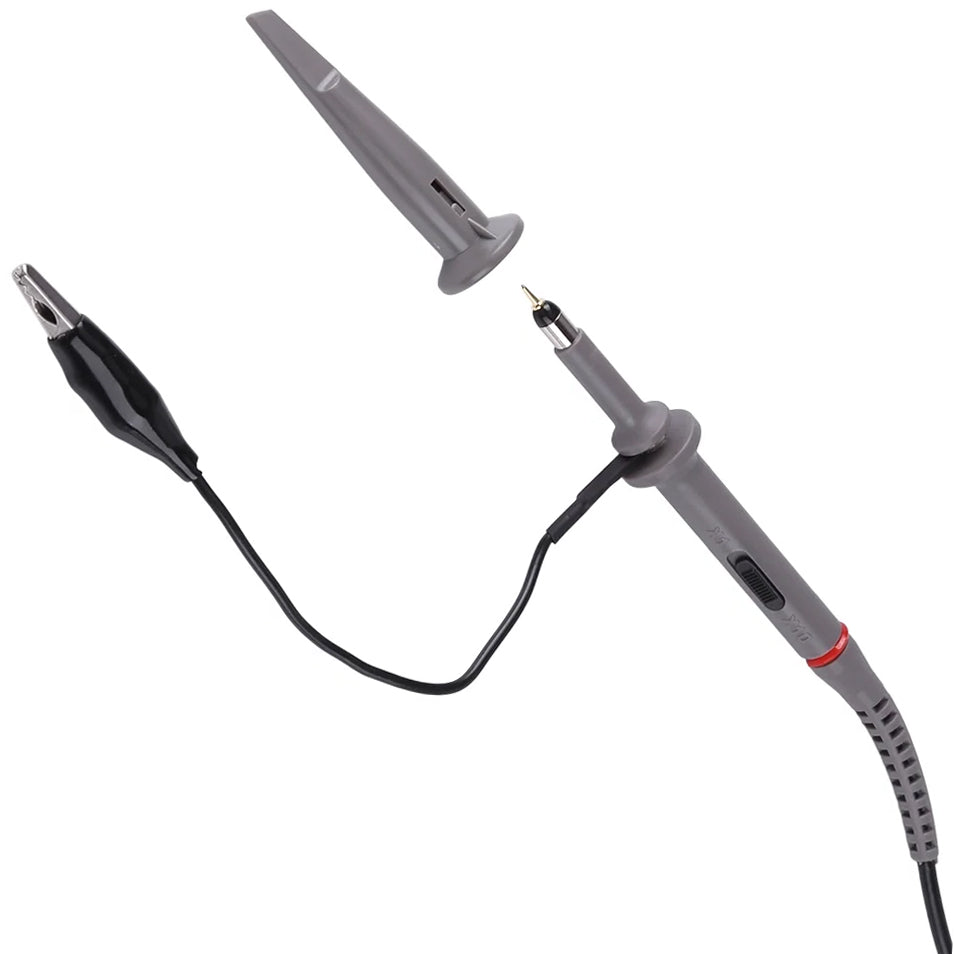

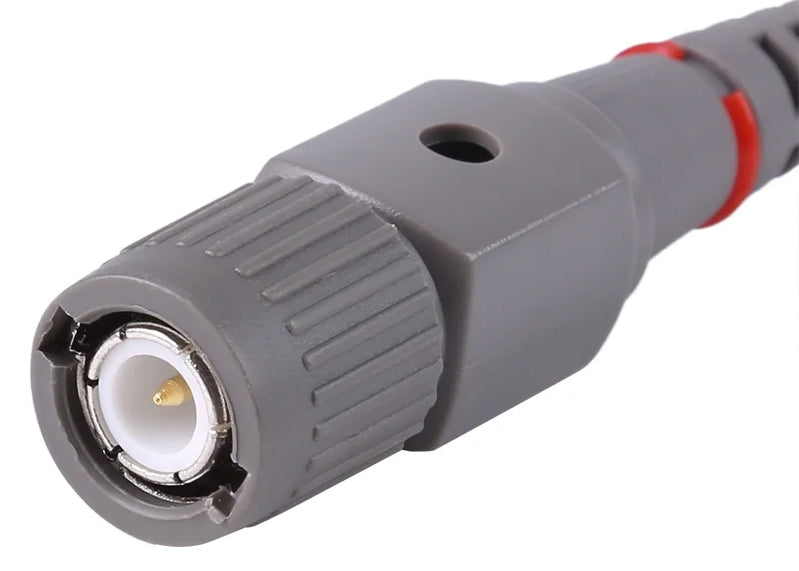

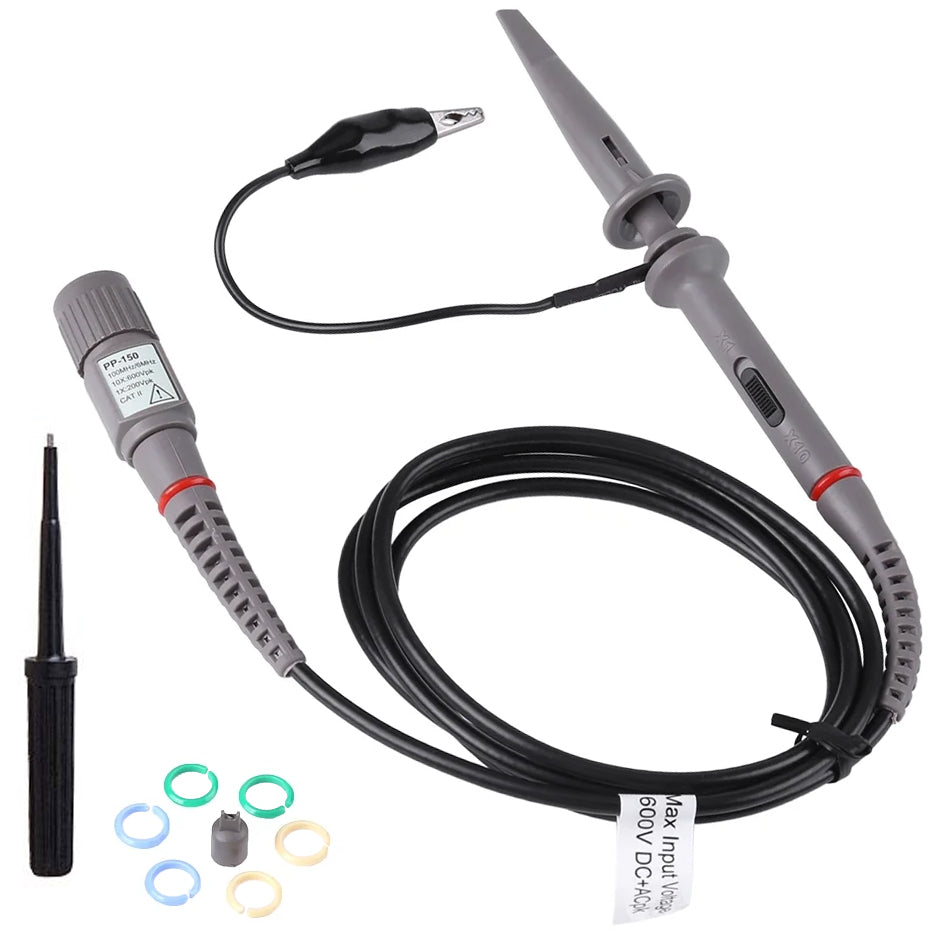

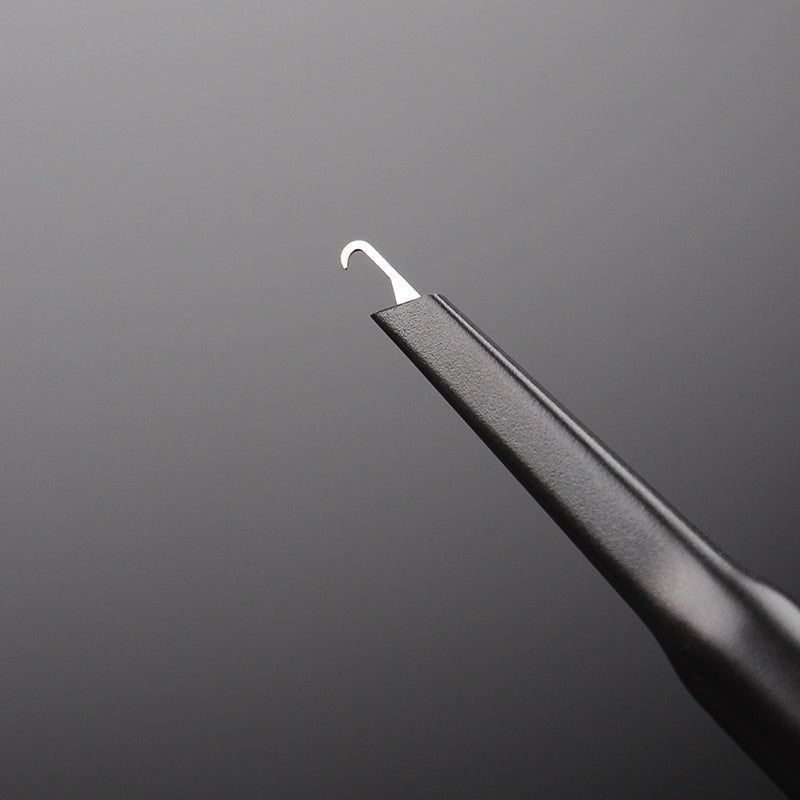

Includes 1 ea. probe, spring hook, ground lead, insulating tip, measuring tip, IC tip, adjusting tool, channel identifier clip, BNC adapter.
Cable Length: Approx. 4 feet
