- Dual Digital Temperature Displays
- Temp range 150 - 480 degrees F (302-896 degrees F)
- Electronic temp control - adjustable temp without having to change tips
- Tip temp accurate to within +/- 3 degrees C (6 degrees F)
- Sensor fail notification
The Xytronic LF-8800 100 Watt Solder and Desoldering Station, with internal vacuum pump. This multi function station brings you 100 Watts of soldering and desoldering
combined. Both tools can be used simultaneously or switch one tool out and use
with the optional Tweezer or Hot Air Pencil (each sold separately). A wonderful versatile tool to use in limited work space and for multi-tasking jobs.
Key Features:
Heater/Sensor Failed Detection: If sensor circuit fails, the heater power is shut down.
Temperature “Lock-Out” feature: The temperature can be locked with a password code.
ESD Safe and Spike Free circuitry: The “Zero Voltage” electronic switching design protects voltage and current sensitive components (CMOS devices, etc.) against damaging current and transient voltage spikes commonly produced by less efficient, mechanically switched stations.
Delayed Suction: To eliminate the problem of solder clogging up the tip, a delayed switch feature has been incorporated for the unit that allows the pump to continue sucking for 1.5 seconds after the actuator switch is released
Energy Saver Mode: If the station is left idle for 20 minutes, the energy saver feature will automatically engage, resetting the temperature to 150°C from the previous setting.
Iron Working Option: Both soldering, desoldering irons can be used at the same time.
Compatible accessories, sold separately:
Optional SMD Tweezers (TWZ90): Specially designed for SMD chips, SOT, Flat pack IC’s etc. reworking.
Optional Hot Air Pencil (HAP80): Removes SMD chips and flat packs up to 25mm.

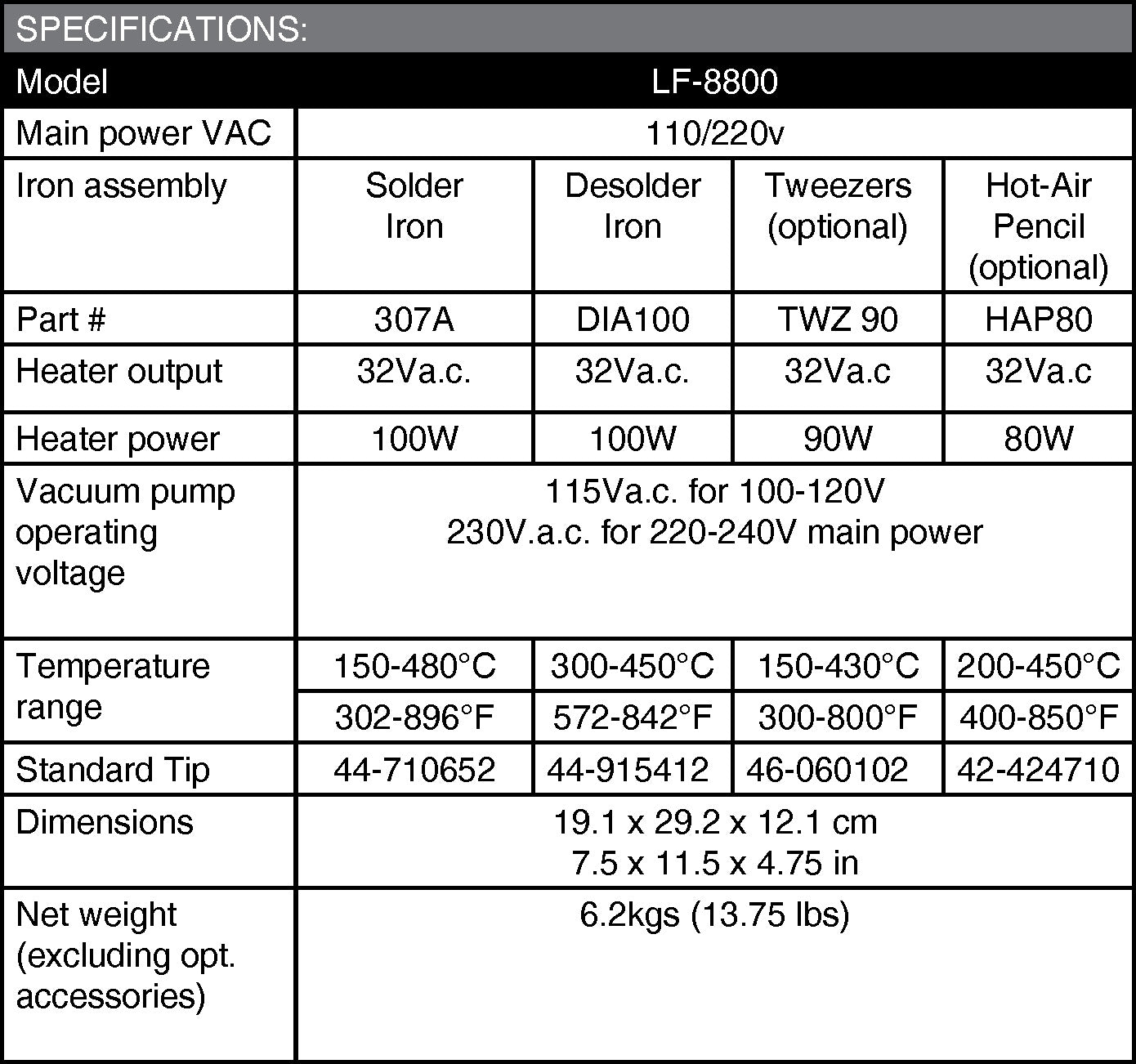

Dual Digital Temperature Displays. Range 150 - 480 degrees F (302-896 degrees F). Tip temp accurate to within +/- 3 degrees C (6 degrees F). free circuitry - zero voltage switching and fully grounded design makes this unit safe for electro-sensitive devices. Electronic temp control - adjustable temp without having to change tips. Sensor fail notification. Includes both soldering iron and desoldering iron. Self-contained vacuum pump, no shop air needed. Heater power 100 Watt (soldering) and 100 Watt (desoldering). Compatible accessories (not included, sold separately) include surface mount tweezer iron and hot air pencil for small SMD, SOT rework.

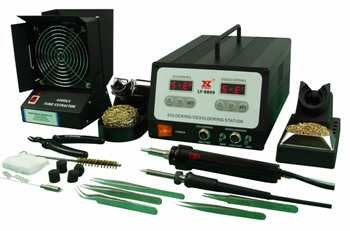

Comes with:
307A Soldering iron assembly with preloaded standard tip
DIA100 Desoldering iron assembly with pre-loaded standard tip
Waterless tip dresser
2 Iron stands
Maintenance kit
Tweezer hand tools
Fume extractor model 426DLX
Operating instructions
