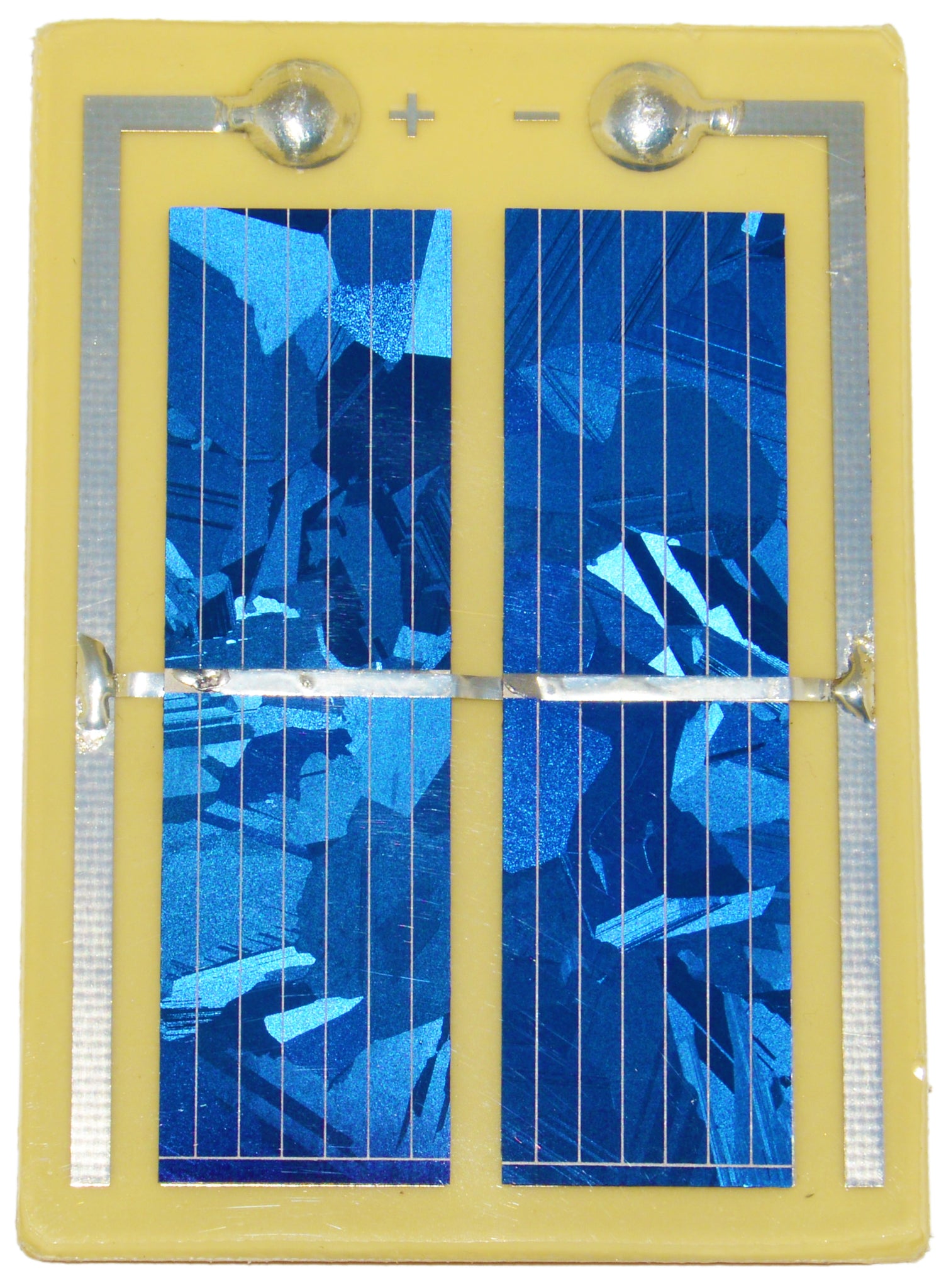

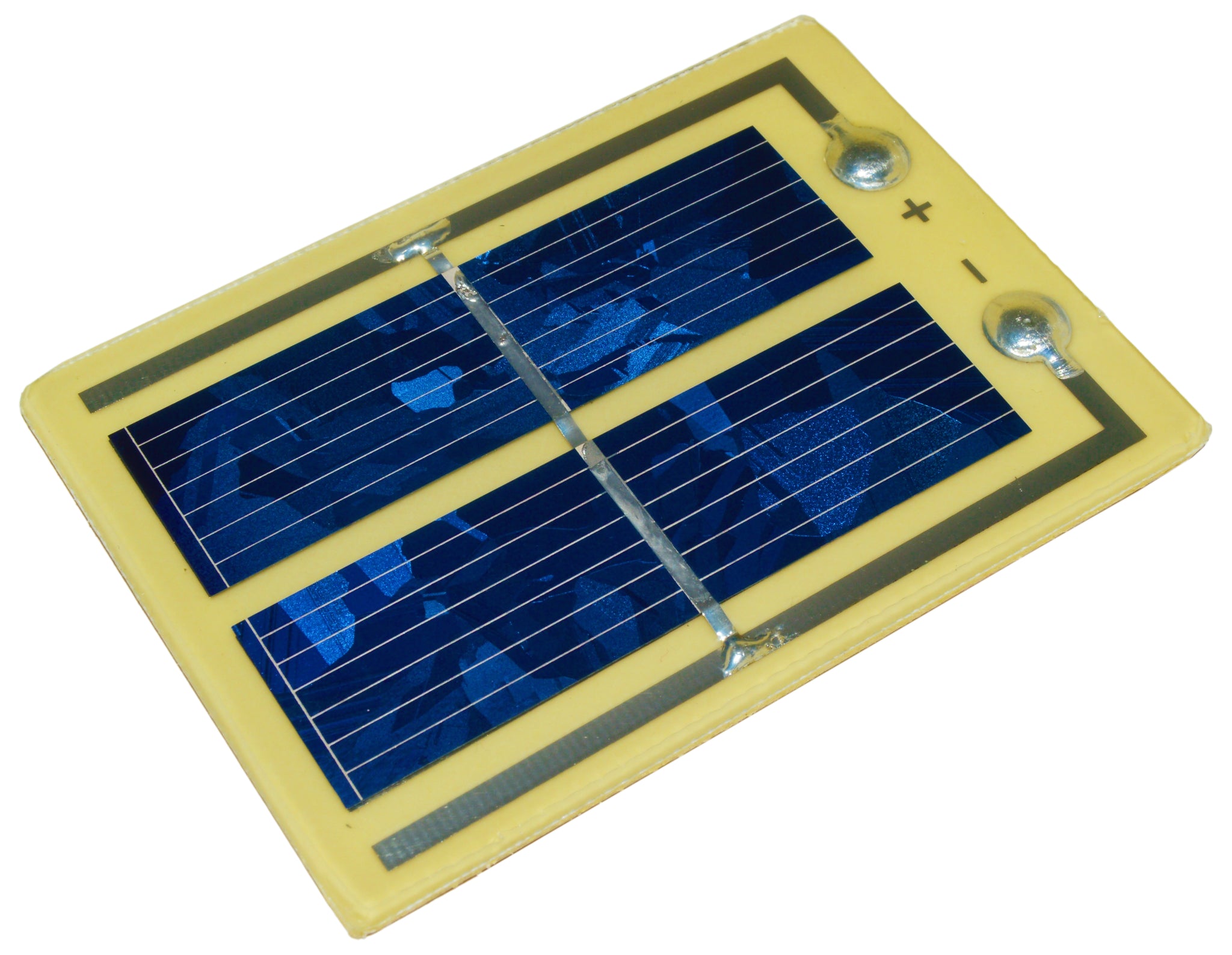

This is a 1.0V open-circuit, 250mA short-circuit-current solar cell module measuring 62 x 46mm and 2mm thick. It contains 2 cells laminated in resin on a PC board for moisture protection. It is designed for educational kits and projects, and several modules can be wired in series or parallel to raise voltage or current.
Key Features
- Open-circuit voltage: 1.0V
- Typical short-circuit current: 250mA
- 2 cells per module
- Compact 62 x 46mm footprint, 2mm thick
- Resin-laminated on a PC board for moisture protection
- Can be connected in series or parallel
Specifications
| Voltage (Voc) | 1.0V |
|---|---|
| Current Isc (typical) | 250mA |
| Size | 62 x 46mm |
| Thickness | 2mm |
| Cells per module | 2 |
| Construction | Resin laminated on PC board |
| SKU | 08SLC03 |
What's Included
- 1 x 1.0V solar cell module
Ideal For
Students, science fair projects and hobbyists adding a small solar source to a circuit.
Frequently Asked Questions
What do Voc and Isc mean?
Voc (open-circuit voltage) is the voltage the cell produces with nothing connected; Isc (short-circuit current) is the most current it can deliver in strong light. Under a real load both values are lower.
How do I get more voltage or current?
Wire identical cells in series to add their voltages, or in parallel to add their currents. The listing confirms these cells can be connected either way.
