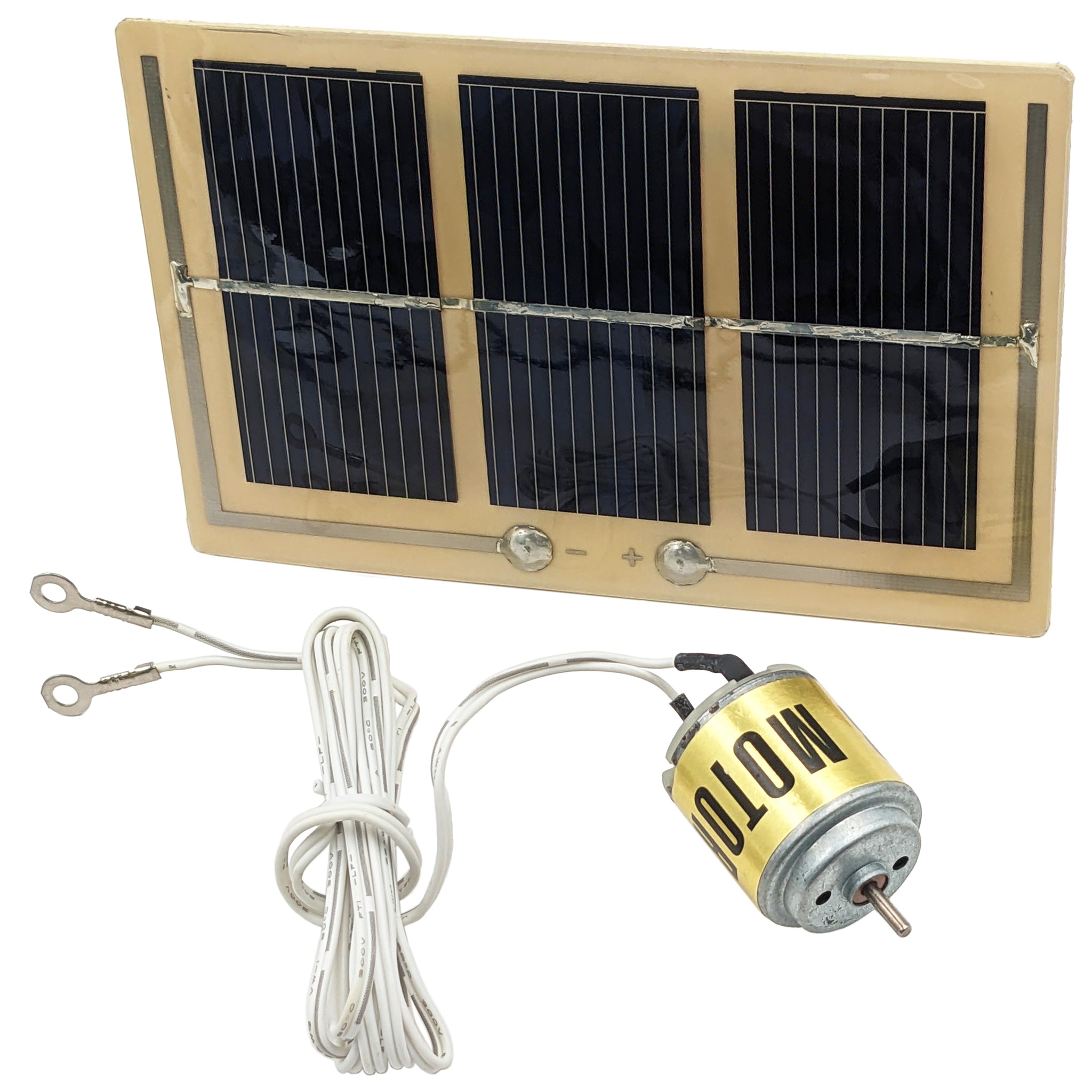

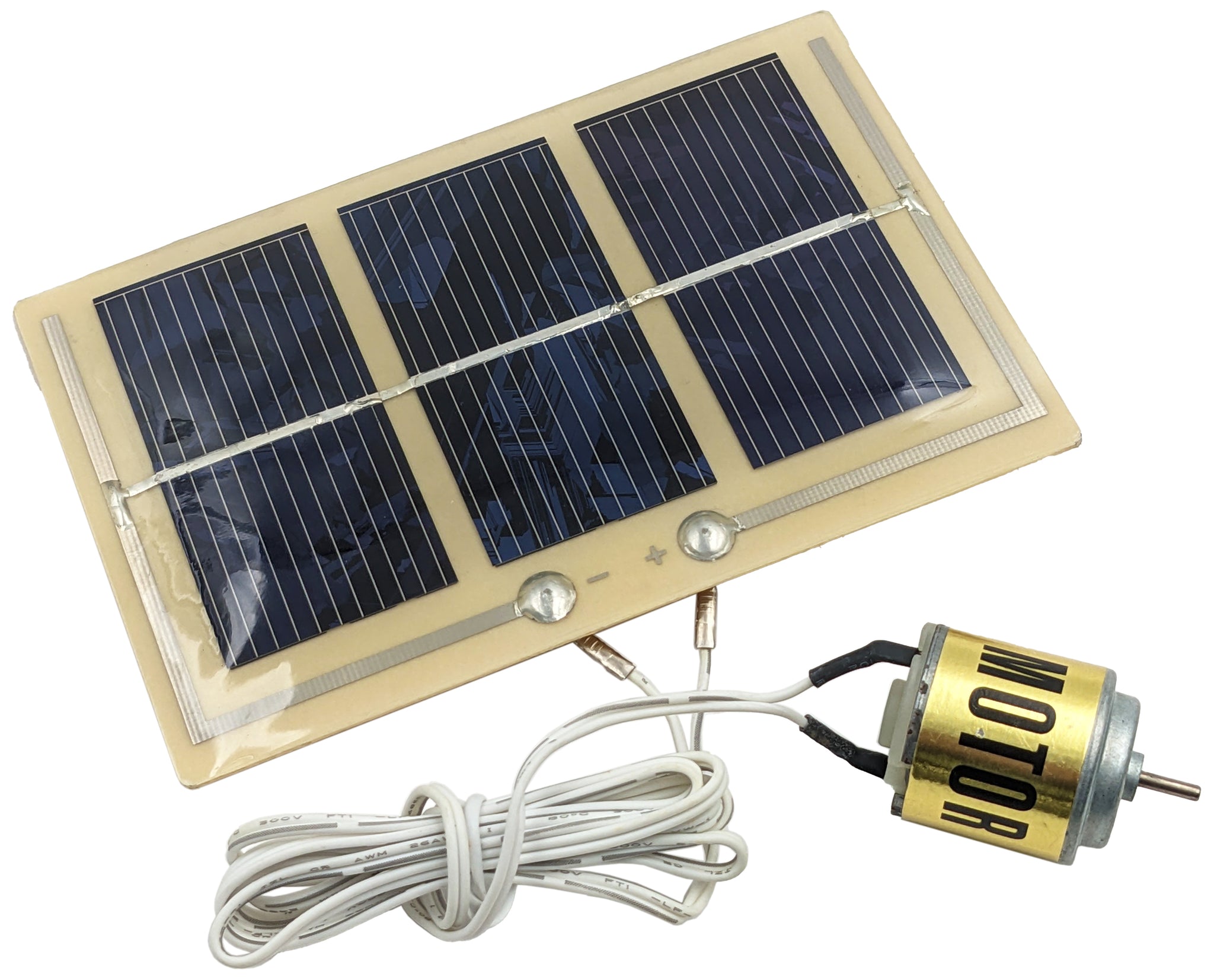

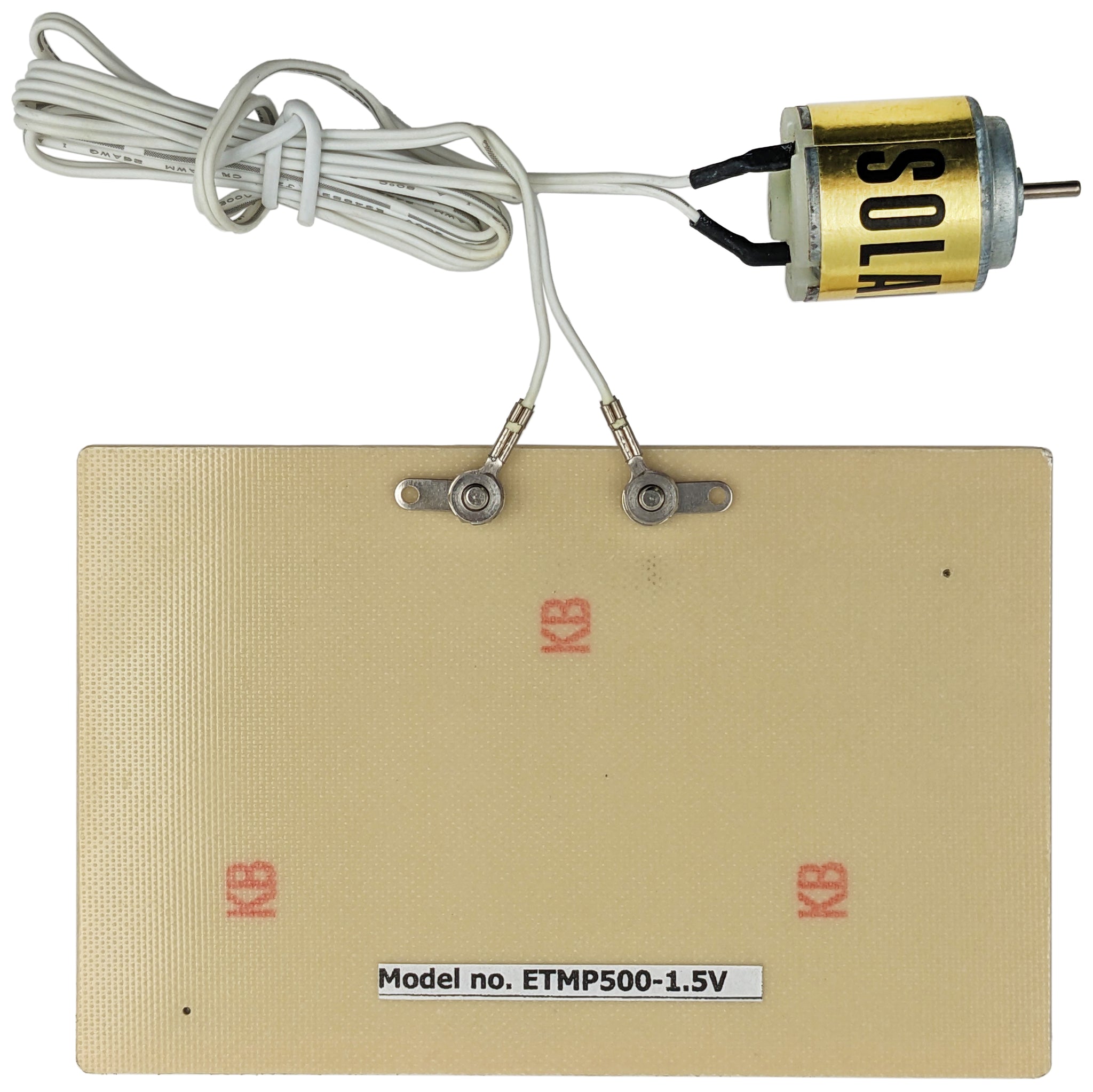

This kit pairs a 1.5V, 500mA solar cell module with a small DC motor. The motor's leads end in clips that attach to the panel with hand-tightened nuts, so no soldering is needed. The 80 x 124mm module is resin-laminated on a PC board, and the motor has a 2mm shaft and 38.5-inch leads.
Key Features
- 1.5V, 500mA (typical Isc) solar cell module
- DC motor rated 1V / 400mA

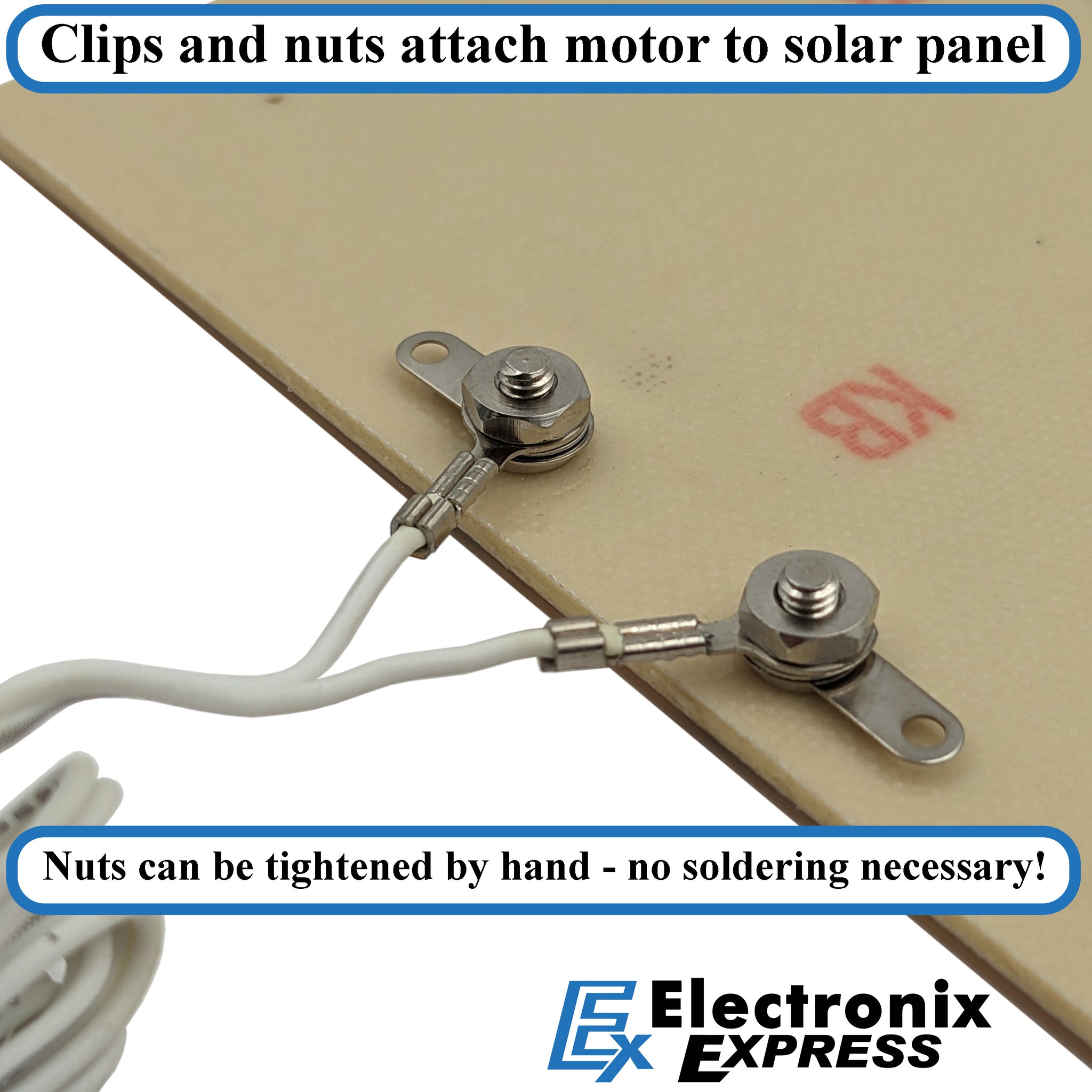

- Clip leads attach with hand-tightened nuts, no soldering
- 3.2 ft (38.5 in) motor wire leads

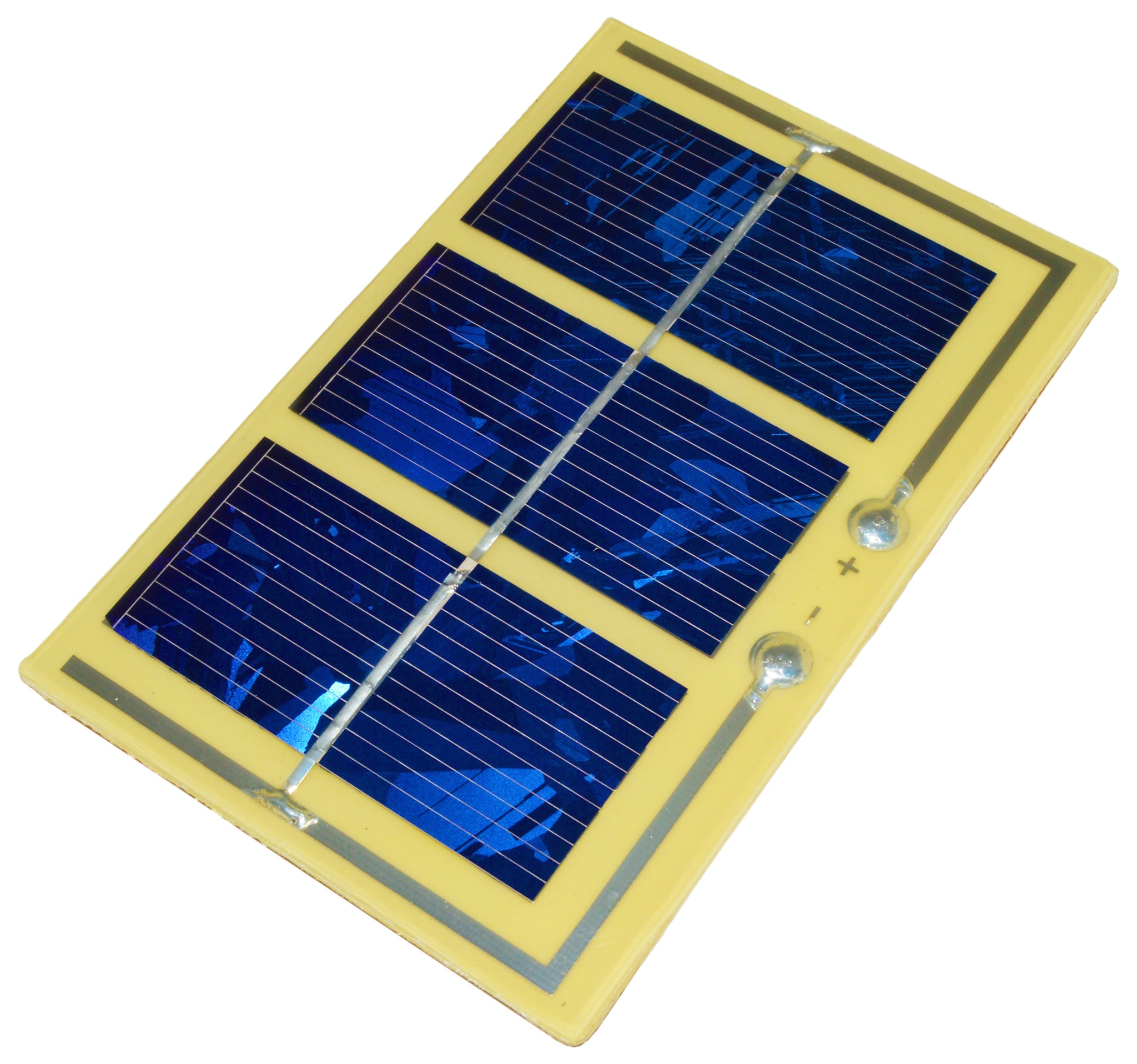

- Resin-laminated panel with moisture protection
Specifications
| Panel voltage | 1.5V |
|---|---|
| Panel current Isc (typical) | 500mA |

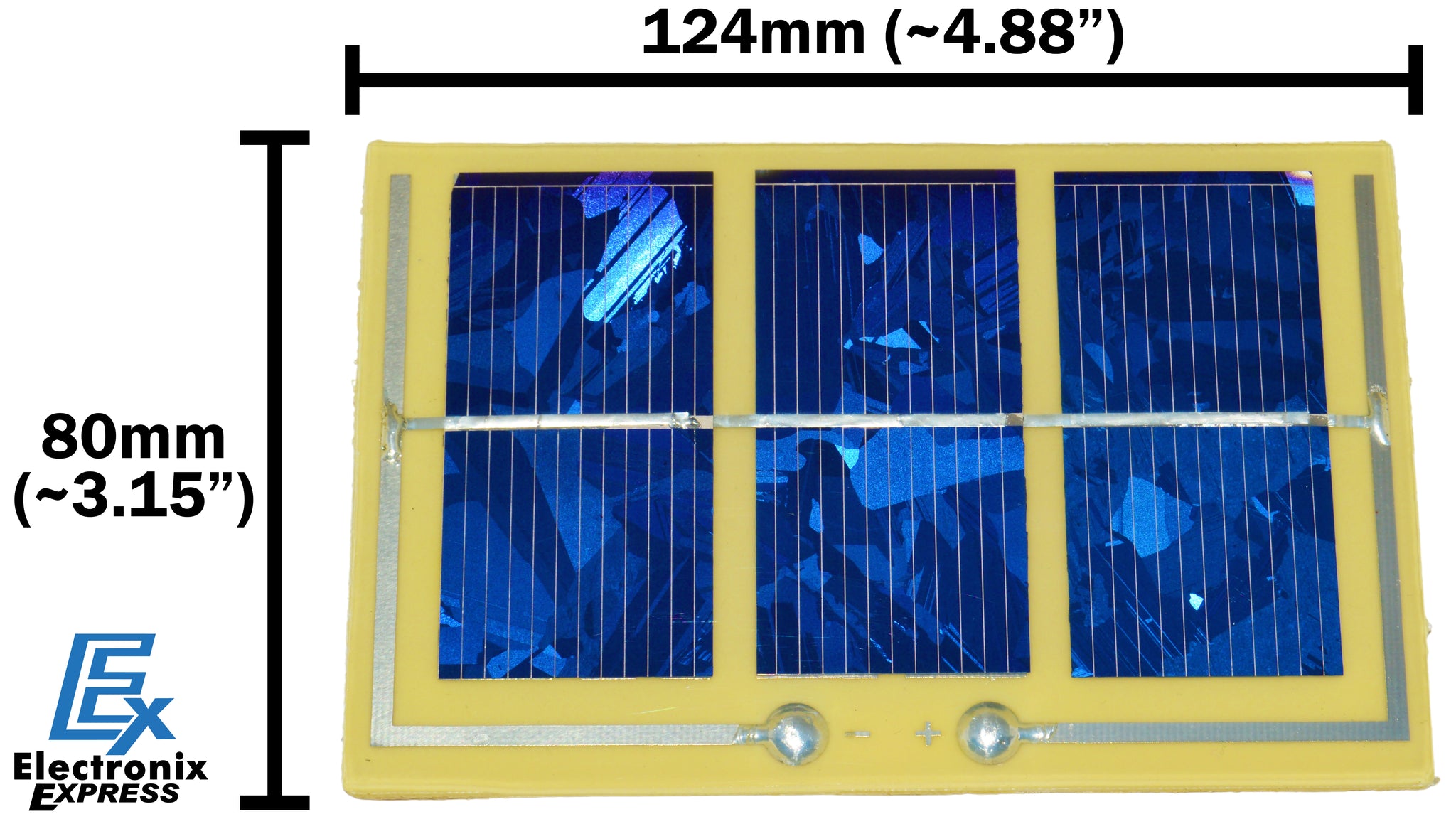

| Panel dimensions | 80 x 124mm (~3.15 x 4.88 in) |
| Panel thickness | 2.5mm (approx.) |
| Panel weight | 1.53 oz |

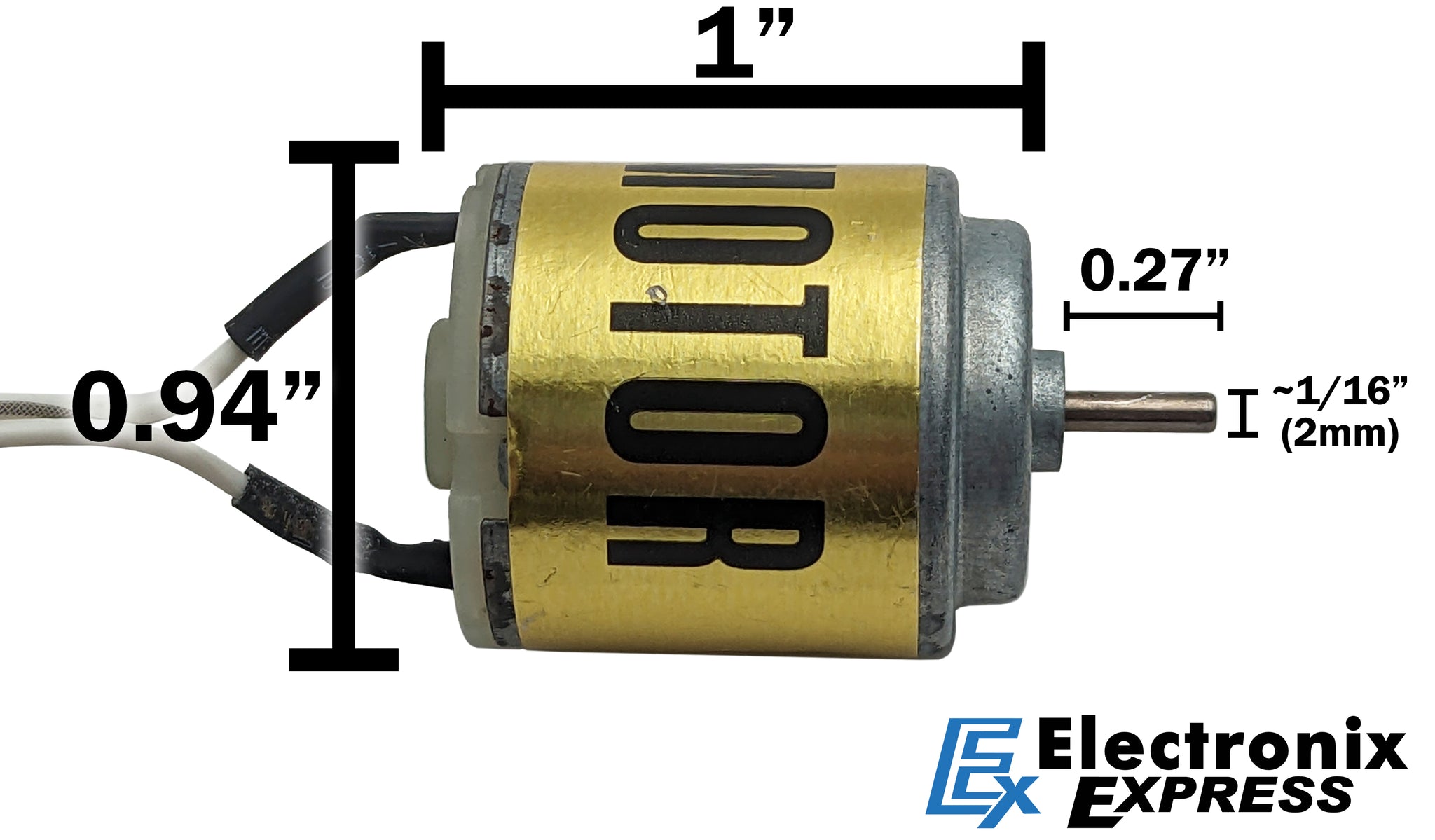

| Motor body | 0.94 in diameter x 1.0 in long (excl. shaft) |
| Motor shaft | 2mm (~1/16 in) diameter, 0.27 in long |
| Motor output | 1V / 400mA |
| Motor weight | 1.18 oz (with leads) |
| Lead length | 3.2 ft (38.5 in) |
| SKU | 08SLC24 |
What's Included
- Solar cell module (1.5V, 500mA)
- DC motor with clip leads
Ideal For
Science projects, demonstrations and makers who want a ready-matched solar panel and motor.
Frequently Asked Questions
Does it work indoors?
Best in direct sunlight; under artificial light the panel has to be close to the light source.
What can I attach to the shaft?
The shaft is about 2mm (1/16 in) in diameter, so it fits small propellers, discs or pulleys made for that size.
Before attaching the motor to the solar panel, spin it slowly by hand a few turns in both directions to loosen the manufacturing grease.
Works best in direct sunlight; with artificial light the panel must be close to the light source.
