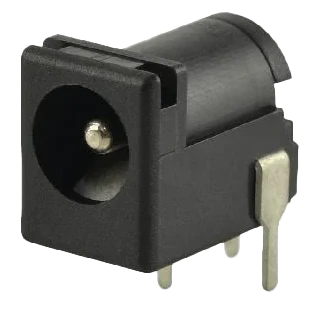

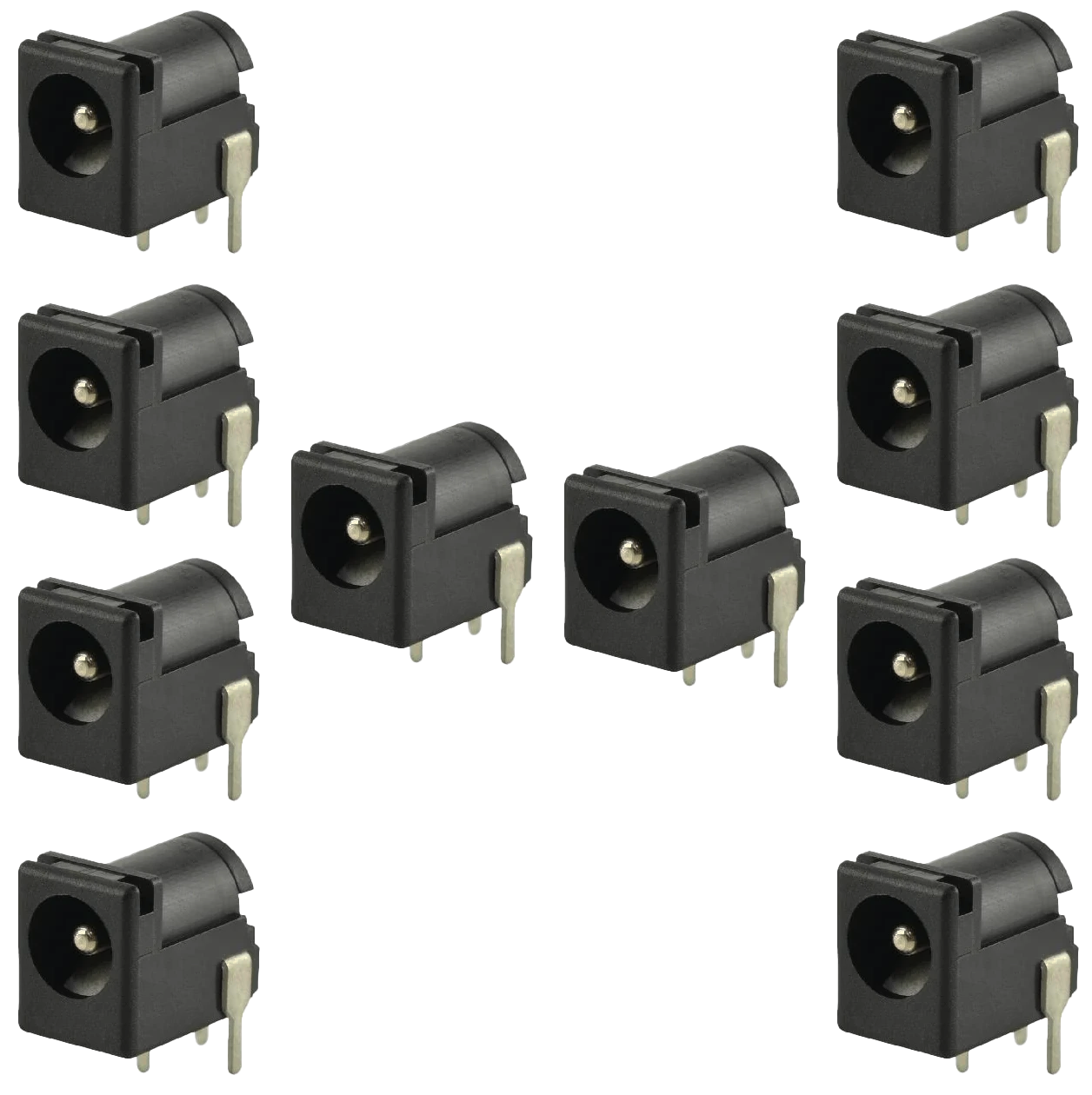

- 10 Pack DC Power Connector with PC Leads
- Inside Contact Diameter: 2 mm
- Outside Contact Diameter: 6.5 mm
- Mounting Style: Through Hole
- Termination Style: Through Hole
- Current Rating: 2.5 A
- Voltage Rating: 24 VDC
- Mounting Angle: Right Angle
- Color: Black
- Connector Type: Jack
- Contact Gender: Pin (Male)
- Contact Material: Copper
- Contact Plating: Nickel
- Flammability Rating: UL 94 V-0
- Housing Material: Polybutylene Terephthalate (PBT)
- Insulation Resistance: 50 MOhms
- Maximum Operating Temperature: + 85 C
- Minimum Operating Temperature: - 25 C
