Features:
- (ISET=10 μA)
- Programmable Electrical Characteristics
- Battery-Powered Operation
- Low Supply Current: 350 μA/Amplifier
- Ensured Gain Bandwidth Product: 0.8 MHz Min
- Large DC Voltage Gain: 120 dB
- Low Noise Voltage: 28 nV/√Hz
- Wide Power Supply Range: ±1.5V to ±22V
- Class AB Output Stage–No Crossover Distortion
- Ideal Pin Out for Biquad Active Filters
- Input Bias Currents are Temperature Compensated
Specifications:
- Number of Circuits: 4
- Slew Rate: 0.4V/µs
- Gain Bandwidth Product: 1.2 MHz
- Current - Input Bias: 50 nA
- Voltage - Input Offset: 500 µV
- Current - Supply: 1.4mA (x4 Channels)
- Current - Output / Channel: 20 mA
- Voltage - Supply Span (Min): 3 V
- Voltage - Supply Span (Max): 44 V
- Operating Temperature: 0°C ~ 70°C
- Mounting Type: Through Hole

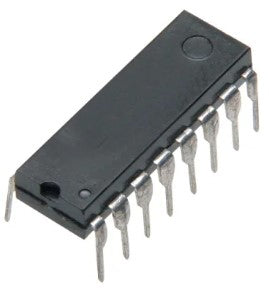

- Package / Case: 16-DIP (0.300", 7.62mm)
