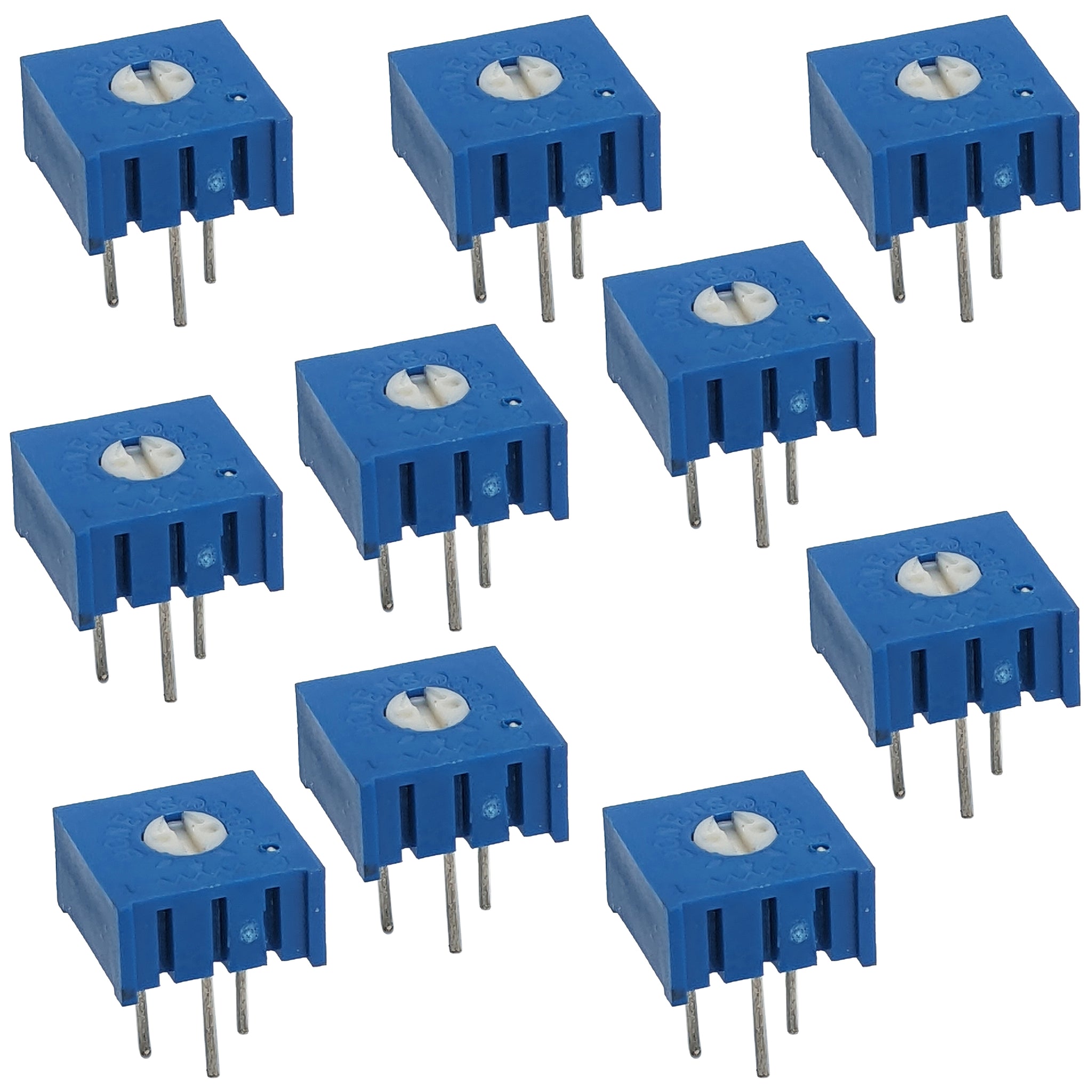

This pack contains 10 × 100K Ohm (100 kΩ) single-turn cermet trimmer potentiometers with a linear taper, rated 0.5 W. A 100K Ohm value is commonly used for high-impedance inputs, RC timing, op-amp feedback and voltage dividers that should draw very little current. The 3/8" square body adjusts from the top and mounts through-hole by its pins.
Key Features
- 100K Ohm (100 kΩ) resistance, ±10% tolerance
- Single-turn, top-adjust trimmer
- Linear taper; cermet element rated 0.5 W
- 3/8" square body with through-hole pin terminals
- 10 pieces per pack
Specifications
| Resistance | 100,000 Ohms |
|---|---|
| Tolerance | ±10% |
| Power rating | 0.5 W |
| Number of turns | 1 |
| Taper | Linear |
| Resistive material | Cermet |
| Type | 3/8" square |
| Actuator orientation | Top |
| Mounting | Through hole |
| Termination | Pins |
| Pack quantity | 10 |
| SKU | 18CPH100KPK10 |
What's Included
- 10 × 100K Ohm cermet trimmer potentiometers
Ideal For
Stocking a bench or classroom with 100K Ohm trimmers for calibration and set-and-forget adjustments.
Frequently Asked Questions
What is a trimmer potentiometer?
A small pot meant to be set once (or rarely) with a screwdriver or fingertip, usually during calibration, rather than a front-panel control turned every day.
Linear or audio taper?
Linear. The 100K Ohm resistance changes evenly as you turn it, which is what you want for calibration, dividers and setpoints.
What is the resistance code for 100K Ohm?
In the three-digit code used on many potentiometers and trimmers, 100K Ohm is written 104: the first two digits (10) followed by 4 zeros. Markings vary by maker, so go by the listed value.
