10 Pack 2M Ohm Cermet Trimmer Potentiometers with Shaft, Single Turn, 0.5W, ±10%, 3/8" Square, 0.1" Pin Spacing
10 Pack 2M Ohm Cermet Trimmer Potentiometers with Shaft, Single Turn, 0.5W, ±10%, 3/8" Square, 0.1" Pin Spacing
10 Pack 2M Ohm Cermet Trimmer Potentiometers with Shaft, Single Turn, 0.5W, ±10%, 3/8" Square, 0.1" Pin Spacing
  • Load image into Gallery viewer, 10 Pack 2M Ohm Cermet Trimmer Potentiometers with Shaft, Single Turn, 0.5W, ±10%, 3/8" Square, 0.1" Pin Spacing
  • Load image into Gallery viewer, 10 Pack 2M Ohm Cermet Trimmer Potentiometers with Shaft, Single Turn, 0.5W, ±10%, 3/8" Square, 0.1" Pin Spacing
  • Load image into Gallery viewer, 10 Pack 2M Ohm Cermet Trimmer Potentiometers with Shaft, Single Turn, 0.5W, ±10%, 3/8" Square, 0.1" Pin Spacing

10 Pack 2M Ohm Cermet Trimmer Potentiometers with Shaft, Single Turn, 0.5W, ±10%, 3/8" Square, 0.1" Pin Spacing

18STS2MPK10
Regular price
$7.99
Sale price
$7.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

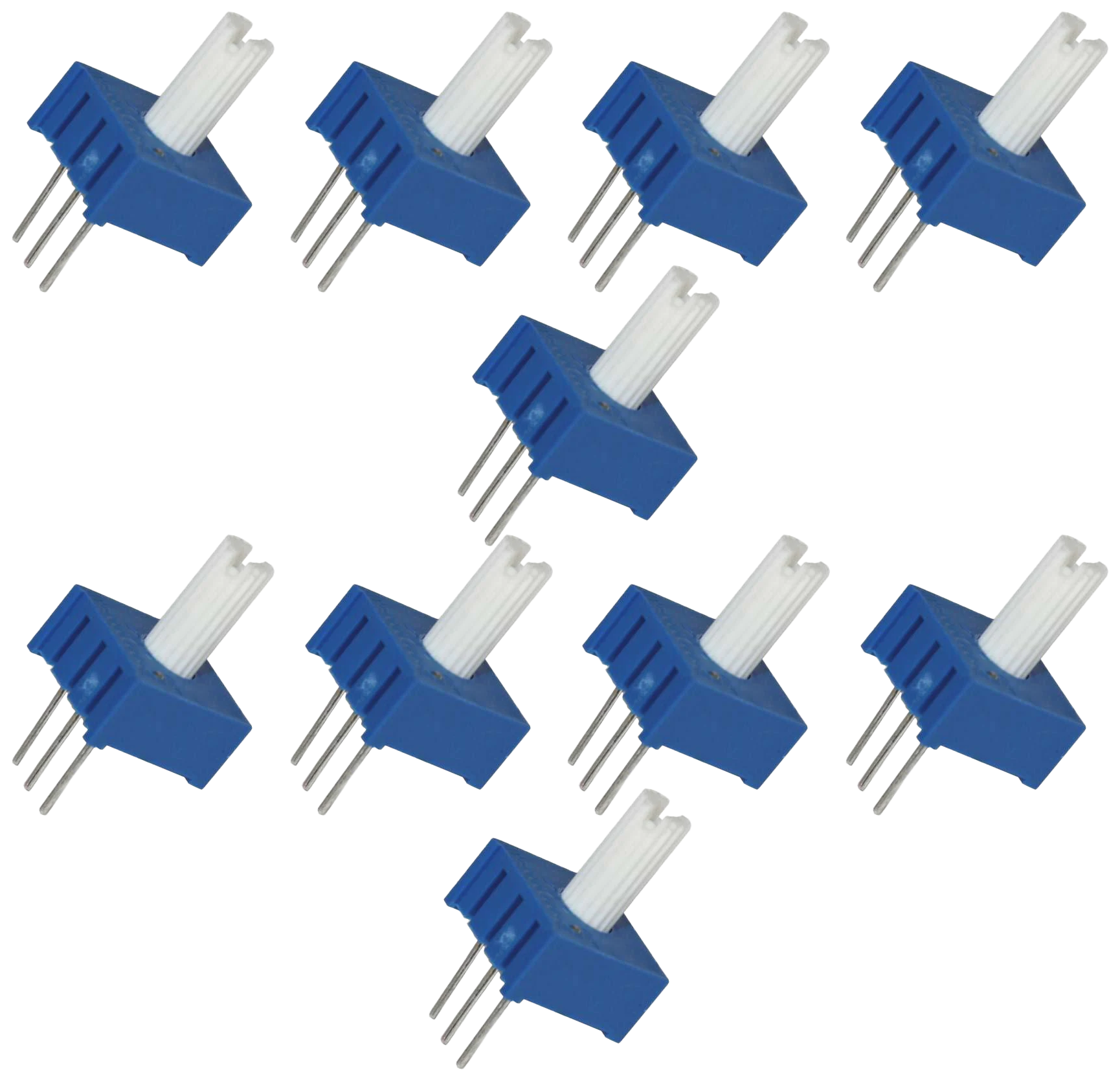

This is a 10-pack of 2M ohm (2,000,000 ohm) single-turn cermet trimmer potentiometers with a shaft, rated 0.5 W with ±10% tolerance and a linear taper. Each has a 3/8-inch square body with top adjustment and wire pin leads on 0.1-inch spacing, so they plug straight into a breadboard. The shaft lets you turn them by hand instead of with a screwdriver.

Key Features

  • 10 trimmer potentiometers per pack
  • 2M ohm (2,000,000 ohms), ±10% tolerance
  • Single turn with shaft for finger adjustment
  • Wire pin leads on 0.1" spacing: breadboard friendly
  • Cermet element, linear taper, 0.5 W
  • 3/8" square body, top adjust, through-hole

Specifications

Pack quantity 10
Resistance 2,000,000 ohms (2M)
Tolerance ±10%
Power rating 0.5 W
Turns 1
Taper Linear
Resistive material Cermet
Type 3/8" square
Adjustment Top, with shaft
Leads Wire pins, 0.1" spacing
Mounting Through hole
SKU 18STS2MPK10

What's Included

  • 10 x 2M ohm cermet trimmer potentiometer with shaft

Ideal For

Students and prototypers who need hand-adjustable high-value pots on a breadboard.

Frequently Asked Questions

Will these fit a breadboard?
Yes. The listing says they have wire pin leads on 0.1" spacing and are ideal for breadboarding.

What is 2M ohm used for?
High-value pots suit high-impedance circuits such as timing (RC) adjustments, sensor bias and op-amp gain settings.
