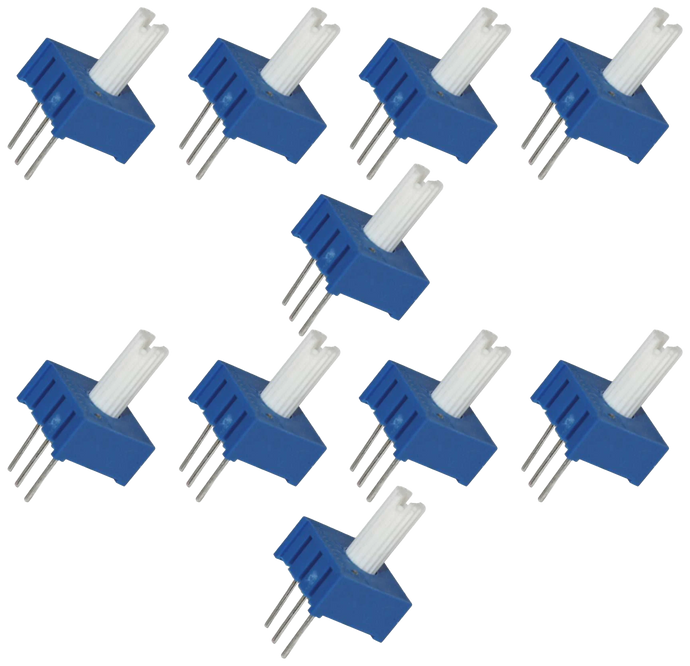

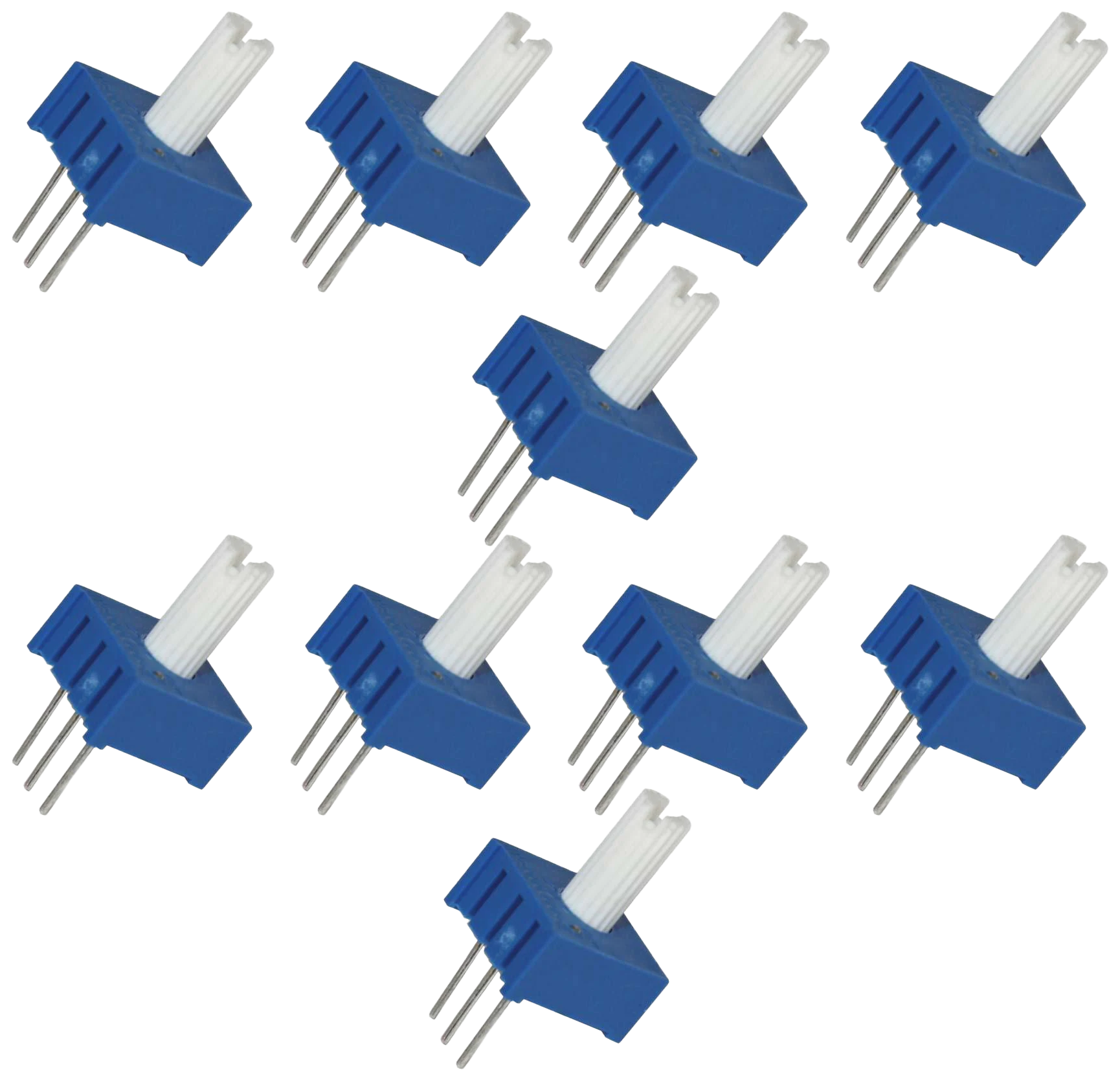

10 Pack 50K Ohm (50 kΩ) Cermet Potentiometers – Single Turn with Shaft, Linear, 1/2W, 3/8" Square, 0.1" Pins for Breadboards
10 Pack 50K Ohm (50 kΩ) Cermet Potentiometers – Single Turn with Shaft, Linear, 1/2W, 3/8" Square, 0.1" Pins for Breadboards
10 Pack 50K Ohm (50 kΩ) Cermet Potentiometers – Single Turn with Shaft, Linear, 1/2W, 3/8" Square, 0.1" Pins for Breadboards
  • Load image into Gallery viewer, 10 Pack 50K Ohm (50 kΩ) Cermet Potentiometers – Single Turn with Shaft, Linear, 1/2W, 3/8" Square, 0.1" Pins for Breadboards
  • Load image into Gallery viewer, 10 Pack 50K Ohm (50 kΩ) Cermet Potentiometers – Single Turn with Shaft, Linear, 1/2W, 3/8" Square, 0.1" Pins for Breadboards
  • Load image into Gallery viewer, 10 Pack 50K Ohm (50 kΩ) Cermet Potentiometers – Single Turn with Shaft, Linear, 1/2W, 3/8" Square, 0.1" Pins for Breadboards

10 Pack 50K Ohm (50 kΩ) Cermet Potentiometers – Single Turn with Shaft, Linear, 1/2W, 3/8" Square, 0.1" Pins for Breadboards

18STS50KPK10
Regular price
$7.99
Sale price
$7.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

This pack contains 10 50K Ohm (50 kΩ) single-turn cermet potentiometers with a linear taper, rated 0.5 W (1/2 W). A 50K Ohm value is commonly used for higher-impedance voltage dividers, RC timing (for example 555 timer circuits) and gain adjustment. Each 3/8" square part has a top-adjust shaft and wire pin leads on 0.1" spacing, which the listing describes as ideal for breadboarding.

Key Features

  • 50K Ohm (50 kΩ) resistance, ±10% tolerance
  • Single turn with a top-adjust shaft
  • Linear taper; cermet element rated 0.5 W
  • Wire pin leads on 0.1" spacing for breadboards
  • Compact 3/8" square, through-hole body
  • 10 pieces for multiple builds or a class set

Specifications

Resistance 50KΩ (50,000 Ohms)
Tolerance ±10%
Power rating 0.5 W
Number of turns 1
Taper Linear
Resistive material Cermet
Type 3/8" square, single turn with shaft
Actuator orientation Top
Mounting Through hole
Termination Pins, 0.1" spacing
Pack quantity 10
SKU 18STS50KPK10

What's Included

  • 10 × 50K Ohm cermet potentiometers

Ideal For

Classrooms, makerspaces and anyone who wants a supply of 50K Ohm pots for breadboard work.

Frequently Asked Questions

Will it fit a breadboard?
Yes. It has wire pin leads on 0.1" spacing, which plug straight into a standard solderless breadboard or 0.1" perfboard.

Linear or audio taper?
Linear. The 50K Ohm resistance changes evenly as you turn it, which is what you want for calibration, dividers and setpoints.

What is the resistance code for 50K Ohm?
In the three-digit code used on many potentiometers and trimmers, 50K Ohm is written 503: the first two digits (50) followed by 3 zeros. Markings vary by maker, so go by the listed value.
