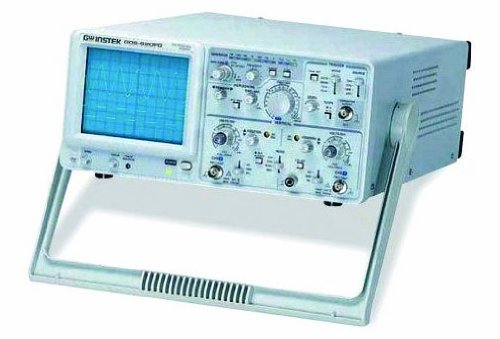

GW Instek GOS-620FG General Purpose Analog Oscilloscope with Built-in 1MHz Function Generator, 20MHz Bandwidth

The Instek GOS-620FG is a 20MHz, two-channel analog oscilloscope with a built-in function generator, ALT triggering, Z-axis input, TV synchronization capability, and channel 1 output for electronics applications such as production lines and electrical engineering education, among others. The function generator produces sine, square and triangle waveforms with a frequency from 0.1Hz to 1MHz for testing circuits. This oscilloscope has a vertical sensitivity to 1mV per division for capturing low-level signals. An ALT triggering function displays the signal from both channels simultaneously. The Z-axis input modulates the intensity of the waveform, the TV synchronization circuit allows triggering of TV-V and TV-H signals, and the channel 1 output can apply a signal to an external device, such as a frequency counter (sold separately). Additional specifications include a rise time of 17.5ns and various triggering features. The oscilloscope has a 6" CRT (cathode ray tube) display with an internal 8 x 10 division grid (each division is 1 cm) for viewing waveforms. It has European Conformity (CE) marking. It comes with two 20MHz passive voltage probes, a power cord for 115/230VAC, 50/60Hz, and a user manual.

Specifications
