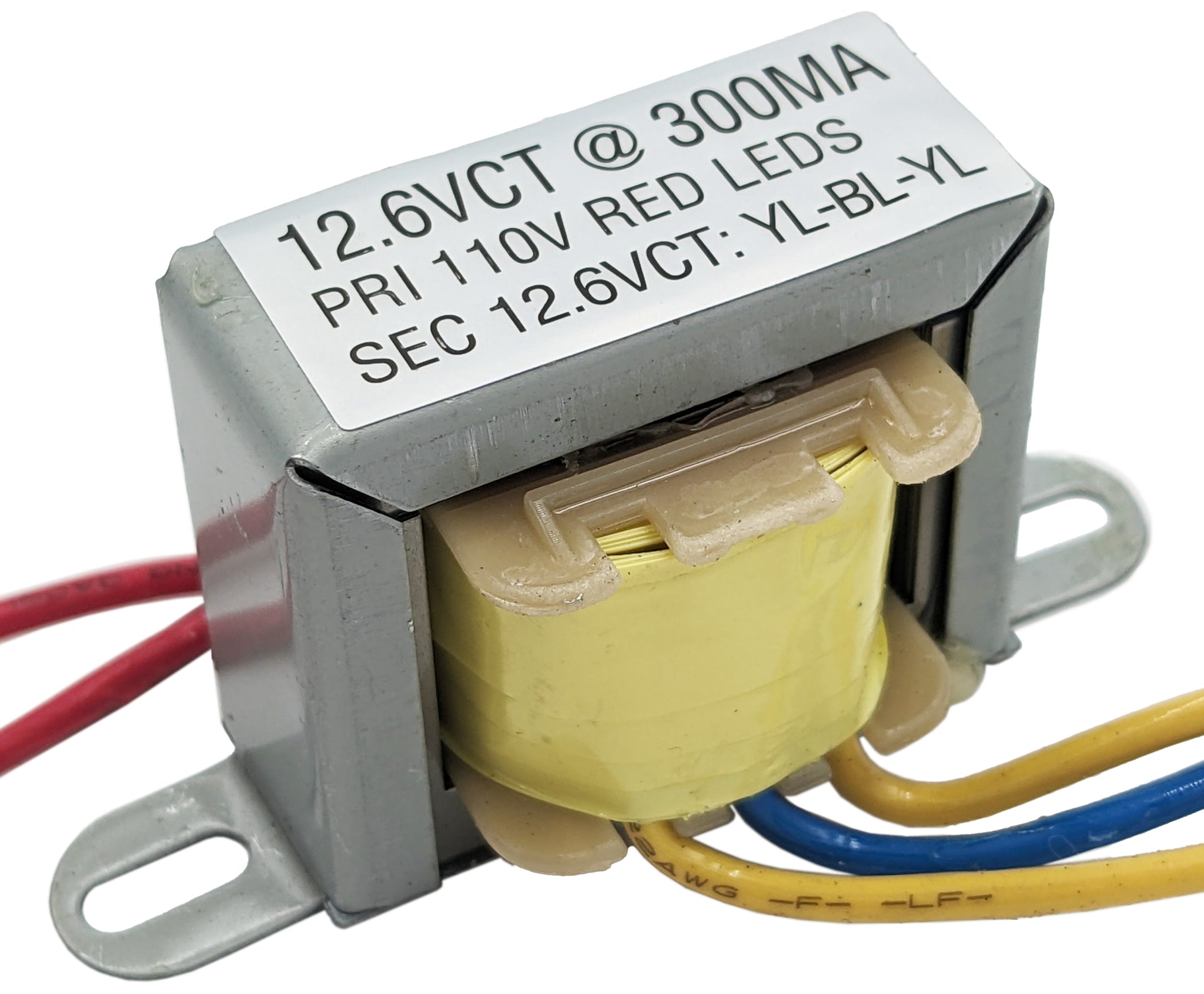

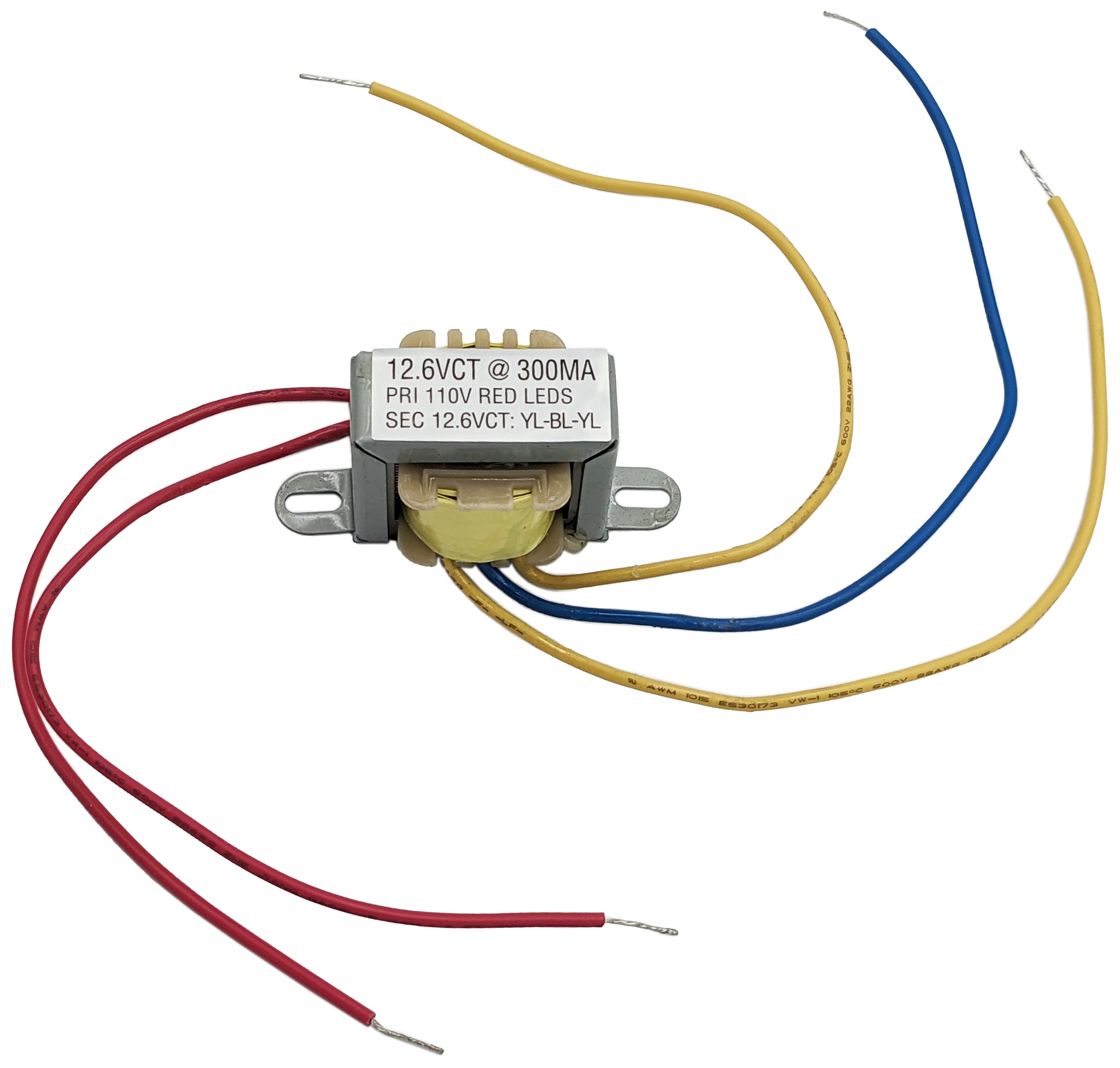

This is a 12.6 VCT (center-tapped) power transformer rated at 0.3 A, terminated in wire leads with legs for mounting. It measures 1.70" x 1.33" x 1.39" (not including the mounting tabs) and weighs 6.35 oz. Use it to supply 12.6 V or 6.3 V AC to circuit board and electronics projects.

Key Features

  • 12.6 V center-tapped secondary at 0.3 A
  • Wire-lead termination
  • Mounting legs with holes about 2.2" apart
  • 1.70" x 1.33" x 1.39" body
  • Weighs 6.35 oz

Specifications

Secondary 12.6 V center-tapped (6.3 V each side of tap)
Current rating 0.3 A
Termination Wire leads
Mounting Foot mount (legs)
Dimensions 1.70" x 1.33" x 1.39" (not including mounting tabs)
Mounting hole spacing About 2.2"
Weight 6.35 oz
SKU 16P112-.3

What's Included

  • 1 x 12.6 VCT 0.3A power transformer

Ideal For

Building small linear power supplies and powering low-current electronics projects.

Frequently Asked Questions

What does VCT (center-tapped) mean?
The secondary winding has a center tap, so you can use the full rated voltage across the outer leads or half of it from either outer lead to the center tap, a common setup for full-wave rectifier power supplies.

What is the power rating?
12.6 V at 0.3 A is about 3.8 VA.
