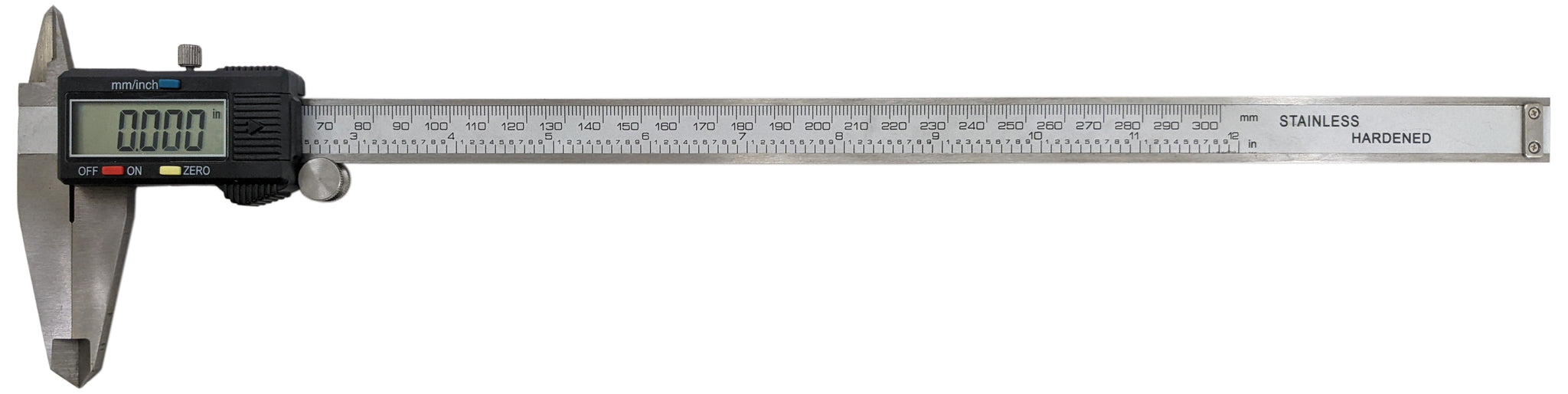

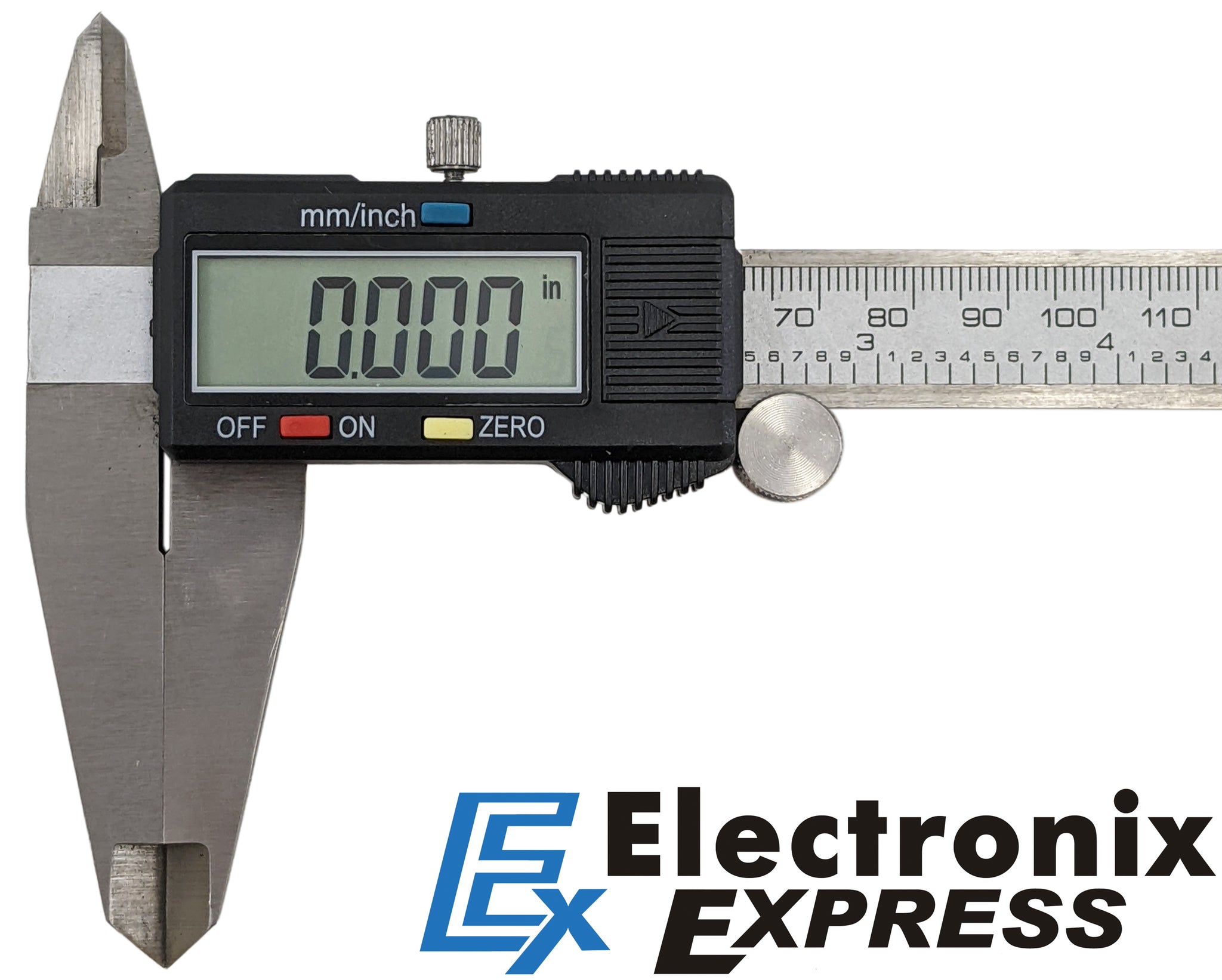

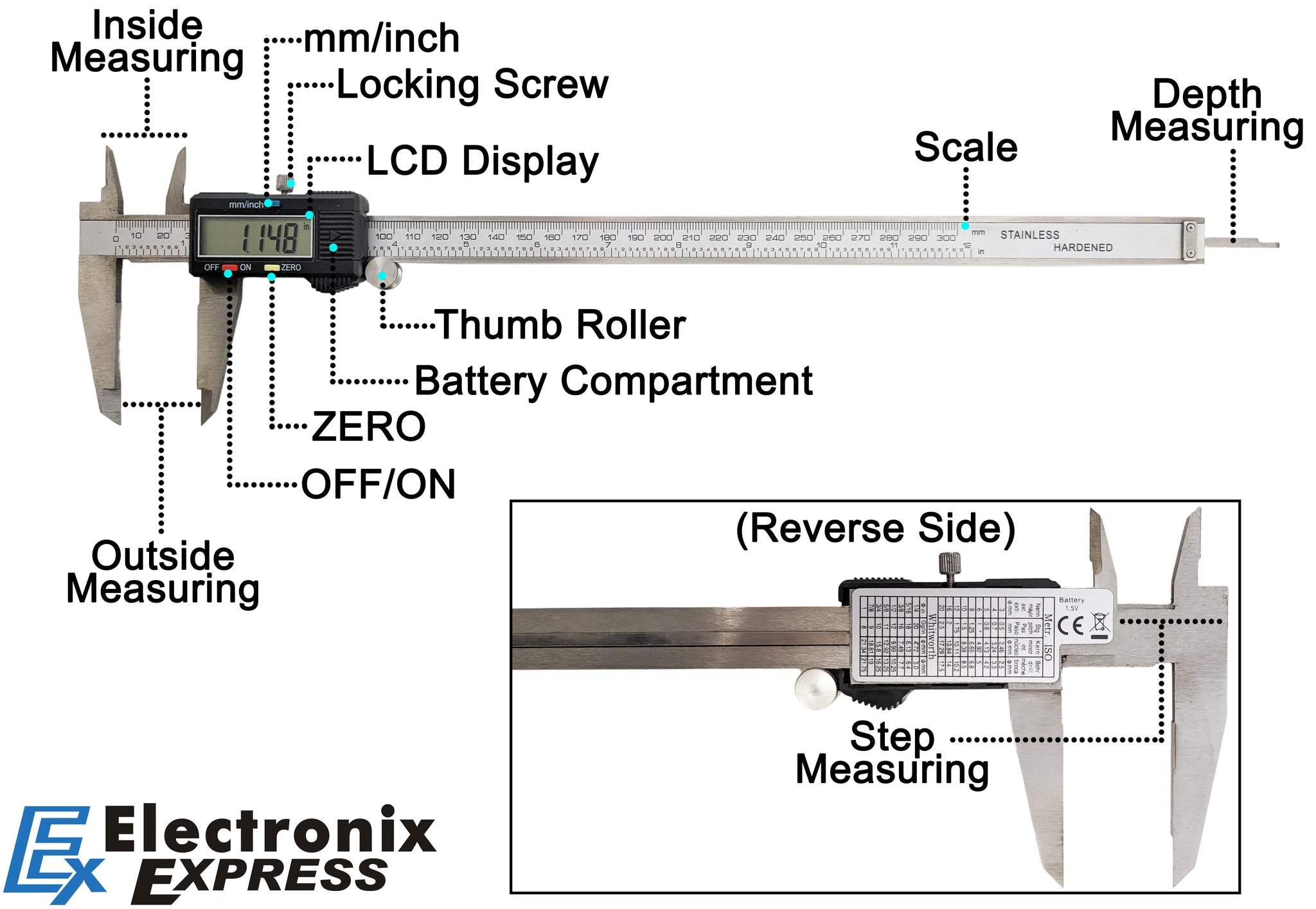

This 12-inch electronic digital caliper measures outside, inside, depth and step dimensions from 0 to 12 inches (0–304 mm) at 0.0005-inch (0.01 mm) resolution, and switches between inches and millimeters with one button. It has a hardened stainless steel scale, precision-ground jaws, a thumbwheel for fine adjustment, a locking screw and a large LCD.
Key Features
- 0–12 in. / 0–304 mm range with 0.0005 in. / 0.01 mm resolution

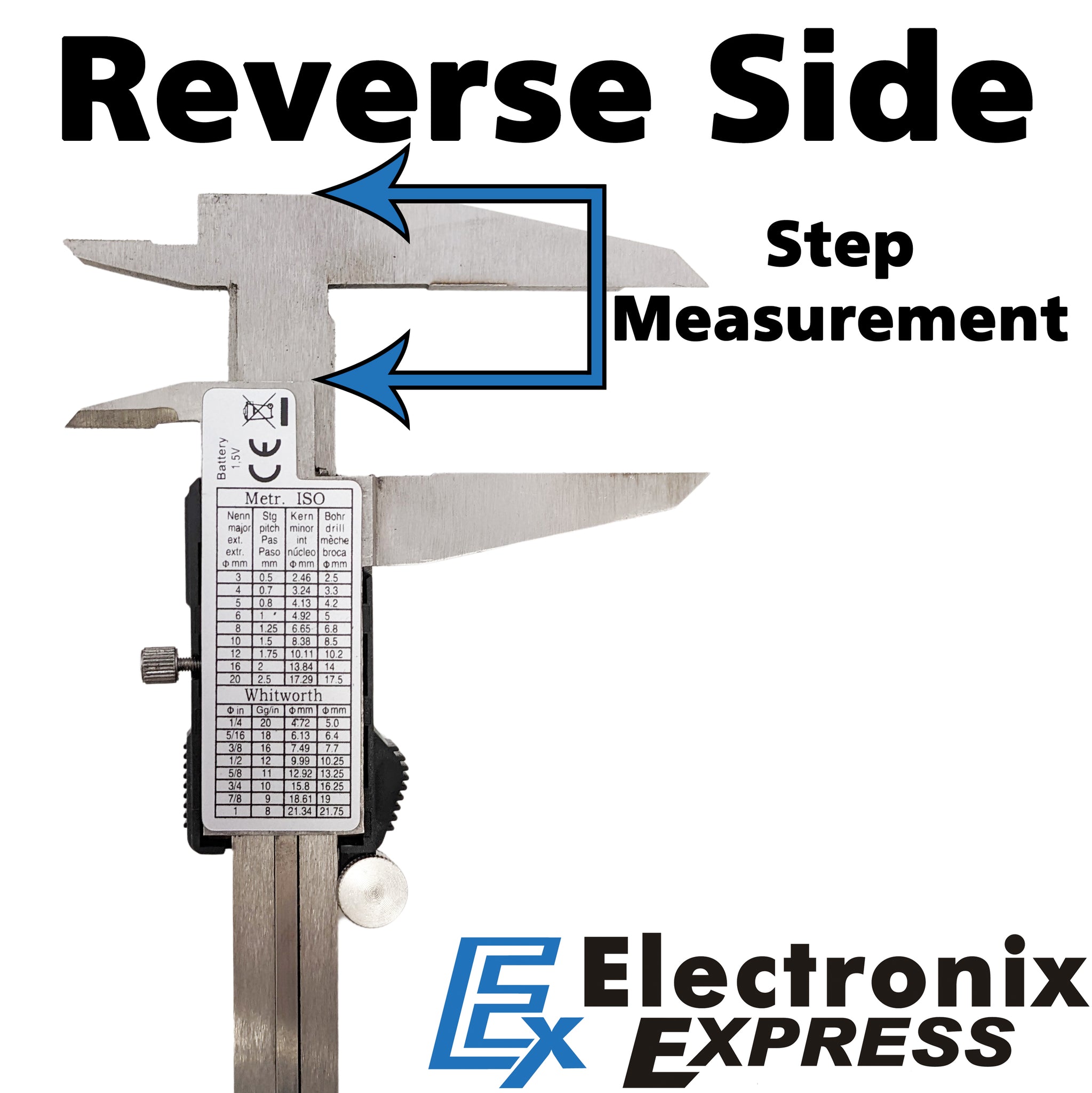

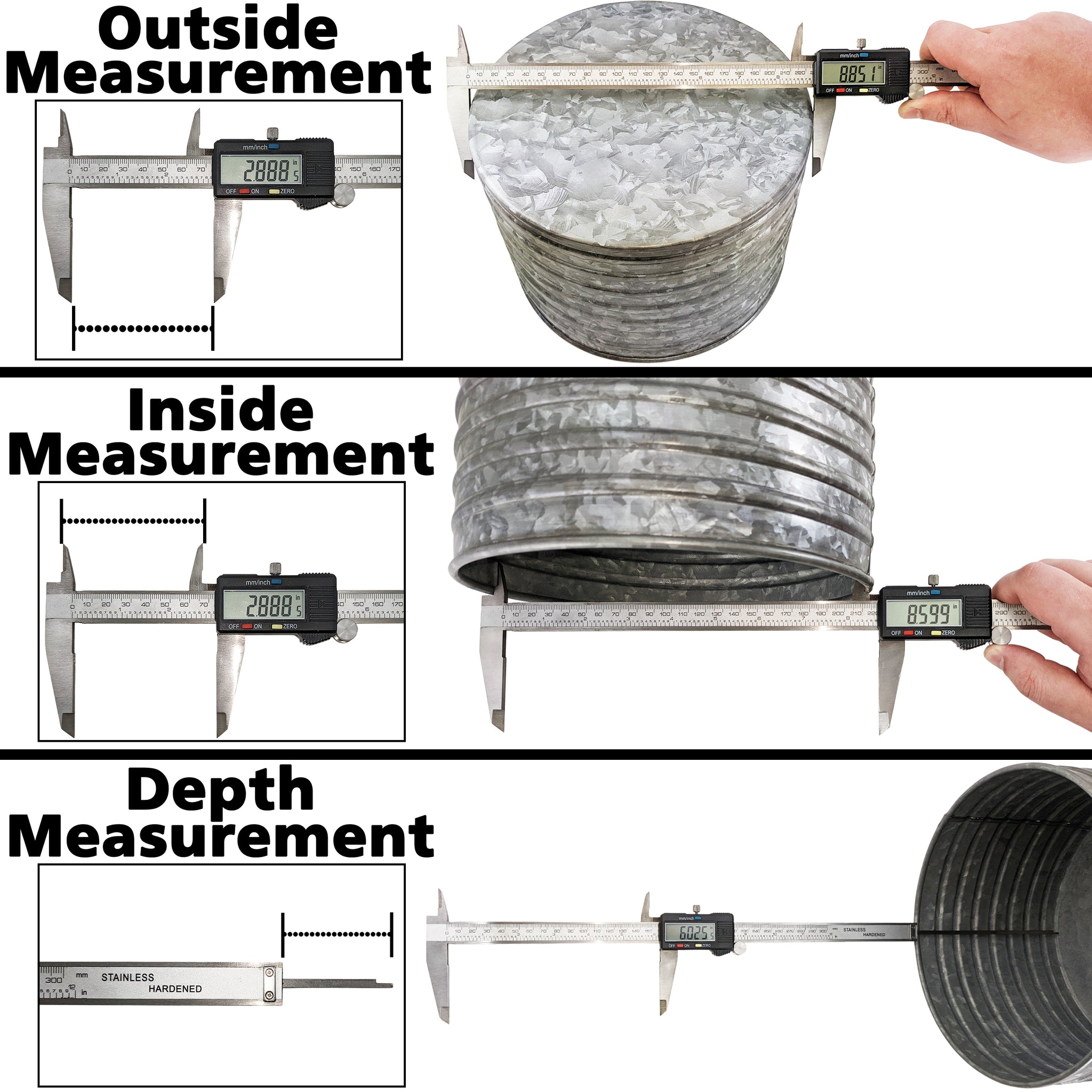

- 4-way measurement: outside, inside, depth and step
- Instant inch/mm conversion and an adjustable zero
- Hardened stainless steel with precision-ground jaws
- Thumbwheel fine adjustment, locking screw and auto-on
- Storage case, battery and manual included
Specifications
| Range | 0–12 in. (0–304 mm) |
|---|---|
| Resolution | 0.0005 in. / 0.01 mm |
| Accuracy | ±0.001 in. (0.02 mm below 100 mm; 0.03 mm above) |
| Repeatability | 0.0005 in. / 0.01 mm |
| Max measuring speed | 60 in./s (1.5 m/s) |
| System | Linear capacitive |
| Power | 1 × LR44 button cell (included) |
| SKU | 0604CAL12 |
What's Included

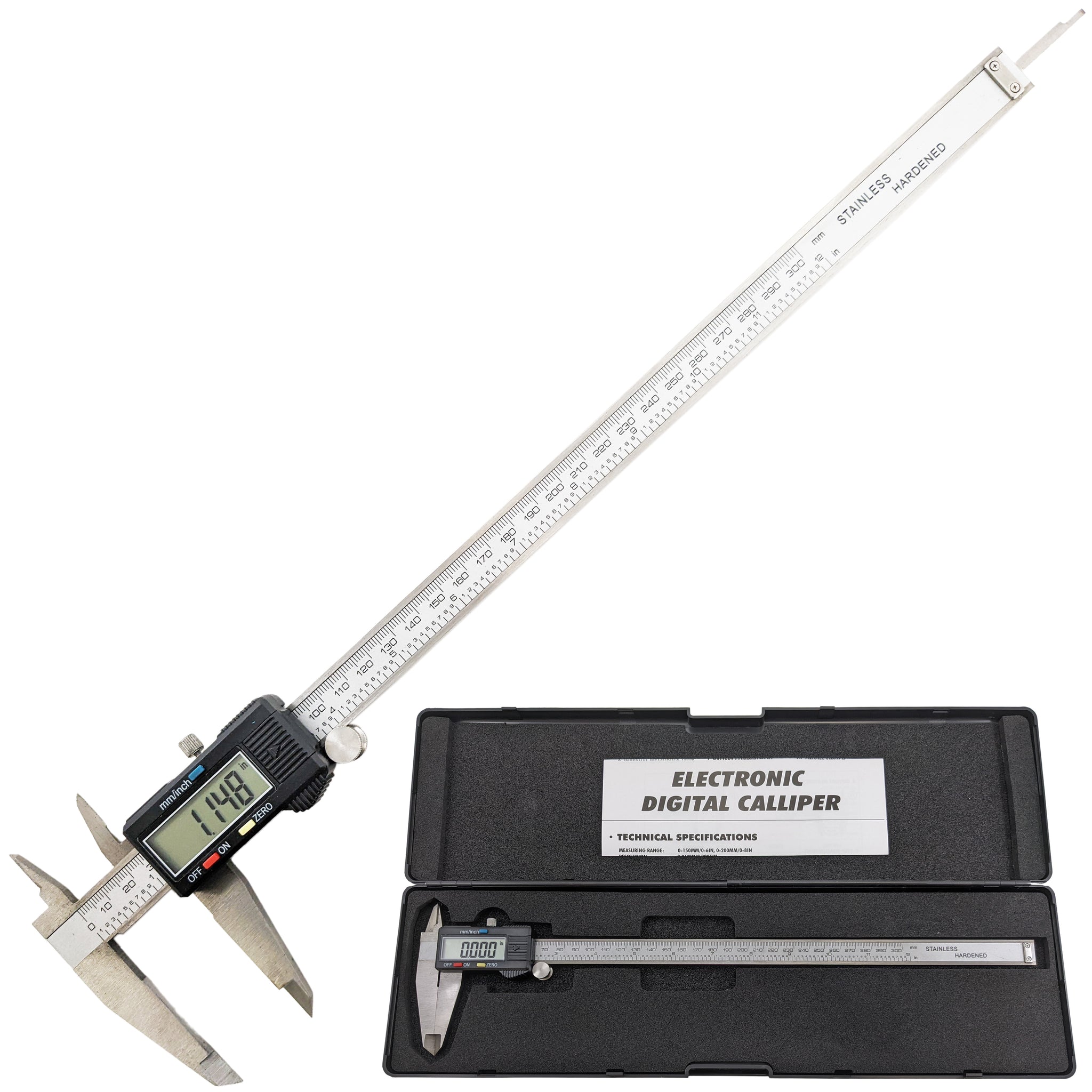

- 12 in. digital caliper

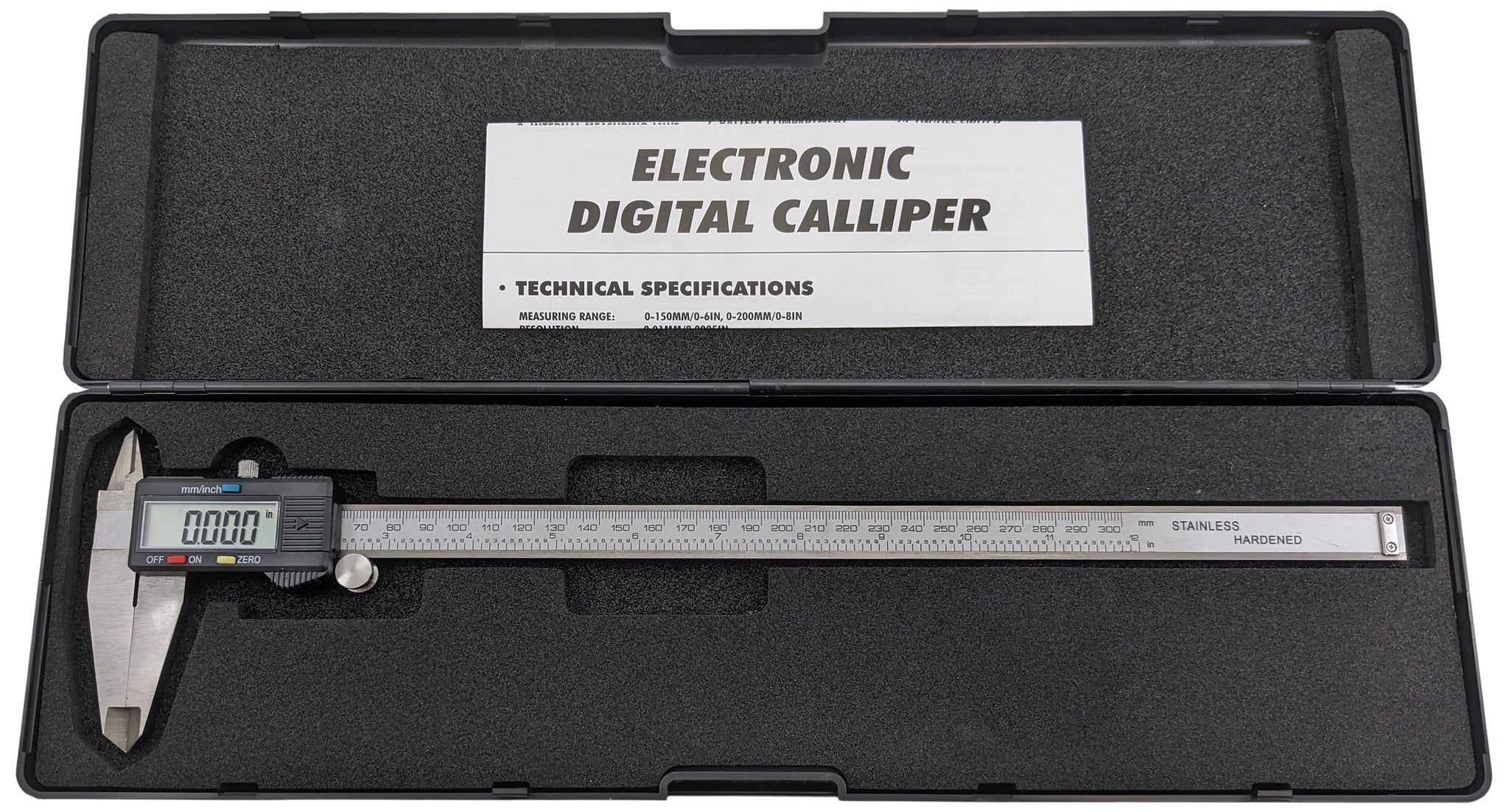

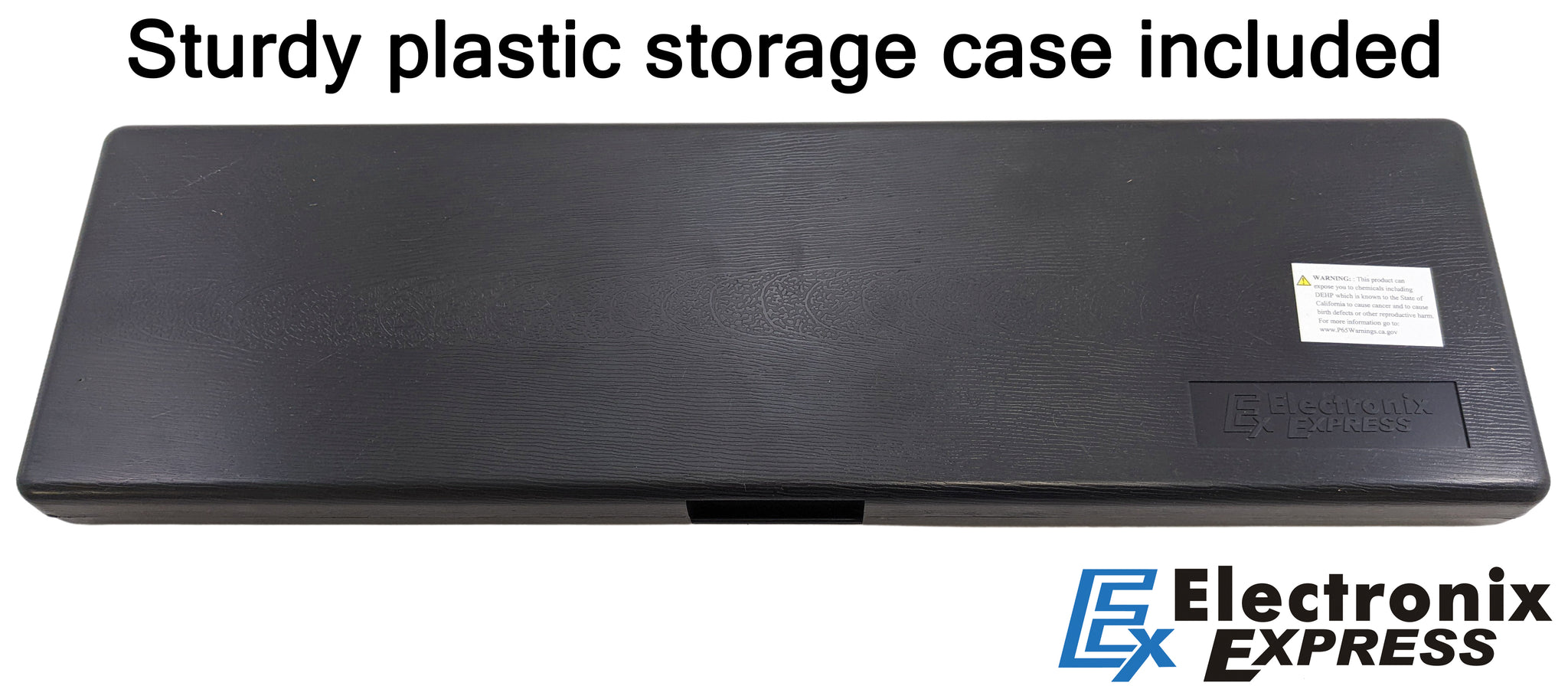

- Plastic storage case
- LR44 battery
- Instruction manual
Ideal For
Machinists, woodworkers, metalworkers, 3D printing, gunsmithing and measuring long parts.
Frequently Asked Questions
Why is there black powder on the caliper?
It's graphite lubricant that lets the jaws slide smoothly. Don't wipe it off, and never use liquid lubricant, which stops the sensor from reading correctly.
Does it measure in millimeters?
Yes. Press the mm/inch button to switch instantly.
