12mm CdS Photocell (LDR) GL12528, 8K-20K Ohm Light Resistance at 10 Lux, 2M Ohm Dark

08GL12528
Regular price
$0.95
Sale price
$0.95
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

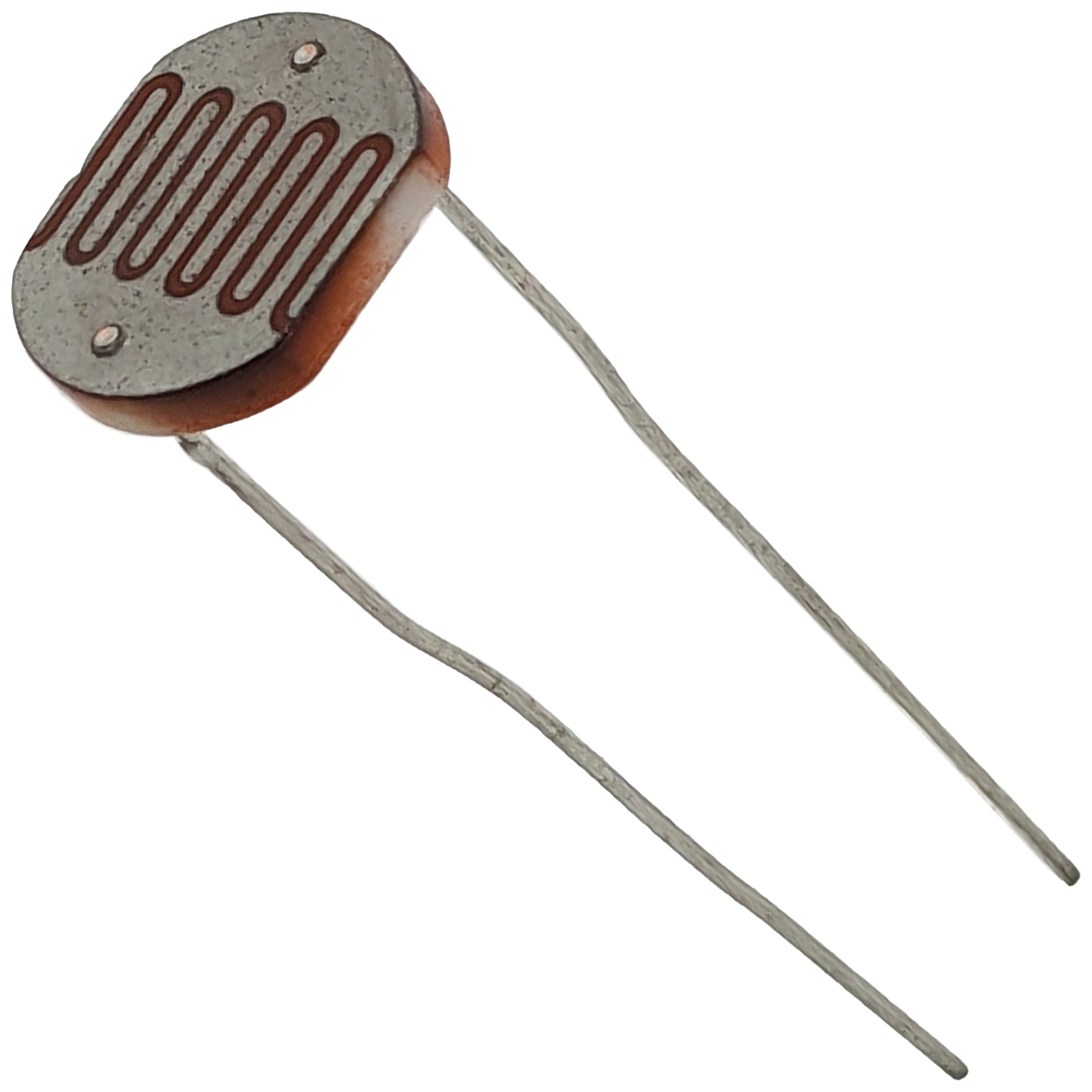

This is a 12mm cadmium sulfide (CdS) photoconductive cell, also called a light-dependent resistor, with 8K-20K ohm resistance at 10 lux and 2M ohm in the dark. Its resistance drops as light increases, which makes it a simple light sensor for night lights, alarms and robotics. It is epoxy encapsulated with 37mm leads and a 550nm spectral peak.

Key Features

  • 12mm cell with 37mm leads
  • Light resistance 8K-20K ohm at 10 lux; dark resistance 2M ohm
  • Cadmium sulfide (CdS) construction
  • Epoxy encapsulated with quick response
  • Spectral peak 550nm
  • Operating temperature -30°C to +70°C

Specifications

Size 12mm
Lead length 37mm
Light resistance (10 lux) 8K-20K ohm
Dark resistance 2M ohm
Pmax (min) 200 (unit not stated)
Spectral peak 550nm
Material Cadmium sulfide (CdS)
Operating temperature -30°C to +70°C
SKU 08GL12528

What's Included

  • 1 × 12mm CdS photocell

Ideal For

Light-sensing projects such as dusk-to-dawn switches, light meters and line-following robots.

Frequently Asked Questions

How do I read it with a microcontroller?
Put it in a voltage divider with a fixed resistor and read the midpoint on an analog input; the voltage changes with light level.

What does 10 lux resistance mean?
It is the resistance measured under 10 lux of light, roughly dim indoor lighting; resistance falls further in brighter light.

Contains cadmium sulfide; dispose of according to local electronics regulations.
