Mini 3~12V Piezoelectric Buzzer with PC Leads, 81db, 0.55" Diameter, 0.27" Height (CPM121A1AWP-S01)

26PZ02-S
$1.50
$1.50
Sold out
Shipping calculated at checkout.

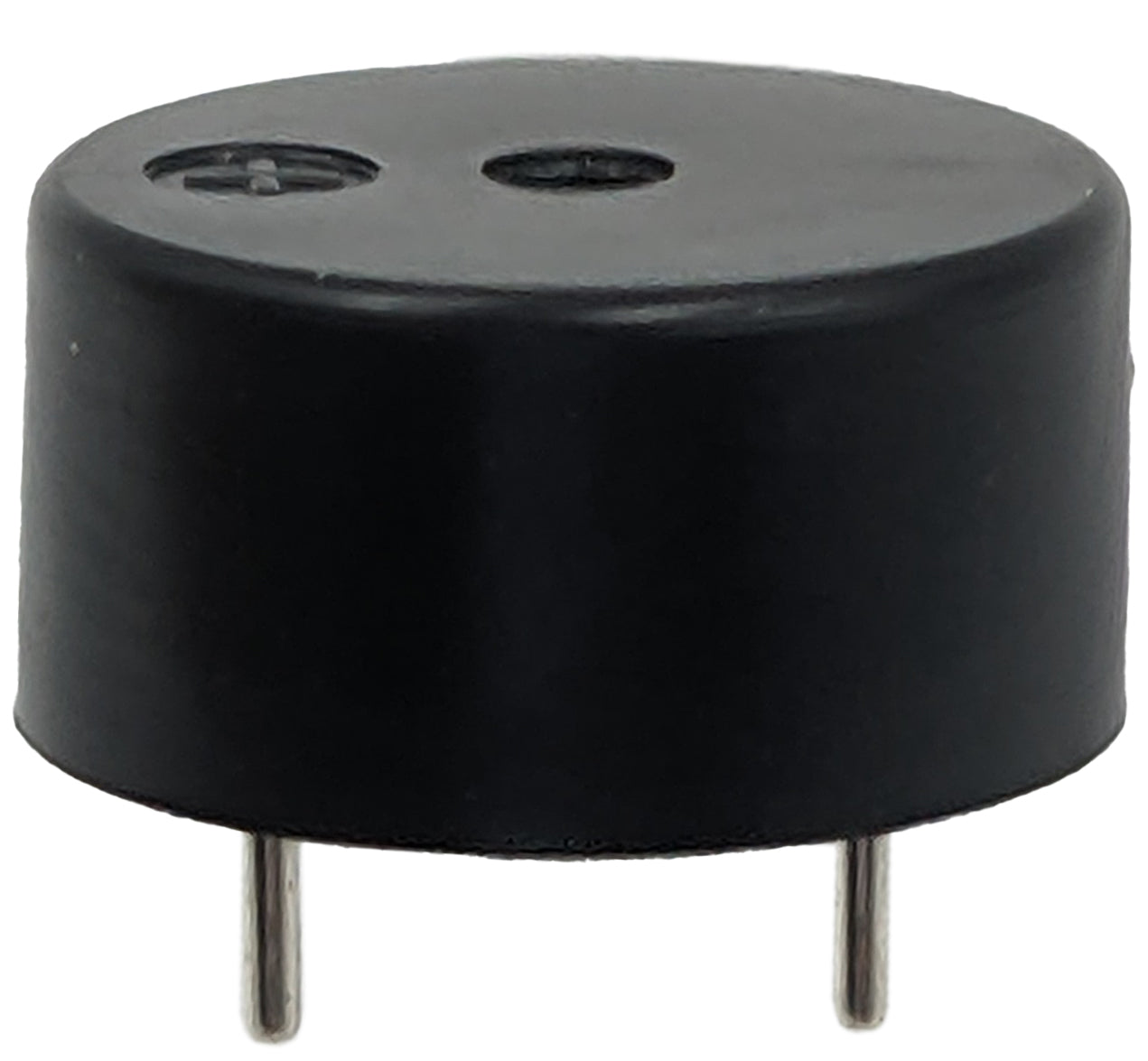

  • Mini piezoelectric buzzer with built-in drive circuitry - only DC voltage is needed
  • Operating voltage: 3～12V
  • Sound Pressure Level (SPL): 81 dB min. (at 12VDC)
  • Oscillating Frequency (Fosc): 4.2 kHz (±0.5)
  • Current Consumption : 8 mA max. @ DC 12V
  • Very clear electronic sound can be heard in the distance, even in noisy environments

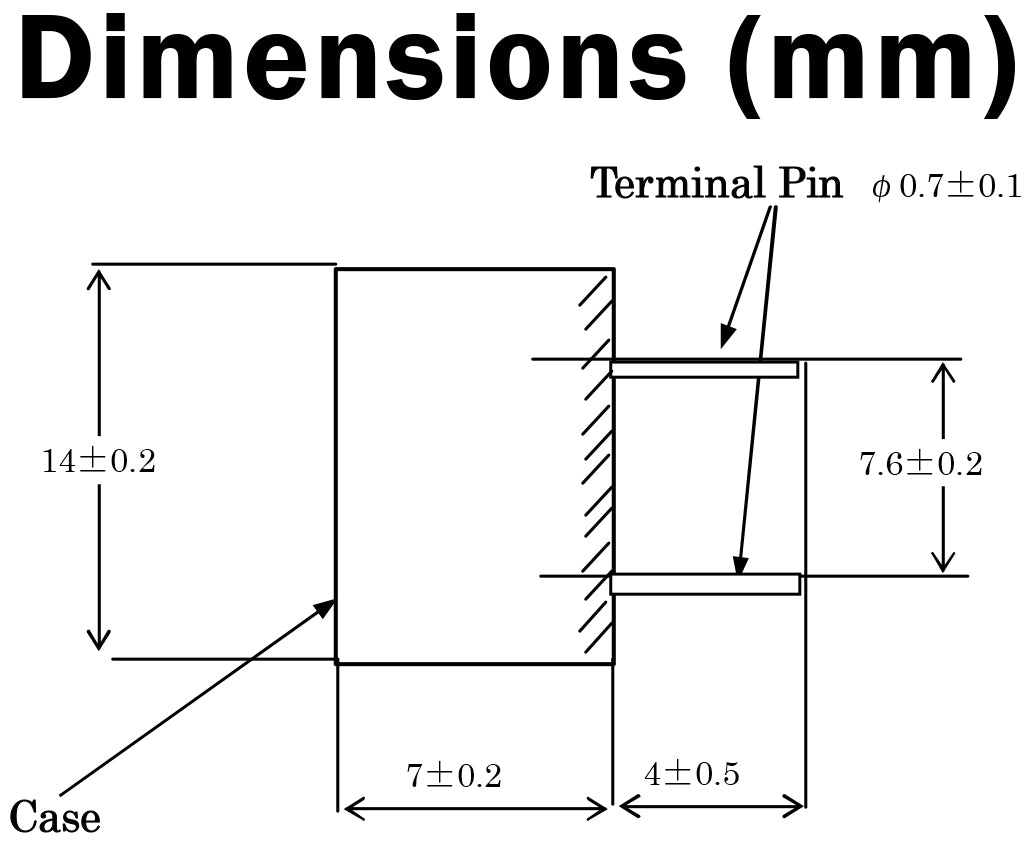

  • PC leads (7.6mm apart) for easy mounting in printed circuit boards

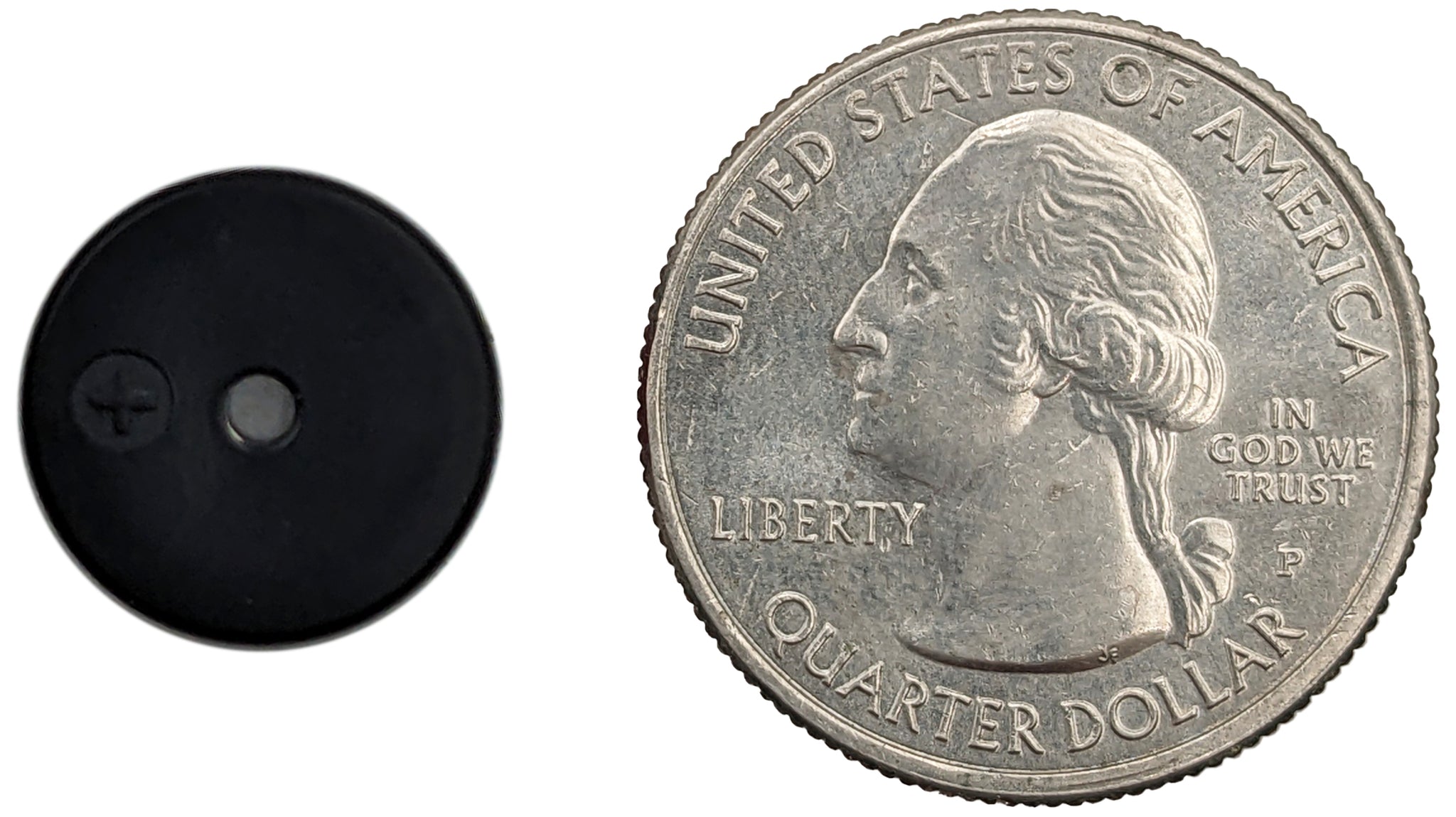

  • Diameter: 0.55" (14mm)
  • Height: 0.27" (7mm)
