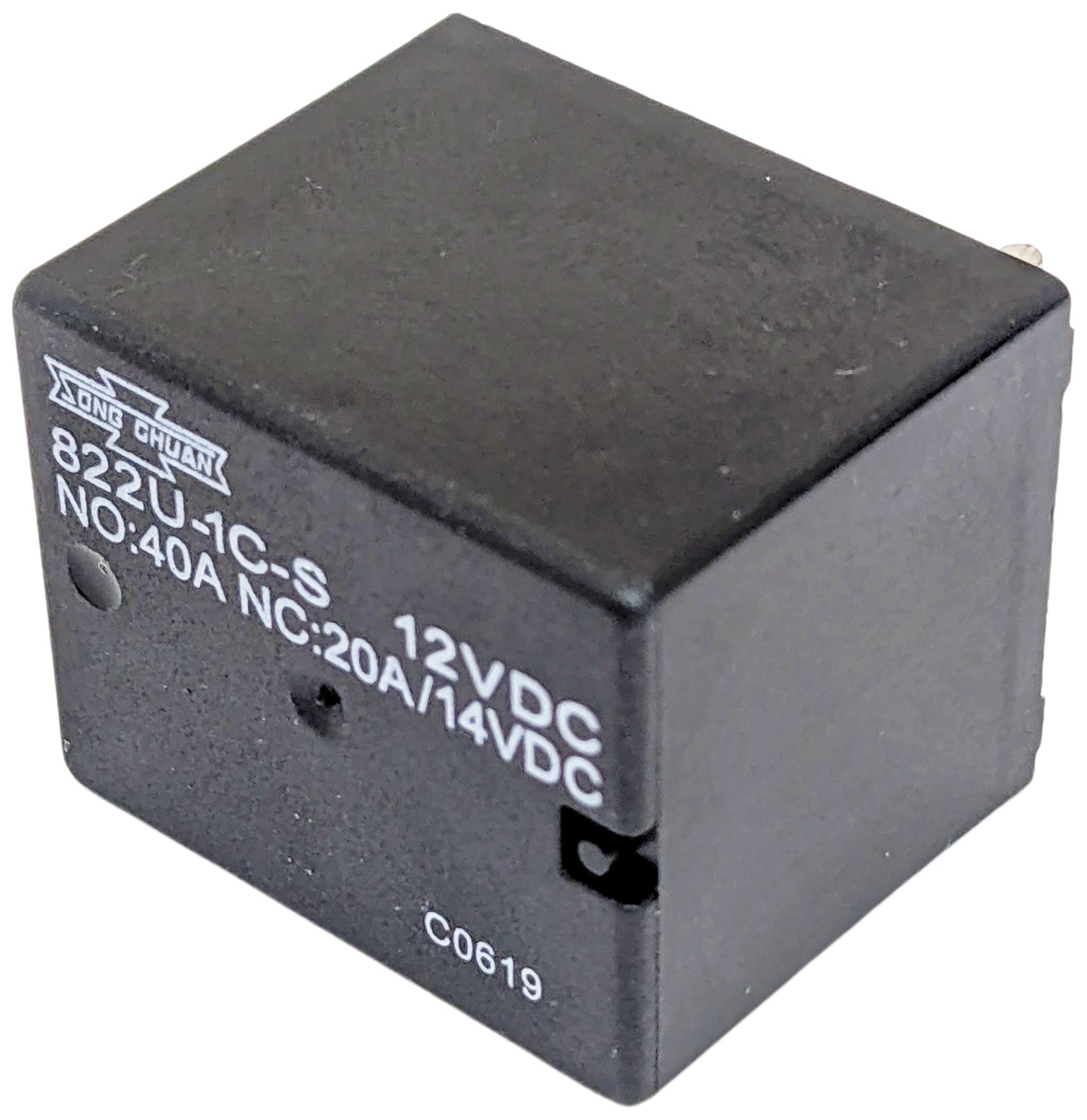

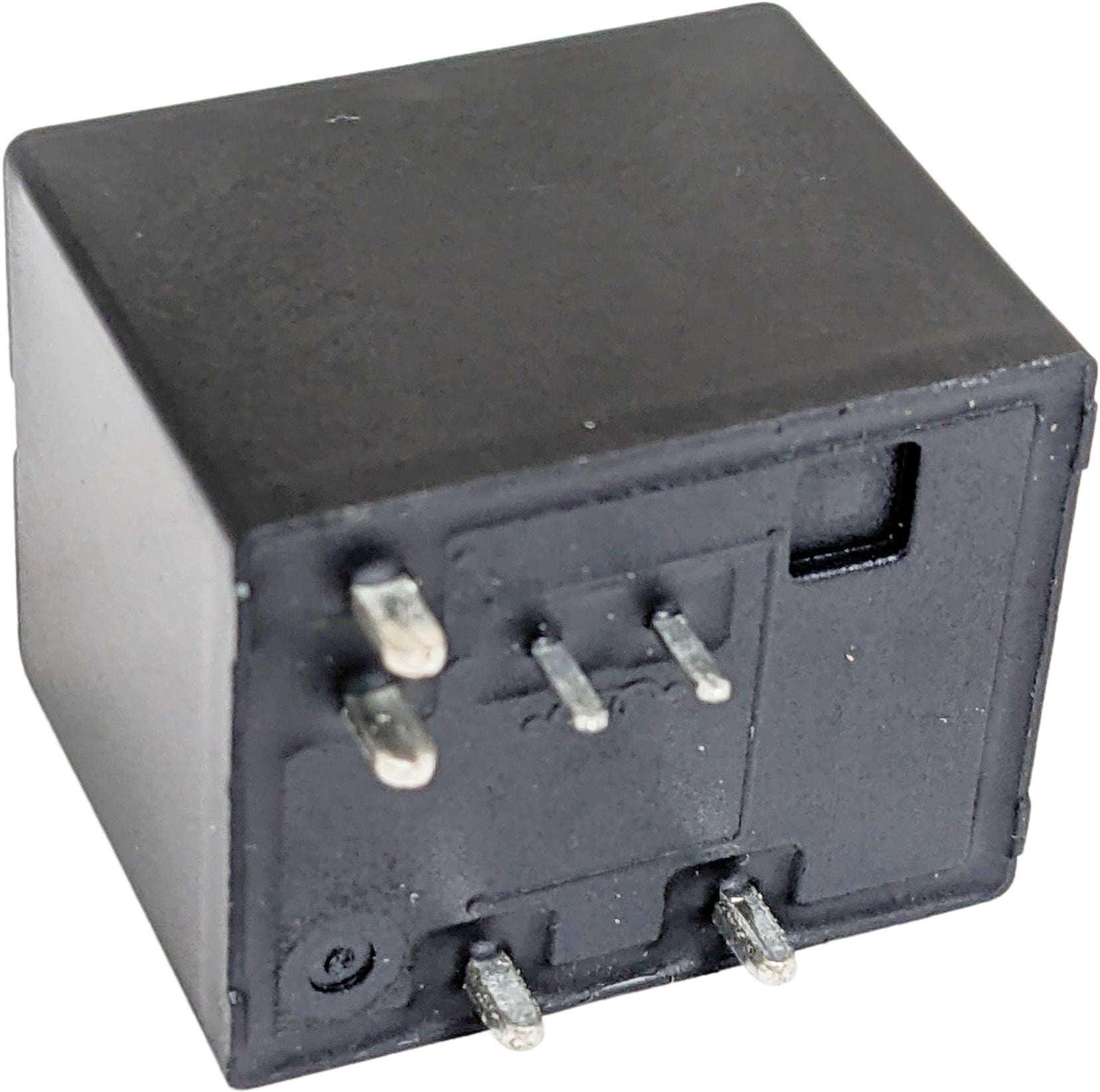

- Manufacturer's Part Number: 822U-1C-S
- Country/Region of Manufacture: China
- Type: General Purpose Relay
- Coil Voltage: 12V
- Contact Material: Silver Tin Oxide (AgSnO)
- Power Consumption: 1.6W @ 12VDC
- Coil Volts: 12VDC
- Maximum Amperage: 40 A

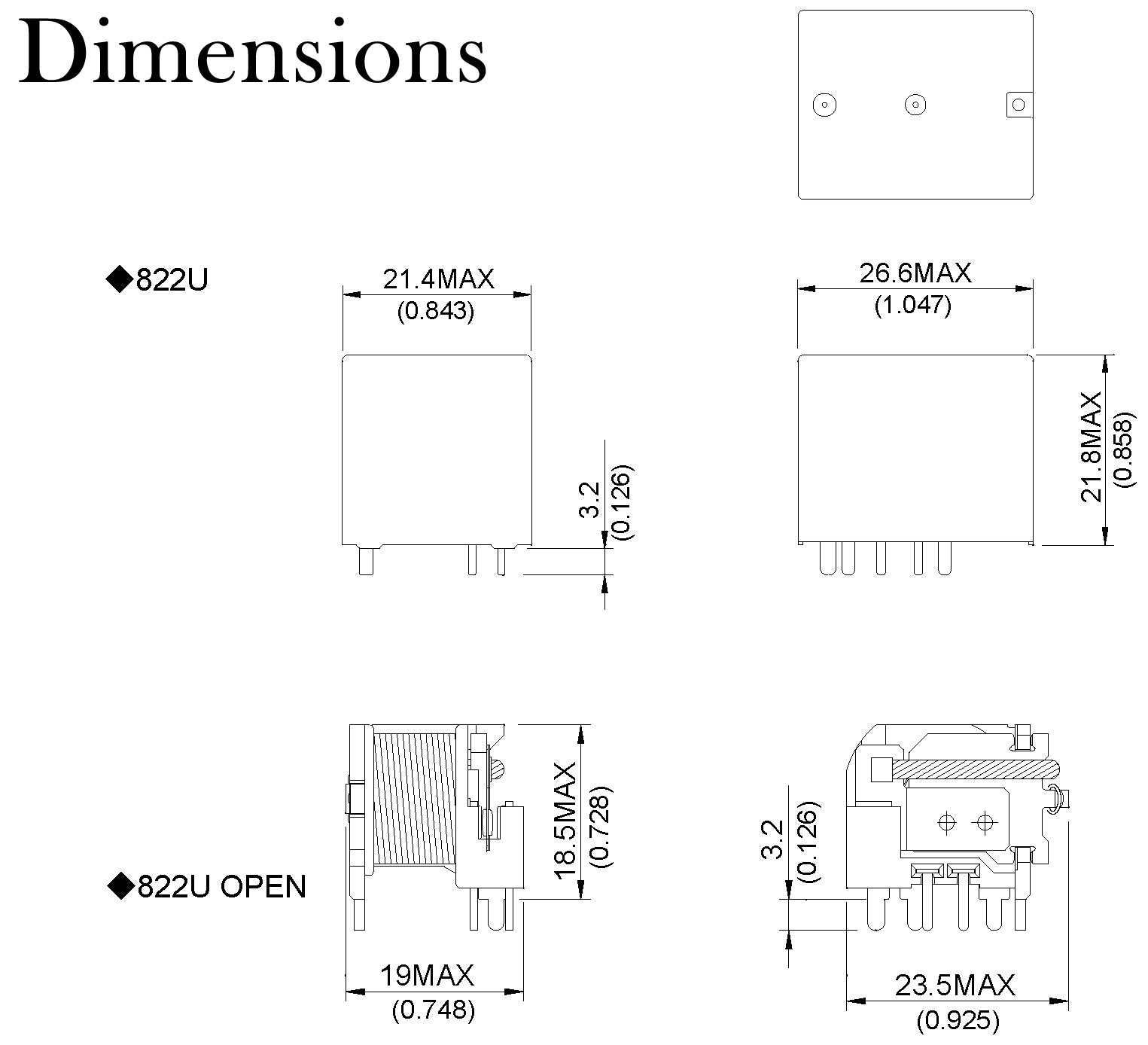

- Length: 26.6 mm
- Width: 21.4 mm
- Height: 21.5 mm
- Contact Form: SPDT (1 Form C)
- Contact Termination: Solder Terminal
- Brand: Song Chuan
