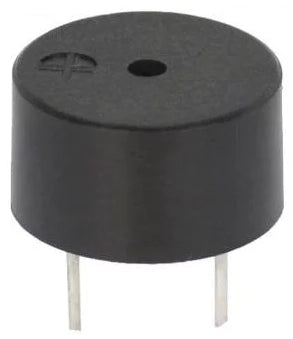

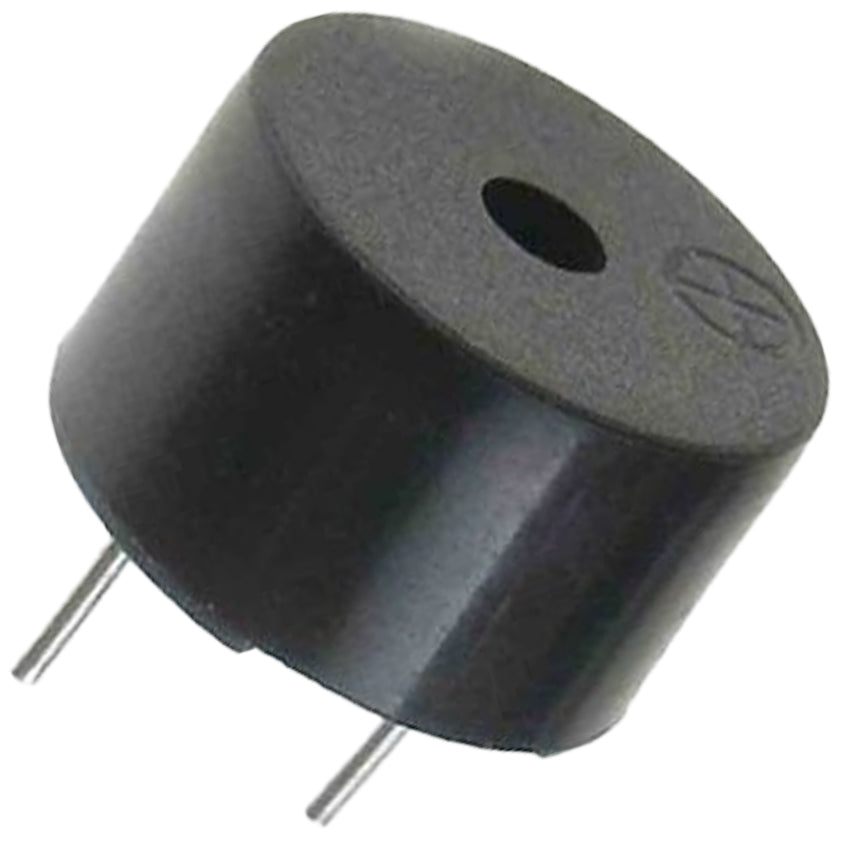

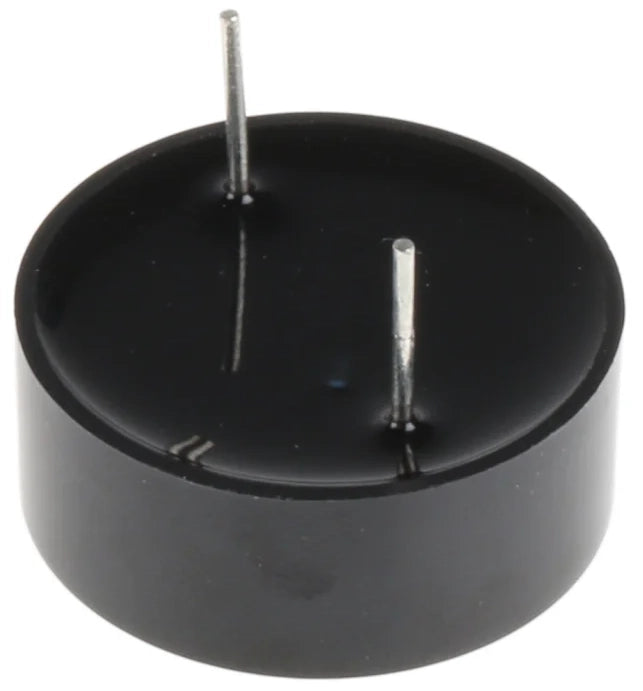

This is a sealed 12 V DC piezo buzzer that produces a continuous 4 kHz tone at a minimum of 85 dB measured at 10 cm. It operates from 3 to 16 V DC, draws up to 7 mA, and has a small black housing measuring 13.8 x 7.5 mm.
Key Features
- Rated 12 V DC; operates from 3 to 16 V DC
- 85 dB minimum at 10 cm
- 4 kHz continuous tone
- Low current: 7 mA max
- Small black housing, 13.8 x 7.5 mm
- Operating temperature -20 to +70 °C
Specifications
| Quantity | 1 |
|---|---|
| Rated voltage | 12 V DC |
| Operating voltage | 3–16 V DC |
| Rated current | 7 mA max |
| Sound output | 85 dB min at 10 cm |
| Resonant frequency | 4,000 ±500 Hz |
| Tone | Continuous |
| Housing color | Black |

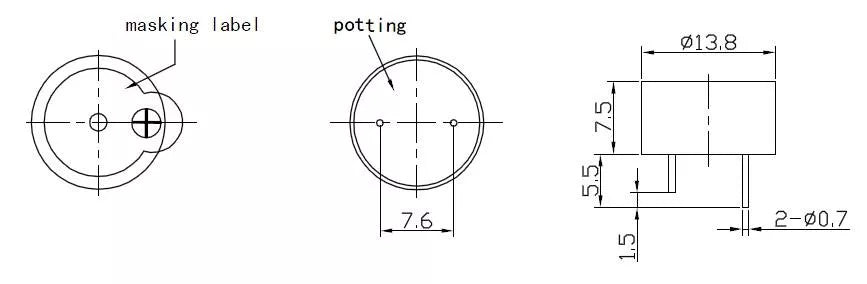

| Size | 13.8 x 7.5 mm (0.54 x 0.29 in) |
| Operating temperature | -20 to +70 °C |
| Storage temperature | -30 to +80 °C |
| SKU | 26PZ06 |
What's Included
- 1 x 12V piezo buzzer
Ideal For
12 V control boards, alarms and appliance-style beepers.
Frequently Asked Questions
Can I run it on 5 V?
Yes, 5 V is within its 3–16 V operating range; output will be lower than at the 12 V rating.
What does 'sealed' mean for a buzzer?
A sealed buzzer has a closed housing that helps keep out flux and wash liquids during board assembly.
