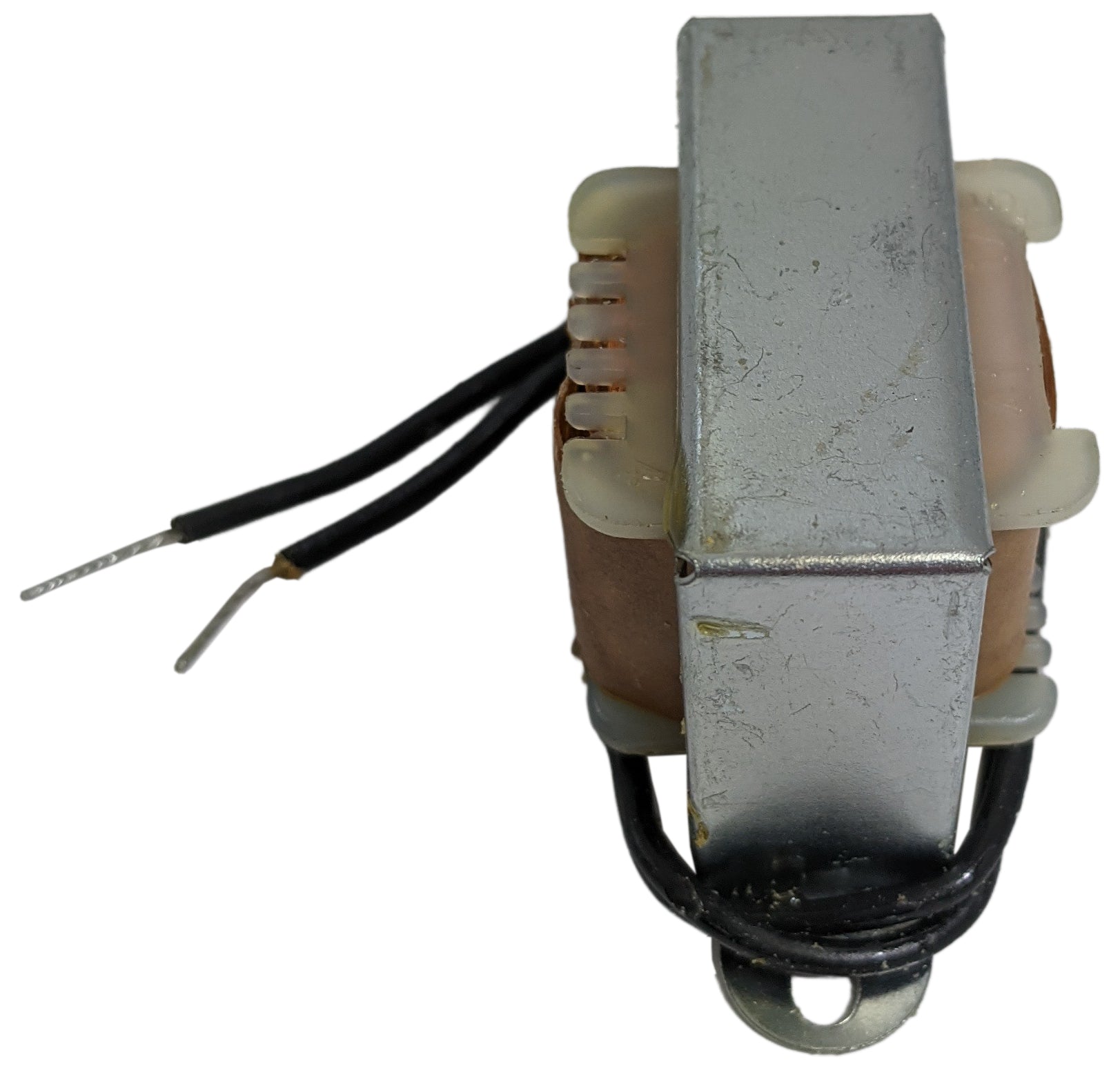

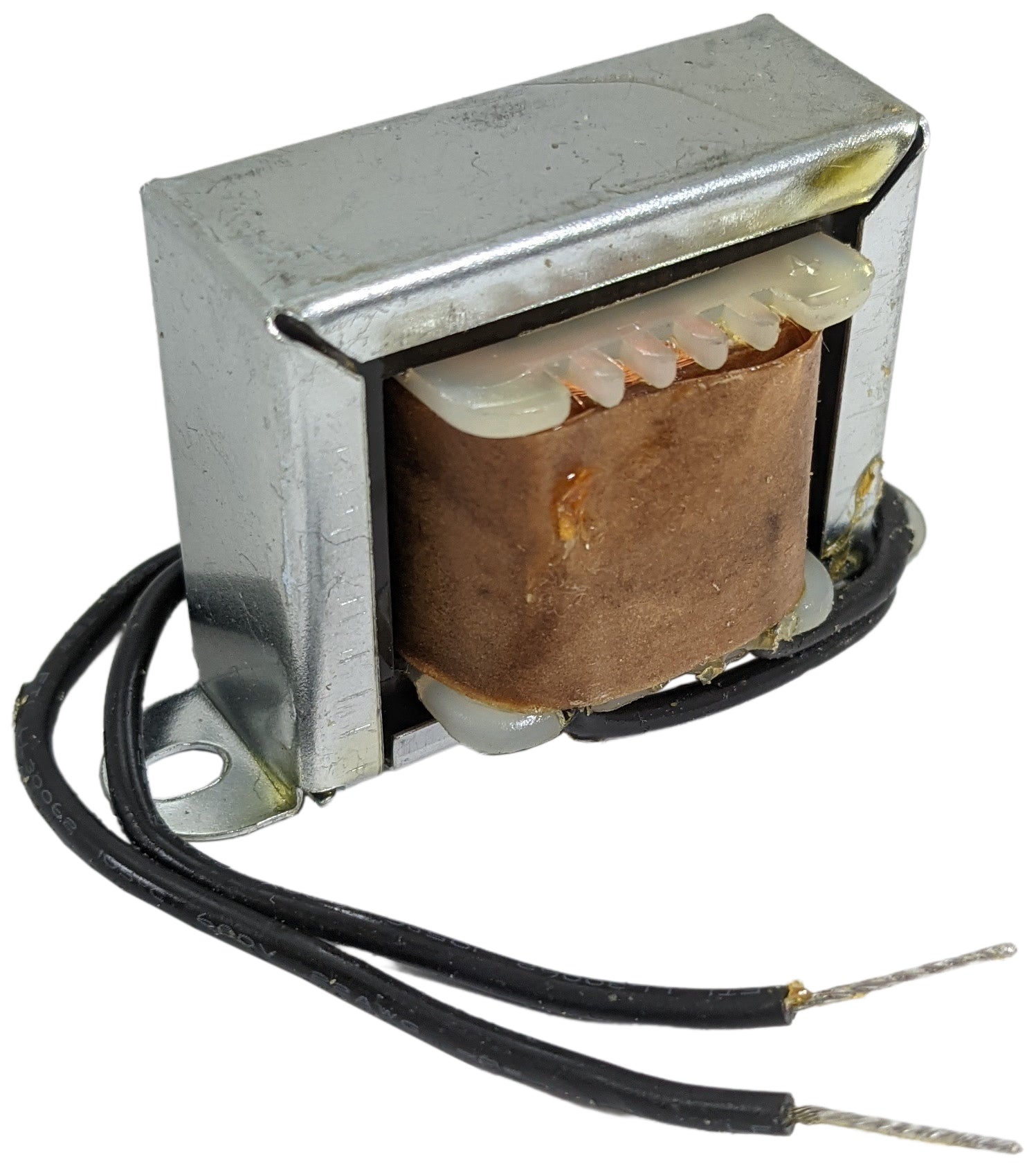

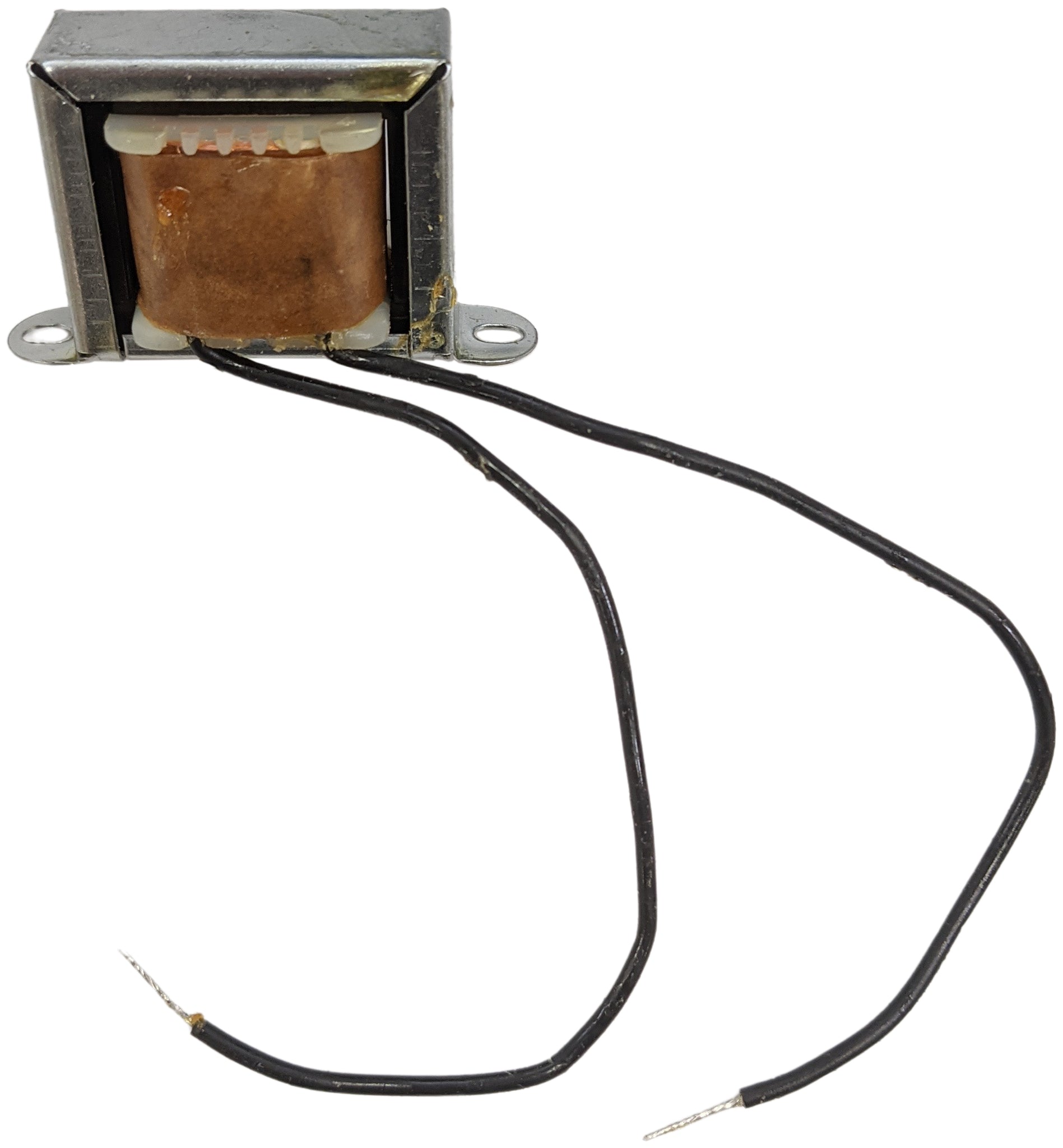

Filter Choke - Value: 7.0H, DC mA: 50, DC RES: 550
Filter Choke - Value: 7.0H, DC mA: 50, DC RES: 550
Filter Choke - Value: 7.0H, DC mA: 50, DC RES: 550
  • Load image into Gallery viewer, Filter Choke - Value: 7.0H, DC mA: 50, DC RES: 550
  • Load image into Gallery viewer, Filter Choke - Value: 7.0H, DC mA: 50, DC RES: 550
  • Load image into Gallery viewer, Filter Choke - Value: 7.0H, DC mA: 50, DC RES: 550

Filter Choke - Value: 7.0H, DC mA: 50, DC RES: 550

15C1707
$13.50
$13.50
Sold out
Shipping calculated at checkout.
  • Value: 7.0H, DC mA: 50, DC RES: 550
  • Economical "open bracket" channel mount filter chokes are perfect for high voltage power supply filtering
  • Tolerance of 15% on both inductance & resistance.
  • Every unit is Hipot tested (100%) at 1,500 VAC
  • 5" long leads. Measures 2.4" x 1.2" x 1.3". Mounting holes are about 2" apart.
Value: 7.0H, DC mA: 50, DC RES: 550. Economical "open bracket" channel mount filter chokes are perfect for high voltage power supply filtering. Tolerance of 15% on both inductance and resistance. Inductances measured at rated D.C. current. 5" long leads.

Measures 2.4" x 1.2" x 1.3". Mounting holes are about 2" apart. Weighs 5.59 ounces.
