16 Button (4 x 4 Matrix) Keypad Switch with Blank White Keys, Tactile Feedback, Common Bus Output, Non-Illuminated, 0.01A @ 24VDC (83BC1-001)

1783BC1-001
$34.99
$34.99
Sold out
Shipping calculated at checkout.
 More payment options
  • Number of Keys: 16
  • Matrix (Columns x Rows): 4 x 4
  • 1/2" Button Centers

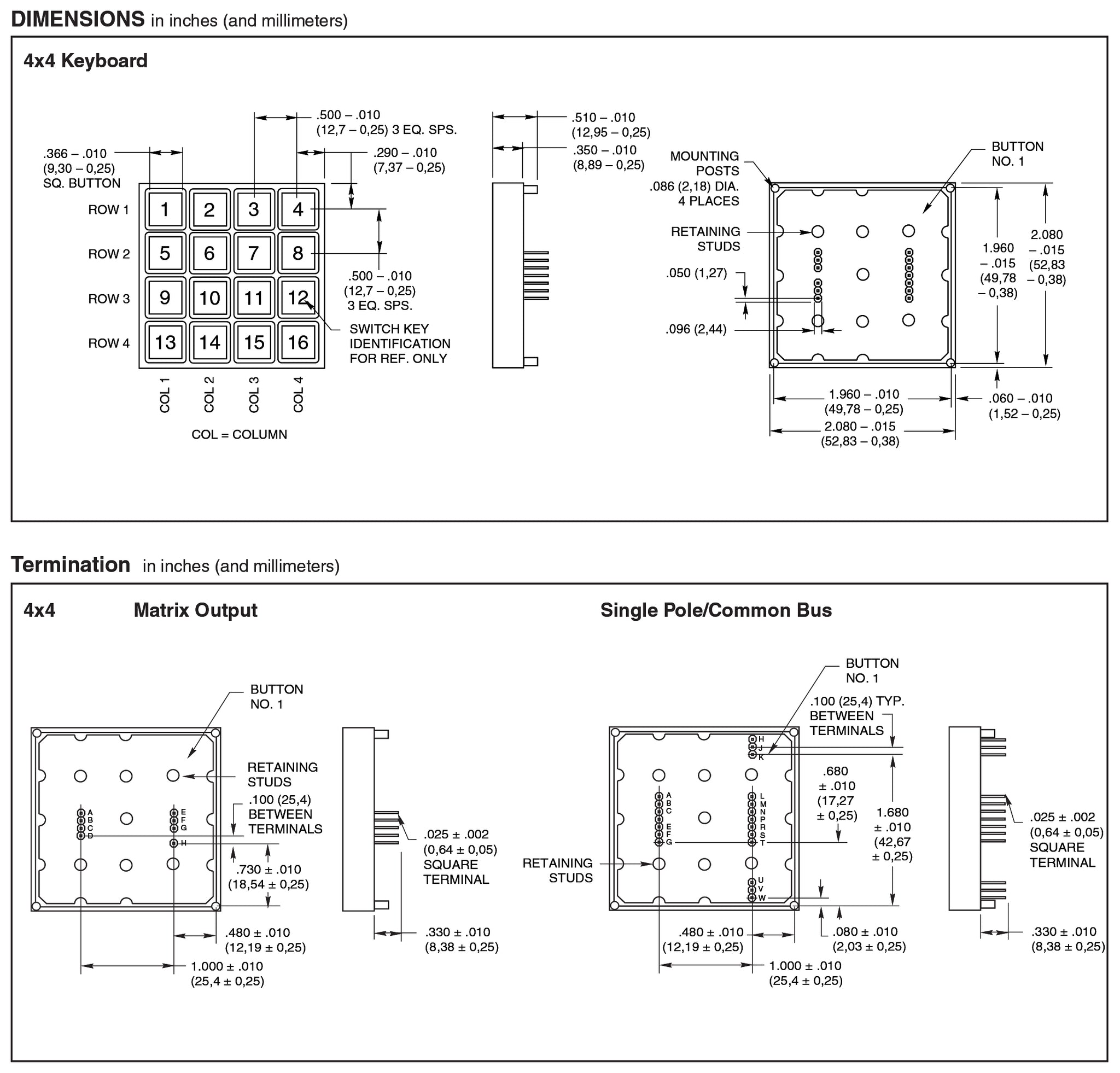

  • Overall size: 2.08" x 2.08" x 0.35" (height not including pins or posts)
  • Button size: 0.36" x 0.36"
  • Post Mounted
  • Mount by Grooveless Retaining Ring or Heat Upset Post
  • Snap-Dome contact provides excellent tactile feedback
  • Switch Type: Snap Dome
  • Illumination: Non-Illuminated
  • Legend Type: Interchangeable
  • Key Type: Transparent Key Cap
  • Output Type: Common Bus
  • Key Color: White
  • Mounting Type: Panel Mount, Front
  • Termination Style: Pin Header
  • Contact Rating @ Voltage: 0.01A @ 24VDC
  • Operational Life: 3,000,000 Cycles
  • Materials and Finishes
    • Housing: ABS polycarbonate, black
    • Buttons: ABS plastic, white
    • Snap-on-Cap: Clear polycarbonate
    • Contact Dome: Stainless steel, selectively gold-plated
    • Terminals: Phosphor bronze
  • Operating Features
    • Button travel: 0.015" (0,38 mm) nominal total travel
    • Typical Operating Force: 350 grams
