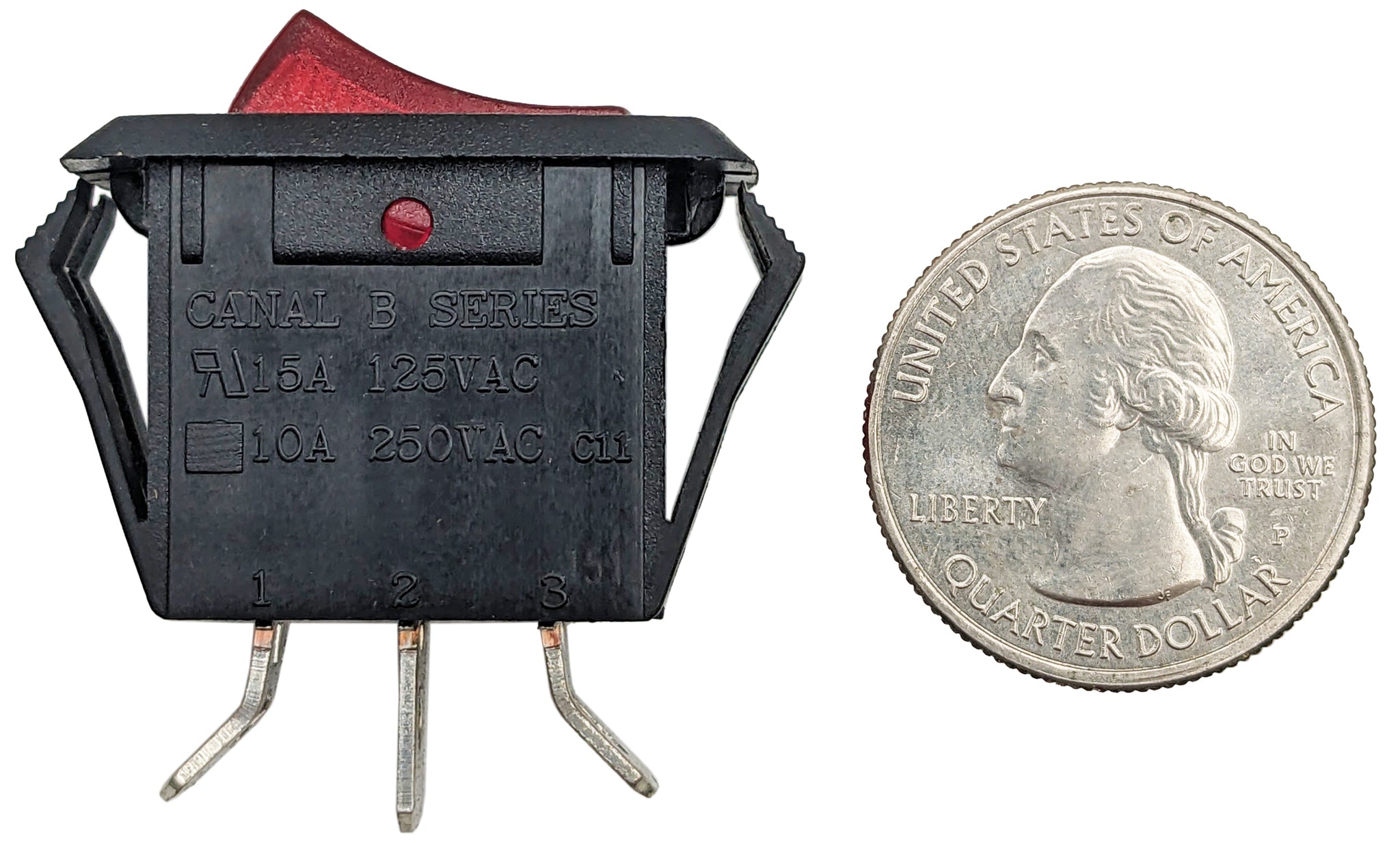

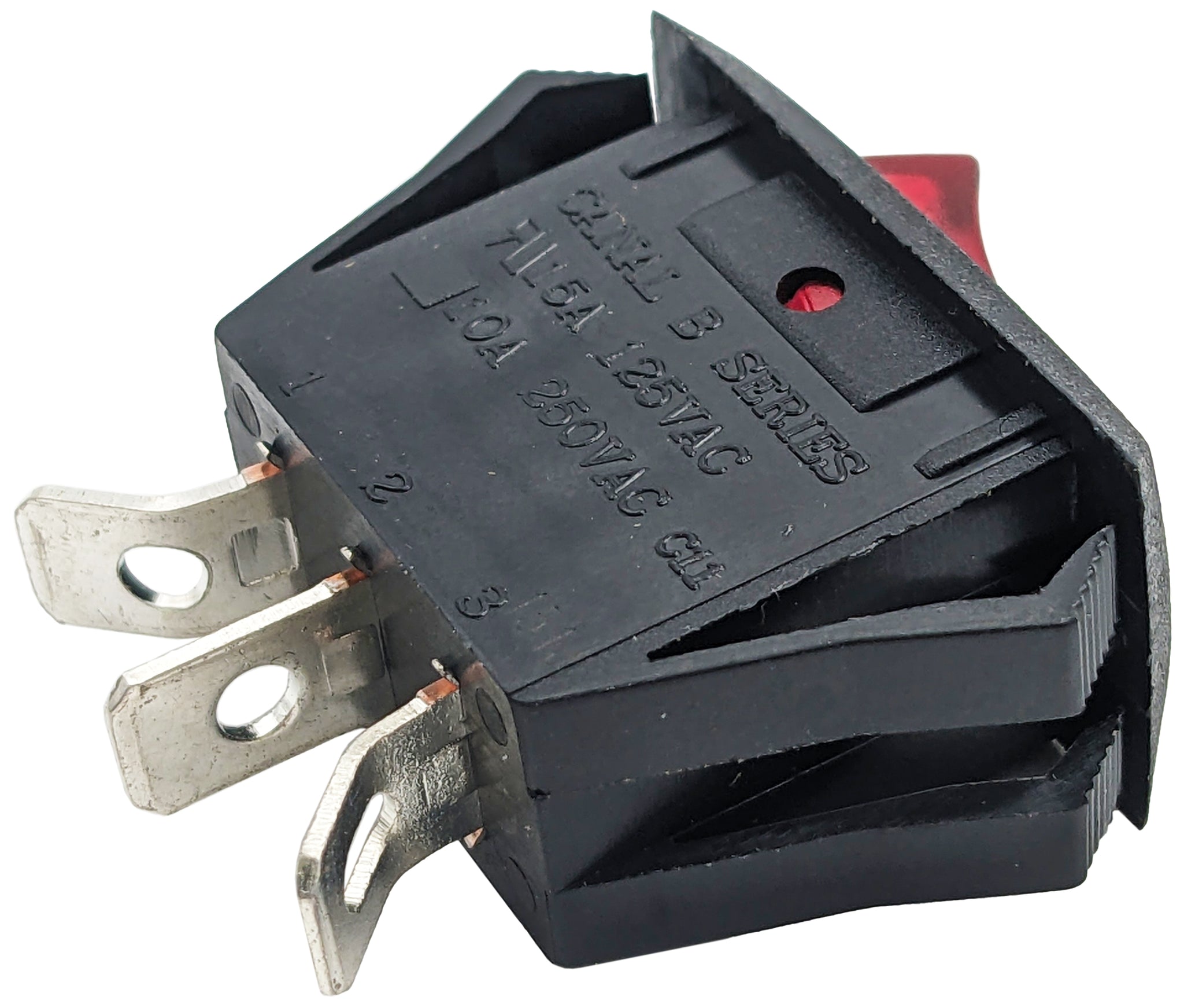

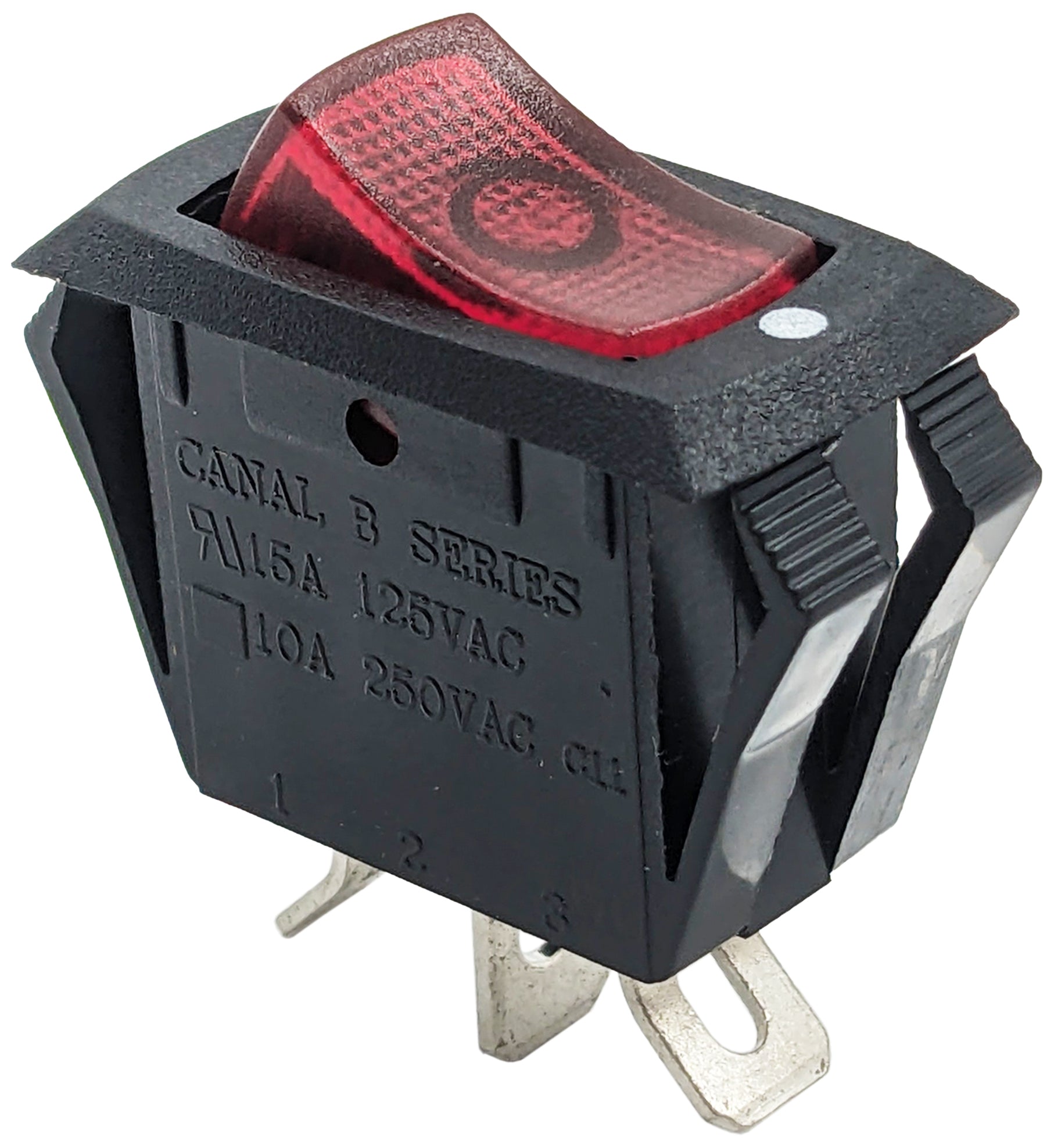

This is a panel-mount lighted rocker switch rated 10 A at 250 VAC or 15 A at 125 VAC. It fits a 1.125" x 0.66" panel cutout. Contact resistance is 20 mΩ max and it withstands 1,000 VAC for one minute.
Key Features

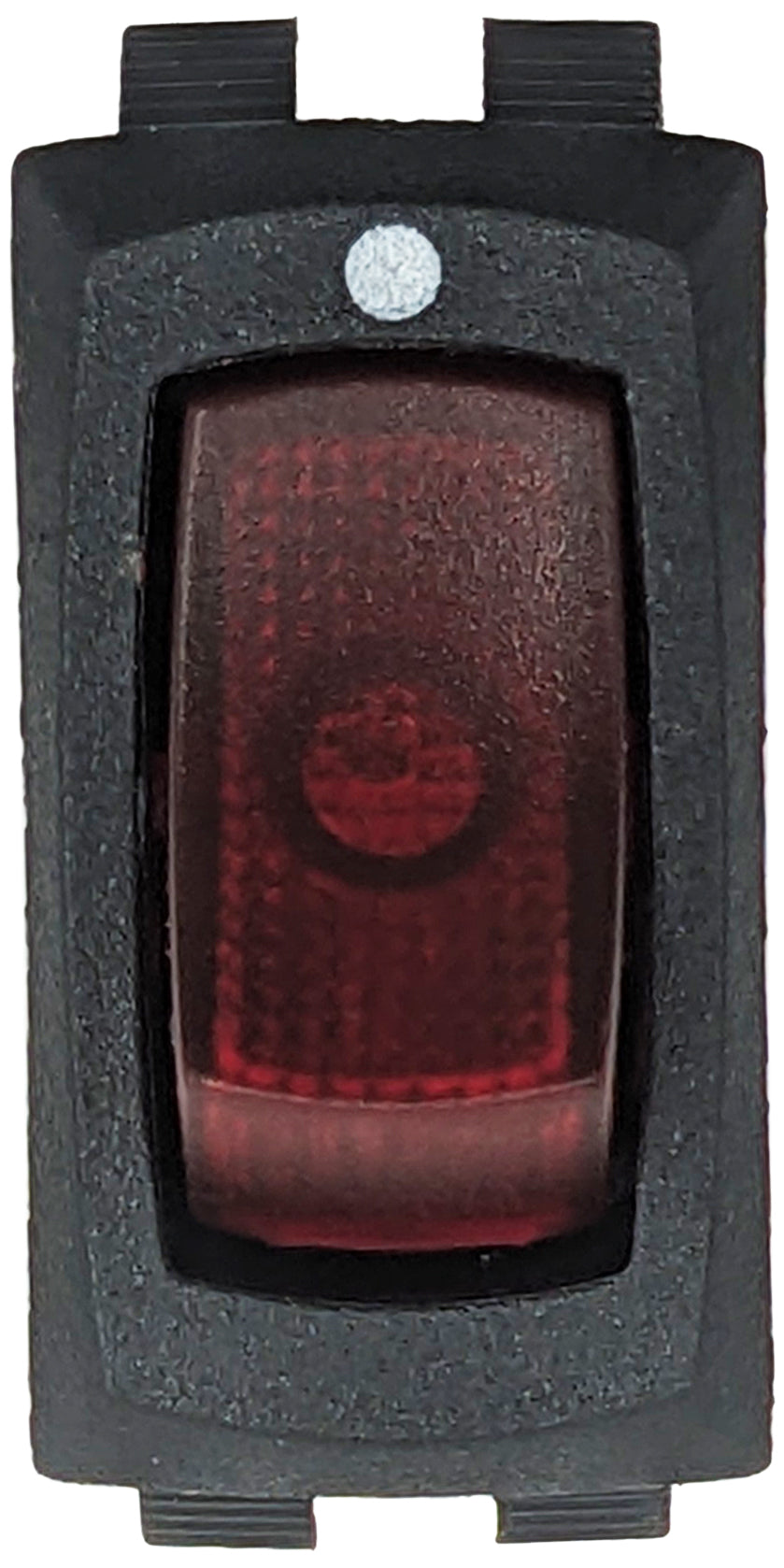

- Illuminated rocker
- 10 A @ 250 VAC / 15 A @ 125 VAC

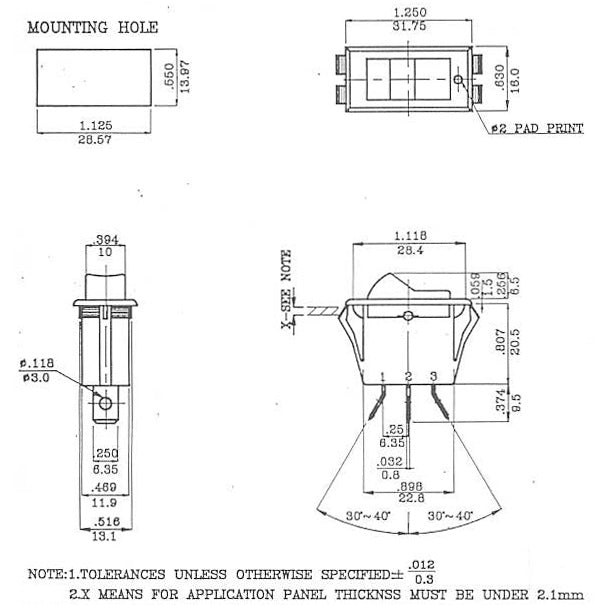

- Snaps into a 1.125" x 0.66" panel cutout
- 20 mΩ max contact resistance
- 1,000 VAC withstand voltage for 1 minute
Specifications
| Rating | 10 A @ 250 VAC; 15 A @ 125 VAC |
|---|---|
| Panel cutout | 1.125" x 0.66" |
| Contact resistance | 20 mΩ max |
| Insulation resistance | 100 MΩ min @ 500 VDC |
| Withstand voltage | 1,000 VAC, 1 minute |
| Operating force | 500 ± 200 g |
| SKU | 1700LKR |
What's Included
- 1 x lighted rocker switch
Ideal For
Power switches for appliances, power strips, control panels and project enclosures.
Frequently Asked Questions
What panel hole do I need?
A rectangular cutout of 1.125" x 0.66".

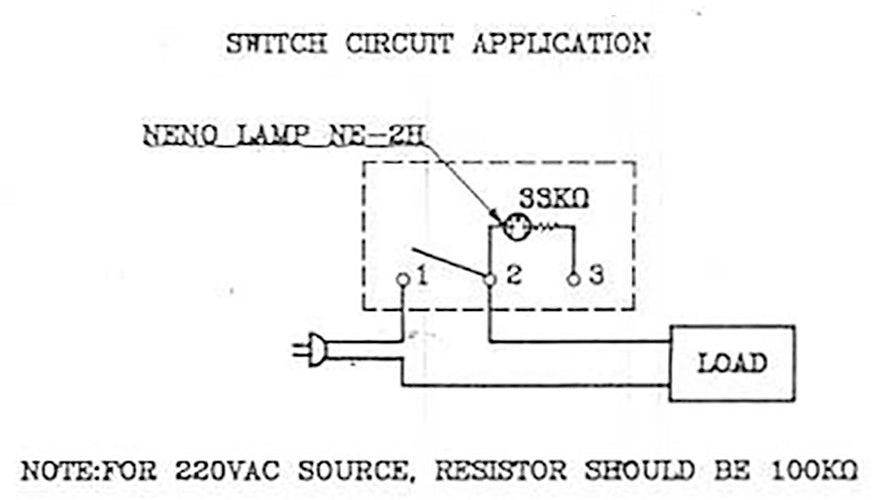

What lamp voltage does it use?
The listing does not state the lamp voltage; check before wiring the light.
