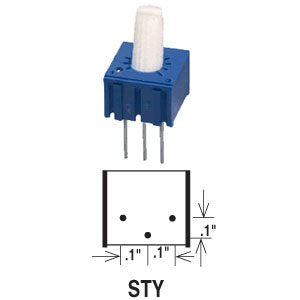

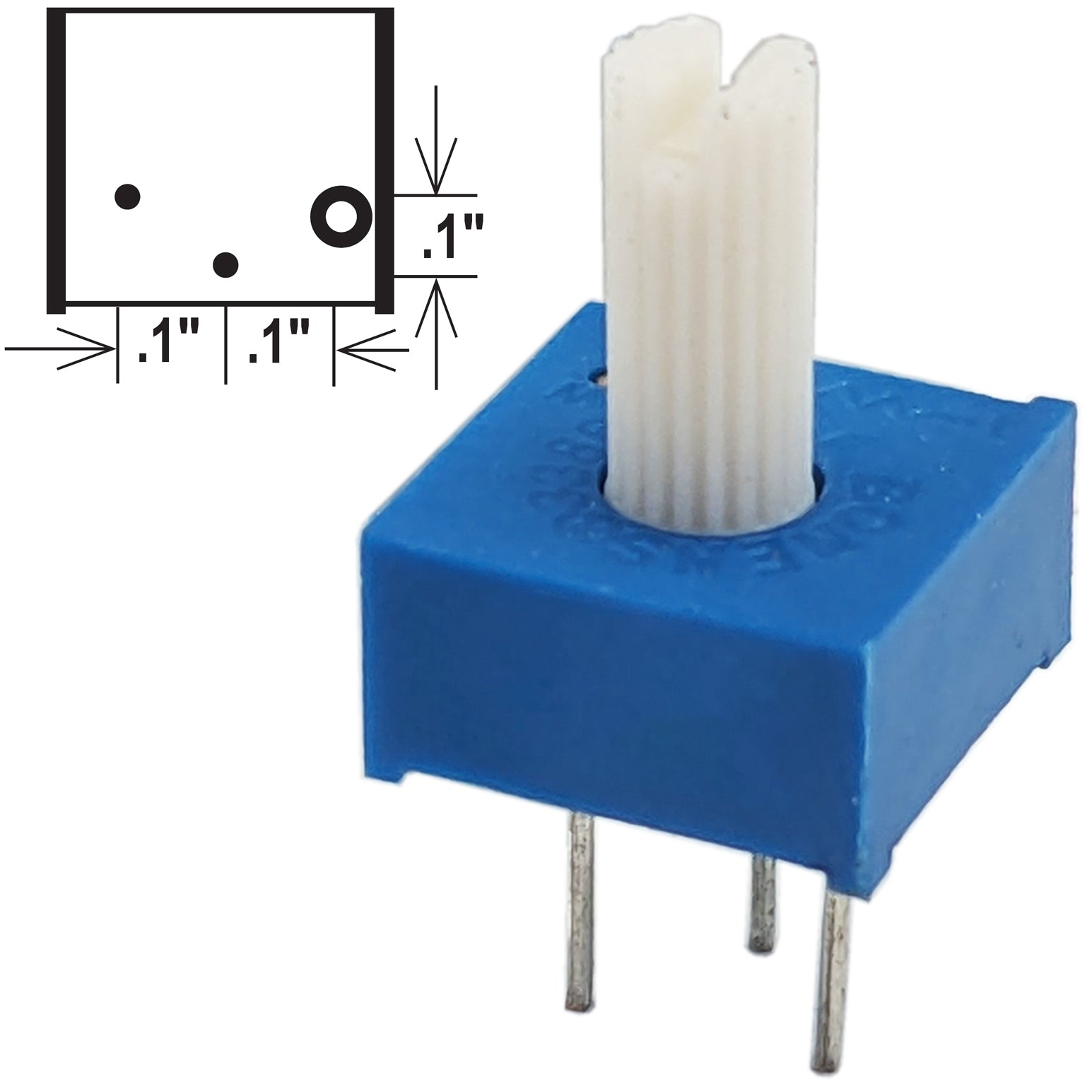

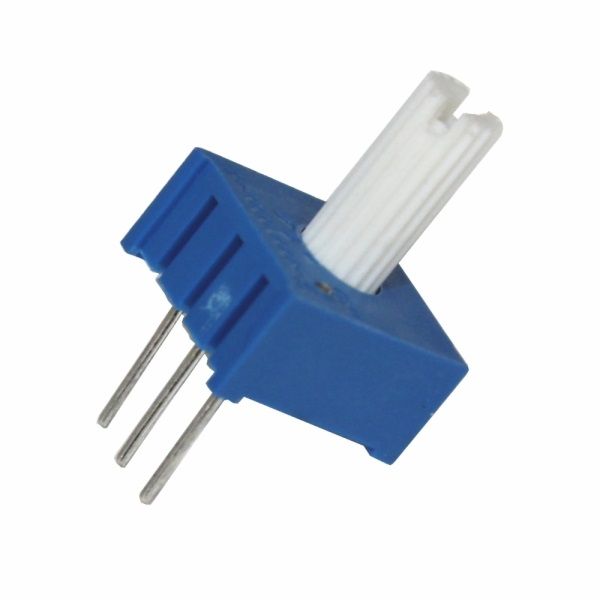

Cermet potentiometer ideal for breadboarding | Resistance: 1K? (1,000 Ohms) | Power Rating: 0.5 W | Single turn with shaft | Wire pin leads, 0.1" spacing
Cerment Potentiometer 1K Ohms 1/2W, Single Turn with Shaft, 3/8" Square
  • Load image into Gallery viewer, Cermet potentiometer ideal for breadboarding | Resistance: 1K? (1,000 Ohms) | Power Rating: 0.5 W | Single turn with shaft | Wire pin leads, 0.1" spacing
  • Load image into Gallery viewer, Cerment Potentiometer 1K Ohms 1/2W, Single Turn with Shaft, 3/8" Square

Cerment Potentiometer 1K Ohms 1/2W, Single Turn with Shaft, 3/8" Square

18STY1K
Regular price
$7.78
Sale price
$7.78
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

  • Cermet potentiometer ideal for breadboarding
  • Resistance: 1K? (1,000 Ohms)
  • Power Rating: 0.5 W
  • Single turn with shaft
  • Wire pin leads, 0.1" spacing
Cermet potentiometer ideal for breadboarding. Similar to 3386 series.

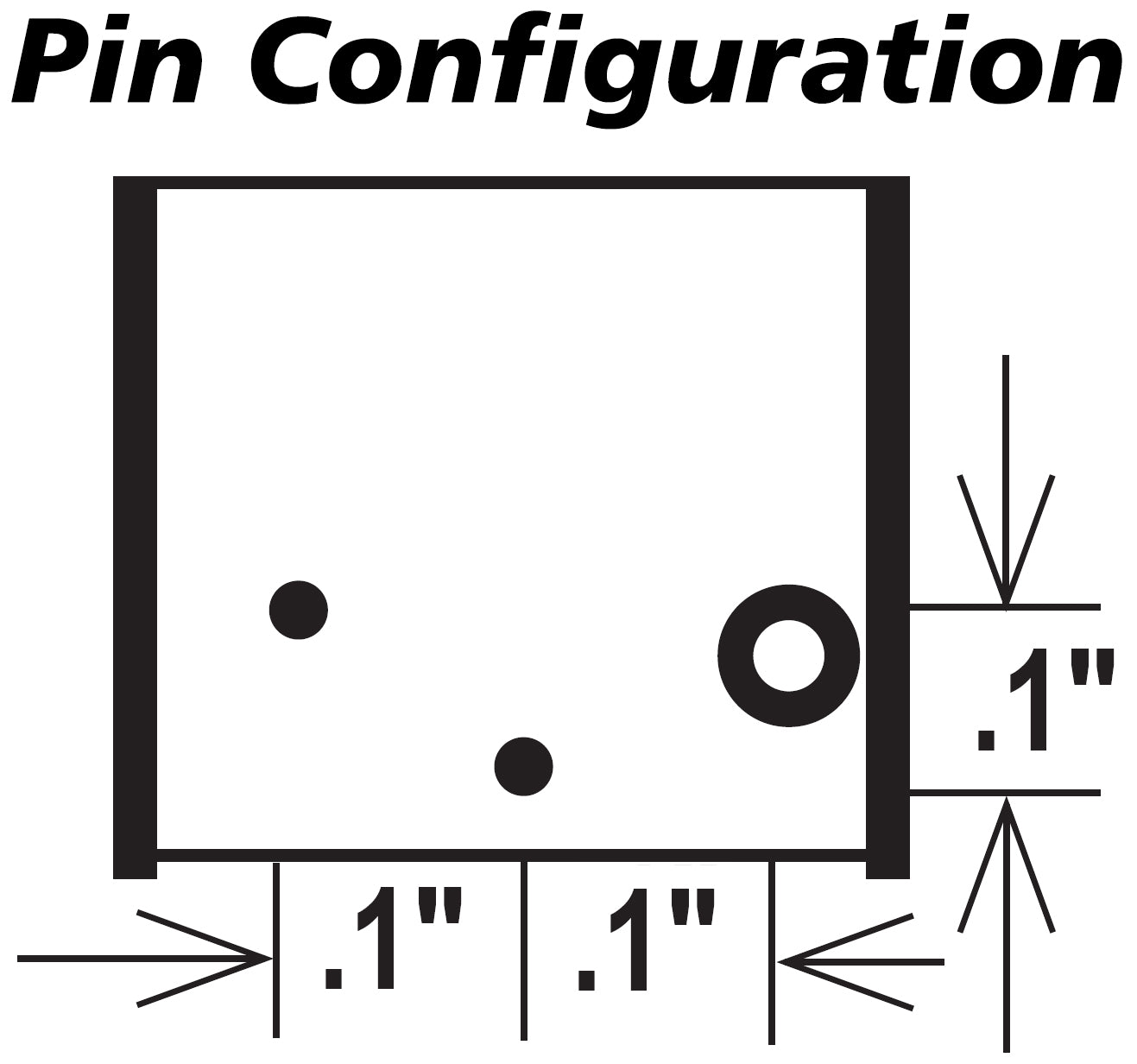

Wire pin leads, 0.1" spacing
Single turn with shaft
Mounting: Through Hole
Termination Style: Pins
Taper: Linear
Resistive Material: Cermet
Actuator Orientation: Top
Type: 3/8" Square
Tolerance: ±10%
Power Rating: 0.5 W
Number of Turns: 1
Resistance: 1K? (1,000 Ohms)

Product Weight: 0.3 LB
