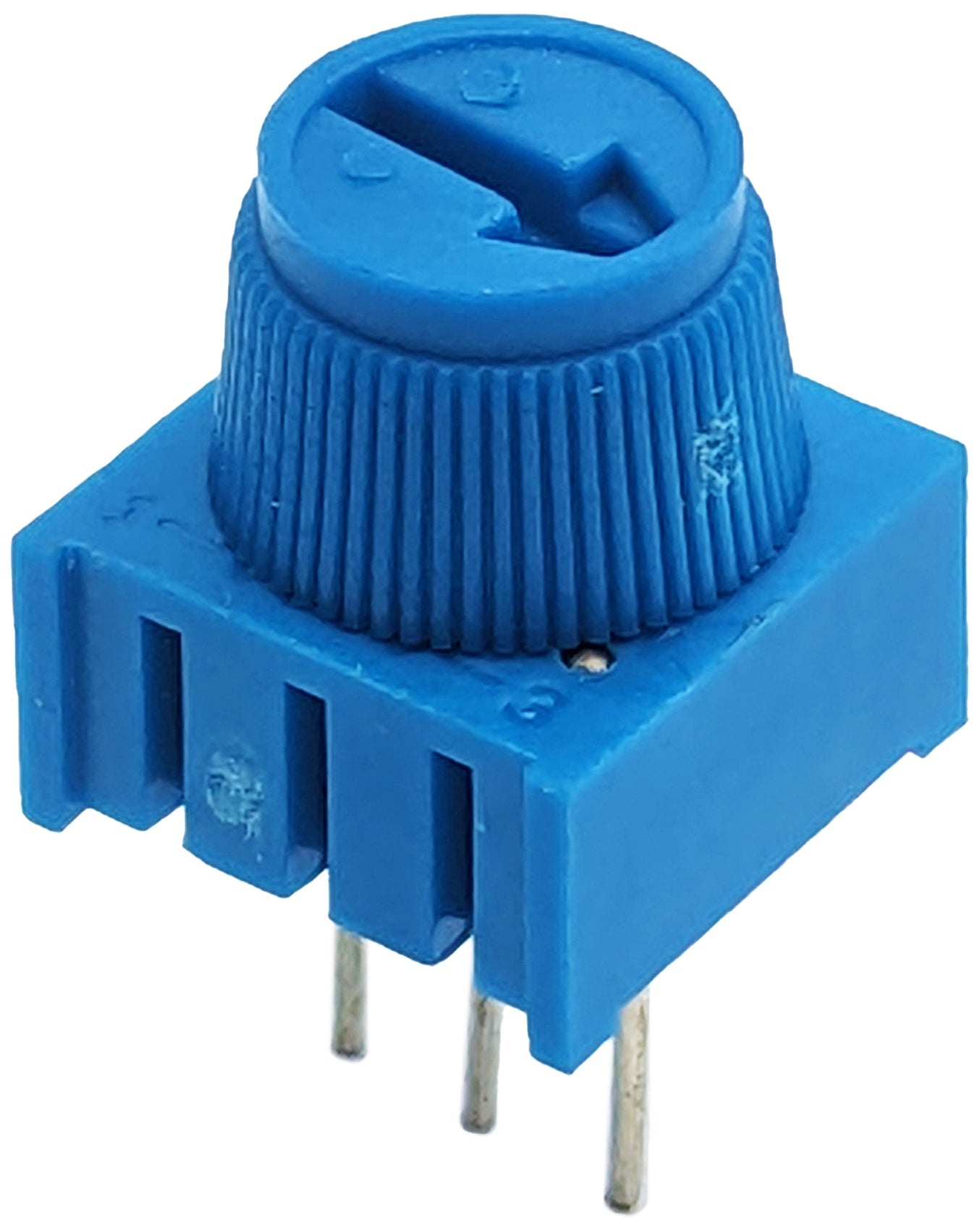

1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards
1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards
1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards
1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards
1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards
  • Load image into Gallery viewer, 1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards
  • Load image into Gallery viewer, 1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards
  • Load image into Gallery viewer, 1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards
  • Load image into Gallery viewer, 1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards
  • Load image into Gallery viewer, 1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards

1M Ohm Cermet Potentiometer, Single Turn with Knob, 0.1" Pin Spacing for Breadboards

18STX1M
$1.99
$1.99
Sold out
Shipping calculated at checkout.
  • Resistance: 1MΩ (1,000,000 Ohms), Tolerance: ±10%
  • Power Rating: 0.5 W
  • Number of Turns: 1
  • Taper: Linear

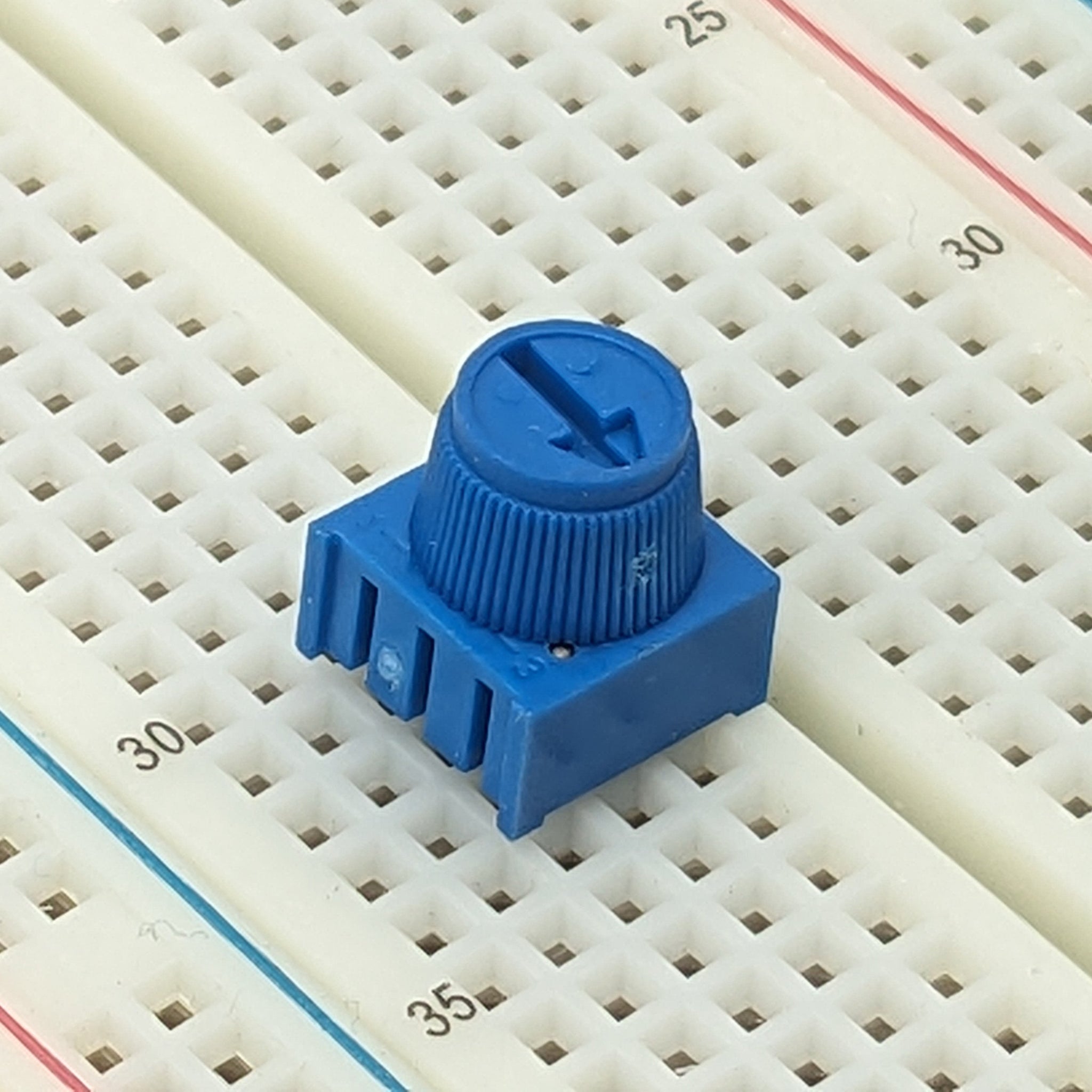

  • Wire pin leads, 0.1" spacing — ideal for breadboarding

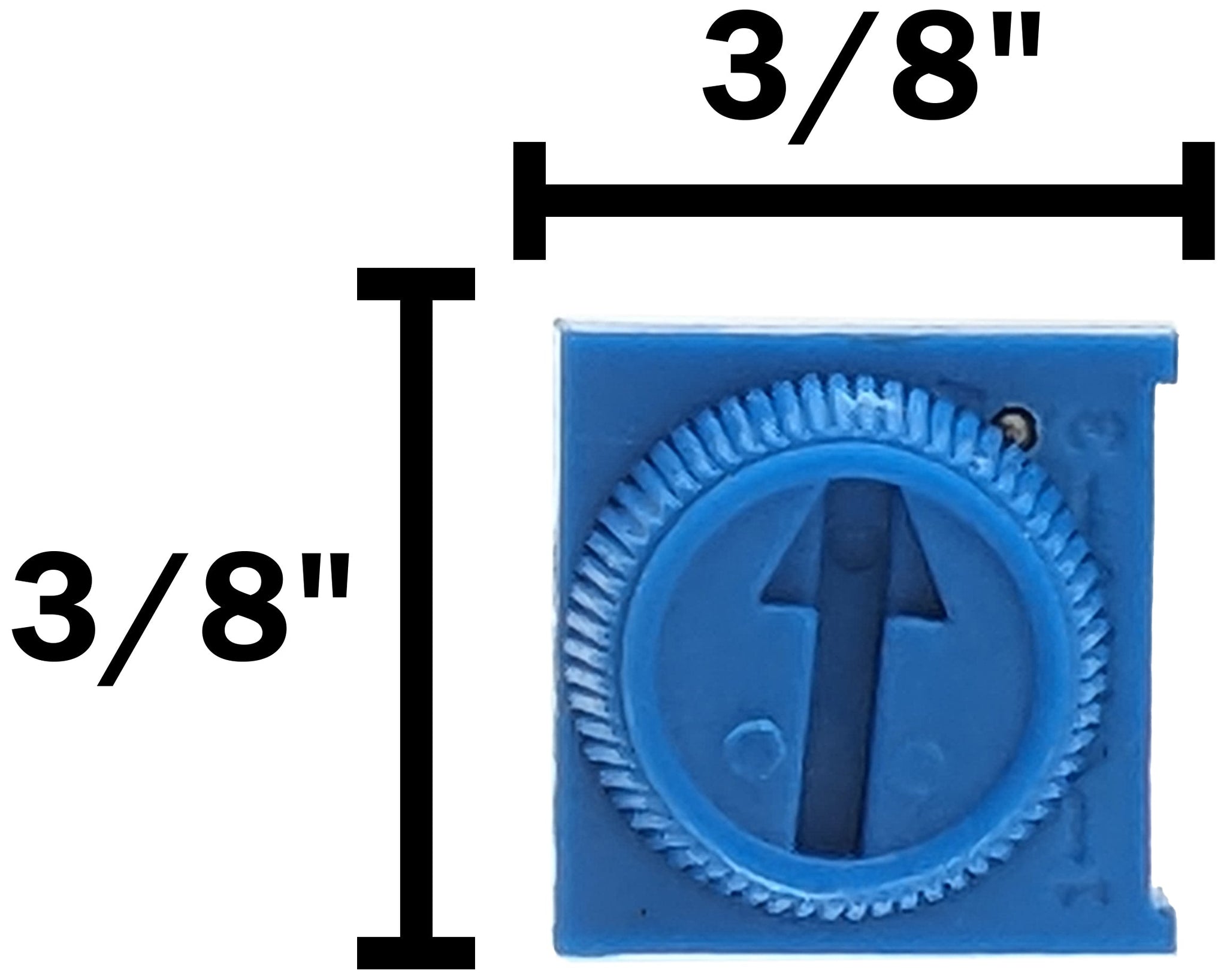

  • Type: 3/8" Square, Single turn with Knob
  • Mounting: Through Hole

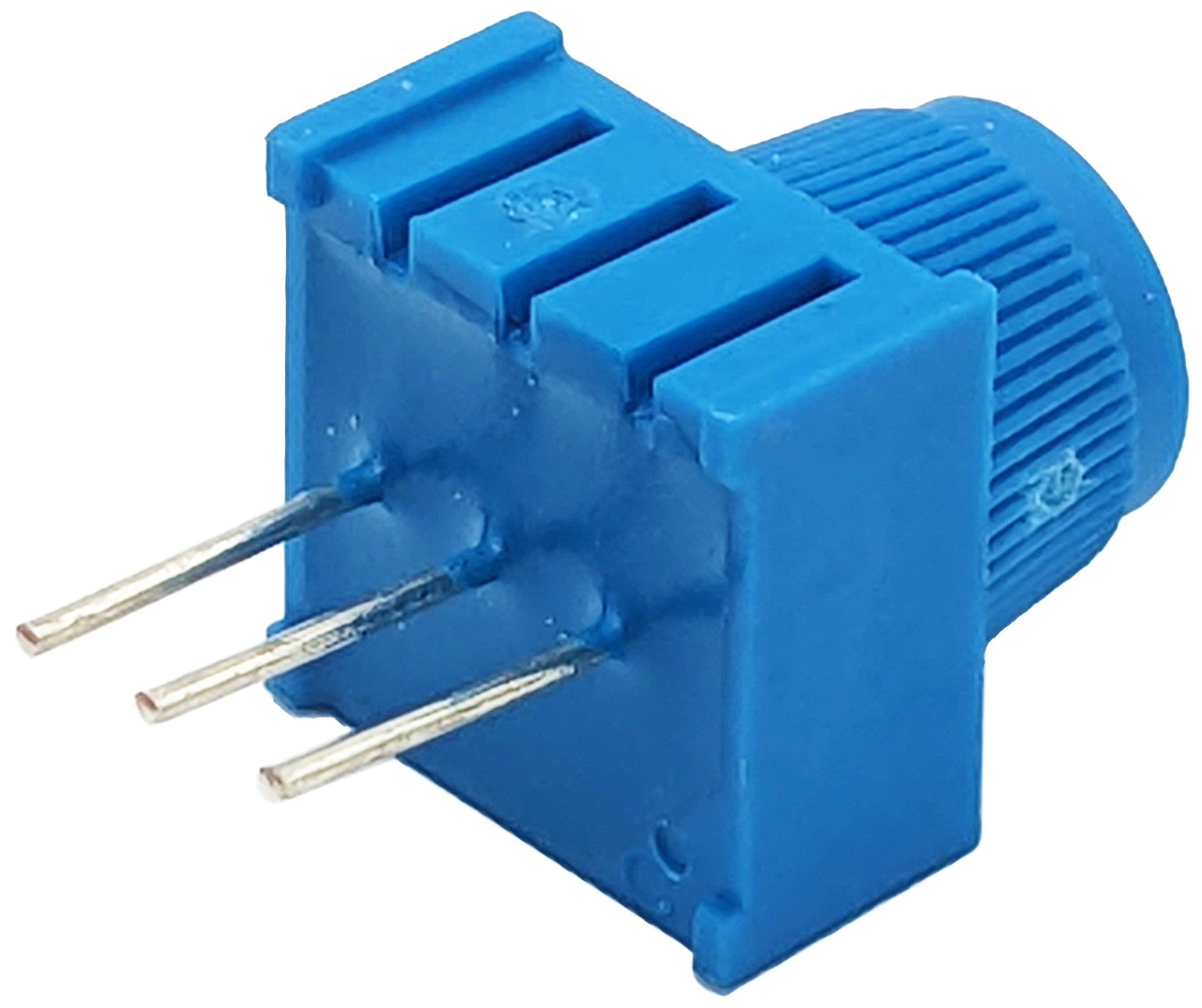

  • Termination Style: Pins
  • Resistive Material: Cermet
  • Actuator Orientation: Top
