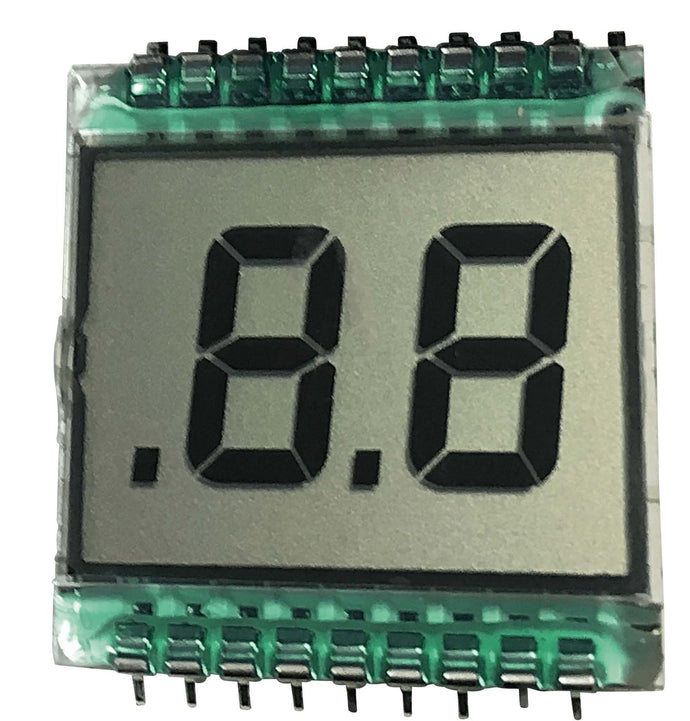

The 08LCD1 is a 2-character, 1-line LCD module with driver and controller, showing 0.5-inch digits on a 0.1-inch DIP footprint. The listing names CD4543, ICL7106CPL or 74C945 as the driver. It is a simple numeric display for counters and meters.
Key Features
- 2 characters x 1 line display
- 0.5" digit size
- Driver and controller included on the module
- 0.1" DIP pin spacing for breadboards and perfboard
Specifications
| Model | 08LCD1 |
|---|---|
| Display format | 2 characters x 1 line |
| Digit size | 0.5" |
| Pin spacing | DIP 0.1" |
| Driver | CD4543 or ICL7106CPL or 74C945 |
| SKU | 08LCD1 |
What's Included
- 1 x 08LCD1 LCD module
Ideal For
Two-digit counters, timers and simple numeric readouts in student and hobby projects.
Frequently Asked Questions
What does DIP 0.1" mean?
The pins are spaced 0.1 inch (2.54mm) apart, the standard pitch for breadboards and perfboard.
Which driver chip does it use?
The listing names CD4543, ICL7106CPL or 74C945, without saying which one a given unit has.
