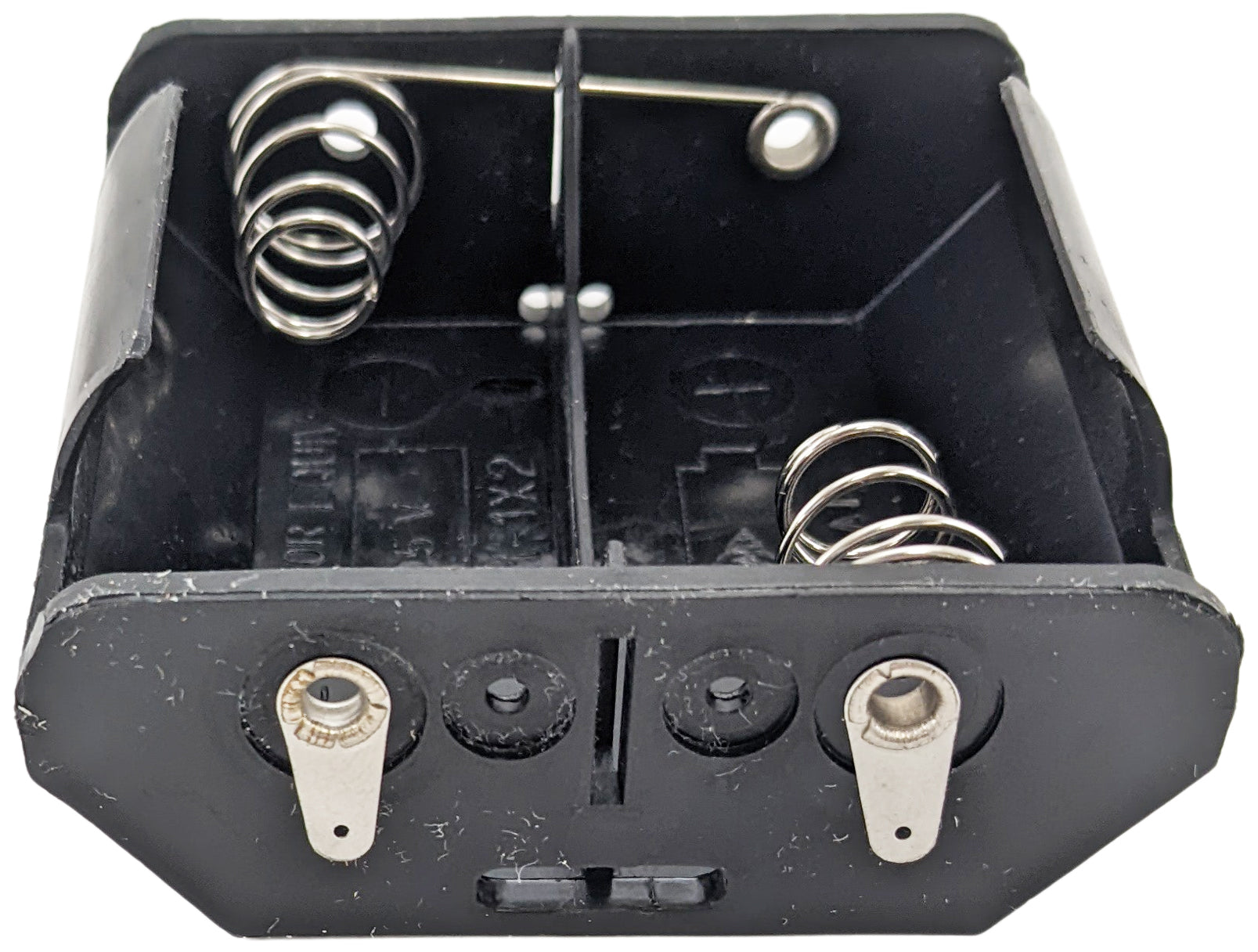

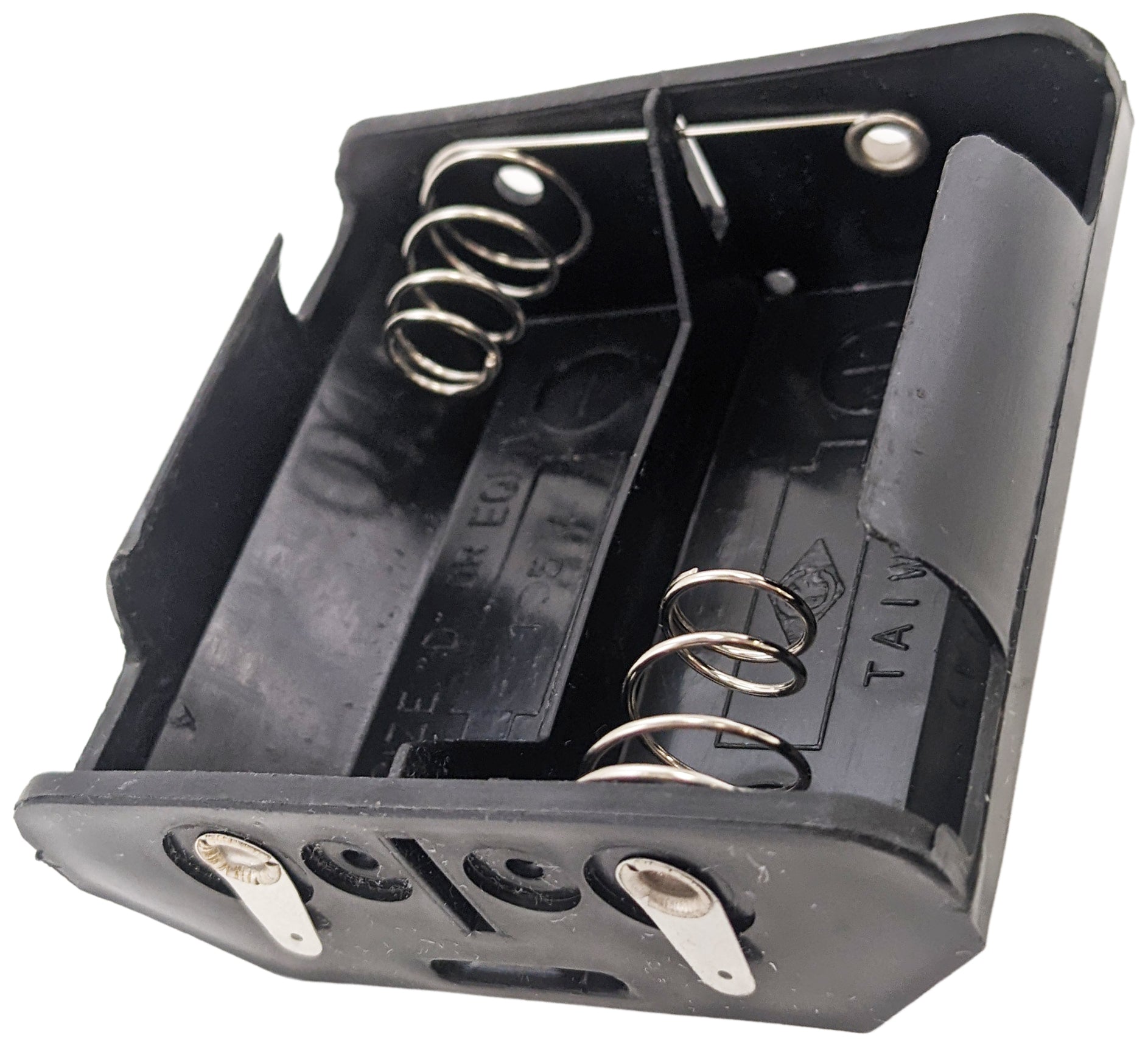

This is a black plastic battery holder for two D batteries, with solder lugs for wiring it into a project. It measures 2.77 x 2.77 x 1.05 inches (rounded to 2.8 x 2.8 x 1 inch in the title) and weighs 0.75 ounce. Two D cells provide about 3 V with plenty of capacity for long-running builds.
Key Features
- Holds two D batteries
- Solder lugs for permanent wiring
- Black plastic body
- Measures 2.77" x 2.77" x 1.05"
- Weighs 0.75 oz
Specifications
| Battery type | D |
|---|---|
| Capacity | 2 batteries |
| Connection | Solder lugs |
| Material | Plastic |
| Color | Black |
| Dimensions | 2.77 x 2.77 x 1.05 in |
| Weight | 0.75 oz |
| SKU | 2801D2PSL |
What's Included
- 1 x 2-D battery holder
What You'll Need (Sold Separately)
- 2 x D batteries (not included)
Ideal For
Projects that need a compact, long-lasting 2 x D supply wired in permanently.
Frequently Asked Questions
What voltage does it give?
With cells in series, two alkaline D cells give about 3 V; two NiMH cells about 2.4 V.
Does it include wires?
No. It has solder lugs for attaching your own leads.
