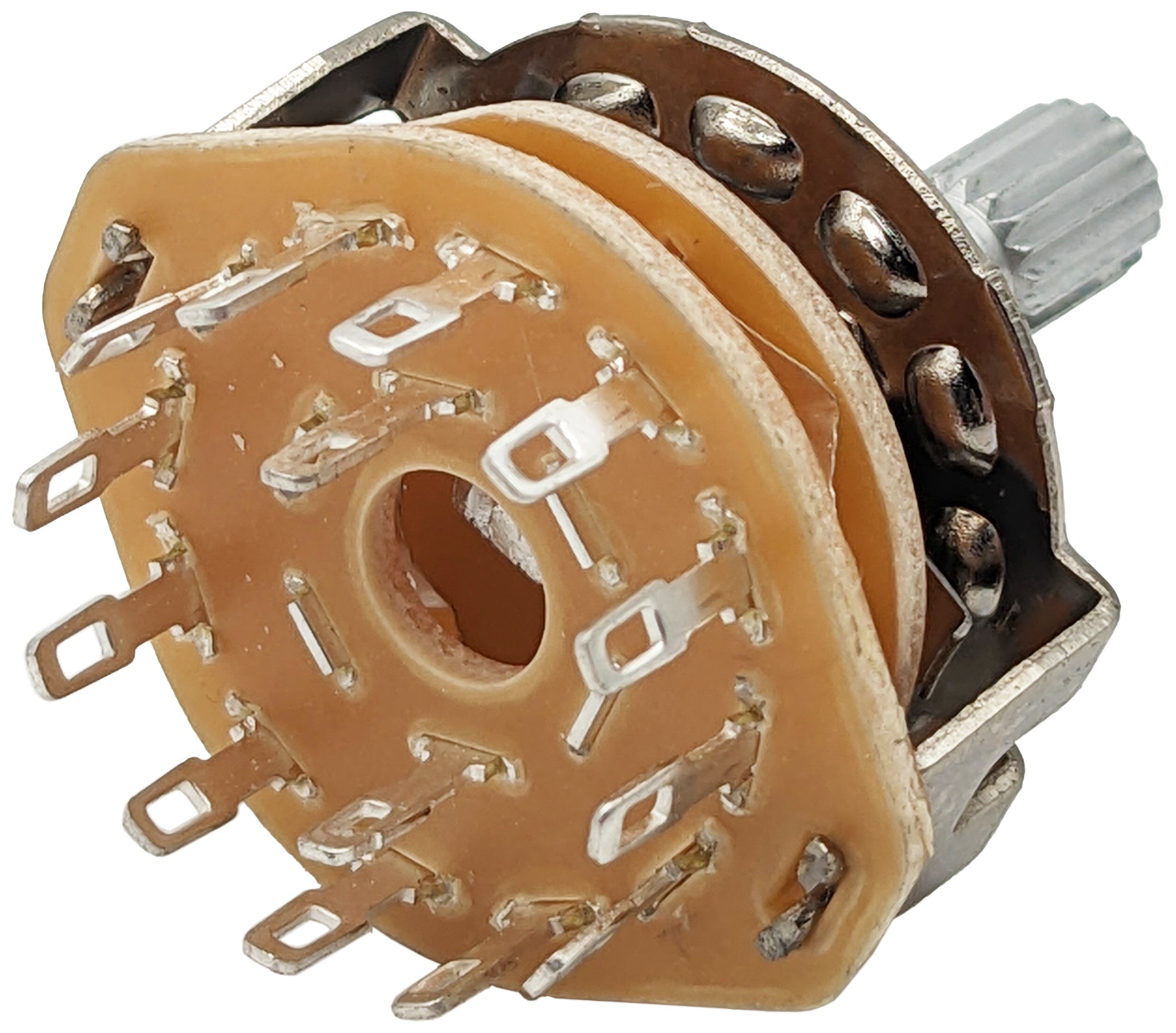

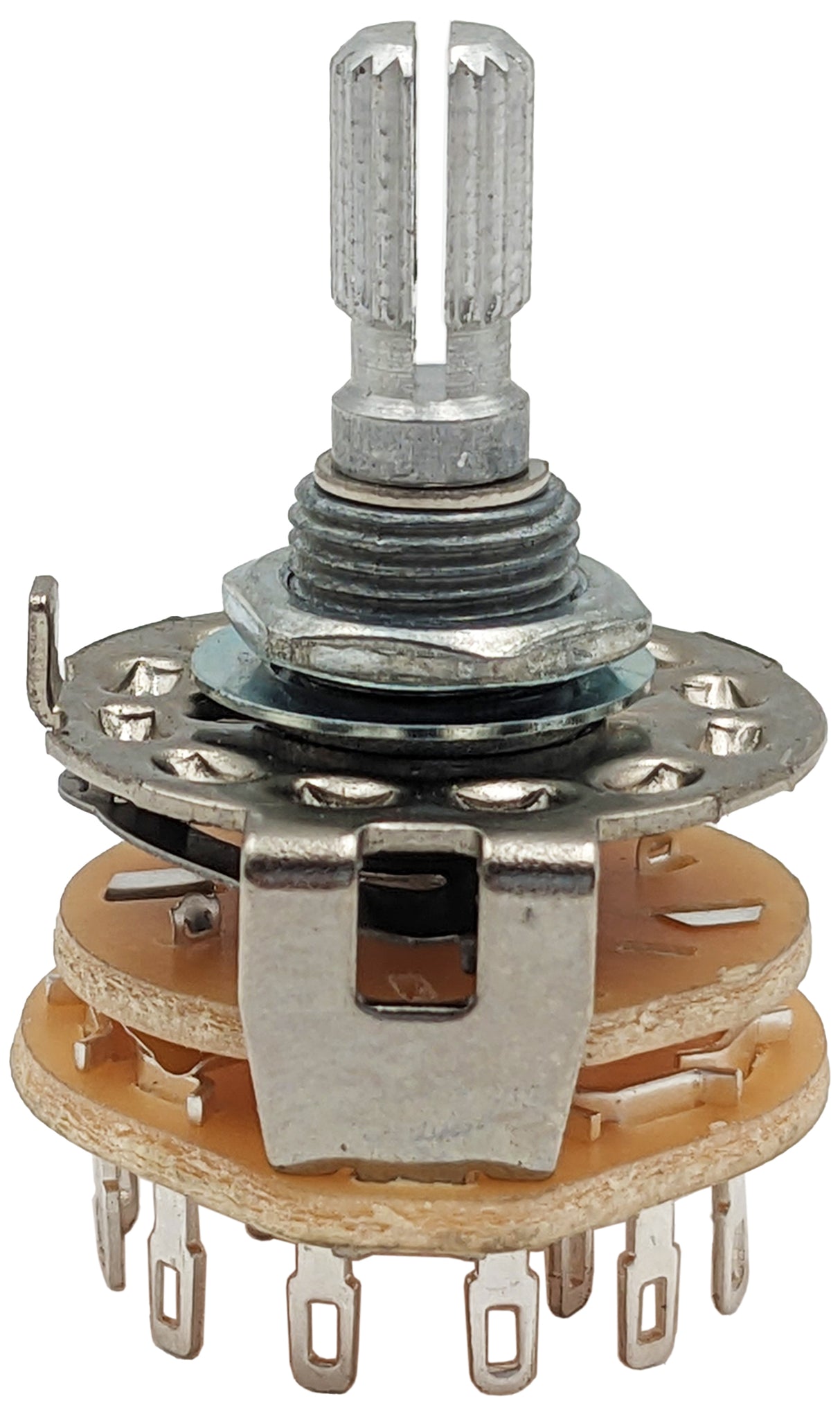

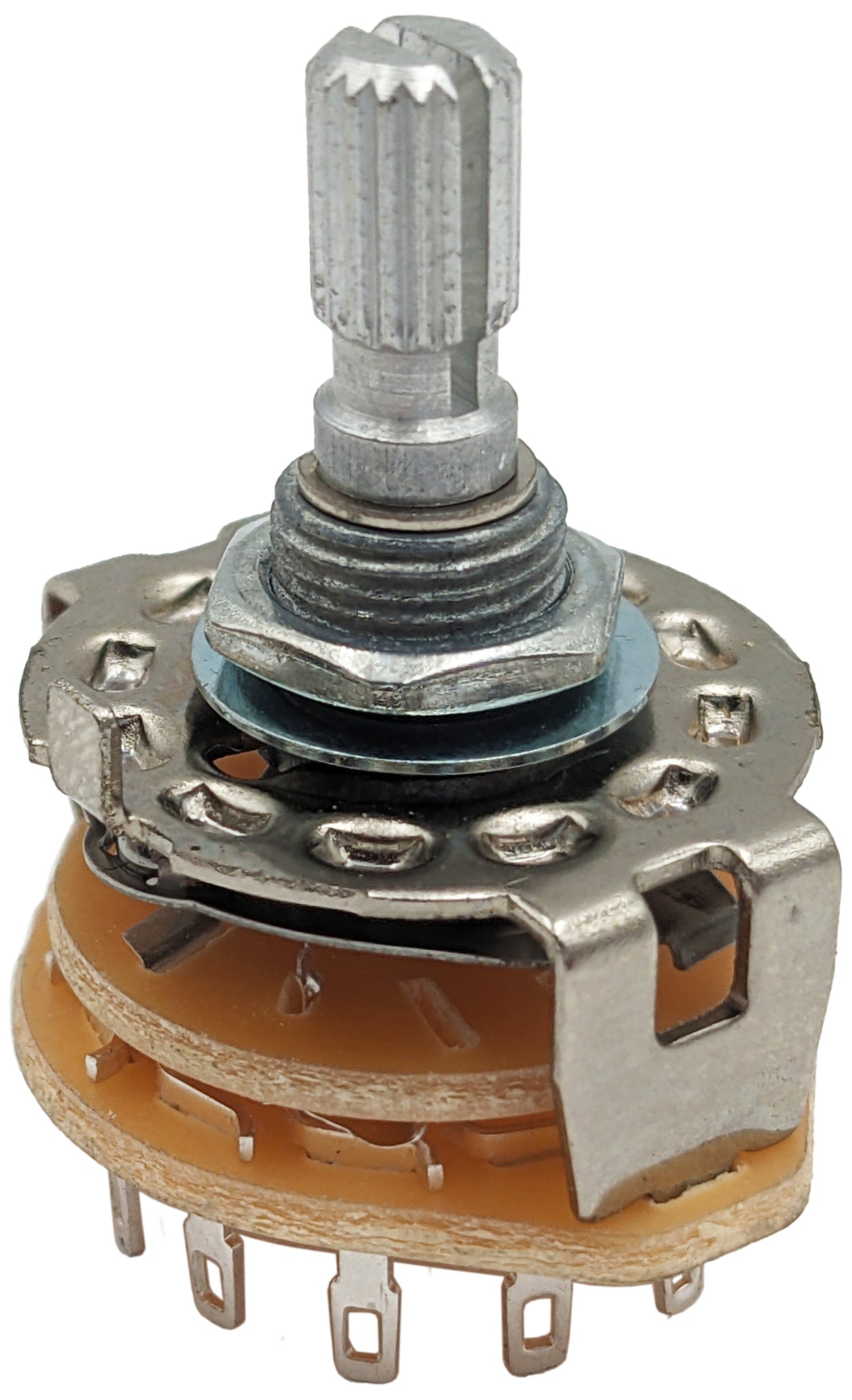

2 Pole 6 Position Rotary Switch (2P6T), 14 Solder Lugs, 6mm Slotted Knurl Shaft, Panel Mount 9mm Hole
2 Pole 6 Position Rotary Switch (2P6T), 14 Solder Lugs, 6mm Slotted Knurl Shaft, Panel Mount 9mm Hole
2 Pole 6 Position Rotary Switch (2P6T), 14 Solder Lugs, 6mm Slotted Knurl Shaft, Panel Mount 9mm Hole
2 Pole 6 Position Rotary Switch (2P6T), 14 Solder Lugs, 6mm Slotted Knurl Shaft, Panel Mount 9mm Hole
  • Load image into Gallery viewer, 2 Pole 6 Position Rotary Switch (2P6T), 14 Solder Lugs, 6mm Slotted Knurl Shaft, Panel Mount 9mm Hole
  • Load image into Gallery viewer, 2 Pole 6 Position Rotary Switch (2P6T), 14 Solder Lugs, 6mm Slotted Knurl Shaft, Panel Mount 9mm Hole
  • Load image into Gallery viewer, 2 Pole 6 Position Rotary Switch (2P6T), 14 Solder Lugs, 6mm Slotted Knurl Shaft, Panel Mount 9mm Hole
  • Load image into Gallery viewer, 2 Pole 6 Position Rotary Switch (2P6T), 14 Solder Lugs, 6mm Slotted Knurl Shaft, Panel Mount 9mm Hole

2 Pole 6 Position Rotary Switch (2P6T), 14 Solder Lugs, 6mm Slotted Knurl Shaft, Panel Mount 9mm Hole

17ROT2-6
Regular price
$2.99
Sale price
$2.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

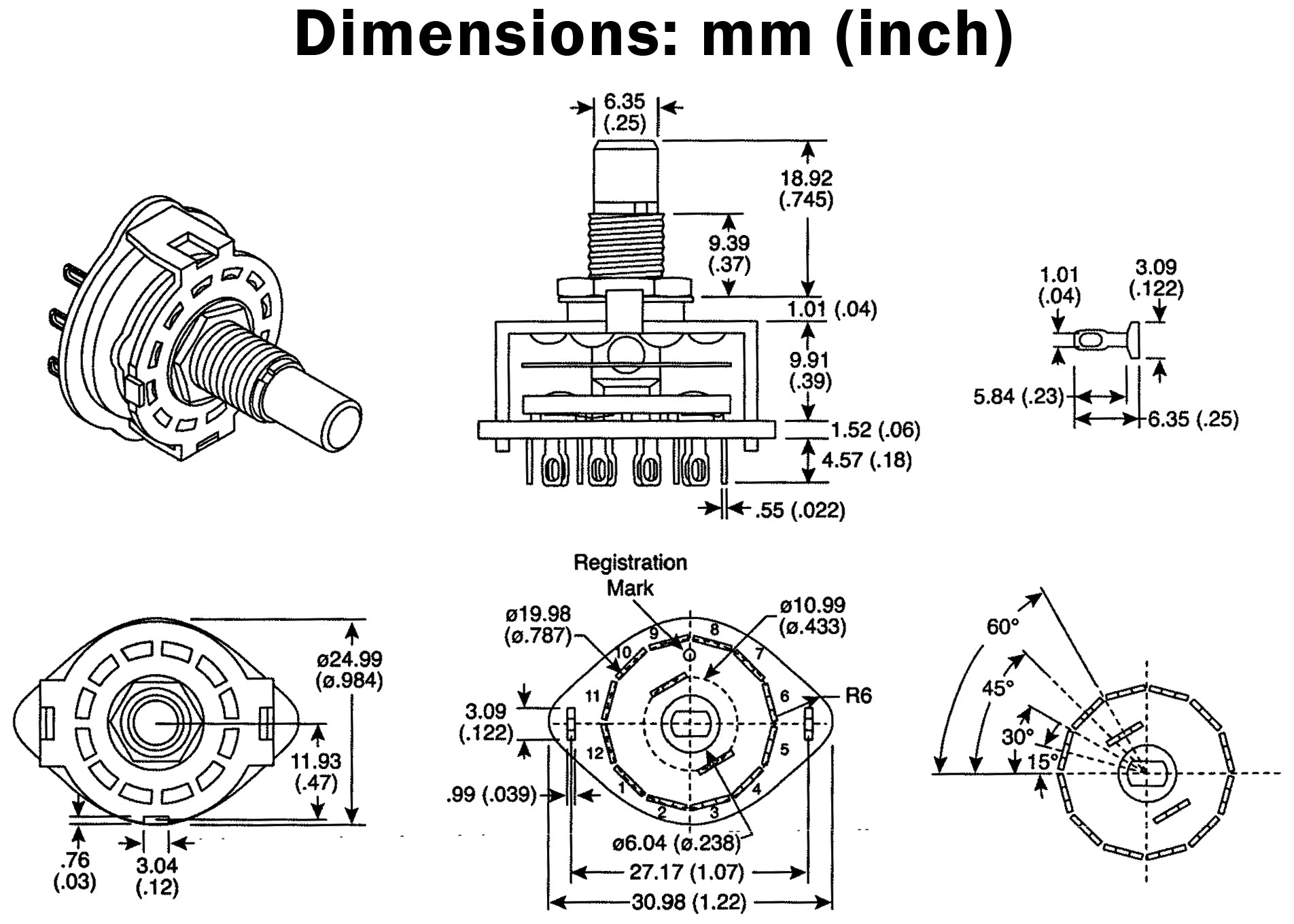

This is a 2 pole, 6 position rotary switch (2P6T) with 14 solder lug terminals and shorting make/break contacts. It has a 6 mm slotted knurl shaft 13 mm long and panel mounts through a 9 mm hole. The body is about 30 mm wide and 33 mm tall (excluding lugs).

Key Features

  • 2 pole, 6 positions (2P6T)
  • Shorting make/break contacts
  • Slotted knurl shaft, 6 mm diameter × 13 mm long
  • Panel mount, fits a 9 mm mounting hole
  • 14 solder lug terminals
  • About 30 mm wide × 33 mm tall

Specifications

Poles 2
Positions 6
Shaft Slotted knurl, 6 mm dia. × 13 mm
Mounting Panel, 9 mm hole
Terminals Solder lug (14 lugs)
Contact style Shorting make/break
Size Approx. 30 mm W × 33 mm H (excluding lugs)
SKU 17ROT2-6

What's Included

  • 1 × 2P6T rotary switch

Ideal For

Selector switches for test gear, audio sources, amplifier tone/range controls and hobby panels.

Frequently Asked Questions

How do I read the lugs?
There is one common lug per pole (2) plus one lug per position on each pole, for 14 lugs total.

Can I limit it to fewer positions?
Many rotary switches have an adjustable stop washer, but the listing does not mention one; you can simply leave unused position lugs unconnected.
