- Nominal Coil Voltage: 24V
- Max carry current: 1 A
- Coil Arrangement: 1 FORM A (SPST) Normally open
- Coil Resistance (Ohms+/10%): 2080
- Nominal Input Power (mW): 277
- Must Operate Voltage (VDC): 16
- Must Release Voltage (VDC): 0.8
- Maximum Voltage (VDC): 32

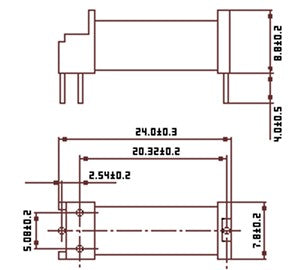

- 2.54 mm IC terminal arrangement
- High switching speed and low bounce time
- Use gas tube sealed switch to prevent dust, gas and humidity influence.
- Wide operate voltage range and low power consumption
- Ideal for use on cordless telephone, multifunction telephone, modem, burglar alarm etc.
- Low bounce time: 0.5 m sec max.
- Low contact resistance: 150m Ohms
