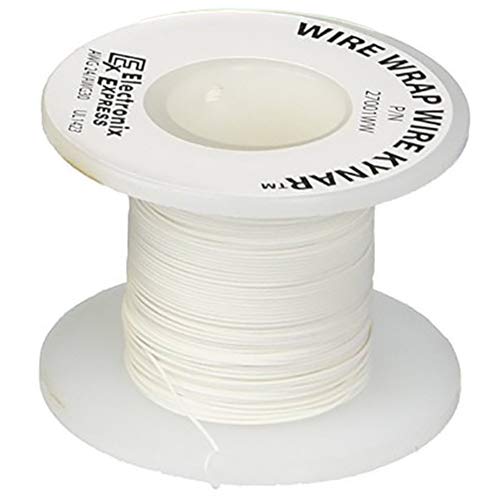

This 100-foot spool of white 30 AWG Kynar wire wrap wire has a solid, tin-plated copper conductor and thin, tough PVDF (Kynar) insulation rated to 105°C. It's the standard wire for wire-wrap prototyping, and its small diameter makes it a favorite for PCB rework, bodge wires and repairs on laptops, motherboards and LCD displays.
Key Features
- 30 AWG solid tin-plated copper
- Kynar (PVDF) insulation: thin, tough and heat resistant to 105°C
- Ideal for wire wrapping, and also solderable
- Used for PCB rework and jumper wires on laptops, motherboards and LCDs
- 100 ft spool
Specifications
| Gauge | 30 AWG |
|---|---|
| Conductor | Solid, tin-plated copper |
| Insulation | Kynar (PVDF) |
| Color | White |
| Temperature rating | 105°C |
| Length | 100 ft |
| Spool size | 1.95" x 1.44" |
| SKU | 27001WWWH |
What's Included
- 1 spool, 100 ft of white 30 AWG Kynar wire
Ideal For
Wire-wrap prototyping, PCB repair and rework, retro computing, test jigs and fine-pitch modifications.
Frequently Asked Questions
What is Kynar wire?
Wire insulated with Kynar (PVDF), a thin, tough, heat-resistant fluoropolymer that resists cut-through and melting when soldering nearby.
Can I solder it?
Yes. It's suitable for wire wrapping and soldering. To wrap and unwrap it, use our 22/24 AWG wire wrap tool or a 30 AWG wrap tool.
Want several colors?
Our 30 AWG Kynar kit (27WK30WWR100) has six 100 ft colors.
