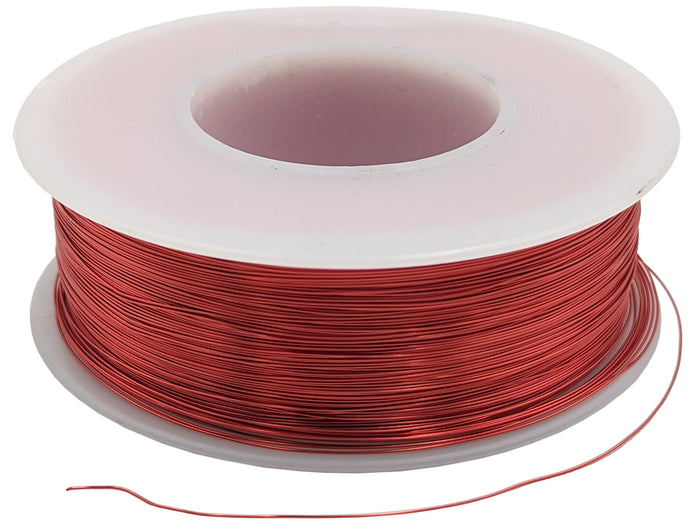

This 1/4 lb spool contains about 1,950 feet of 32 AWG enameled copper magnet wire, insulated with solderable polyurethane enamel plus a protective overcoat. Magnet wire is the thin-insulated wire used to wind electromagnets, inductors, transformers, motors, pickups and radio antennas. The thin coating lets you pack many turns into a small space.
Key Features
- 32 AWG enameled copper
- 1/4 lb spool, about 1,950 ft
- Solderable polyurethane enamel with a protective overcoat
- For custom coils, transformers, motors and antennas
Specifications
| Gauge | 32 AWG |
|---|---|
| Weight | 1/4 lb |
| Approx. length | 1,950 ft |
| Insulation | Solderable polyurethane enamel with overcoat |
| SKU | 2701MG32 |
What's Included
- 1 spool of 32 AWG magnet wire (1/4 lb)
Ideal For
Electromagnet and motor science projects, inductors, transformers, guitar pickups, crystal radios and antennas.
Frequently Asked Questions
Do I need to strip magnet wire?
Solderable polyurethane insulation is designed to be removed by soldering heat. Scrape or sand the ends if a joint doesn't take solder.
Want several gauges?
Our magnet wire kit (2701MGKIT) includes 22, 24, 28, 30 and 32 AWG.
