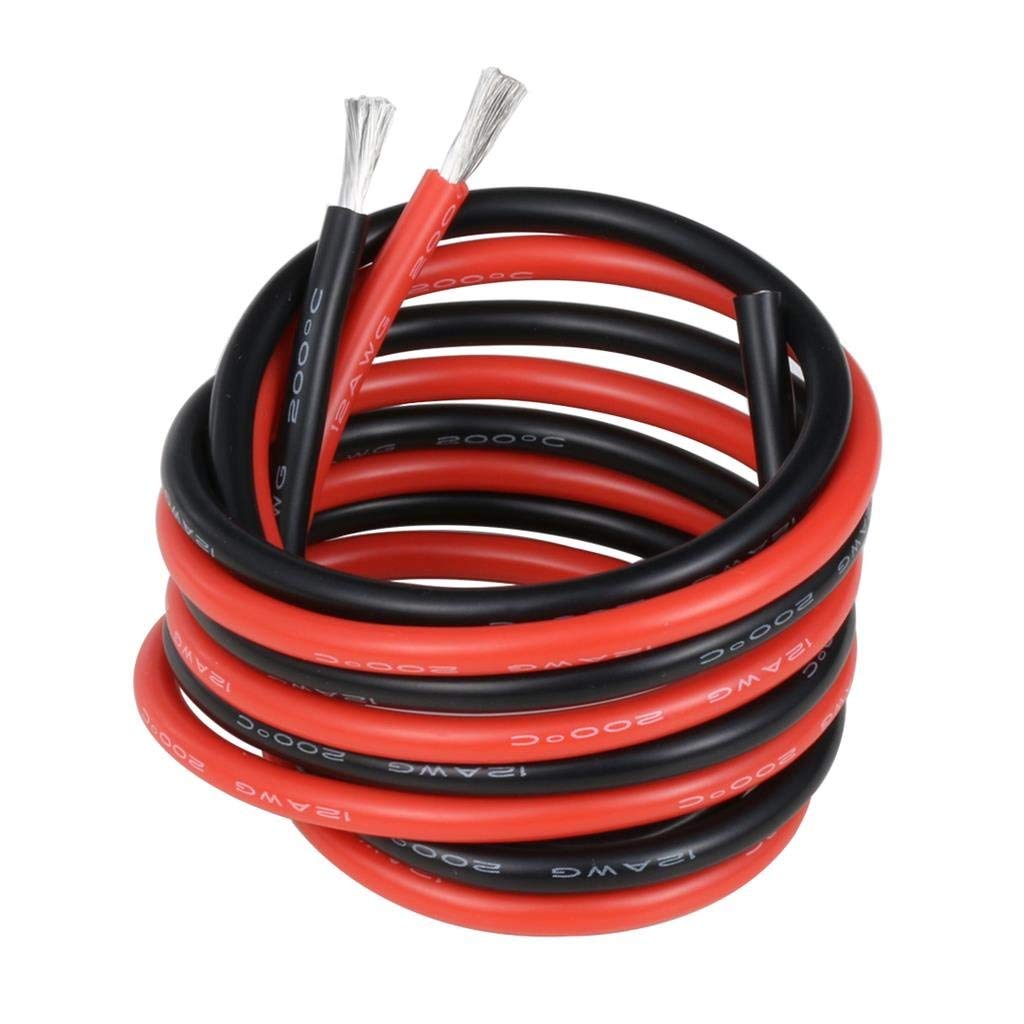

This 12 AWG silicone wire set includes 10 feet of red and 10 feet of black, 20 feet in total. Each conductor has 680 fine strands of 0.08 mm tinned copper, so the wire is extremely flexible. The soft silicone rubber insulation is rated 600V and handles -60°C to 200°C, which makes it a top choice for battery leads, RC models, ESCs and motors, solar and other high-current DC wiring.
Key Features
- 10 ft red + 10 ft black (20 ft total)

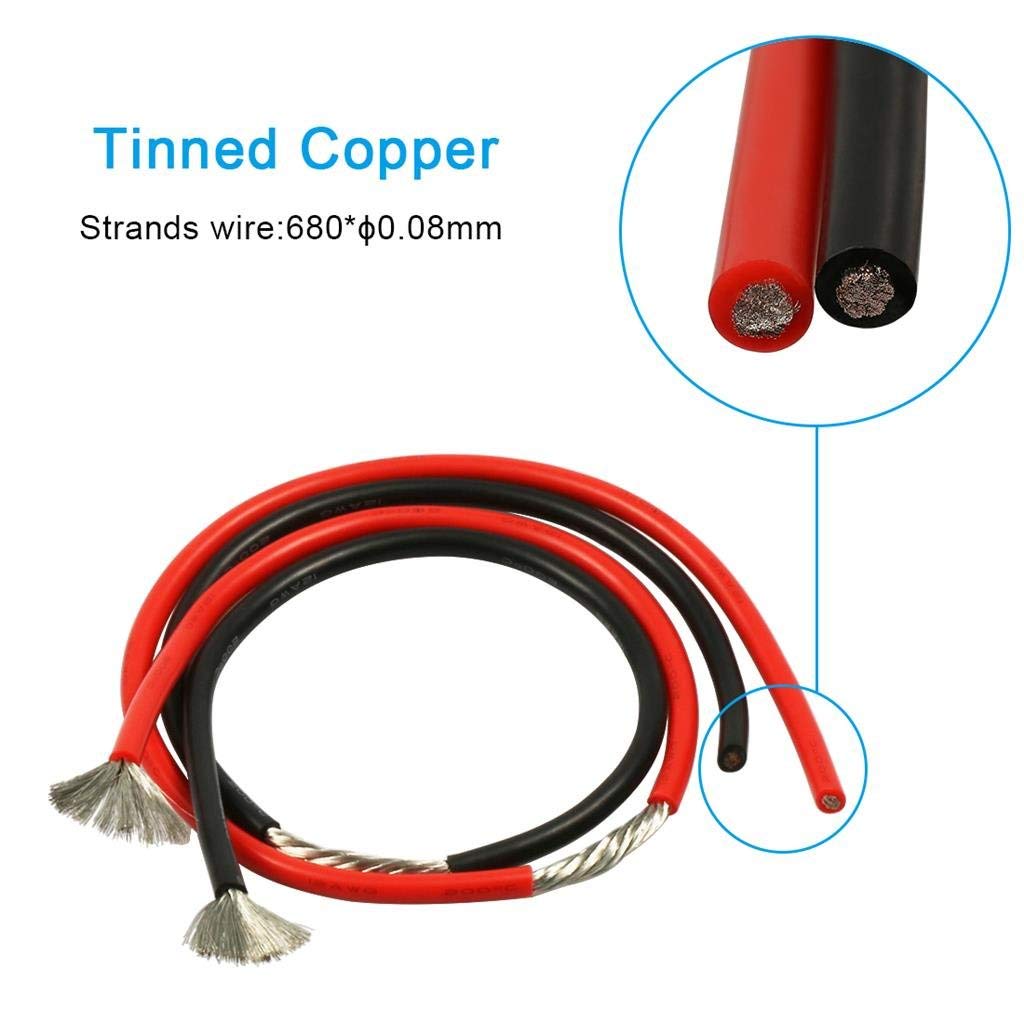

- 680 strands of 0.08 mm tinned copper per wire, ultra-flexible
- Soft silicone rubber insulation rated -60°C to 200°C
- 600V rated

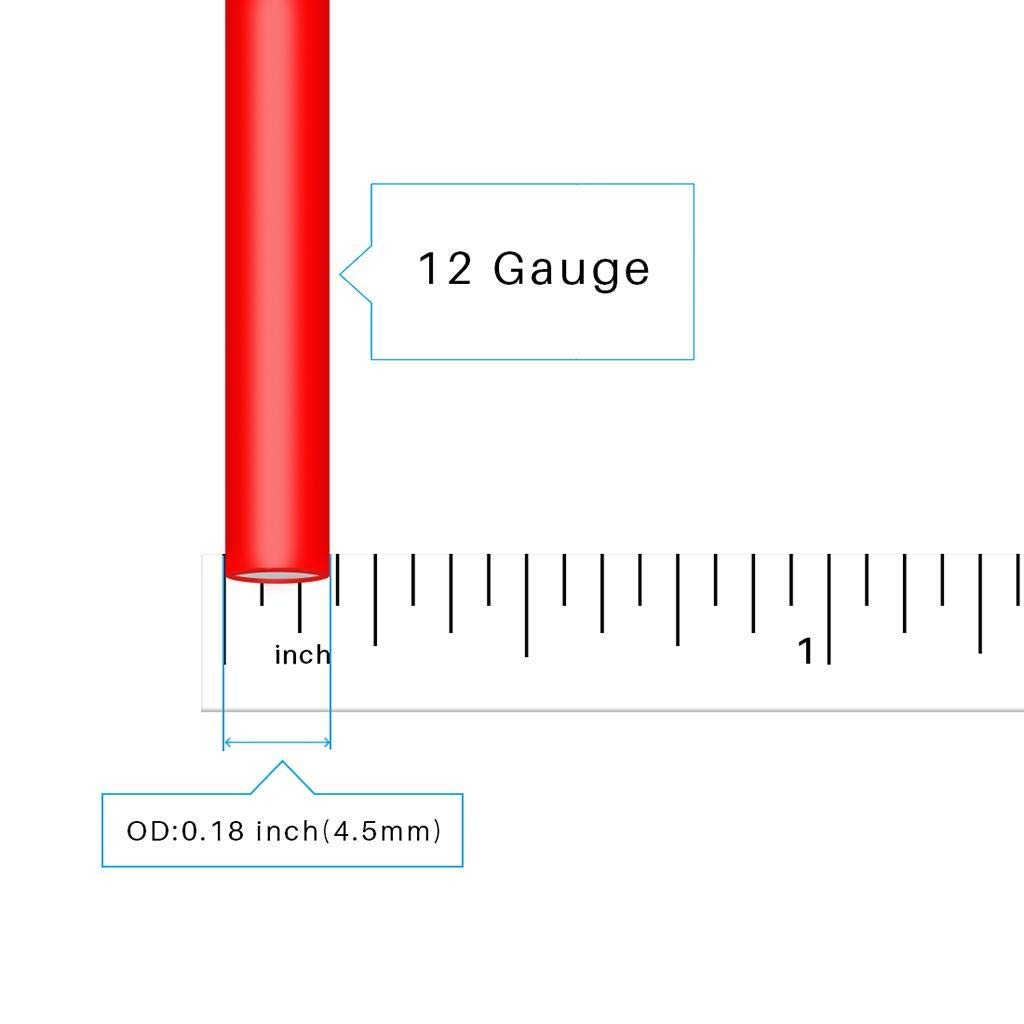

- Outer diameter about 4.5 mm
Specifications
| Gauge | 12 AWG |
|---|---|
| Strands | 680 × 0.08 mm tinned copper |
| Insulation | Silicone rubber |
| Voltage rating | 600V |
| Temperature range | -60°C to 200°C (-76°F to 392°F) |
| Outer diameter | 4.5 mm |
| Length | 10 ft red + 10 ft black |
| SKU | 2712G10RB |
What's Included
- 10 ft red 12 AWG silicone wire
- 10 ft black 12 AWG silicone wire
Ideal For
LiPo and lithium battery packs, RC cars, drones and boats, ESCs and motors, solar, inverters and 12V/24V DC power.
Frequently Asked Questions
Why silicone wire instead of PVC?
Silicone stays soft and flexible, even in cold weather, and withstands soldering heat and high temperatures without melting.
Is the copper tinned?
Yes. Tinning makes the wire easier to solder and protects it from corrosion.
