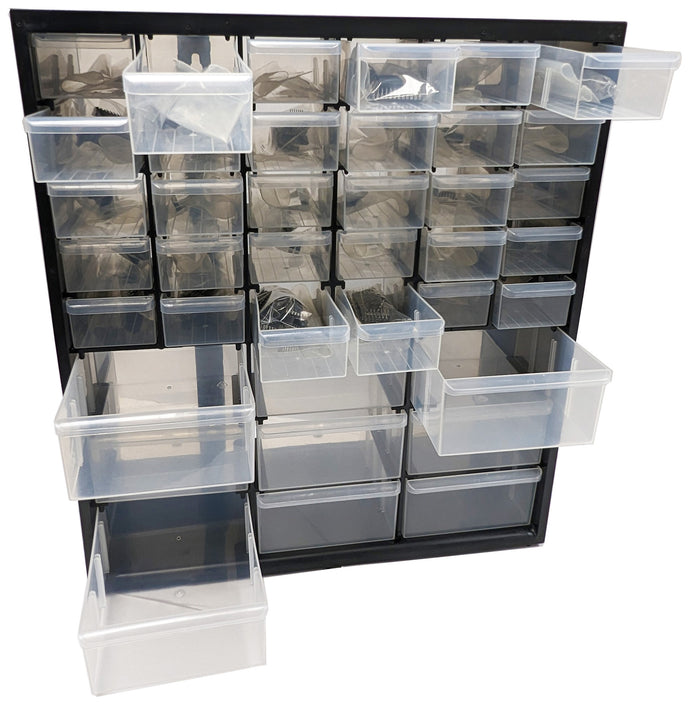

- 275 Piece Diode Assortment includes 30 different types of the most popular diodes, stored in a convenient 39 drawer component cabinet
- NOTE: Contents of cabinet component kits are subject to slight change based on parts availability.
- Storage Unit Dimensions: 14.4 x 6.2 x 17.9 inches
- Cabinet features 4 wall mounting holes on the back and drawer stops to prevent spills
- Includes 10 each of:
- 1N914 - Power Switching
- 1N4148 - Small Signal Fast Switching
- 1N34 - 65 Volt Germanium Diode
- FR106 - Fast Recovery Rectifier
- 1N4001 - 50VRRM General Purpose Plastic Rectifier
- 1N4004 - 400 VRRM General Purpose Plastic Rectifier
- 1N4007 - 1000 VRRM General Purpose Plastic Rectifier
- 1N5404 - 280 VRRM Standard Recovery Silicon Rectifier
- 1N5408 - 700 VRRM Standard Recovery Silicon Rectifier
- 1N751 - Zener Diode
- 1N753 - Zener Diode
- 1N4728 - 3.465 VZ* Zener Diode
- 1N4732 - 4.935 VZ* Zener Diode
- 1N4733 - 5.355 VZ* Zener Diode
- 1N4735 - 6.51 VZ* Zener Diode
- 1N4736 - 7.14 VZ* Zener Diode
- 1N4739 - 9.555 VZ* Zener Diode
- 1N4742 - 12.6 VZ* Zener Diode
- 1N4744 - 15.75 VZ* Zener Diode
- 1N4747 - 21 VZ* Zener Diode
- 1N5225B - 3V Zener Single Diode
- 1N5228B - 3.9V Zener Single Diode
- 1N5231B - 5.1V Zener Single Diode
- 1N5234B - 6.2V Zener Single Diode
- 1N5237B - 8.2V Zener Single Diode
- *Zener Voltage (VZ).
- Includes 5 each of:
- 6A01 - 100 VRRM, 6A Rectifier
- 6A08 - 800 VRRM, 6A Rectifier
- DB04 - 40V Trigger Diode
- RS401 - 50 VRRM Bridge Rectifier
- RS404 - 400 VRRM Bridge Rectifier
This 275 Piece diode kit includes 30 different types of the most popular diodes, stored in a convenient 39 drawer component cabinet that measures 14.4" x 6.2" x 17.9". Includes 10 of each of the following diode types: 1N914, 1N4148, 1N34, FR106, 1N4001, 1N4004, 1N4007, 1N5404, 1N5408, 1N751, 1N753, 1N4728, 1N4732, 1N4733, 1N4735, 1N4736, 1N4739, 1N4742, 1N4744, 1N4747, 1N5225B, 1N5228B, 1N5231B, 1N5234B, 1N5237B and 5 of each of 6A01, 6A08, DB04, RS401, RS404.
