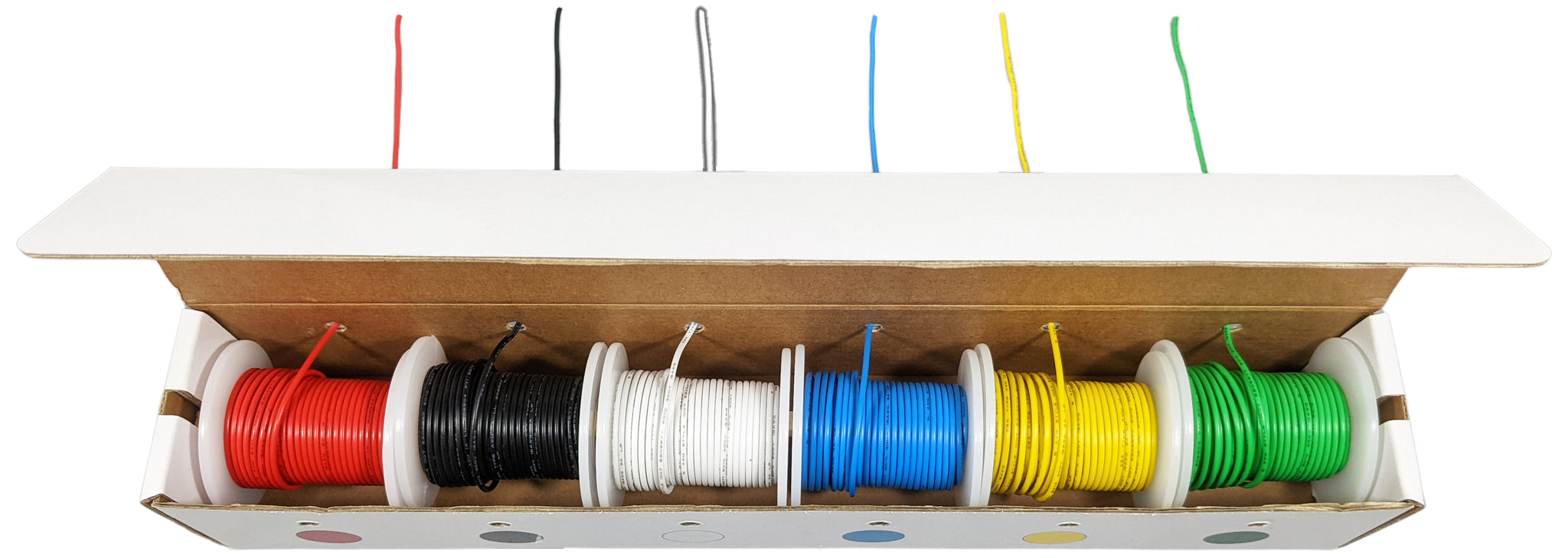

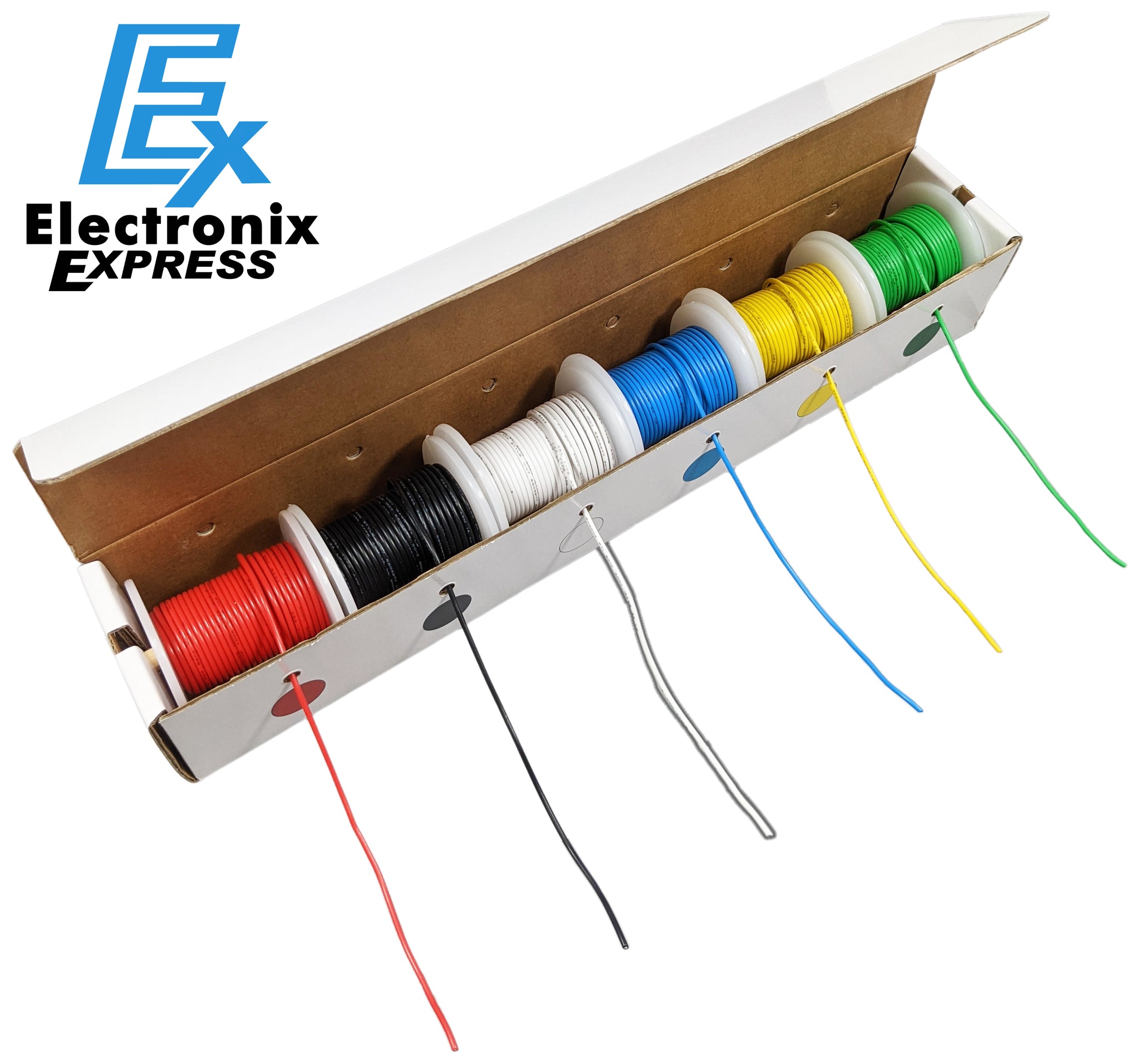

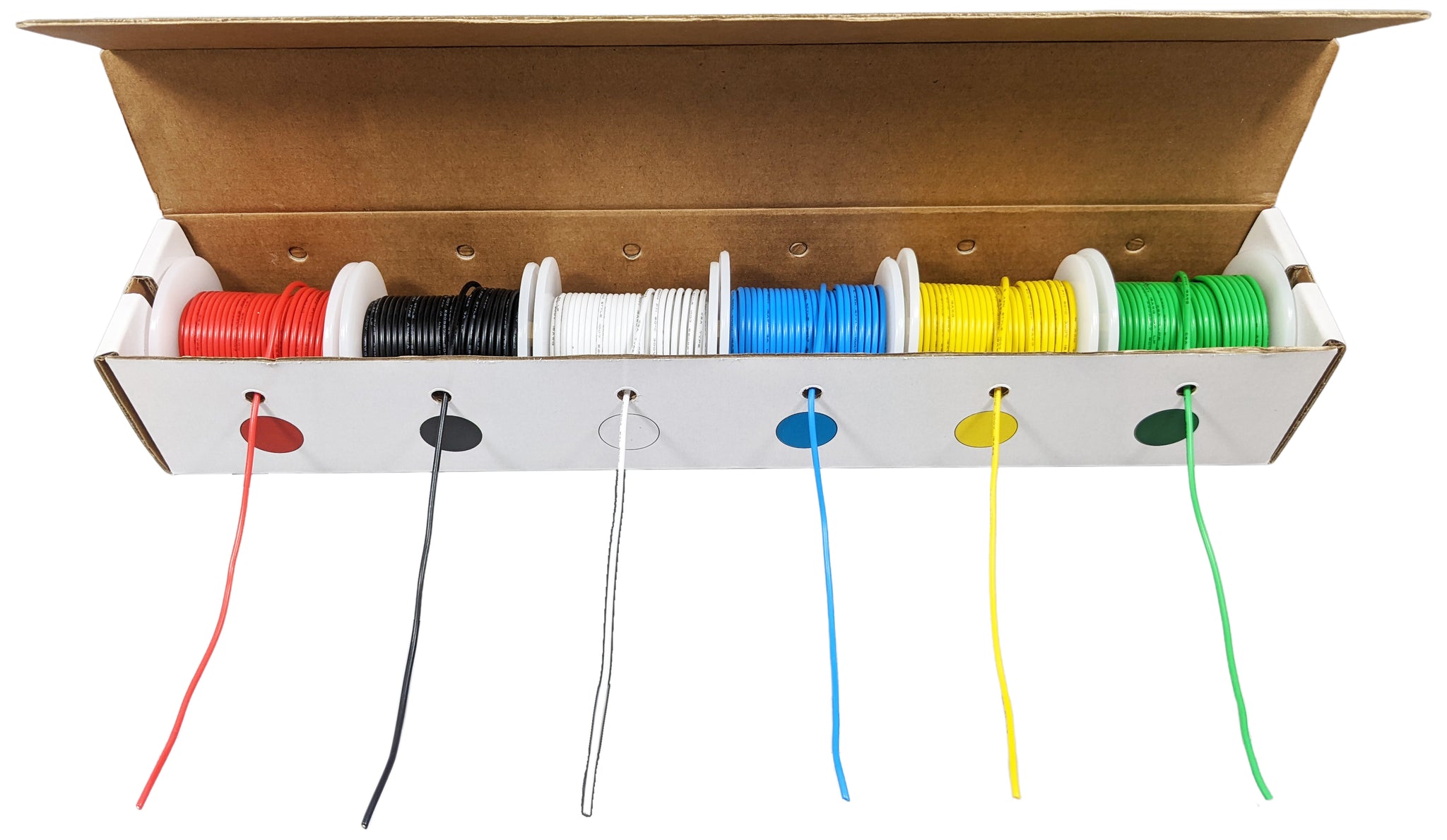

This 18 AWG stranded hook-up wire kit includes 6 spools of tinned copper wire, 25 feet each (150 feet total), in red, black, white, blue, yellow and green. It comes in a cardboard dispenser box that keeps the wire clean, organized and easy to pull. Stranded wire stays flexible and resists breaking under repeated bending and vibration, so it's the better choice for robotics, vehicles, RC models and any wiring that moves.
Key Features
- 6 colors × 25 ft (150 ft total): Red, Black, White, Blue, Yellow, Green
- 18 AWG stranded tinned copper, easy to solder and corrosion resistant
- PVC insulation rated 300V, .010 in. thick
- Resistant to water, oil and solvents; flame retardant
- Temperature rating -55°C to 105°C

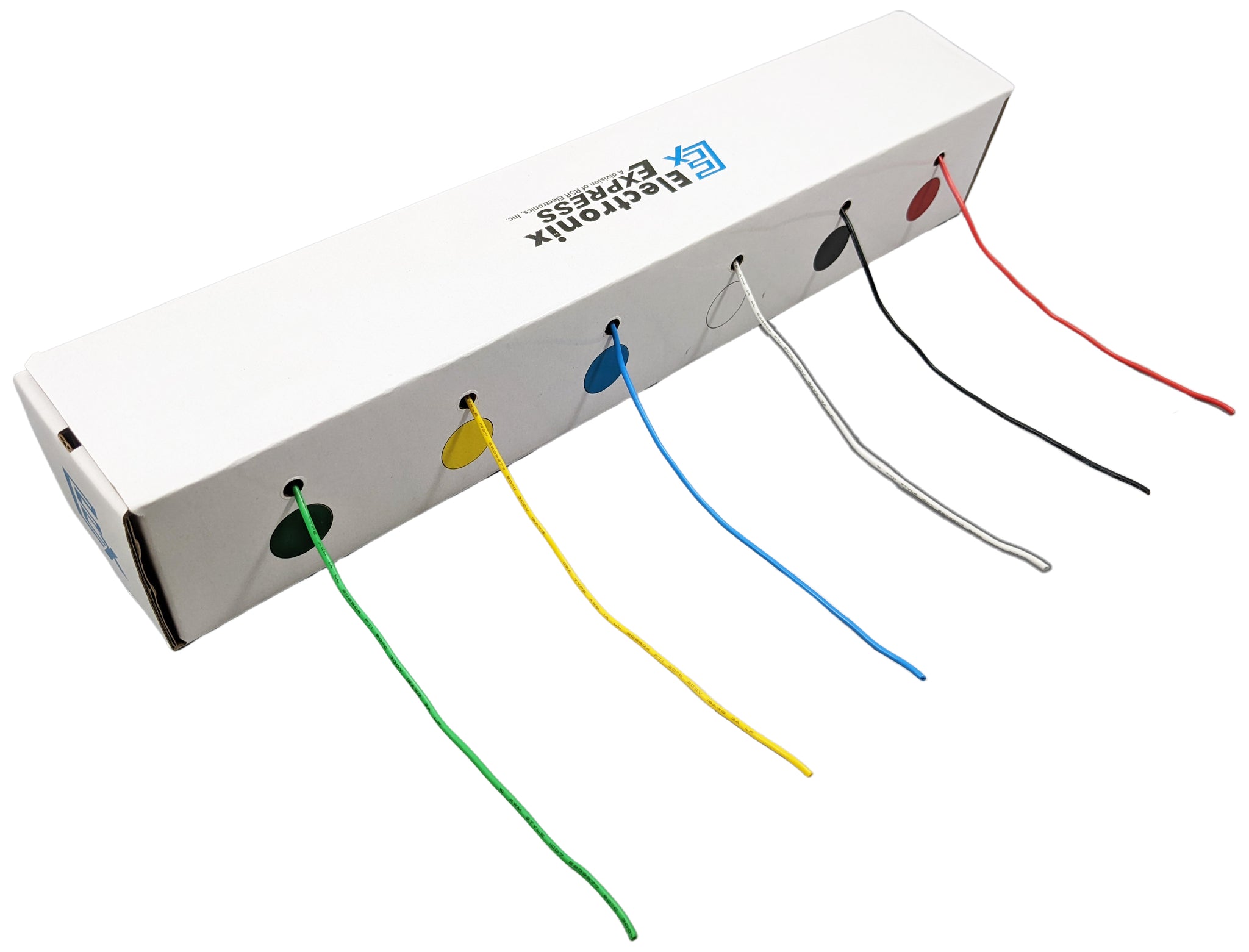

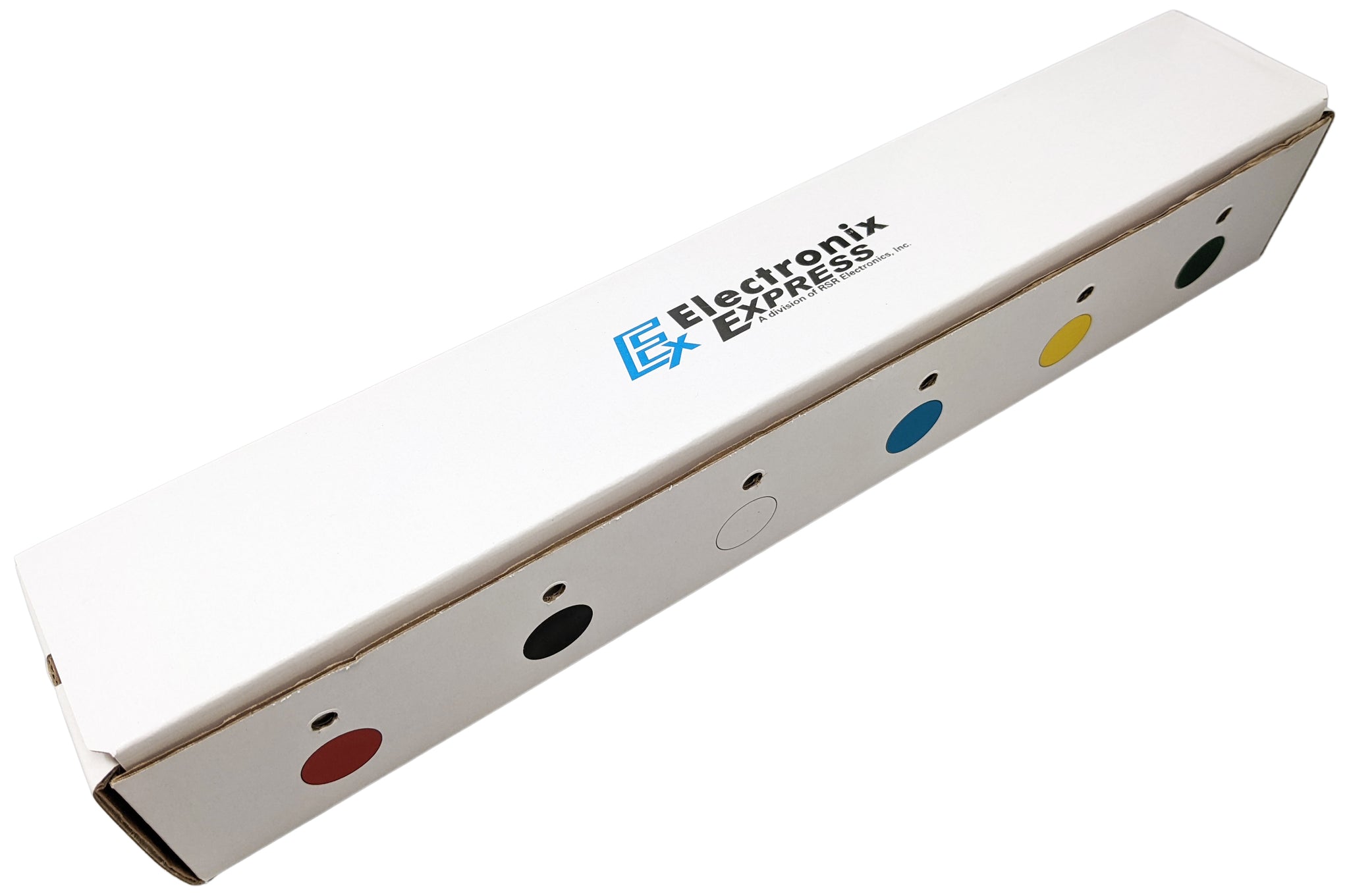

- Includes a cardboard dispenser box that keeps the wire clean, organized and easy to pull
Specifications
| Gauge | 18 AWG |
|---|---|
| Conductor | Stranded, tinned copper |
| Insulation | PVC |
| Voltage rating | 300V |
| Temperature rating | -55°C to 105°C |
| Spools | 6 × 25 ft (150 ft total) |
| Colors | Red, Black, White, Blue, Yellow, Green |
| SKU | 27WK18STR25 |
What's Included
- 6 spools of 18 AWG stranded wire (25 ft each)
- Dispenser box
Ideal For
Automotive and marine accessories, LED lighting, low-voltage power runs, model railroads and appliance repair.
Frequently Asked Questions
Should I choose solid or stranded wire?
Use solid wire for breadboards and fixed wiring, since it holds its shape. Use stranded wire for connections that flex, move or vibrate.
Can I use stranded wire in a breadboard?
Stranded ends can fray. Tin the ends with solder, or use a solid wire kit for breadboarding.
