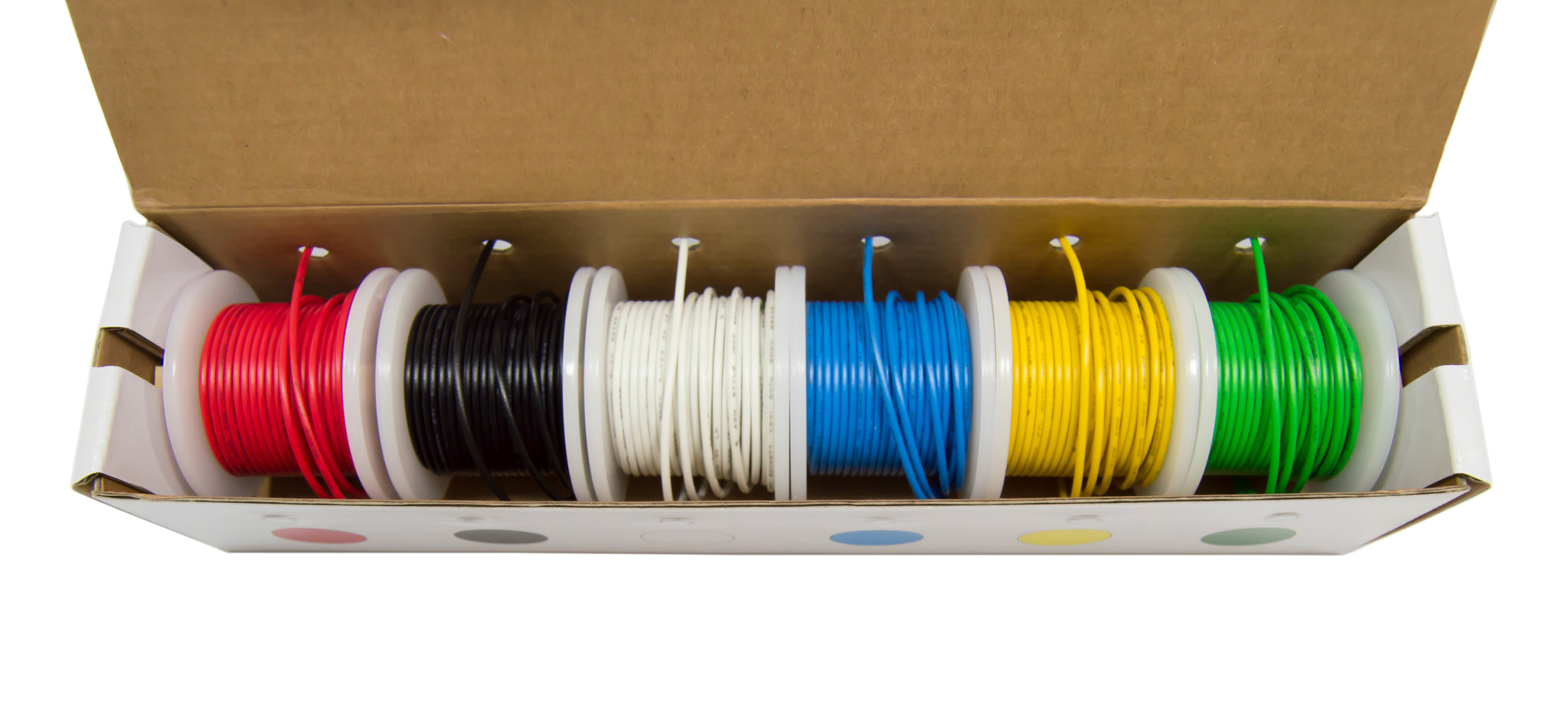

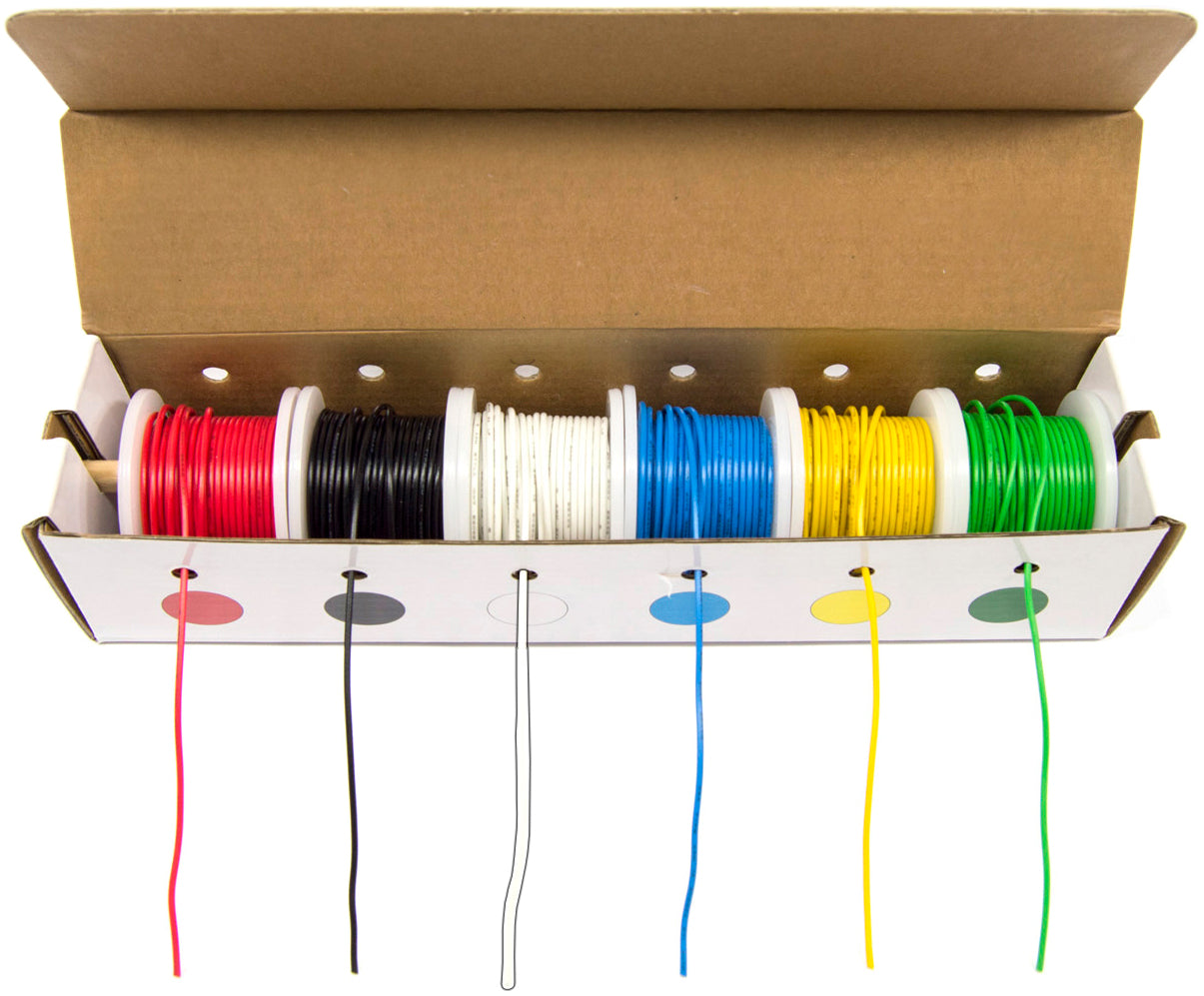

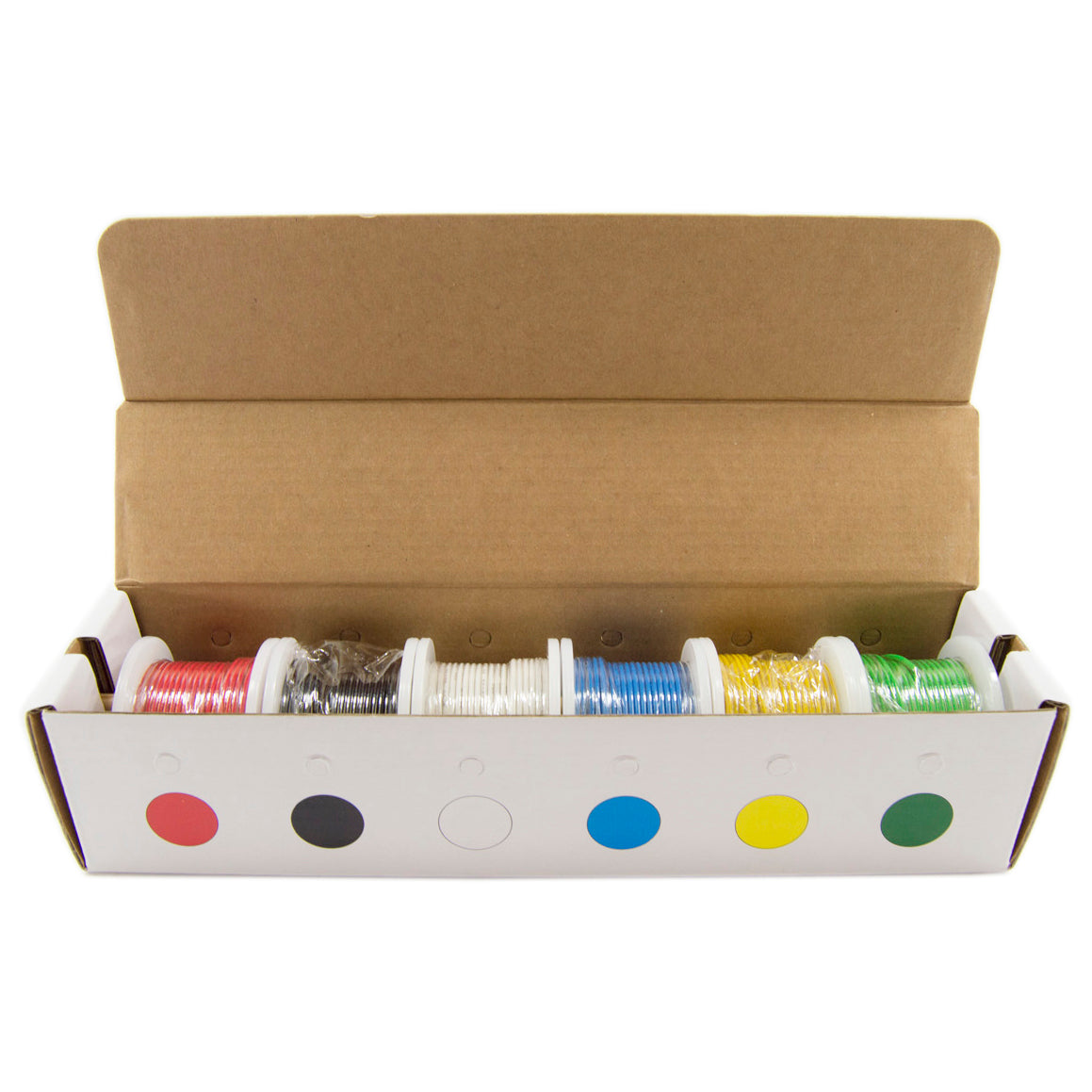

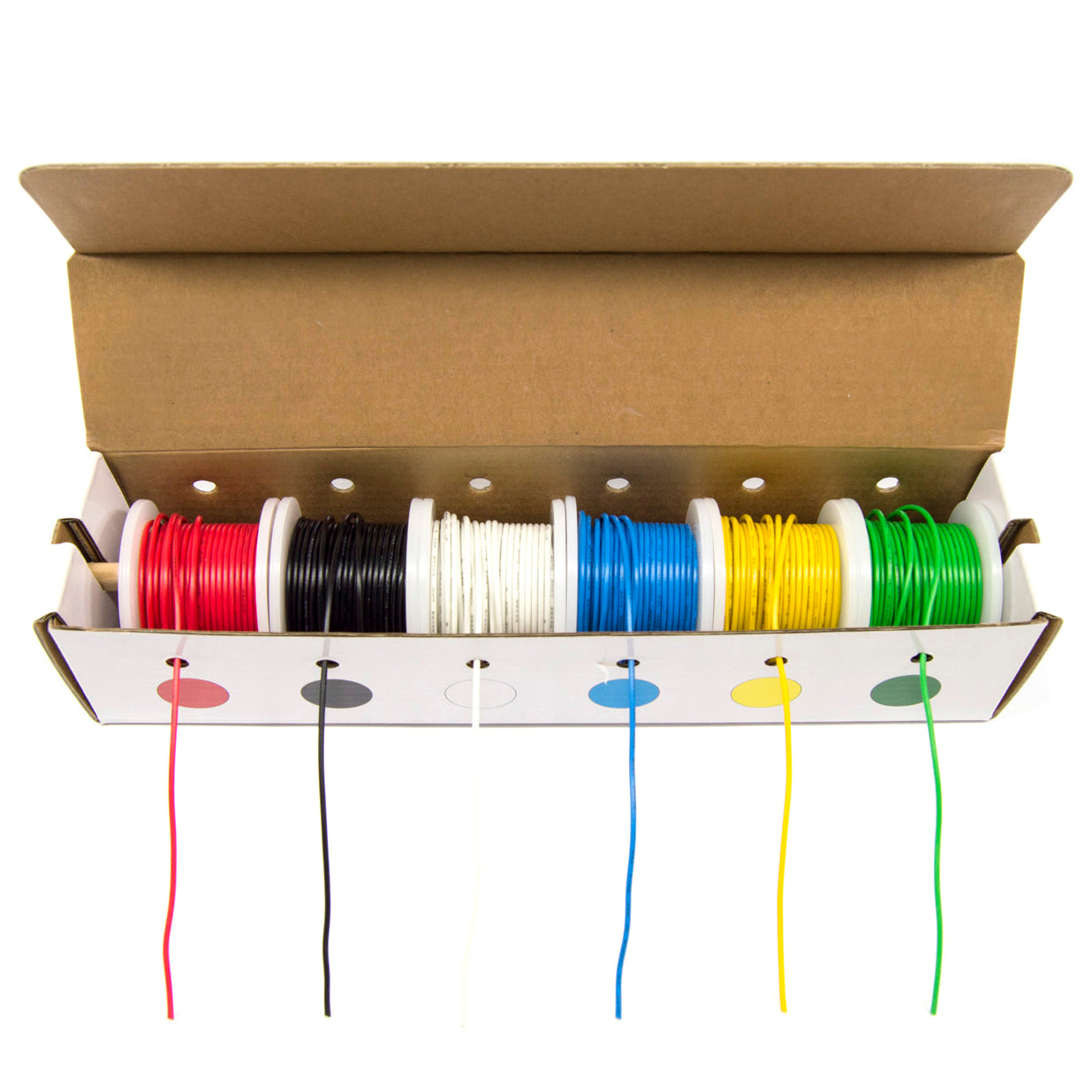

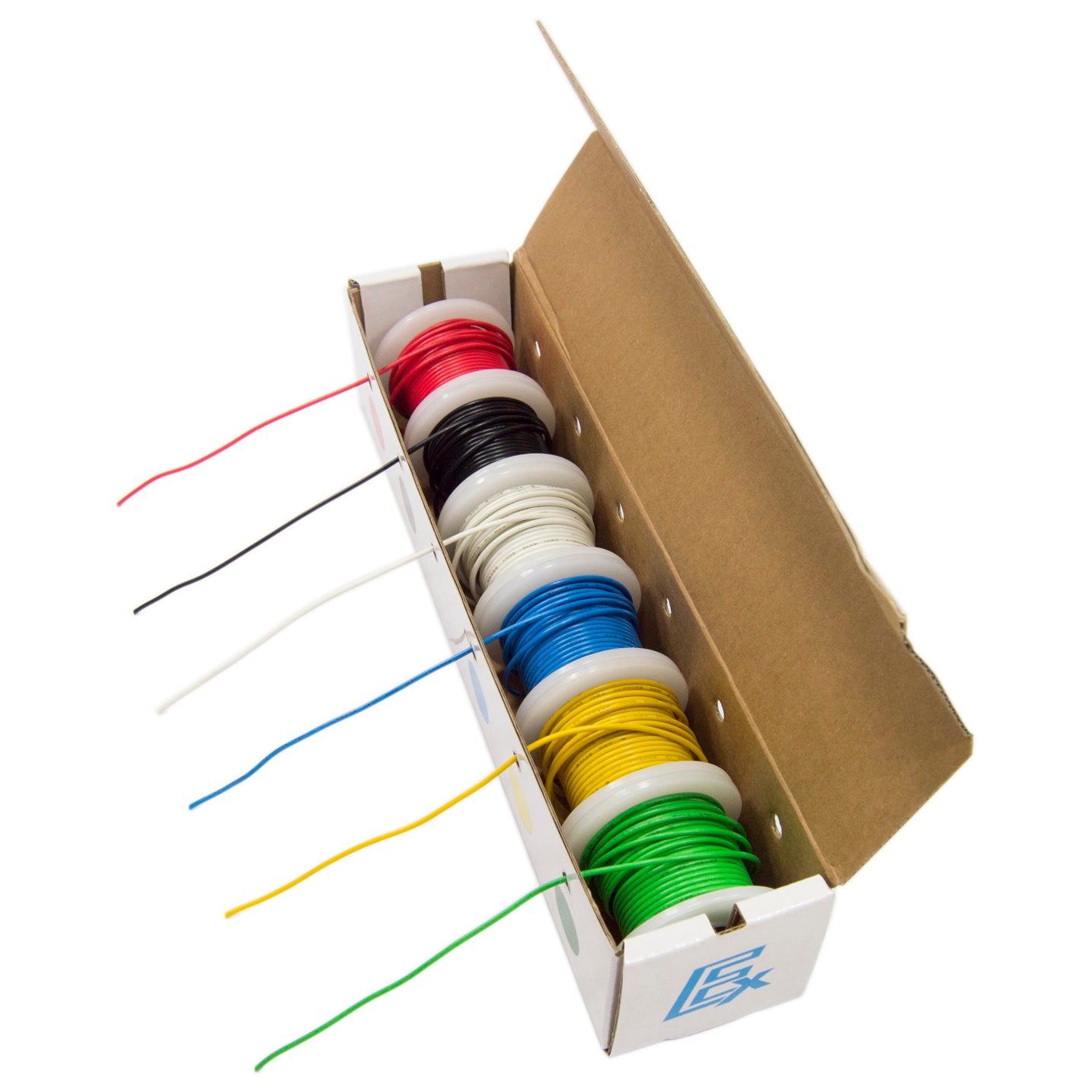

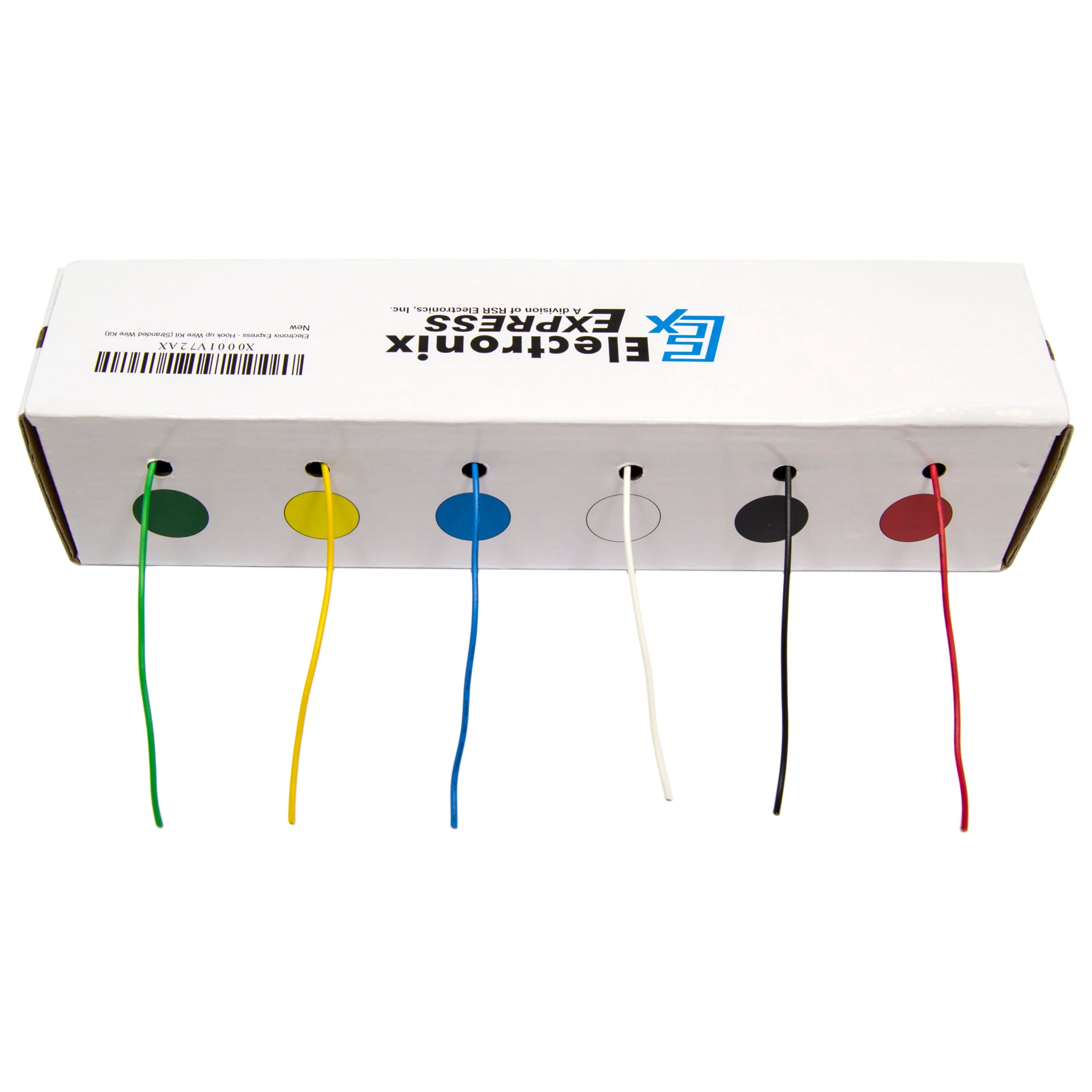

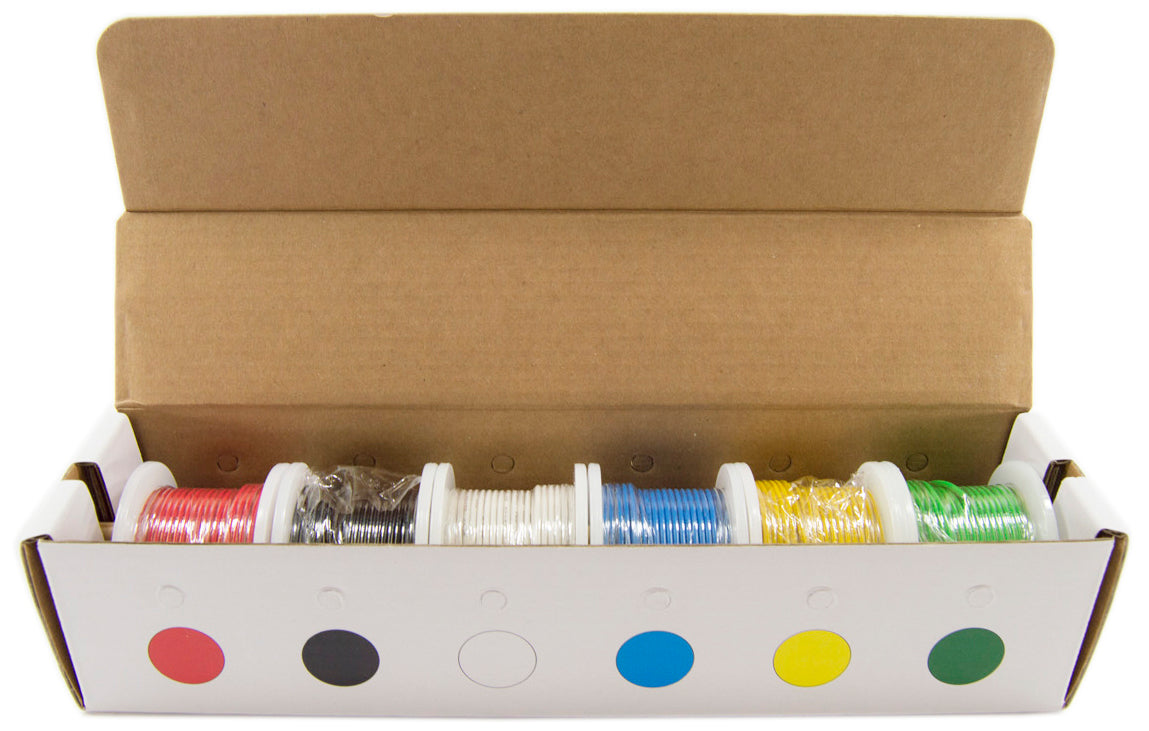

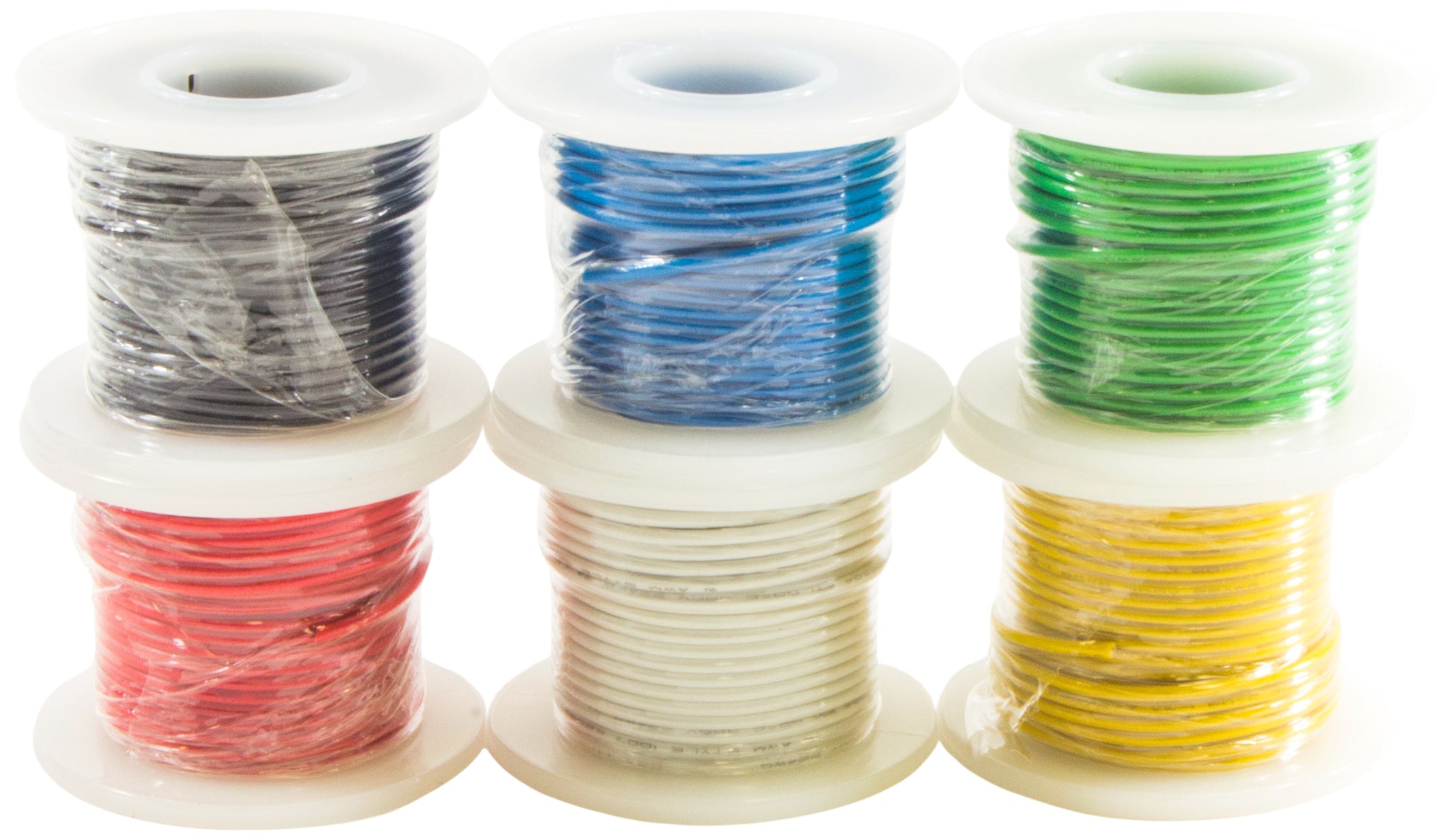

This 22 AWG stranded hook up wire kit contains six 25-foot spools of flexible tin-plated copper wire in red, black, white, blue, yellow and green, 150 feet in total, in a dispenser box. Stranded wire flexes without breaking, so it's the right choice for wiring that moves or vibrates, such as robotics, RC models, drones and enclosure wiring.
Key Features
- 6 colors x 25 ft each (150 ft total): red, black, white, blue, yellow, green
- 22 AWG stranded tin-plated copper that is flexible, fatigue-resistant and easy to solder
- PVC insulation rated 300V, resistant to water, oil and solvents, and flame retardant
- Insulation outer diameter of about 1.7 mm
- Dispenser box keeps spools tidy and pulls wire easily
Specifications
| Gauge | 22 AWG |
|---|---|
| Conductor | Stranded tinned copper |
| Insulation | PVC, flame retardant |
| Voltage rating | 300V |
| Outer diameter | About 1.7 mm |
| Length | 25 ft per color, 150 ft total |
| Colors | Red, black, white, blue, yellow, green |
| SKU | 27WK22STR25 |
What's Included

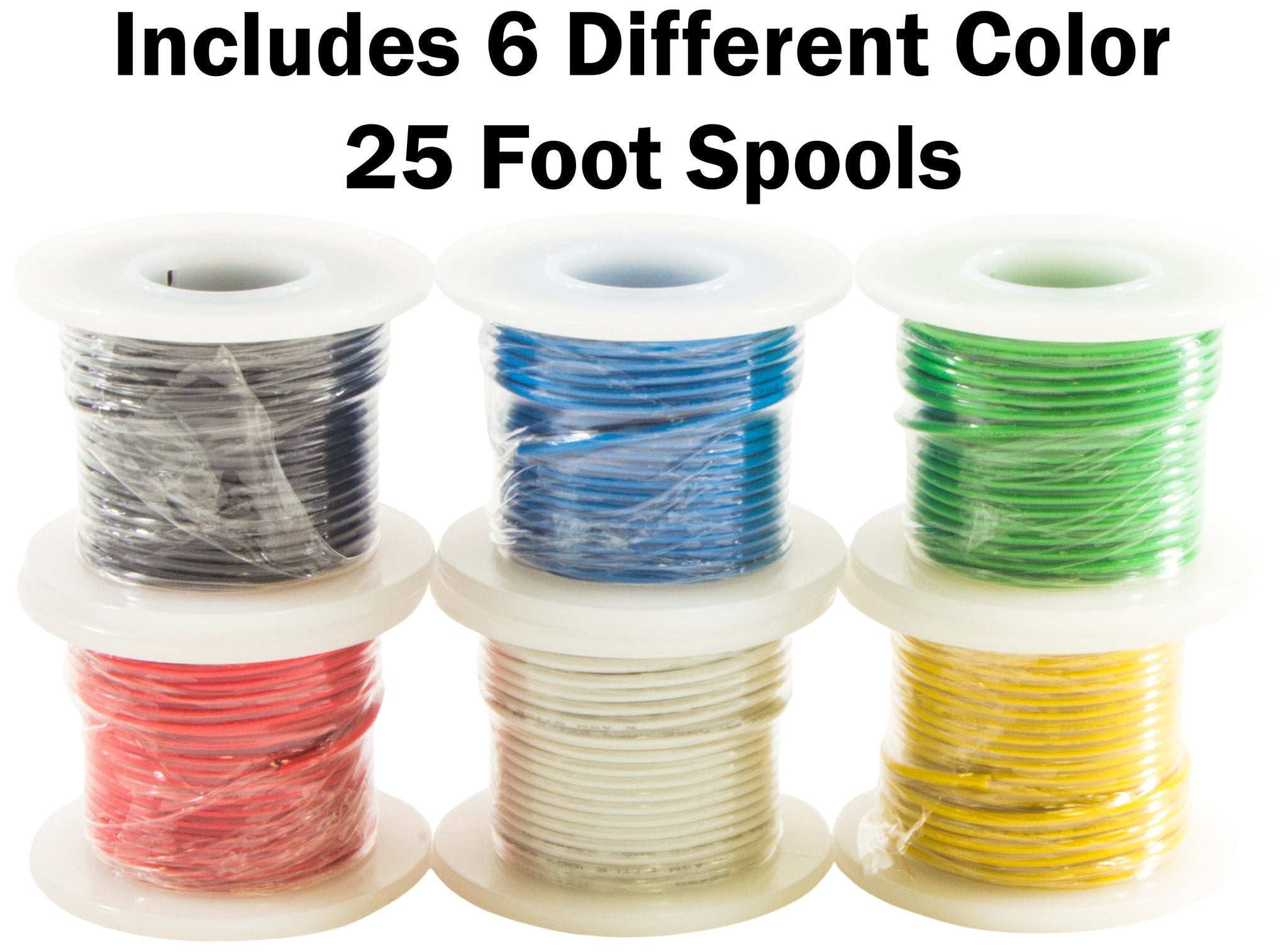

- 6 spools of 22 AWG stranded wire (25 ft each)
- Dispenser box
Ideal For
Robotics, RC and drone builds, LED projects, automotive accessories and electronics repair.
Frequently Asked Questions
Can I use stranded wire in a breadboard?
It's possible, but stranded ends can fray. For breadboards, solid wire works better (see our 20 AWG solid kit), or tin the ends of stranded wire with solder.
What is tinned copper?
Copper wire coated with tin, which resists corrosion and makes soldering easier.
