rollerball reed contact | NO contact | mounting hole: 0.8" | operating gap: 0.14" max. | contact resistance: 0.3 ohm
Velleman Roller Ball Contact, Normally Open Switch (HAA29)
  • Load image into Gallery viewer, rollerball reed contact | NO contact | mounting hole: 0.8" | operating gap: 0.14" max. | contact resistance: 0.3 ohm
  • Load image into Gallery viewer, Velleman Roller Ball Contact, Normally Open Switch (HAA29)

Velleman Roller Ball Contact, Normally Open Switch (HAA29)

29HAA29
$9.99
$9.99
Sold out
Shipping calculated at checkout.
  • rollerball reed contact
  • NO contact
  • mounting hole: 0.8"
  • operating gap: 0.14" max.
  • contact resistance: 0.3 ohm

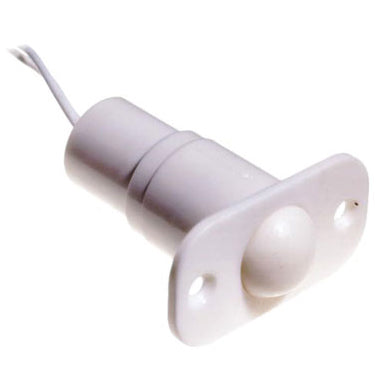

The Velleman HAA29 is a rollerball plunger style switch with a normally open (NO) relay; when the rollerball is pushed into the housing, the switch closes, completing an electrical circuit.

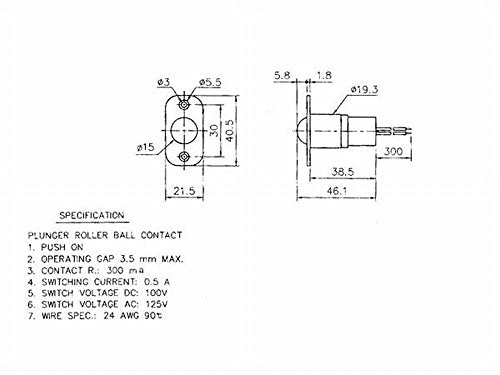

Specifications

  • roller ball reed contact
  • NC contact
  • mounting hole: 19.5mm
  • operating gap: 3.5mm max
  • contact resistance: 0.3 ohm
  • switching current: 0.5A
  • DC switching voltage: 100V
  • AC switching voltage: 125V
  • wire: 24 AWG / 90°C
  • dimensions: 40.5 x 21.5 x 46.1mm
