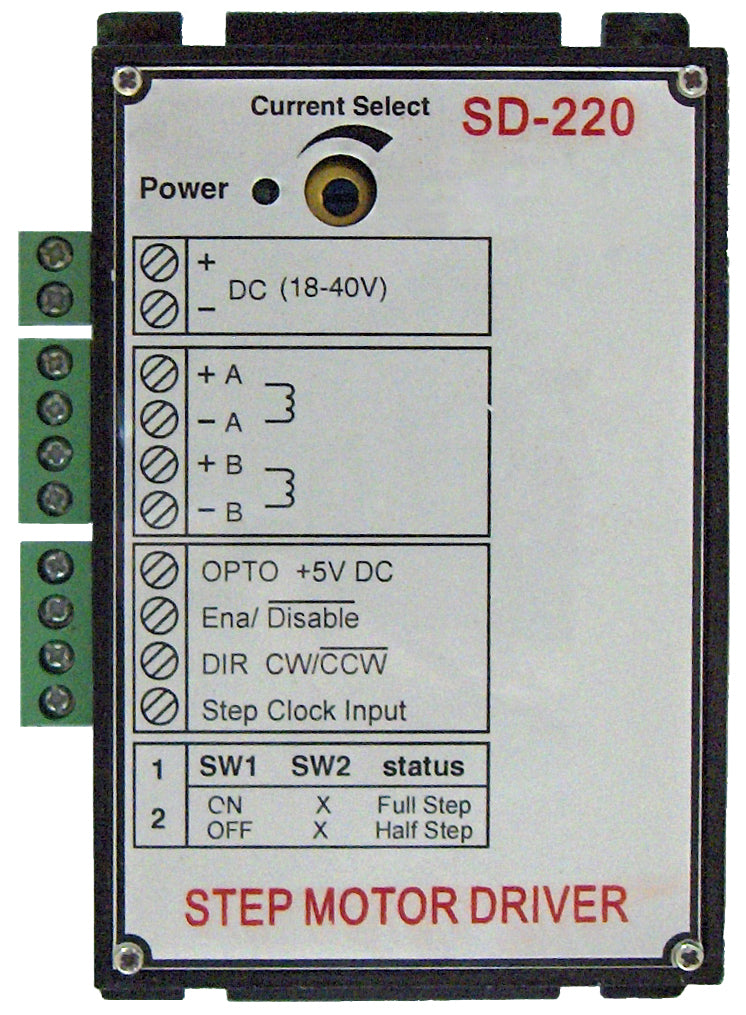

Stepper Motor Driver for 2 or 4 Phase Stepper Motors

• Power supply voltage range 18-40VDC
• Driver for 2 or 4 phase stepper motors
• Motor phase current adjustable up to 2 Amp
• 118mm (L)x70mm (W)x28mm (H)

This unit is a chopper type full or half-step driver for use with 4, 6, and 8 wire stepper motors.

-Driver for 2 or 4 phase stepper motors
-Full/half step bipolar chopper drive
-Power supply voltage can range from 18 ~ 40VDC and does not have to be regulated
-Motor phase current adjustable up to 2 Amp
-Step rate less than or equal to 12 kHz
-Opto-isolated step clock input, direction inputs (CW/CCW), and Enable/Disable inputs that can be directly driven by either TTL gates, or by open collector transistor outputs
-Protected by a sturdy, heat conductive aluminum case, it is suitable for harsh environments
-118mm (L) x 70mm (W) x 28mm (H)
