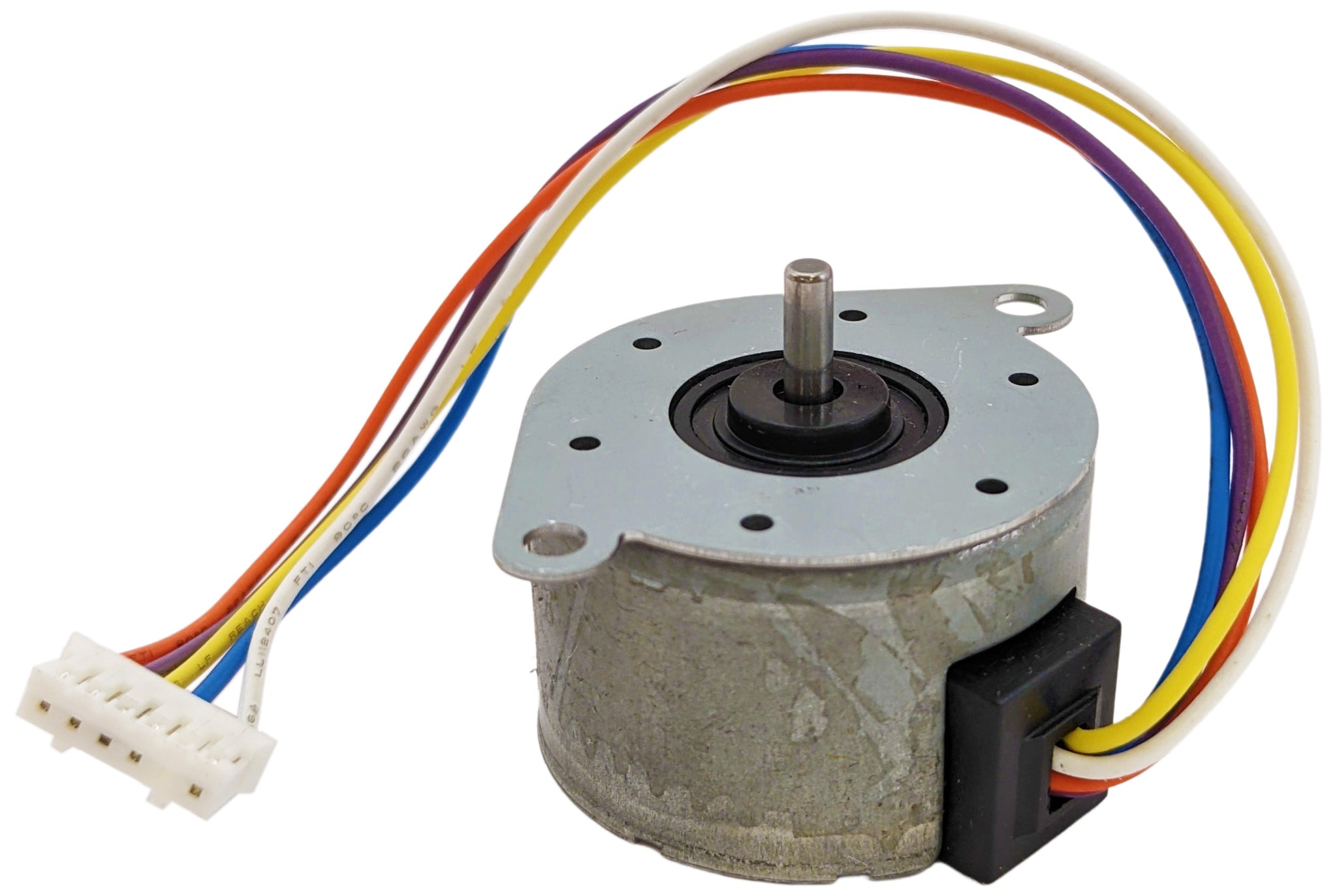

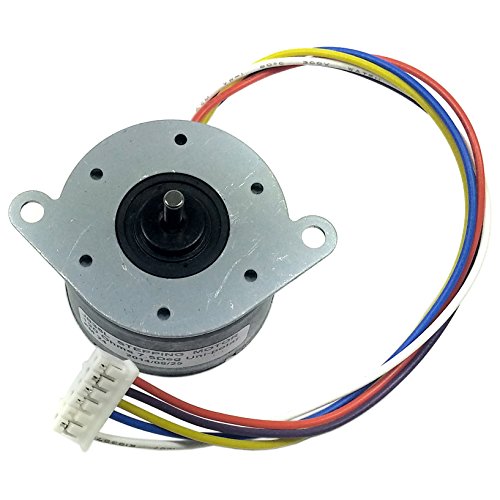

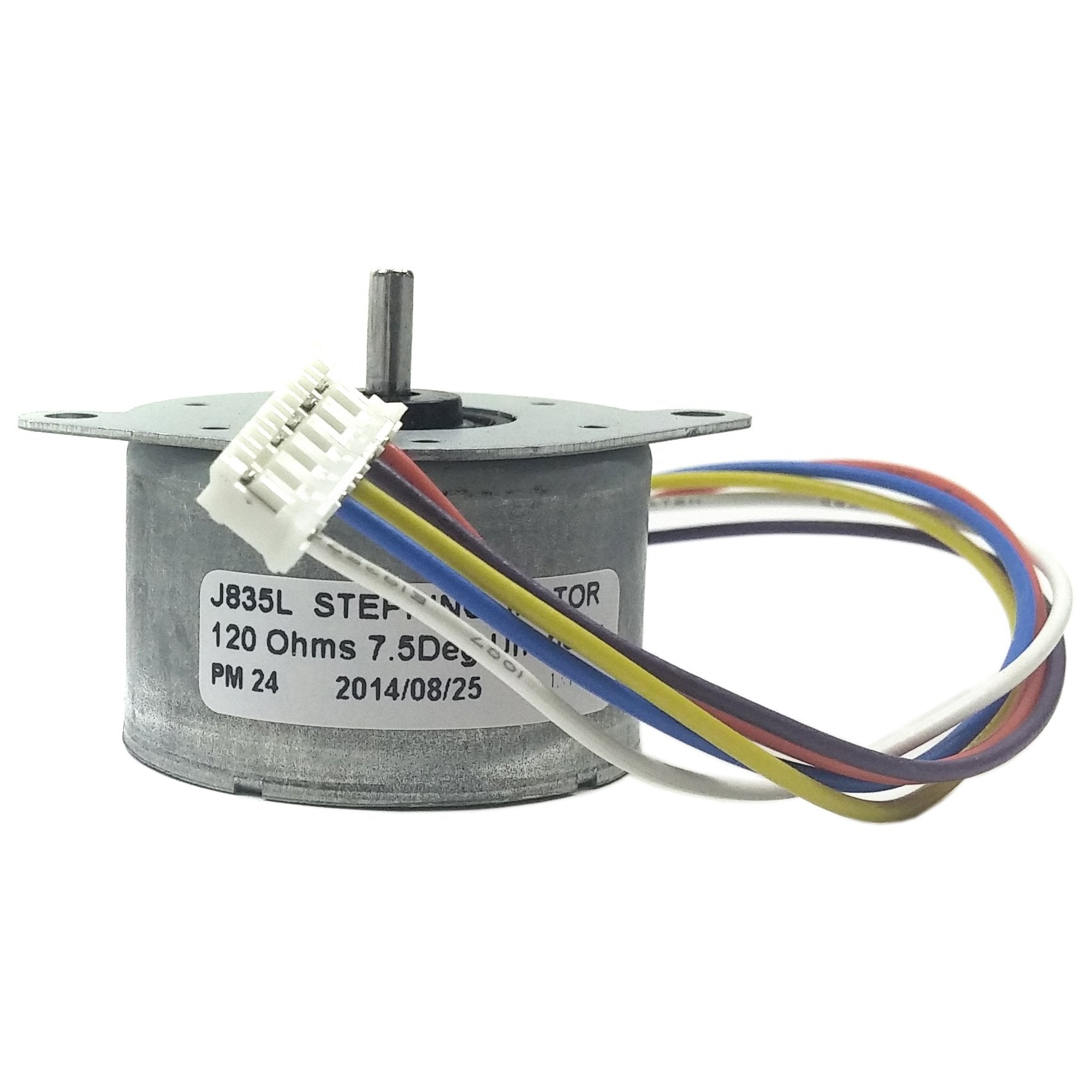

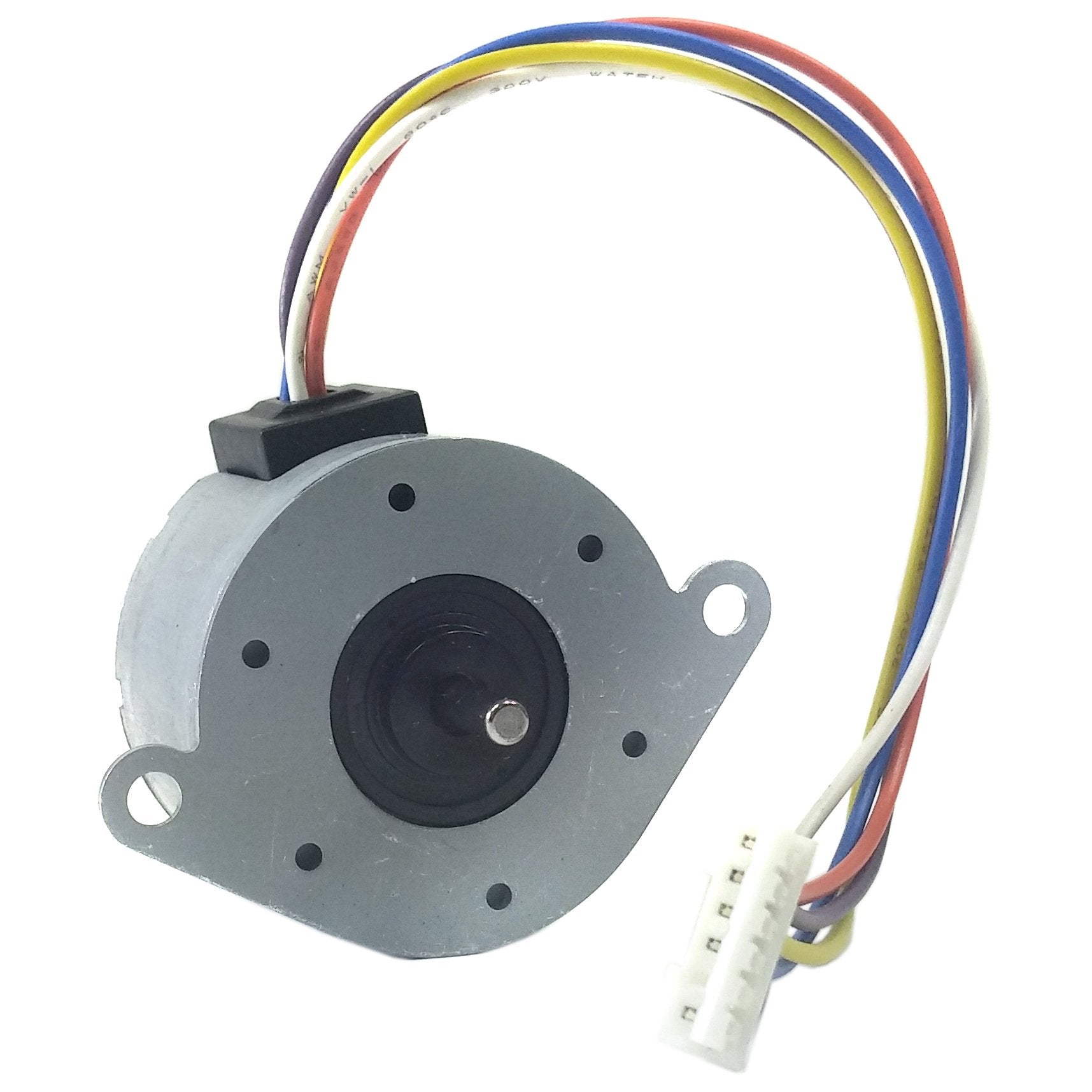

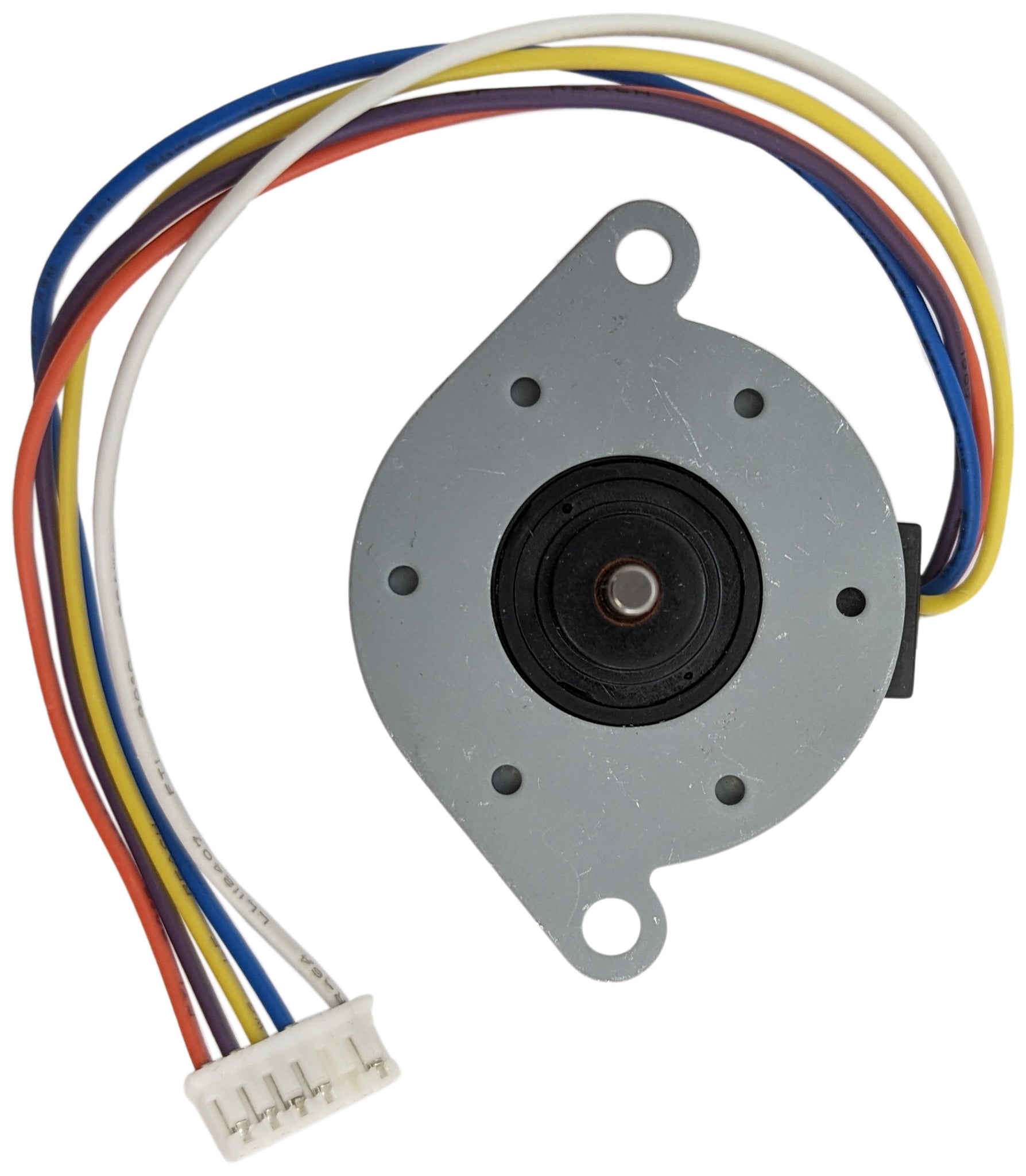

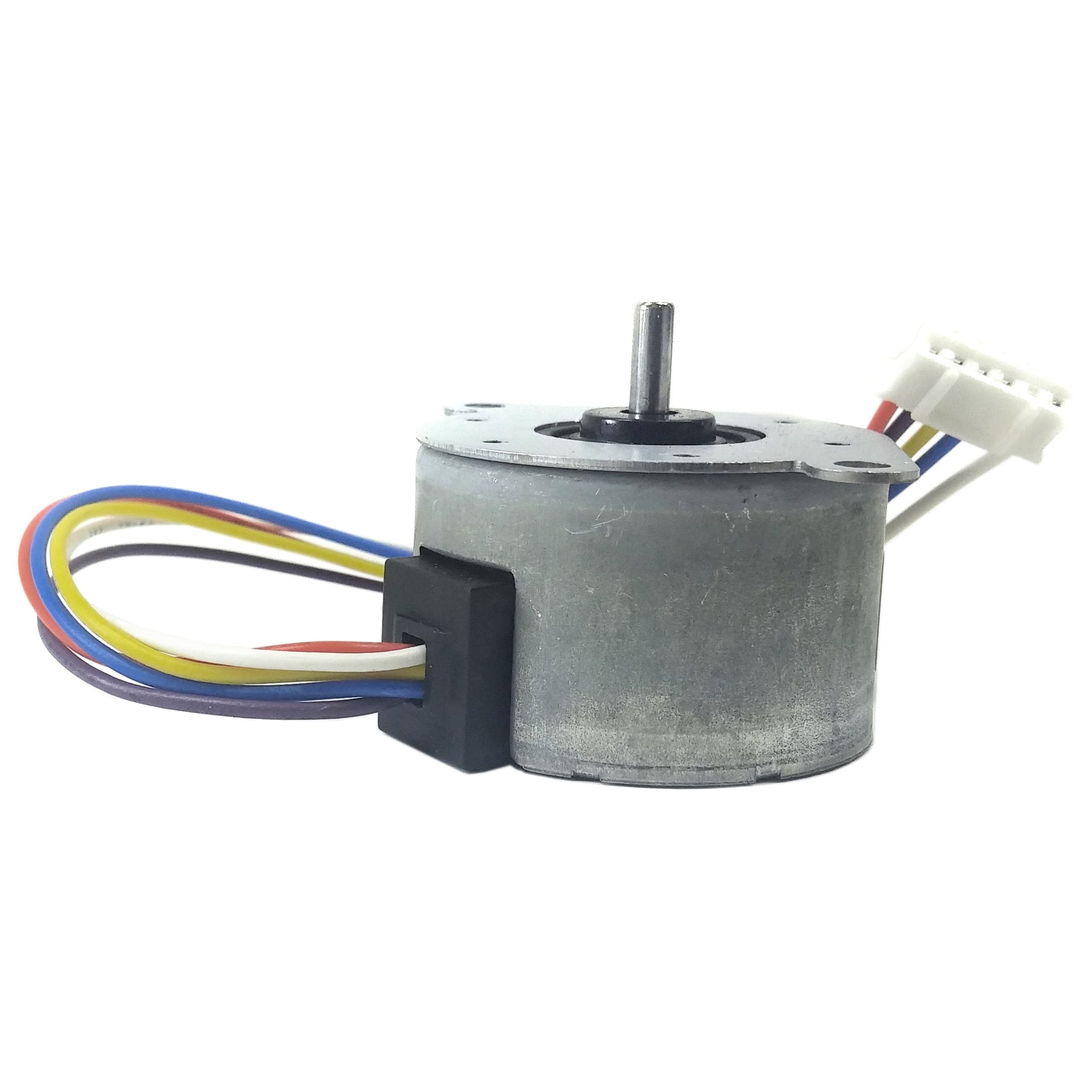

- Stepper Motor Unipolar DC 5V
- Dual Coil center tapped
- 120 ohm coil
- 7.5 degrees per step
- 5 wire leads with connector
Dimensions and weight:
1.36" Diameter (not including mounting tabs)
0.88" Height (not including shaft)
Distance between mounting holes: 1.64"
Shaft is 0.4" long, 0.11" diameter
Weight: 2.75 ounce
