Standard servo motor ideal for robotic projects | Operating Voltage: 4.8V~6V | Stall Torque: 3kg.cm/41.74oz.in(4.8V), 3.2kg.cm/44.52oz.in(6V) | Dimensions: 40.8 × 20.1 × 38 mm | Weight: 36 g

Load image into Gallery viewer, Standard servo motor ideal for robotic projects | Operating Voltage: 4.8V~6V | Stall Torque: 3kg.cm/41.74oz.in(4.8V), 3.2kg.cm/44.52oz.in(6V) | Dimensions: 40.8 × 20.1 × 38 mm | Weight: 36 g

Load image into Gallery viewer, Standard Servo Motor, 3kg.cm Torque at 4.8 Volt / 3.2kg.cm at 6V, Weight: 36g

Standard Servo Motor, 3kg.cm Torque at 4.8 Volt / 3.2kg.cm at 6V, Weight: 36g

29SV40

Regular price: $8.50
Sale price: $8.50
Regular price
Unit price: per

Shipping calculated at checkout.

Quantity must be 1 or more

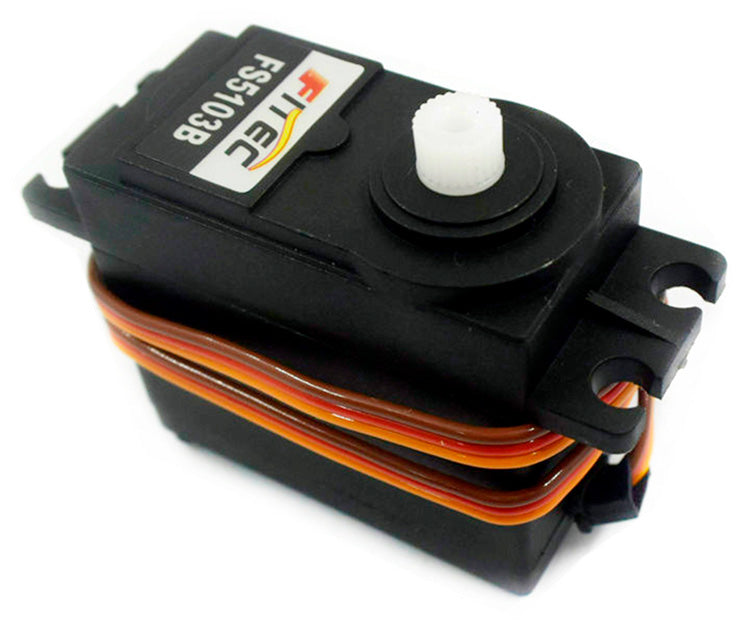

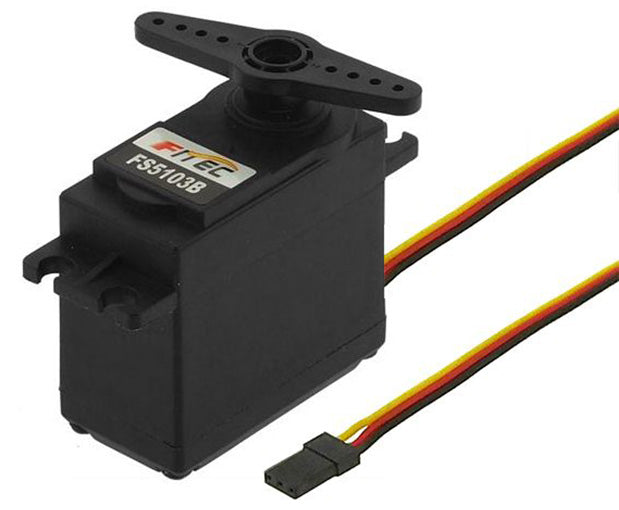

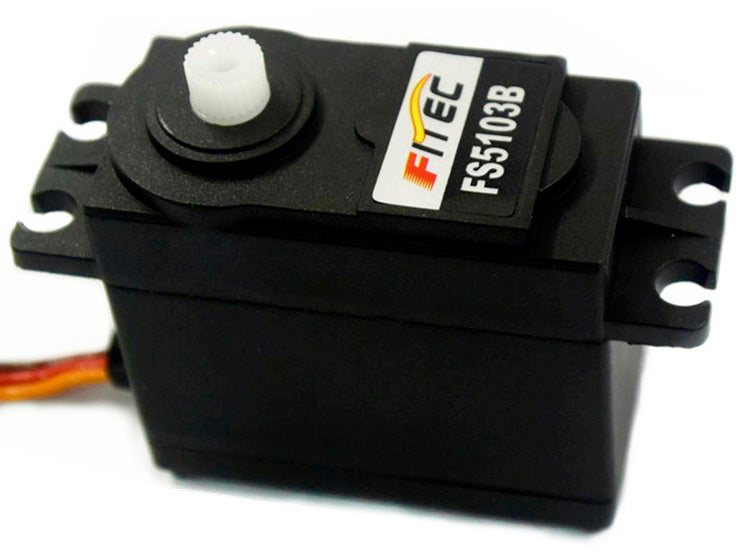

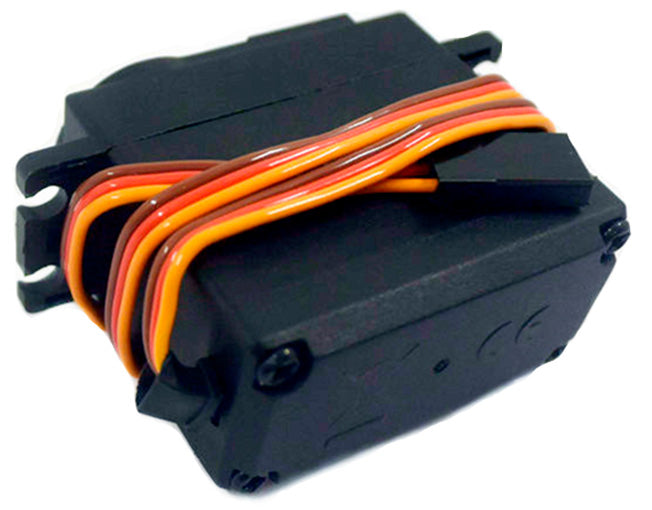

Standard servo motor ideal for robotic projects
Operating Voltage: 4.8V~6V
Stall Torque: 3kg.cm/41.74oz.in(4.8V), 3.2kg.cm/44.52oz.in(6V)

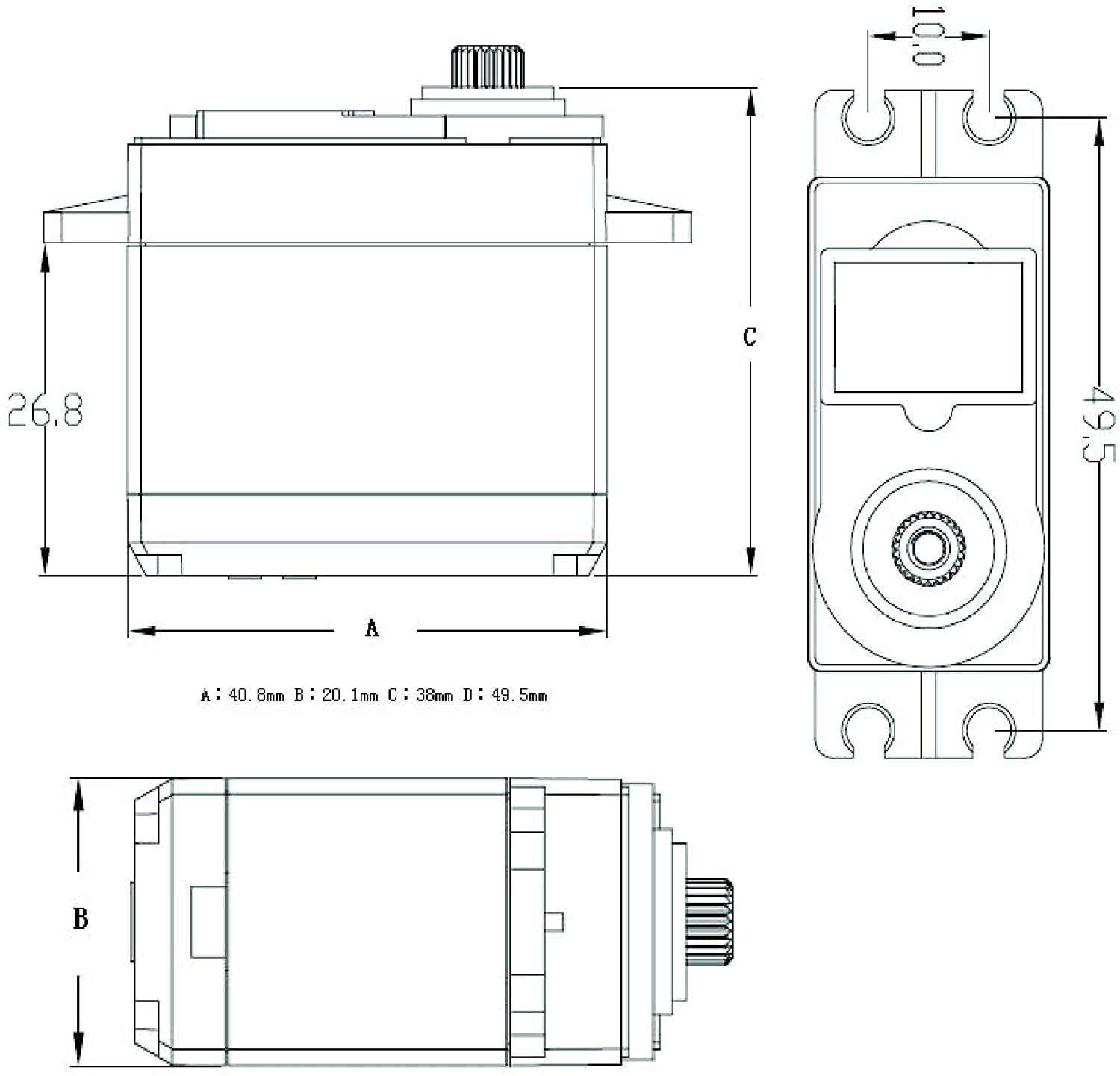

Dimensions: 40.8 × 20.1 × 38 mm
Weight: 36 g

Operating Speed:
0.18sec/60degree (4.8V)
0.16sec/60degree (6V)

Stall Torque:
3kg.cm/41.74oz.in(4.8V)
3.2kg.cm/44.52oz.in(6V)

Operating Voltage: 4.8V~6V
Control System: Analog
Direction: CCW
Operating Angle: 120 degree
Required Pulse: 900us-2100us
Bearing Type: 2BB
Gear Type: Plastic
Motor Type: Metal
Connector Wire Length: 30 cm

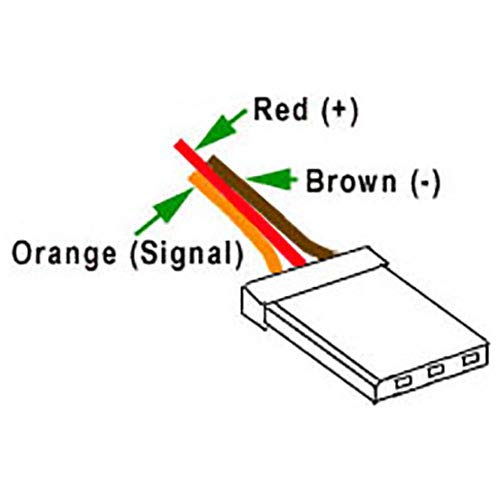

JR style connector (Futaba compatible)
