3 Pack of 2 Channel 5V Relay Module With Low Level Trigger, Can Be Controlled By Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic

22RLMOD2CH5VPK3
$29.99
$29.99
Sold out
Shipping calculated at checkout.

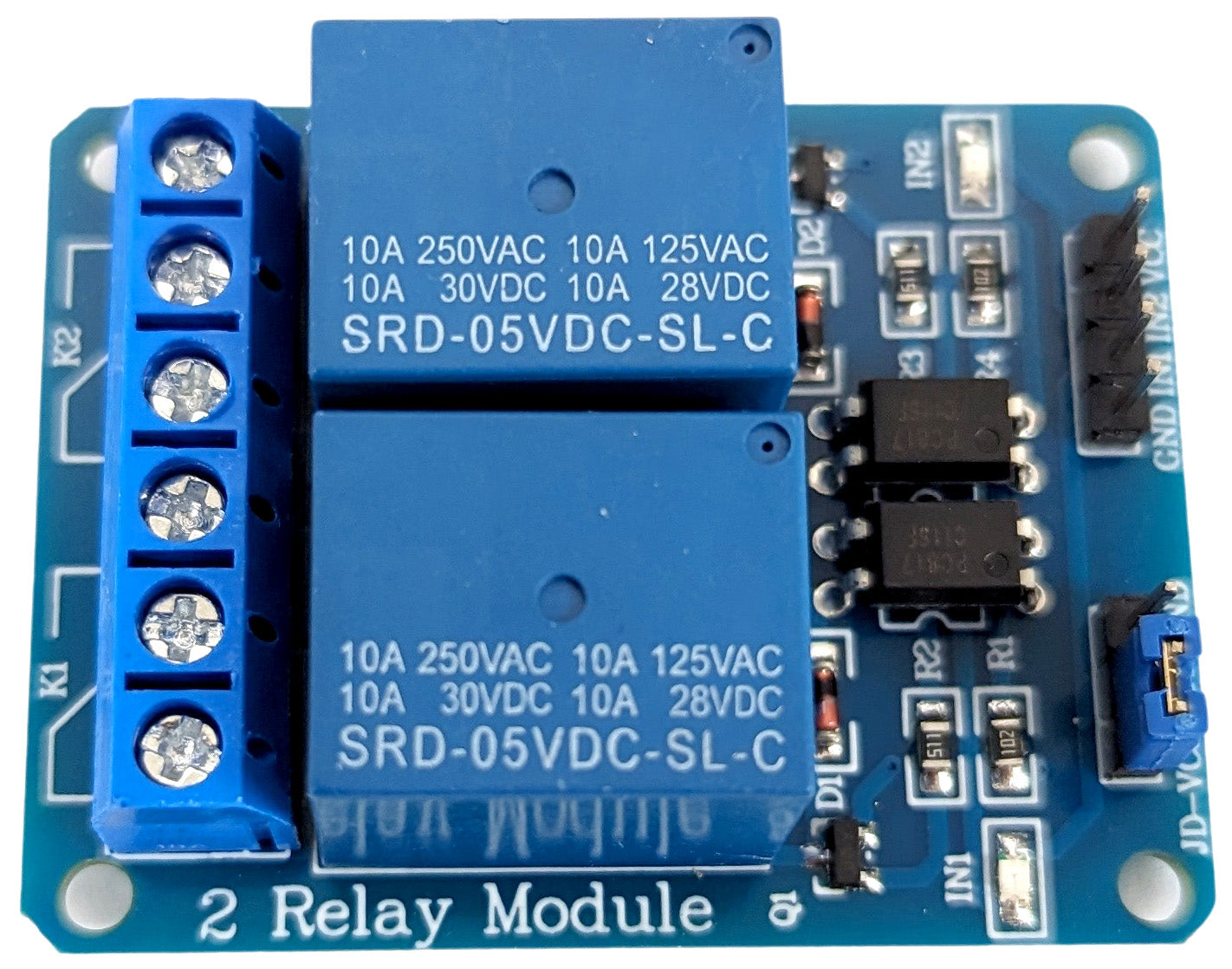

This is a 3 Pack of 5V 2-Channel Relay interface board. It cab be used to control various appliances and other equipment with large current. It can be controlled directly by Micro-controller (Raspberry Pi, Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).


Specifications:

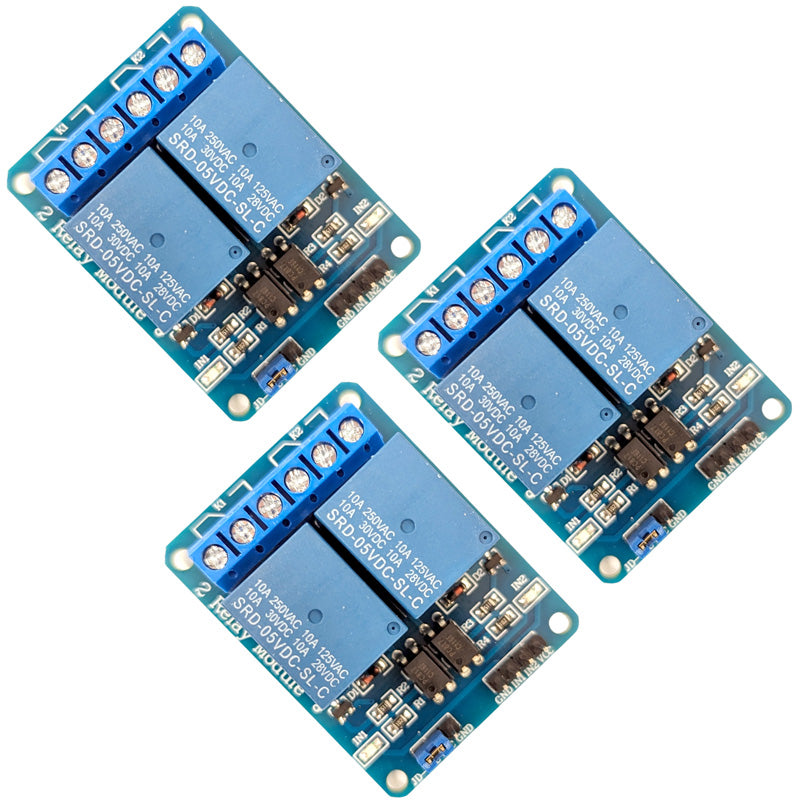

  • Pack of 3
  • 5V, 2 Channel Relay Interface Board
  • Equipped with high current relay
  • AC250V 10A ; DC30V 10A
  • Standard interface that can be controlled directly by micro-controller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic)
  • Indication LED’s for Relay output status
  • It activates on low level
  • There are 4 fixing screw holes around the board, the hole diameter is 3.1mm, which is convenient for installation and fixing.
  • The relay uses high-quality relay, single pole double throw.
  • Optocoupler isolation, good anti-interference.
  • Low level pull-in, high level release. The status indicator light is on when it is engaged, and it is off when it is released.
  • PCB Color: Black
  • Weight: 31g

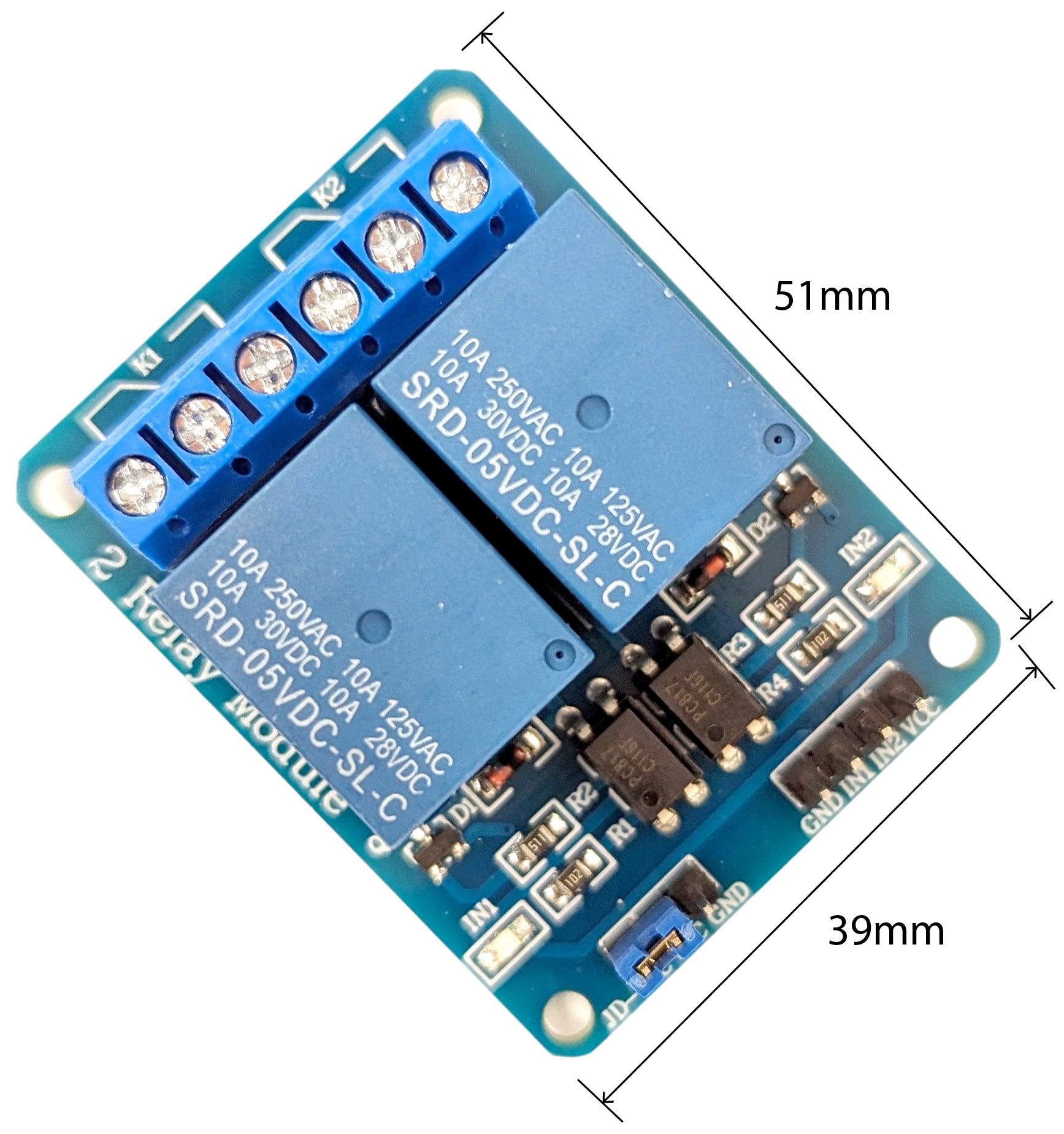

  • Dimensions (L x W x H): 51mm x 39mm x 19mm
