3 Pole 4 Position Rotary Switch (3P4T), 15 Solder Lugs, 6mm Slotted Knurl Shaft, Panel Mount 9mm Hole

17ROT3-4
Regular price
$2.99
Sale price
$2.99
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

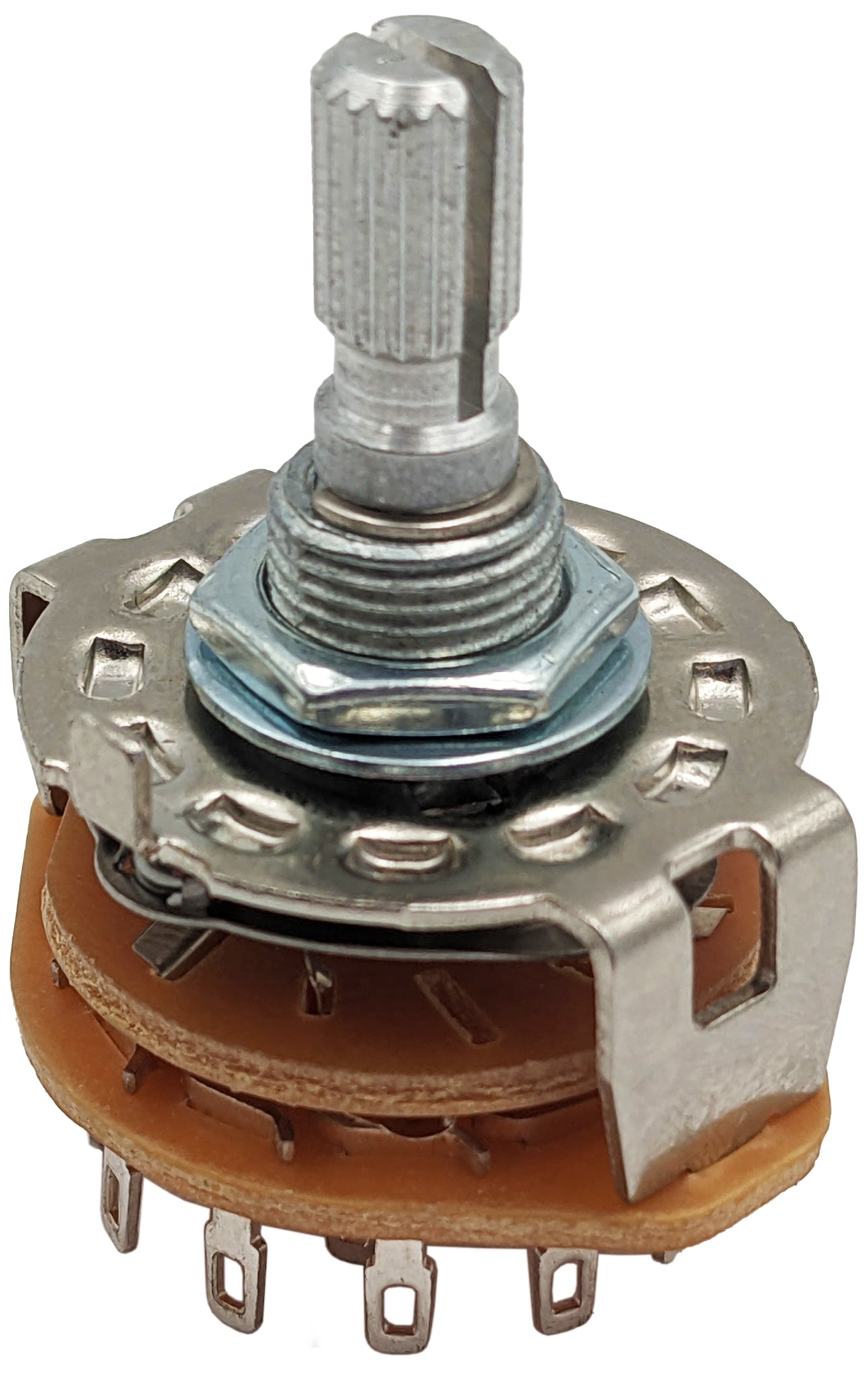

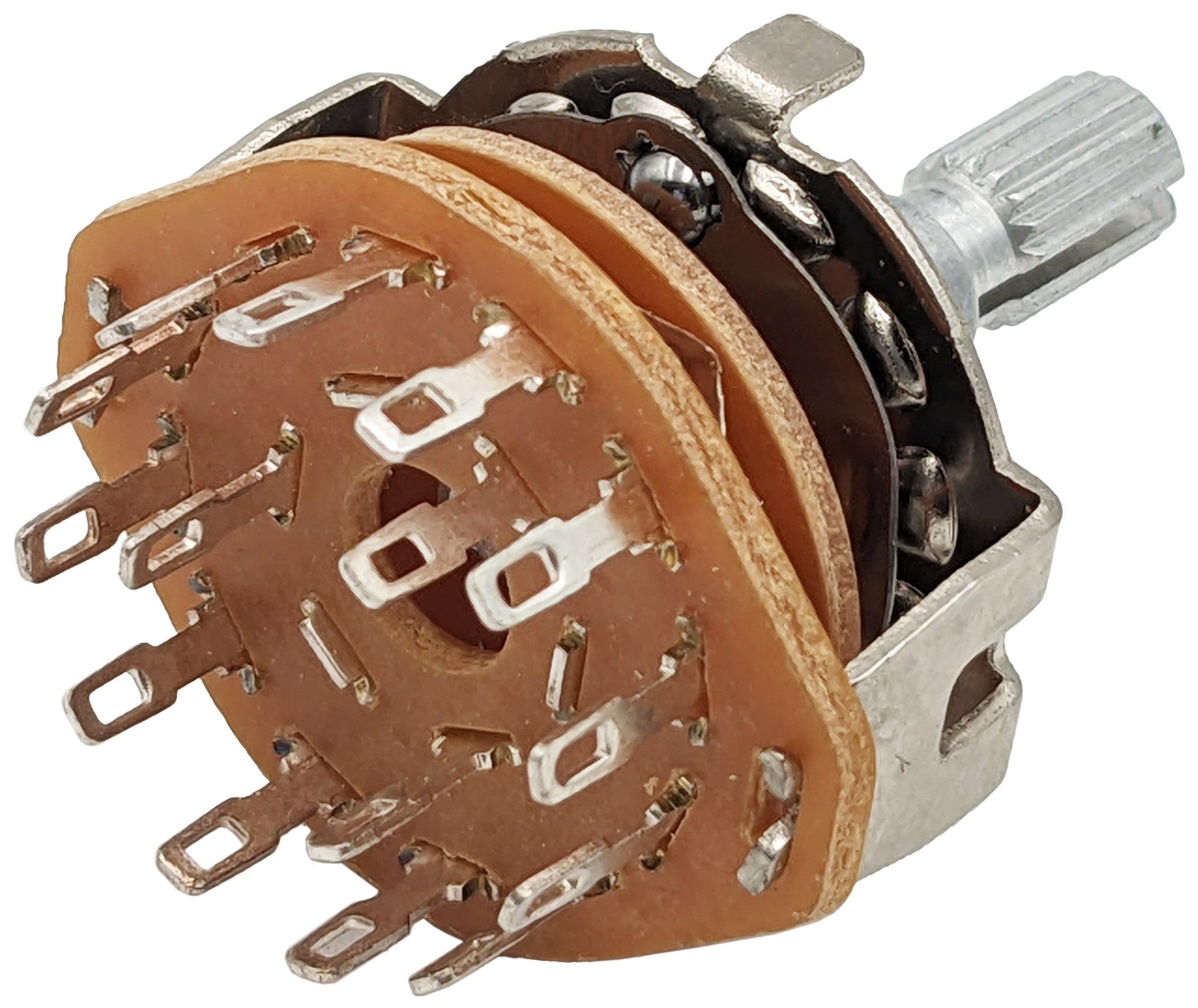

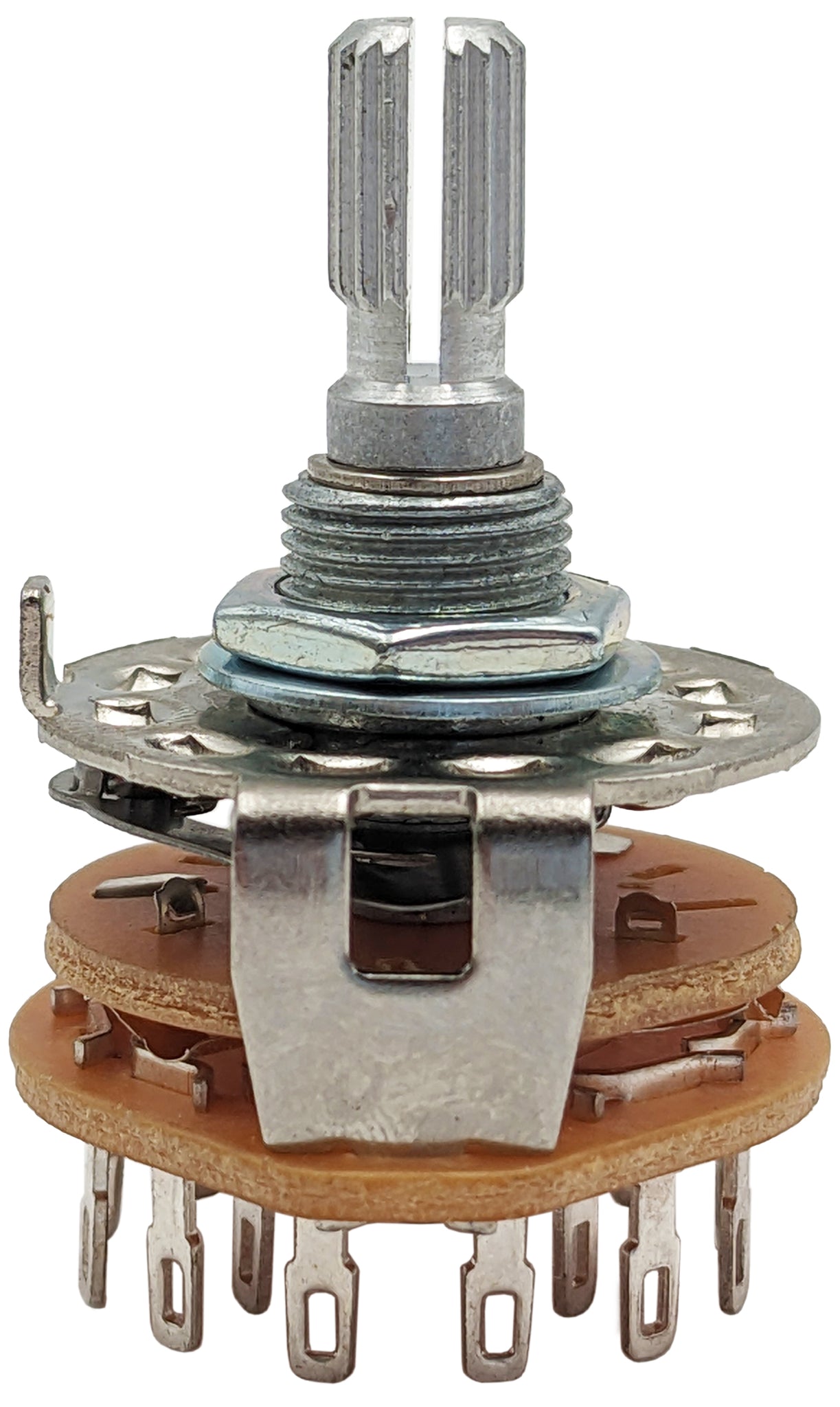

This is a 3 pole, 4 position rotary switch (3P4T) with 15 solder lug terminals and shorting make/break contacts. It has a 6 mm slotted knurl shaft 13 mm long and panel mounts through a 9 mm hole. The body is about 30 mm wide and 33 mm tall (excluding lugs).

Key Features

  • 3 pole, 4 positions (3P4T)
  • Shorting make/break contacts
  • Slotted knurl shaft, 6 mm diameter × 13 mm long
  • Panel mount, fits a 9 mm mounting hole
  • 15 solder lug terminals
  • About 30 mm wide × 33 mm tall

Specifications

Poles 3
Positions 4
Shaft Slotted knurl, 6 mm dia. × 13 mm
Mounting Panel, 9 mm hole
Terminals Solder lug (15 lugs)
Contact style Shorting make/break
Size Approx. 30 mm W × 33 mm H (excluding lugs)
SKU 17ROT3-4

What's Included

  • 1 × 3P4T rotary switch

Ideal For

Selector switches for test gear, audio sources, amplifier tone/range controls and hobby panels.

Frequently Asked Questions

How do I read the lugs?
There is one common lug per pole (3) plus one lug per position on each pole, for 15 lugs total.

What is a knurled shaft for?
The ridges grip a push-on knob, and the slot lets a split-shaft knob hold tightly.
